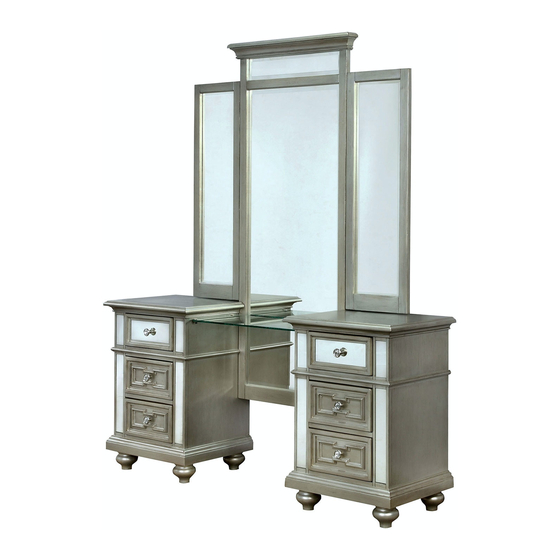

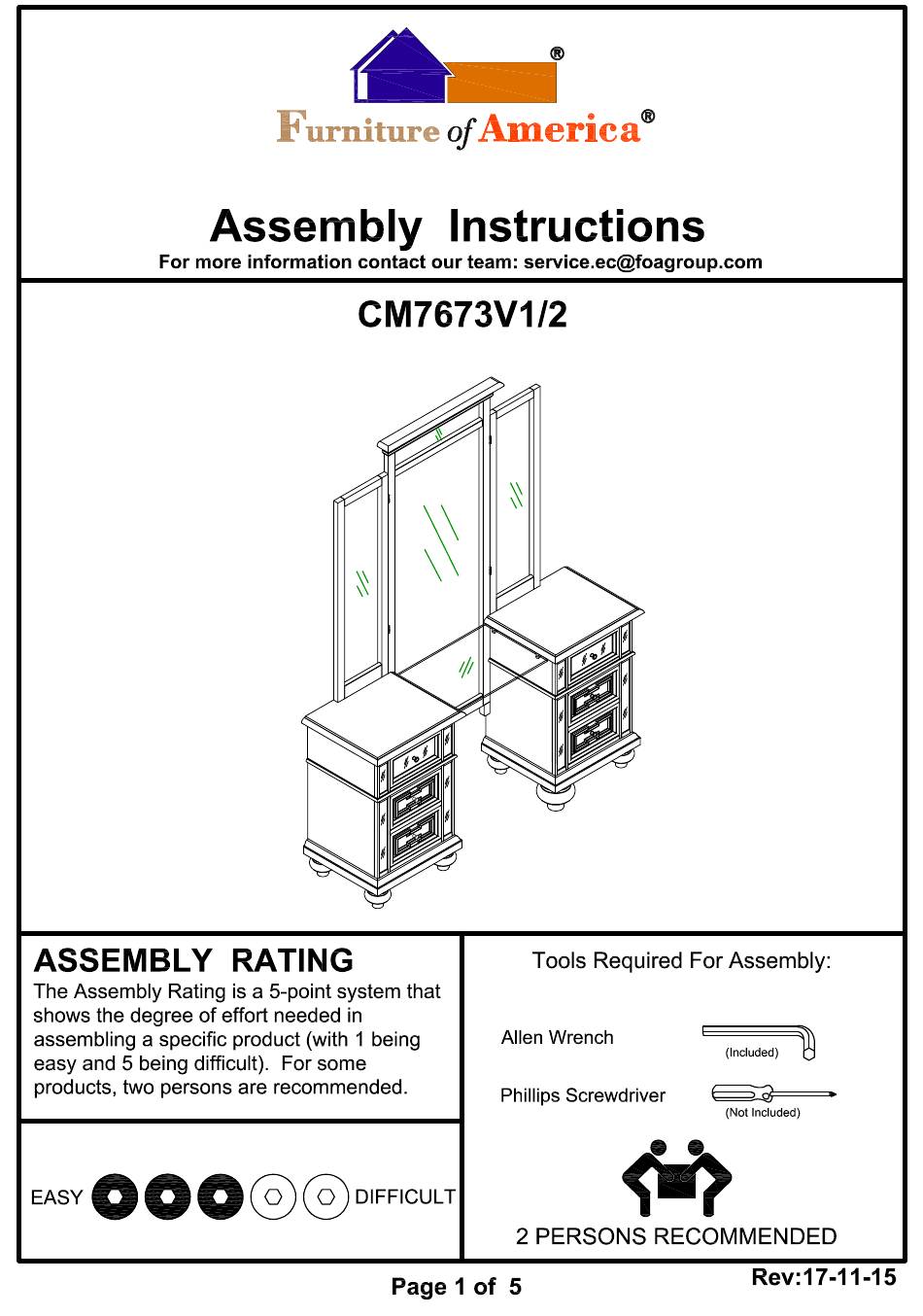

Furniture of America CM7673V1 Assembly Instructions Manual
Hide thumbs
Also See for CM7673V1:
- Assembly instructions manual (15 pages) ,
- Assembly instructions manual (15 pages)
Related Manuals for Furniture of America CM7673V1
Summary of Contents for Furniture of America CM7673V1
- Page 4 Attach foot (#3) to the bottom of the cabinets (#2R/L). #2R/L Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align support rails (#4) to the holes of the mirror (#1), then secure by using bolts (#A).
- Page 5 Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align the support rails (#4) with mirror (#1) to the holes of the cabinets (#2R/L). Secure by using bolts (#A). Insert shelf pins (#E) to the holes of the cabinets (#2R/L).
- Page 9 Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align legs (#2) to the holes of the seat (#1), then secure by using bolts (#A).
