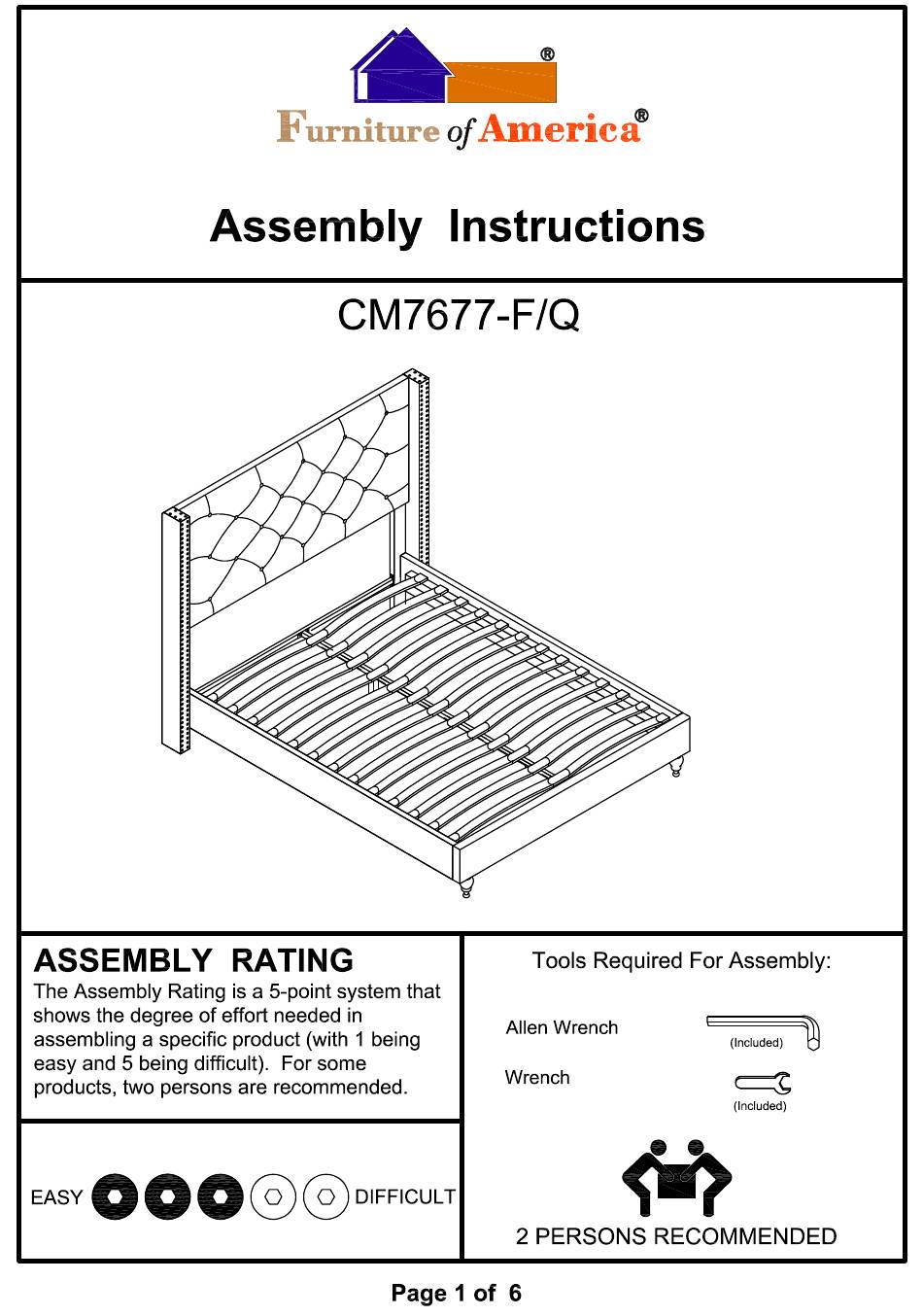

- Page 1 For more information contact our team: service.ec@foagroup.com Rev: 16-12-13...
- Page 4 1) Remove headboard legs (#5) from the back compartment of the headboard (#1). 2) Prepare 4 bolts assembly by inserting lock washer (#G), then flat washer (#F) onto bolts (#C). Align headboard legs (#5) to the holes of the headboard (#1), then secure with bolts (#C).
- Page 5 Align side rails (#3) to the holes of the headboard (#1) and footboard (#2), then secure bolts (#B) that contains lock washer (#G) and flat washer (#E). Prepare 8 bolts assembly by inserting lock washer (#G), then flat washer (#E) onto bolts (#C).
- Page 6 Prepare 8 bolts assembly by inserting lock washer (#G), then flat washer (#E) onto bolts (#B,C). Align support rails (#8) to the holes of the footboard (#2) and headboard leg support (#10). Secure support rails (#8) to the headboard leg support (#10) with bolts (#C).
- Page 7 For more information contact our team: service.ec@foagroup.com Rev: 16-12-13...
- Page 10 1) Remove headboard legs (#5) from the back compartment of the headboard (#1). 2) Prepare 4 bolts assembly by inserting lock washer (#G), then flat washer (#F) onto bolts (#C). Align headboard legs (#5) to the holes of the headboard (#1), then secure with bolts (#C).
- Page 11 Align side rails (#3) to the holes of the headboard (#1) and footboard (#2), then secure bolts (#B) that contains lock washer (#G) and flat washer (#E). Prepare 8 bolts assembly by inserting lock washer (#G), then flat washer (#E) onto bolts (#C). Align support legs (#9) to the holes of the support rails (#8), then secure with bolts (#C) and hex hut (#H).
- Page 12 Prepare 8 bolts assembly by inserting lock washer (#G), then flat washer (#E) onto bolts (#B,C). Align support rails (#8) to the holes of the footboard (#2) and headboard leg support (#10). Secure support rails (#8) to the headboard leg support (#10) with bolts (#C).
- Page 13 For more information contact our team: service.ec@foagroup.com...
- Page 16 1) Remove headboard legs (#5) from the back compartment of the headboard (#1). 2) Prepare 4 bolts assembly by inserting lock washer (#G), then flat washer (#F) onto bolts (#C). Align headboard legs (#5) to the holes of the headboard (#1), then secure with bolts (#C).
- Page 17 Align side rails (#3) to the holes of the headboard (#1) and footboard (#2), then secure bolts (#B) that contains lock washer (#G) and flat washer (#E). Attach slats (#7) with end caps (#H), then place the slats onto the side rails (#3).
