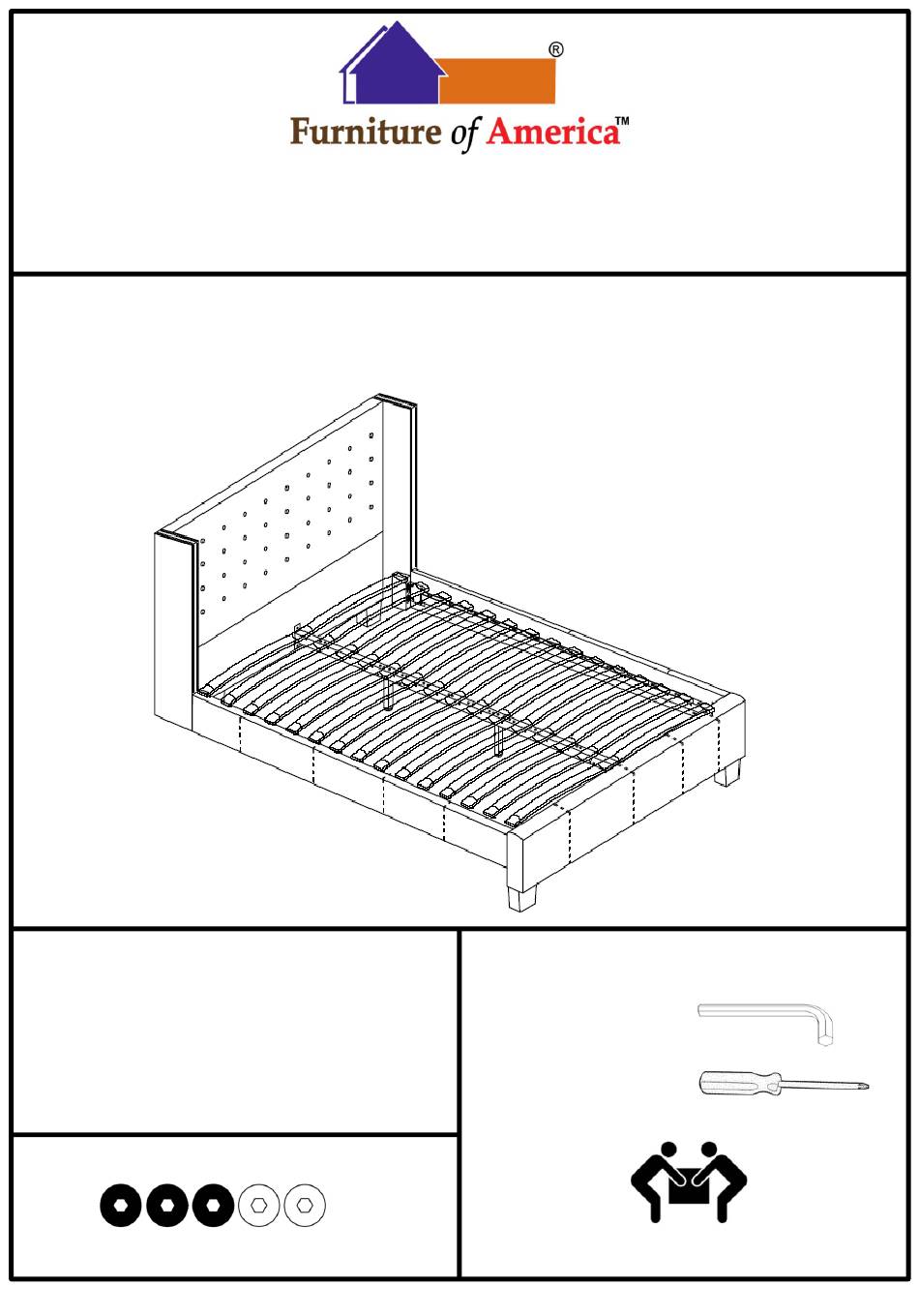

Assembly Instructions
CM7689Q
ASSEMBLY RATING
Tools Required for Assembly:
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
Allen Wrench
(Included)
assembling a specific product (with 1 being
easy and 5 being difficult). For some
Phillips Screwdriver
products, two persons are recommended.
(Not Included)
DIFFICULT
EASY
2 PERSONS RECOMMENDED
Page 1 of 8
Rev.14-09-15
Advertisement
Related Manuals for Furniture of America CM7689Q
Summary of Contents for Furniture of America CM7689Q
- Page 1 Assembly Instructions CM7689Q ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult). For some Phillips Screwdriver products, two persons are recommended.
- Page 2 Page 2 of 8...
- Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List #2R x 1 pc #1 x 1 pc Right HB Side Headboard #2L x 1 pc #3 x 2 pcs Left HB Side Side Rail...
-
Page 4: Hardware List
Due to the size and/or weight of this product, it is highly recommended that the assembly should be done near the area of its intended location. Make sure you have enough space to move around during the assembly. ALWAYS have at least two people to help with transporting and assembling the product to avoid any potential injury and/or damage. - Page 5 Align the brackets of the right HB side (#2R) and left HB side (#2L) with the brackets on the sides of the headboard (#1). Make sure the parts are firmly secured. #I x 2 pcs #J x 12 pcs Align the bracket (#I) with the pre-drilled holes on the headboard (#1) and the right HB side (#2R).
- Page 6 Align the two HB/FB legs (#6) #D x 4 pcs with the pre-drilled holes #E x 4 pcs underneath the headboard #F x 4 pcs (#1). Prepare 2 bolt assemblies by inserting FIRST the lock washer (#F) onto the bolt (#D) and then the flat washer (#E) onto the SAME bolt (#D), in that order.
- Page 7 Prepare 4 bolt assemblies by inserting FIRST the lock washer (#F) onto the bolt (#A) and then the flat washer (#E) onto the SAME bolt (#A), in that order. Insert the bolt assemblies through the pre-drilled holes of the right HB side (#2R) and the left HB side (#2L) using the Allen wrench (#K) but expose about ½”...
- Page 8 Prepare a bed slat using two slats (#7), one center connector (#G) and two end caps (#H). See diagram for the correct sequence in connecting those parts. Align the two end caps (#H) with the pre-drilled holes on each side of the side rails (#3) and press firmly down on both end caps (#H) to lock with the side rails (#3).
