Summary of Contents for Furniture of America CM7650DK-Q

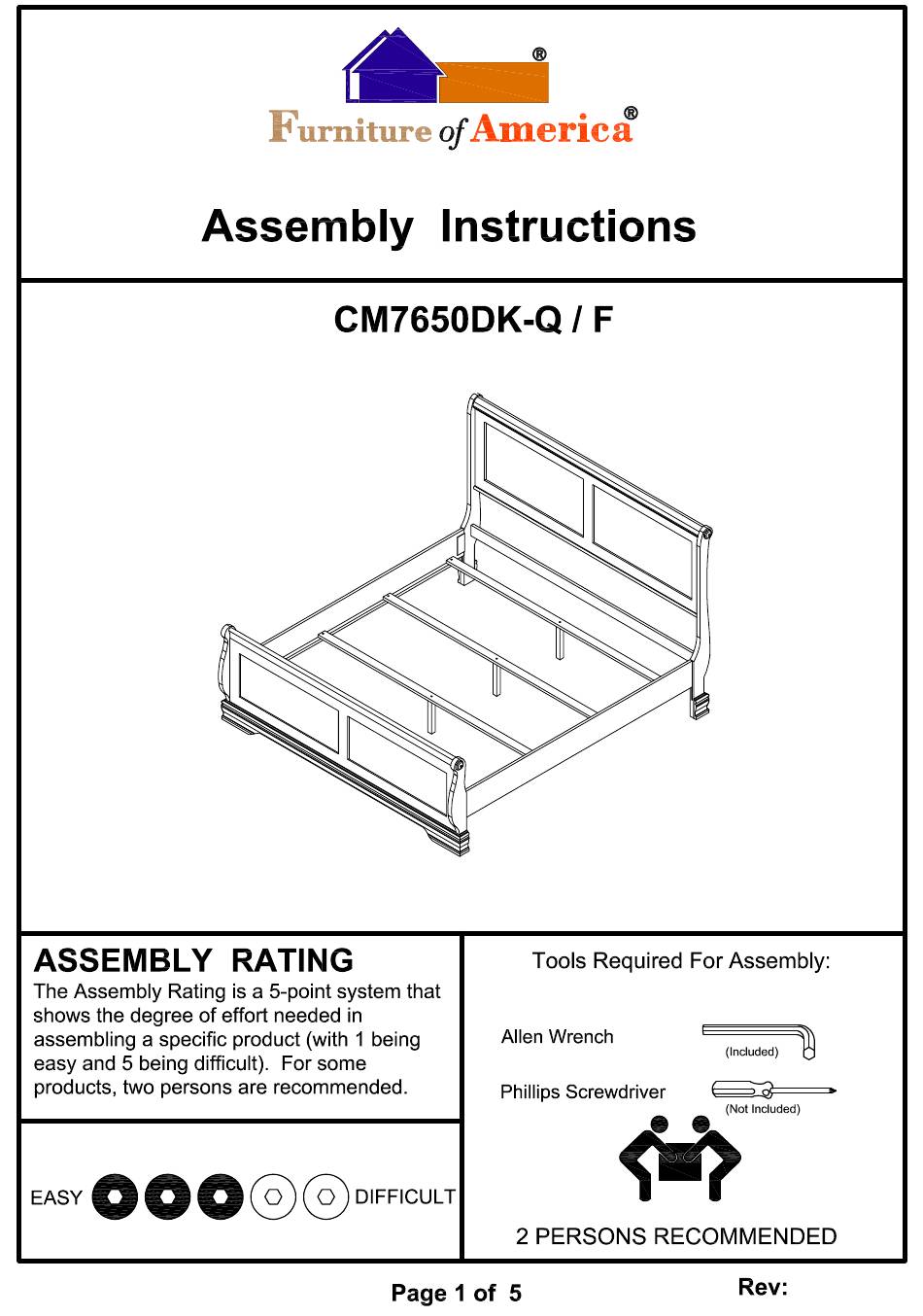

- Page 1 16-07-28...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #A x 8 pcs #1 x 1pc Headboard Screw: #4 x 1-1/4" #2 x 1pc Footboard #3 x 2pcs Side Rail #4 x 4pcs...
- Page 4 Insert the hooks on the ends of the side rails (#3) into the slots along the headboard (#1) and footboard (#2). Make sure they are firmly secured. Insert the threaded ends of the slat support legs (#5) into the pre-drilled holes along the sides of the slats (#4).
- Page 5 Align the ends of the slats (#4) to the pre-drilled holes located on the inner sides of the side rails (#3). Insert a screw (#A) into each end and secure using a Phillips screwdriver. Make sure all parts are firmly secured.
- Page 6 16-07-28...
- Page 8 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 8 pcs Headboard Screw: #4 x 1-1/4" #2 x 1pc Footboard #3 x 2pcs Side Rail #4 x 4pcs...
- Page 9 Insert the hooks on the ends of the side rails (#3) into the slots along the headboard (#1) and footboard (#2). Make sure they are firmly secured. Insert the threaded ends of the slat support legs (#5) into the pre-drilled holes along the sides of the slats (#4).
- Page 10 Align the ends of the slats (#4) to the pre-drilled holes located on the inner sides of the side rails (#3). Insert a screw (#A) into each end and secure using a Phillips screwdriver. Make sure all parts are firmly secured.
