Summary of Contents for TMC aquaGro Biome

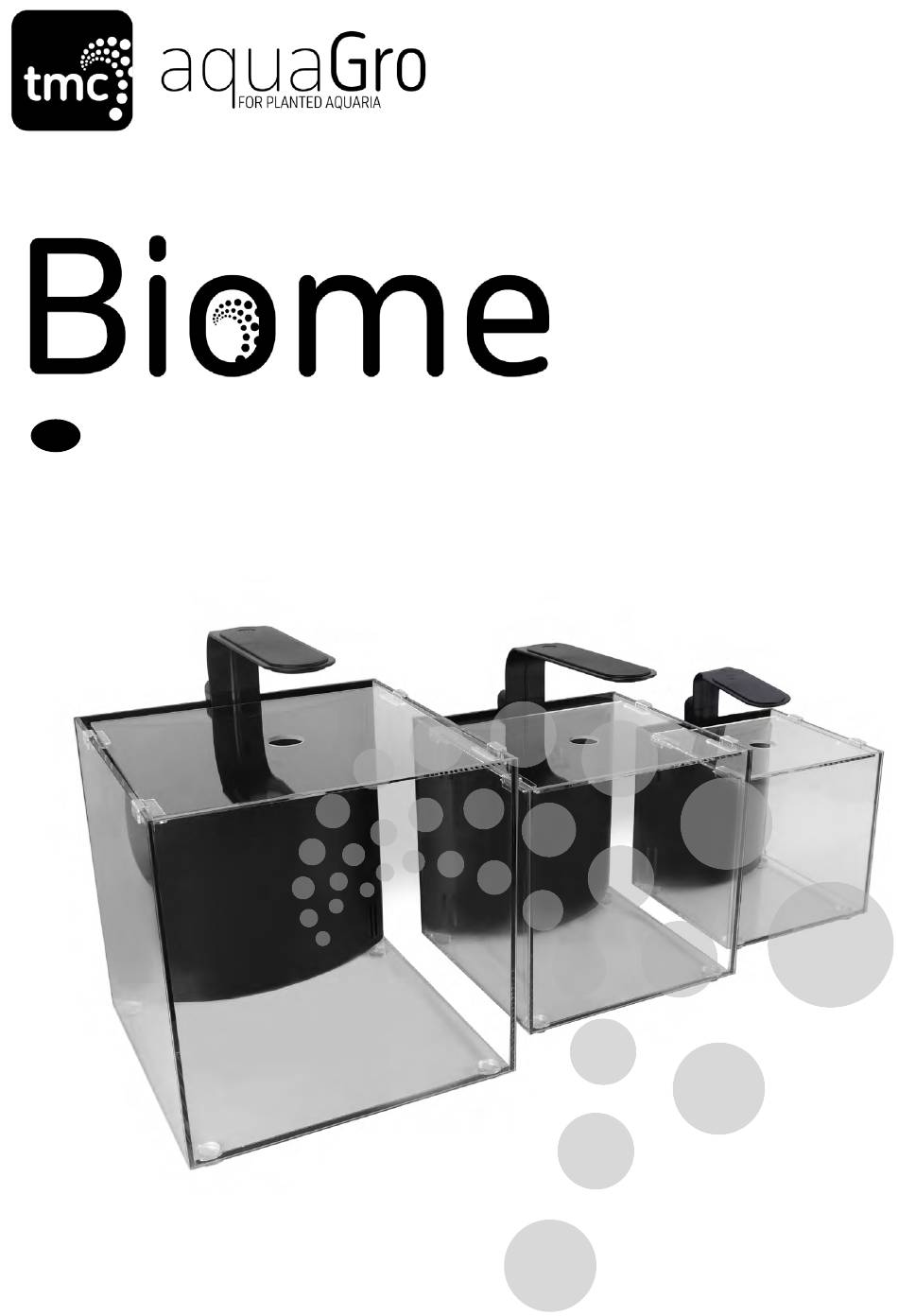

- Page 1 Instructions...
-
Page 2: Table Of Contents
INDEX Specifications page 3 Parts List page 3 IMPORTANT SAFETY INFORMATION page 4-5 Assembly page 6 LED Light page 8 Heater page 10 Operation page 11 Livestock & tips page 13 Plants for beginners page 15... -
Page 3: Specifications
SPECIFICATIONS Code 3230 3231 3232 Model AG Biome 8l AG Biome 15l AG Biome 27l Volume 8 litre 15 litre 27 litre PSU Voltage 220-240V 50/60Hz Voltage LED light power Pump Max. power Pump flow rate 210 l/h 210 l/h 270 l/h Heater Max. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Please Read Carefully CAUTION: Always isolate all electrical appliances from the mains electricity before installing or carrying out any maintenance to the Biome tank. CAUTION: Power to the water circulation pump, heater and LED must be supplied through a Residual Current Device (RCD - not supplied) with a rated residual operating current not exceeding 30mA. -
Page 6: Assembly
ASSEMBLY The Biome is supplied almost fully assembled. After unpacking and before installation you must: 1. Remove all accessories from the Biome. 2. Remove filter sponges (2) from the rear filtration chamber and thoroughly rinse both them and the Biome with warm tap water. 3. - Page 7 8. Install and secure the heater (10) in the rear pump chamber (B) and place the lid on (9). 9. Position the LED lighting system (8) in a central location on the back wall of the rear filtration chamber and carefully tighten the securing screw. 10.
-
Page 8: Led Light
LED LIGHT Changing lighting mode The LED light is set to Mode 1 as default once switched on after connecting it to the power for the first time. To change lighting mode: BUTTON • Touch the button on top of the LED light (see image). •... -
Page 9: Heater
HEATER IMPORTANT: The heater must remain fully submerged at all times. Failure to do so will damage the heater and result in over-heating of the aquarium water and loss of livestock. If removing the heater from the Biome tank isolate it from the power supply and wait approximately 15-20 minutes for it to cool, before removing it. -
Page 10: Operation
OPERATION 1. Once the Biome, the rear filtration chamber (C) and the rear pump chamber (B) are full of water, plug in and switch on the power. 2. When the water circulation pump (3) is on, water will be drawn into the rear filter chamber (C) via the water inlets (A) and will pass through the filter sponges and will return back into the tank via the water outlet and the directional ‘duck bill’... - Page 11 MAINTENANCE CAUTION: To avoid possible electric shock, special care should be taken when using electrical appliances near water. CAUTION: Always isolate all components from mains electricity before installing or carrying out any maintenance to the Biome. 1. IMPORTANT: To operate efficiently, the water circulation pump (3) and heater (10) must be operated 24 hours a day.
-
Page 13: Livestock & Tips
LIVESTOCK & TIPS 1. Regular water changes of up to 25% are highly recommended, initially on a weekly basis and subsequently depending on water quality. 2. All livestock must be carefully acclimated before being introduced into the tank. 3. Introduce all livestock very slowly over a number of weeks. Smaller tanks are more sensitive to changes in water parameters and therefore it is not advisable to introduce more than one animal at a time. - Page 14 Biome 15 Litre Invertebrates Neocaridina shrimps (Red Cherry, Blue Dream, Yellow, Sakura…) Caridina shrimps (Crystal Red, Crystal Black, Amano shrimp, Blue Bolt, Tigers…) Orange Dwarf Crayfish Snails (Staghorn snail, Neritina, Vittina, Ramshorn) Biome 27 Litre Fish Celestial Danios Endler’s livebearer Fork-tailed blue-eye - Pseudomugil furcatus Kubotai Rasbora, Microdevario kubotai Green tetras, Paracheirodon simulans...
-
Page 15: Plants For Beginners
PLANTS FOR BEGINNERS Epiphytes: Anubias nana/mini/bonsai Amall Bucephalandras Ferns: Bolbitis, Microsorum Mosses: Christmas Moss Weeping Moss Pelia, Taiwan Moss, Phoenix Moss Spiky Moss Flame Moss Floating plants: Red root floater Salvinia, Azolla Carpet plants: Marsilea crenata, Marsilea hirsuta Montecarlo Mini hairgrass Lilaeopsis brasiliensis Stem plants: Rotalas,... - Page 16 tropicalmarinecentre.com info@tropicalmarinecentre.co.uk Europe Solesbridge Lane Rua Cidade de Paris 6 Chorleywood Parque Industrial do Arneiro Hertfordshire WD3 5SX 2660-456 São Julião do Tojal England Portugal Call +44 (0) 1923 284151 Call +351 219 739 140...
