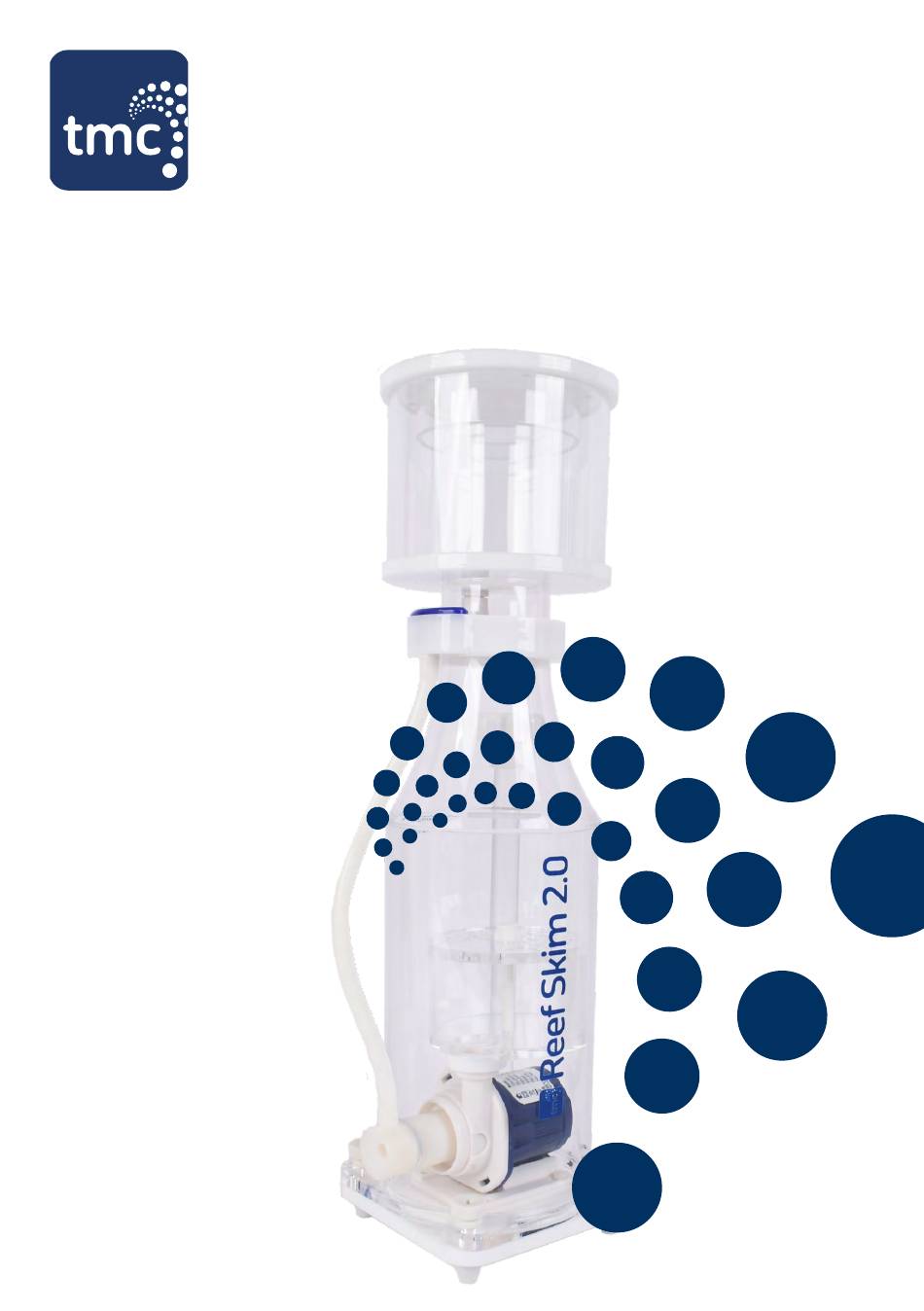

- Page 1 Reef Skim 2.0 ALL MODELS INSTRUCTIONS ENGLISH ONLY...
-
Page 2: Specification
SPECIFICATION Code 3381 3382 3383 Model Reef Skim 2.0 DC 500 Reef Skim 2.0 DC 750 Reef Skim 2.0 DC 1250 Min. Power 2.6W Max. Power Voltage Max Amp 0.75A 0.8A 0.83A Dimensions 109x109x413.5mm 139x139x443.5mm 159x159x491.5mm Suitable for 250-500l* 500-750l*... - Page 3 19.x4 PARTS LIST 12. Collection cup drain port with cap fitted 1. Main skimmer body 13. Collection cup drain assembly 2. Water outlet 14. Pump 3. Water outlet adjustment knob 15. Bubble diffuser assembly A, B, C 4. Integrated air silencer 16.
- Page 4 INSTRUCTIONS FOR INSTALLATION AND USE Important Safety Information - Please Read Carefully • Always isolate from the mains electricity before installing or carrying out any maintenance to the Reef Skim 2.0 unit. • Power to the Reef Skim 2.0 unit must be supplied through a Residual Current Device (RCD) with a rated residual operating current not exceeding 30mA.
- Page 5 FULL SKIMMER ASSEMBLY / RE-ASSEMBLY Reef Skim 2.0 all models The Reef Skim 2.0 comes almost fully assembled. For initial set up or re-assembly after maintenance/cleaning follow photos below. Reef Skim 2.0 500 Reef Skim 2.0 750 and 1250...
-
Page 7: Installation
1. Place the skimmer in the first section of the sump,or the section where the aquarium drain pipework is. We recommend you use mechanical filtration on the end of the drain pipework such as the TMC Filter Bag System (sold separately). This will ensure no large pieces of detritus are sucked into the pump which may damage the impeller and/or pump. -
Page 8: Initial Operations
INITIAL OPERATIONS Caution: Turn the water outlet adjustment knob CLOCKWISE as far as you can (to lower the water level as far as possible) BEFORE turning on the skimmer. Reef Skim 2.0 units have very powerful pumps and flooding can occur quickly if the water level is not correctly set. -
Page 9: Maintenance
MAINTENANCE Caution: To avoid possible electric shock, special care should be taken when using this electrical appliance near water. Caution: Always isolate the pump from mains electricity before installing or carrying out any maintenance to the skimmer. Reef Skim 2.0 protein skimmers should need very little adjustment and maintenance once set up correctly. However due to salt deposits and the high calcium level in marine aquariums, it is common for deposits to build up and therefore it is recommended that the skimmer and venturi are cleaned periodically with a bottle brush or similar. -
Page 10: Troubleshooting
TROUBLE SHOOTING Problem: THE SKIMMER IS NOT REMOVING ANY WASTE 1. Possible Cause: Water level is too low or skimmer is positioned in water that is too shallow. Solution: Alter outlet level adjustment knob accordingly or raise skimmer in sump. 2. - Page 11 PUMP INSTRUCTIONS FOR INSTALLATION AND USE Important Safety Information - Please Read Carefully Caution: Do not use any power supply other than the one supplied with your genuine Reef Pump. The use of a different power supply will invalidate the guarantee. Caution: The Reef Pump controller is not waterproof and therefore must not be mounted above the aquarium or sump, or in any position where it may accidentally fall into water or be splashed by water.
- Page 12 Model 500 Pump Model 750 and 1250 Pump PARTS LIST 1. Pump inlet 2. Pump outlet 3. Pump cover 4. Pump needle wheel impeller 5. Pump body 6. Pump base 7. Power supply unit (PSU) 8. Controller...
-
Page 13: Feed Mode
OPERATION OF THE DC CONTROLLER LEVEL DISPLAY 01: Min. power 10: Max. power CONSTANT STREAM MODE FEED MODE Variable Speed Control With 10 different speed settings to allow precise adjustment of water flow and optimum performance. When the Reef Pump is switched on, the LCD screen on the controller will display To increase the speed of the pump press the INTENSITY button until you reach the required level (maximum level will be displayed on the LCD screen as To decrease keep pressing the Intensity button to loop to reach the speed desired. - Page 14 2. The impeller should be regularly checked for signs of degradation and replaced as necessary. NOTE: The impeller is not covered under the guarantee. 3. Impellers and a range of other spare parts are available from your local TMC stockist. TROUBLE-SHOOTING If the pump fails to operate: •...
- Page 16 tropicalmarinecentre.com info@tropicalmarinecentre.co.uk Europe Solesbridge Lane Rua Cidade de Paris 6 Chorleywood Parque Industrial do Arneiro Hertfordshire WD3 5SX 2660-456 São Julião do Tojal England Portugal Call +351 219 739 140 Call +44 (0) 1923 284151...
