- Page 1 Reef Skim 100nano INSTRUCTIONS ENGLISH ONLY...

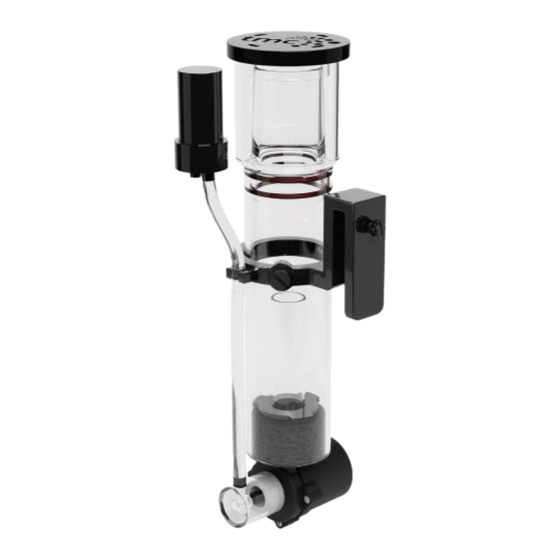

- Page 2 SPECIFICATION Code 1433 Model Reef Skim 100nano Suitable for Aquarium up to 100l Power. Pump Voltage 5V DC (USB) PSU Voltage 100-240V 50/60Hz Dimensions 120 x 85 x 300mm Approx. PART LIST 1. Main skimmer body 2. Collection cup 3. Collection cup lid 4.
- Page 3 INSTRUCTIONS FOR INSTALLATION AND USE Important Safety Information - Please Read Carefully • Always isolate from the mains electricity before installing or carrying out any maintenance to the Reef Skim unit. • Power to the Reef Skim unit must be supplied through a Residual Current Device (RCD) with a rated residual operating current not exceeding 30mA.
- Page 4 Failure to do so will result in operating prob- lems and/or leaks. INSTALLATION The Reef Skim 100nano unit is designed to be used inside the aquarium or sump only. To ensure that the collection cup can be easily removed for cleaning, allow at least 50mm clear- ance above the collection cup lid.
- Page 5 INITIAL OPERATION 1. Once correctly assembled and positioned, plug in and switch on the pump. 2. Allow the pump to run for 24-48 hours to allow the skimmer to establish itself before adjusting it to a wetter or dry skim. 3.
- Page 6 MAINTENANCE Caution: To avoid possible electric shock, special care should be taken when using this electrical appliance near water. Caution: Always isolate the pump from mains electricity before installing or carrying out any maintenance to the skimmer. Reef Skim protein skimmers should need very little adjustment and maintenance once set up correctly. However due to salt deposits and the high calcium level in marine aquariums it is common for deposits to build up and therefore it is recommended that the skimmer and venturi are cleaned periodically with a bottle brush or similar.
- Page 7 Problem: Pump is not operating correctly Caution: Always isolate the pump from mains electricity before installing or carrying out any maintenance to the pump and refer to the pump operation, maintenance and safety instructions supplied with the pump. 1. Possible Cause: Pump is not plugged in. Solution: Ensure pump is connected to power supply and switched on.
- Page 8 tropicalmarinecentre.com info@tropicalmarinecentre.co.uk Iberia Solesbridge Lane Rua Cidade de Paris 6 Chorleywood Parque Industrial do Arneiro Hertfordshire WD3 5SX 2660-456 São Julião do Tojal England Portugal Call +351 (0) 219 739 140 Call +44 (0) 1923 284151...
