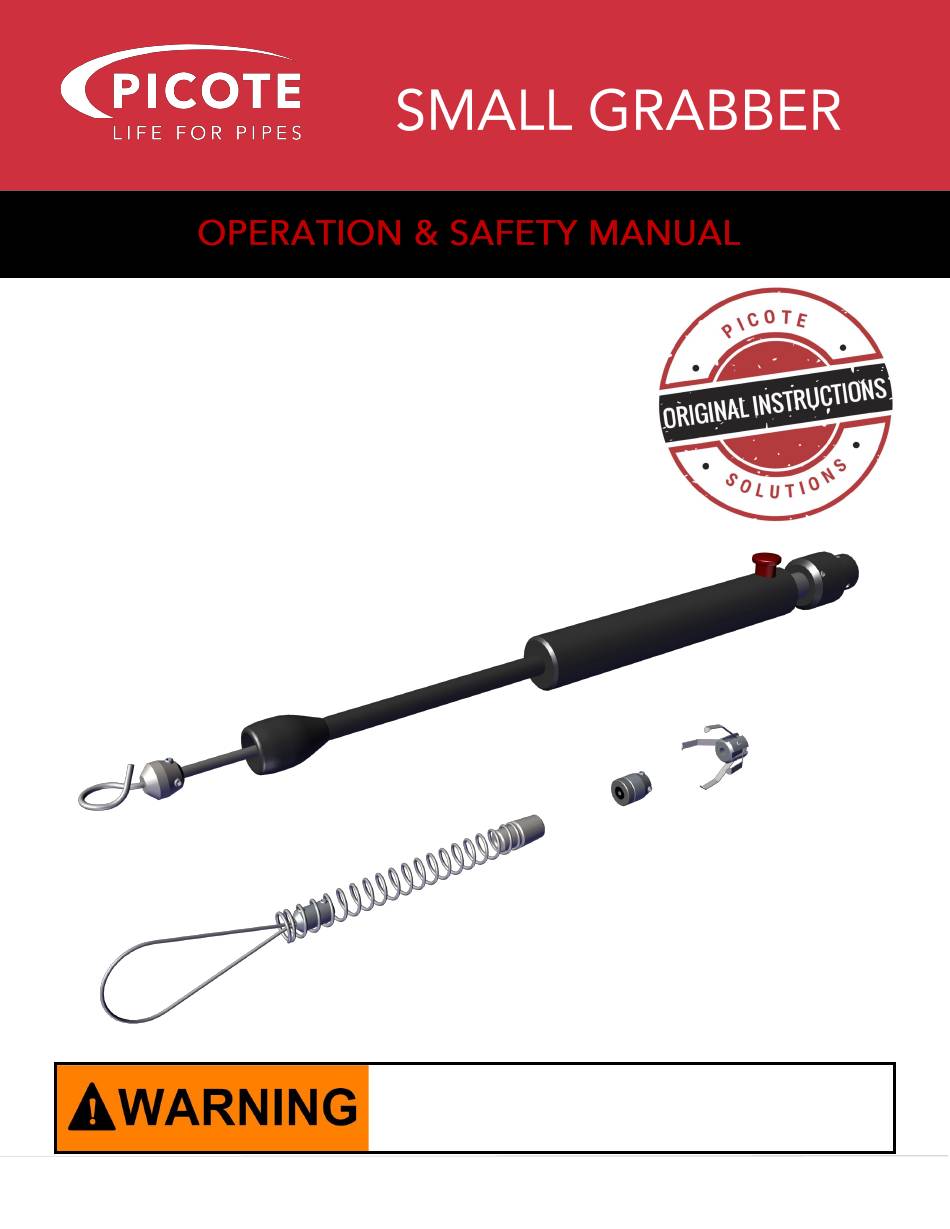

PICOTE SMALL GRABBER Operation & Safety Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Picote Solutions Oy Ltd

MINI CLEANER

MINI MILLER 8/16 | MINI MILLER +C 8/16

These instructions are for your personal safety. Always ensure that you

have read and understood these instructions before using the equipment.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

www.picoteinstitute.com

Table of Contents

Need help?

Do you have a question about the SMALL GRABBER and is the answer not in the manual?

Questions and answers

Summary of Contents for PICOTE SMALL GRABBER

Page 1 MINI MILLER 8/16 | MINI MILLER +C 8/16 These instructions are for your personal safety. Always ensure that you have read and understood these instructions before using the equipment. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Picote Solutions Oy Ltd www.picoteinstitute.com...
Page 2: Table Of Contents
To watch practical demonstration videos, take a course, or to download an electronic copy of these Instructions, please visit www.picoteinstitute.com. Please note that videos and courses are not intended as a replacement or alternative to this operating and safety manual, but only as an additional learning tool. Picote Solutions Oy Ltd www.picoteinstitute.com...
Page 3 Suitable heat and cut-resistant gloves to help prevent any hand injuries. Any open injuries or skin irritations should always be covered to avoid contact with sewage, chemicals or dust. Suitable respirator to prevent any dust or fumes being inhaled or consumed, which could cause occupational asthma or dermatitis. Picote Solutions Oy Ltd www.picoteinstitute.com...
Page 4: Storage & Disposal
STORAGE It is recommended that the Small Grabber is stored indoors to protect it from rain and sunlight and also in a constant ambient temperature. It is recommended that the 5m (16ft) long Small Grabber is stored in a coil with 2 turns and the 10m (32ft) long Small Grabber stored in a coil with 4 turns.
Page 5: General Information & Intended Use
• Available in two lengths: 5m (16ft) and 10m (32ft), with no extension options. • Comes with four models of Small Grabber heads for various applications: Jaw, Lasso, Magnet, and Hook. • There are three package options available, each including all four grabber heads:...
Page 6: Operating Instructions
OPERATING INSTRUCTIONS SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE NOTE: The Small Grabber is recommended to be used in an uncoiled position so less force is required to operate the tool. Operation • To close the tool, rotate the tightening knob clockwise.
Page 7: Attaching The Lasso Grabber Head
• To remove any of the tools, loosen the setscrews by turning them counterclockwise. Attaching the Lasso Head • Insert the spring onto the wire, then rotate it clockwise. • Be cautious to prevent cross-threading. Picote Solutions Oy Ltd www.picoteinstitute.com...
Page 8 Thread the loop onto the wire, ensuring that the wire's end is fully inserted into the connector and tighten the screws. • To remove the tool, loosen the set screws and follow the previous steps in reverse order. Picote Solutions Oy Ltd www.picoteinstitute.com...
Page 9: Maintenance
After each use, make sure to remove any dirt from the screw handle and apply multi-purpose grease to lubricate the grooved shaft. • Thoroughly clean any dirt or debris from each of the tool mechanisms used during the operation to ensure optimal performance and longevity. Picote Solutions Oy Ltd www.picoteinstitute.com...
Page 10: Repairing Damaged Or Worn Out Cable
REPAIRING A DAMAGED OR WORN OUT CABLE SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE NOTE! The Small Grabber should only be repaired in an uncoiled position. 1. Remove all accessories from the tool end of the grabber 2. Shorten the damaged part or at least cut off 25mm (1”) of the wire using wire cutters.
Page 11 Failure to comply could result in serious injury or death. You must use only Picote Solutions accessories and attachments with the Product as described in this Operation and Safety Manual. The use of other accessories or attachments could present a risk of injury.
Page 12: Warranty Policy & Procedure
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Limited Warranty: Picote warrants to the original End User that the Product purchased by such End User will operate in accordance with, and substantially conform to their published specifications when shipped or otherwise...
Page 13 Revision number: Rev. 0 Date: MAR. 2024 Author: Ville Hukkanen Accepted: Dawn Greig 3/3/22 Please Contact: Your Reseller / Salesperson or Picote www.picotegroup.com Production & R&D International Offices Technical Support Pienteollisuustie 24 Finland. United Kingdom. USA. support@picotesolutions.com 06450 Porvoo, Finland support@picotesolutions.com...
