- Page 1 Smart Mixer 2.0 OPERATION & SAFETY MANUAL These instructions are for your personal safety. Always ensure that you have read and understood these instructions before using the machinery. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
To watch practical demonstration videos, take a course, or to download an electronic copy of these Instructions, please visit www.picoteinstitute.com. Please note that videos and courses are not intended as a replacement or alternative to this operating and safety manual, but only as an additional learning tool. Picote Solutions Oy Ltd www.picoteinstitute.com... -
Page 3: Safety Information
Suitable gloves to help prevent any contact with chemicals. Do not use gloves which can become entangled. Suitable respirator to prevent any dust or fumes being inhaled or consumed, which could cause occupational asthma or dermatitis. Picote Solutions Oy Ltd www.picoteinstitute.com... -
Page 4: General Machine Safety Information
5. When not in use, turn speed control to its minimum setting and remove battery pack. This prevents tool from starting unintentionally. 6. Only use this machine with the accessories and spare parts offered by Picote Solutions. Accessories and spare parts should only be used in the manner intended and as described by Picote Solutions. Picote Solutions Oy Ltd... -
Page 5: Environment, Transport, Storage & Disposal
Maximum Humidity: 95% non-condensing TRANSPORT The Smart Mixer 2.0 should be transported in it’s carrying bag battery detached. Always use a suitable cover to protect the unit from the elements. STORAGE The Smart Mixer 2.0 should be stored indoors to protect it from rain and sunlight and somewhere with a constant ambient temperature. -
Page 6: General Information
The Smart Mixer 2.0 is specifically calibrated for Picote products. Use Picote Mini Miller and Mini Coating Pump or Maxi Miller and Maxi Coating Pump to apply the resin. Always follow the Picote Solutions instructions when installing and using the machine with accessories. -
Page 7: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE We Picote Solutions Oy Ltd as the responsible manufacturer, declare that the following Picote Solutions Oy Ltd dispensing machine: Picote Smart Mixer Model No: Smart Mixer 2.0 are of series production and... -
Page 8: Operating Instructions
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Before operation: - Before installing Picote tools, always make sure that the machine is fully turned off and the battery charger unplugged. - Consult accessory operating manuals (Picote Millers and Coating Pumps) for detailed information. - Page 9 To reposition the pistons, open the clutch lever and push or pull the rack handle, as needed. Cartridge Nozzle Opening Line up the cartridge in the opening to ensure accurate cartridge alignment and proper engagement of pistons. Picote Solutions Oy Ltd www.picoteinstitute.com...
- Page 10 Step 1. Open clutch lever to allow free movement of rack. Step 2. Pull the rack fully open. Step 3. Remove cartridge and replace with new one. Add the static mixer to new cartridge before inserting into Smart Mixer 2.0. Picote Solutions Oy Ltd www.picoteinstitute.com...
- Page 11 OPERATING INSTRUCTIONS SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Step 4. Push rack against the cartridge. Step 5. Close rack lever. Picote Solutions Oy Ltd www.picoteinstitute.com...

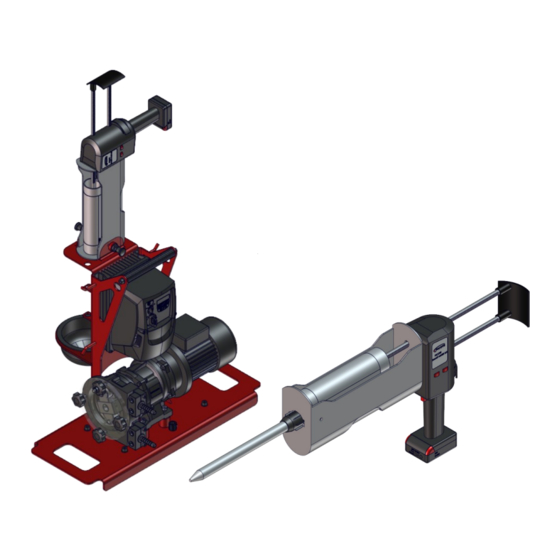

- Page 12 Step 6. Open Index Plungers of Coating Pump platform. Align the Smart Mixer 2.0 holes with Index Plungers. Step 7. Release Index Plungers to lock Smart Mixer 2.0 into the platform. Check that both Index Plungers have been locked to the Smart Mixer 2.0. Add resin cup to holder underneath the Smart Mixer 2.0 and start dispensing the resin.
-
Page 13: Troubleshooting Guide
Resin built up on rack Remove cartridge. Clean pistons pull. teeth and teeth. Install new cartridge. If there is problem that you cannot resolve with this manual, please consult your Picote Reseller or Picote Solutions at claims@picotesolutions.com. Picote Solutions Oy Ltd www.picoteinstitute.com... -
Page 14: Warranty Policy & Procedure
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Limited Warranty: Picote warrants to the original End User that the Product purchased by such End User will operate in accordance with, and substantially conform to their published specifications when shipped or otherwise... - Page 15 Revision number: Rev. 1 Date: MAR 2022 Author: Ville Hukkanen Accepted: Dawn Greig 22/3/22 Please Contact: Your Reseller / Salesperson or Picote www.picotegroup.com Production & R&D International Offices Technical Support Finland. United Kingdom. USA. support@picotesolutions.com Pienteollisuustie 24 06450 Porvoo, Finland support@picotesolutions.com...
