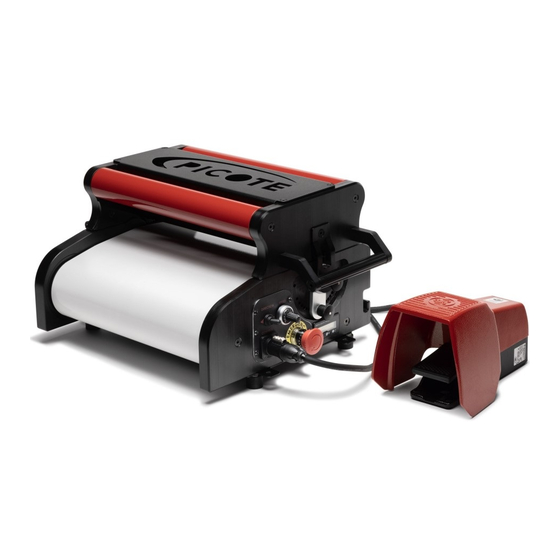

MIDI ROLLER
OPERATION & SAFETY MANUAL
These instructions are for your personal safety. Always ensure that you
have read and understood these instructions before using the machinery.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Midi Roller and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PICOTE Midi Roller

  • Page 1 MIDI ROLLER OPERATION & SAFETY MANUAL These instructions are for your personal safety. Always ensure that you have read and understood these instructions before using the machinery. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
  • Page 2: Table Of Contents

    To watch practical demonstration videos, take a course, or to download an electronic copy of these Instructions, please visit www.picoteinstitute.com. Please note that videos and courses are not intended as a replacement or alternative to this operating and safety manual, but only as an additional learning tool. Picote Solutions Oy Ltd www.picoteinstitute.com...
  • Page 3: Safety Information

    Suitable gloves to help prevent any contact with chemicals. Do not use gloves which can become entangled. Suitable respirator to prevent any dust or fumes being inhaled or consumed, which could cause occupational asthma or dermatitis. Picote Solutions Oy Ltd www.picoteinstitute.com...
  • Page 4: General Machine Safety Information

    Do not sit on the machine. 8. Only use this machine with the accessories and spare parts offered by the Picote Solutions. Accessories and spare parts should only be used in the manner intended and as described by Picote Solutions.
  • Page 5: Environment, Transport, Storage & Disposal

    STORAGE The Midi Roller should be stored indoors to protect it from rain and sunlight and somewhere with a constant ambient temperature. The best way to store the machine is to use the box that the unit was shipped in.
  • Page 6: General Information

    GENERAL INFORMATION SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Picote Solutions Oy Ltd www.picoteinstitute.com...
  • Page 7: Technical Data

    The machine is operated by foot pedal (Operator Presence Control or ‘OPC’). When the control is not held down, the machine stops. Never place any kind of object on the pedal in place of a foot (such as a brick). Picote Solutions Oy Ltd www.picoteinstitute.com...
  • Page 8: Ce Declaration Of Conformity

    CE DECLARATION OF CONFORMITY SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE We Picote Solutions Oy Ltd as the responsible manufacturer, declare that the following Picote Solutions Oy Ltd liner wetting machine: Picote Midi Roller Model No: Midi Roller 230V, Midi Roller 110V...
  • Page 9: Operating Instructions

    SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE BEFORE OPERATION: - Before cleaning, maintaining the or attaching the Midi Roller to the Picote Wet-Out Station always make sure that the machine is fully turned off and the battery charger unplugged.
  • Page 10 Avoid overloading the motor. If the machine trips continuously, consider increasing the liner thickness setting for the first pass. If the motor overloads with minimum load, contact your reseller or a Picote Service Centre. Picote Solutions Oy Ltd...
  • Page 11: Charging The Machine

    The battery is now charging. NOTE! If light starts to blink restart the process, but try to turn off the battery indicator. If process fails multiple times, contact reseller or Picote Solutions. NOTE! If the charger blinks GREEN while charging, the battery has overheated.
  • Page 12: Maintenance Programme & Warranty Periods

    I: Inspect, fix or replace if needed. P: Perform, replace if needed. WARRANTY PERIODS Picote Solutions Oy Ltd grants limited warranty for certain machines, equipment & components. Read more detailed information on page 17 (Picote Warranty Policy and Procedure). 3 months...
  • Page 13: Maintenance

    The machine uses hinges with brakes to prevent the upper roller assembly from injuring the user. After some time the hinges will become looser and the operator will need to tighten them. Correct tightness is when the roller assembly can’t fold down unless done so by the operator. Picote Solutions Oy Ltd www.picoteinstitute.com...
  • Page 14: Tightening The Belt

    SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE TIGHTENING THE BELT If the silicone belt starts to slip, it needs to be tightened by turning the tightening screws clockwise. It is important to tighten the screws the same amount. Picote Solutions Oy Ltd www.picoteinstitute.com...
  • Page 15: Accessories & Spare Parts

    ACCESSORIES & SPARE PARTS SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Only use Picote Solutions accessories and attachments with the machine described in this operation manual. The use of other accessories or attachments could present a risk of injury or death.
  • Page 16: Troubleshooting Flowchart

    Switch. Did it it is slipping. Did it Service Centre help? help? Midi Roller is If there is problem that you cannot resolve with this manual, please consult your Picote Reseller or Picote Solutions at claims@picotesolutions.com. Picote Solutions Oy Ltd www.picoteinstitute.com...
  • Page 17: Warranty Policy & Procedure

    SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Limited Warranty: Picote warrants to the original End User that the Product purchased by such End User will operate in accordance with, and substantially conform to their published specifications when shipped or otherwise...
  • Page 18 Revision number: Rev. 1 Date: NOV 2021 Author: Ville Hukkanen Accepted: Dawn Greig 7/3/22 Please Contact: Your Reseller / Salesperson or Picote www.picotegroup.com Production & R&D International Offices Technical Support support@picotesolutions.com Finland. United Kingdom. USA. Pienteollisuustie 24 06450 Porvoo, Finland support@picotesolutions.com...
