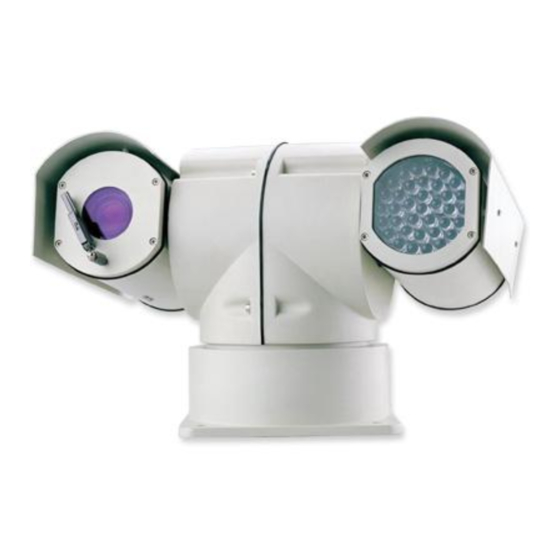

- Page 1 Armoured range Installation and Operation Manual PTZ920 HIGH Speed Armoured Pan Tilt Zoom 12V DC model with Infrared Camera & Wiper Models Covered PTZ920J 22x Zoom PTZ920P 30x Zoom Version 5.0...
-
Page 2: Table Of Contents
CONTENTS TABLE Description Page No. Contents Safety Precautions Key Functions Special PTZ Features Getting the PTZ up & running Overview – introduction to fitting PTZ equipment RS485 Wiring methods & Tips Overcoming RS485 data loss using an RS485 distributor Setting up the PTZ Camera RS485 connection –... -
Page 3: Safety Precautions
Please read this operation manual carefully before installing and using this unit !!!! Please read the following; 1. Please read the operation manual carefully before installing and operating the product. 2. The PTZ920 requires a 12 V DC power supply. The rated input voltage of the camera is 12V!!!! This gets its power from the PTZ920 and does not require a separate PSU. -
Page 4: Key Functions
KEY FUNCTIONS The Armoured PTZ920 - II. Description of Functions This intelligent armoured PTZ is a hi-tech CCTV product, which incorporates a high-clarity colour camera. It has a panoramic variable speed PAN/TILT movement, a multifunctional decoder, a character generator and an on-board processor for logic handling. The PTZ920 is easy to connect, install, maintain and operate, and has many special features. -
Page 5: Special Ptz Features
c. Backlight Compensation: When the object to be shot has a dark background, the user can increase the backlight compensation accordingly. d. White Balance: If the image has incorrect colours displayed on the monitor, the user can use different modes to alter the white balance. There are 6 modes for selection: Indoor Mode, Outdoor Mode, Trigger Mode, Auto tracking White Balance, Manual White Balance and Automatic Mode. -
Page 6: Getting The Ptz Up & Running
Getting the PTZ up and running! You MUST connect up the PTZ and your control equipment on a workbench or kitchen table before the actual site installation and CHECK YOU KNOW HOW TO INSTALL IT CORRECTLY!!!!!!!!!!!!!!!!!. By doing this you can set-up any DIP switches, adjust the camera, and learn about how it operates before taking it to site. - Page 7 Equipment Cable Needed 1. Data signal CAT5 cable Keypad or You can also send the video signal back along a second pair in a CAT5 cable using baluns. 2. Video signal RG59 or similar You can combine both the video and power into one cable if you wish using composite cable.
-
Page 8: Rs485 Wiring Methods & Tips
CAT 5 CCT CAMERA 12 V DC CAT5 Carries Video & LOCAL Control Data 240V --- Video RG59+2 Video & Power & Power BALUN TRADITIONAL CAT5 Carrying Data CAMERA 240V JUNCTION BOX Free Lead Supplied CO-AX RG59 KEYPAD MONITOR Many installation companies can get the power and video signal correct, but struggle with the control of the PTZ using the keypad or DVR using the RS485 data. - Page 9 PLEASE NOTE - Using inferior cables, or installing the PTZ in an environment with strong electromagnetic interference, or connecting a lot of PTZ domes to the same cable carrying the RS485 signal will reduce the maximum transmitting distance. 3. RS485 Connection methods METHOD 1 –DAISY CHAIN CONNECTION.
- Page 10 ..Main controller Daisy-Chain connection WITH SHORT SPURS for the RS485 PTZ control signal (one main radial with very short spurs to each PTZ off it, keeping the spurs to less than 10 meters) TIP - The connection of a 120 termination resistor: The JP1 termination resistor is ready fitted on the PTZ pcb, all you have to do to set it, is to move the jumper from Pins 2 &3 to pins 1 &...
-
Page 11: Overcoming Rs485 Data Loss Using An Rs485 Distributor
STAR method of connection. In some circumstances you may need to adopt a star configuration for practical purposes. For instance, all the PTZs may be so scattered on a large site that running out separate spurs to each PTZ in a “ STAR” array is the only practical solution. - Page 12 are in effect correcting the STAR method of RS485 data distribution. As previously mentioned the problem with the Star method is that it is not actually designed for RS485 but generally works okay if you follow the previous notes on getting the 120 resistor setting right, as per the previous notes.
-
Page 13: Setting Up The Ptz Camera
Setting up the PTZ Camera 1. Connection of the System There are many ways to wire up a PTZ system. If you have read the introduction at the beginning of these instructions you should have got a good idea what your options are. -
Page 14: Rs485 Connection - Connecting The Keypad Or Dvr To The Ptz920
Powering the PTZs- All the PTZs will need power. For this PTZ it is a 12V DC power supply. The power supply must be capable of delivering at least 3.5Amps per PTZ. You can either power each PTZ with its own PSU locally to it or have the PSU’ s remotely situated perhaps near the keyboard or DVR. - Page 15 The PTZ920 range adopts the following RS485 convention: ORANGE = RS485 + or A YELLOW = RS485 – or B You should initially be wiring the dome to the keyboard or DVR on your workshop bench or at least your kitchen table to prove you know how to get everything to work.
-
Page 16: Connecting The Video Out Of The Ptz
Connecting the video out of the PTZ. The PTZ920 has a short BNC lead attached to it, this is the lead that carries the video signal from the built-in camera. You need to extend this lead to the “ VIDEO-IN” of the DVR or monitor. Use a good quality RG59 coax cable or similar to do this. - Page 17 12V DC INPUT RS485 RS485 - ‘ B’ YELLOW + ‘ A’ ORANGE RS485 COMBINER RS485 INPUT ON RS485 on DVR 12V DC The above shows how to connect two control devices for the PTZ using an RS485 combiner.
-
Page 18: If You Are Using More Than One Ptz On A Site
SW2 sets up the protocol. This switch is dealt with later in these instructions. For most System Q equipment they should always be set to PELCO-D 2400 baud rate. In the diagram this is correct. The Jumper on the far right either enables or disables the 120 resistor. -
Page 19: Setup Of The Protocol And The Default Baud Rate
As shown in Table 2, SW2 is used to set the protocol and the baud rate used by the PTZ camera. DIP-4 to DIP-1 of SW2 is used to select protocols and a maximum of 16 different protocols can be selected. Pelco-D 2400 is used for most System Q equipment. DIP status... - Page 20 Some protocols and the setting of the dipswitches on normal baud rates for these protocols are shown as follows: NEON/ 9600Bps PANASO NI C/ 9600Bps PELCO - D/ 2400Bps KALATEL/ 4800Bps PELCO - P/ 4800Bps ALEC/ 9600Bps PELCO - P/ 9600Bps Ul t r ak/ 9600Bps Setup of the Baud Rate.
-
Page 21: Using The Ptz730 Keypad With The Ptz920
Using the PTZ730 keypad with the excelPTZ series NOTE 1: For more detailed instructions in setting up the keypad or using one of our other keypads, please refer to the instruction manual supplied with the product. NOTE 2: The PTZ730 keypad requires you to press the function key first followed by the value e.g <CAM>... -
Page 22: Presets And Other Functions
PRESETS and other functions. The PTZ920 has up to 128 presets that once programmed will stay in the PTZ’ s non-volatile memory so they will be retained even after a power cut. What is a preset? A preset is a particular area or object that the PTZ was looking at and has been stored into its memory so when the preset is “... -
Page 23: Patrols (Tours) - How To Set Them Up And Use Them
Patrols (Tours) – How to set them up and use them A patrol (tour) is simply a collection of at least three preset camera locations that are run in sequence with the PTZ stopping at each location for a brief period of time and then moving on to the next preset. For example, you could use a patrol so that an outside PTZ camera points at a gate, then at a side doorway, then zooms out to get an overall shot of a car park and finally zooming in on a delivery bay, before repeating the whole cycle again. - Page 24 Setting the Patrol (Tour) To setup the patrol/tour you need to enter the Advanced Menu System by selecting CALL 95 Enter on the keypad. You will see the Main Menu displayed on the screen. Using the joystick up/down direction movement, select the PROGRAM menu. Use the joystick pan right movement to enter this menu.
- Page 25 Now exit the menu by moving the Joystick down, selecting EXIT and then moving the Joystick to the right to return to the Main Menu. Again use the Joystick to select EXIT and exit the Advanced Menu System by selecting the right pan movement. Calling the Patrol (Tour) There are two methods of initiating the patrol or tour.
-
Page 26: Auto Scan - How To Set It Up - Calling The Auto Scan
AUTO SCAN- How to set it up Auto-scan scans between two points. These are not presets as per the patrol (tour) facility but auto scan selection points. You may program only one auto scan. STEP 1 – Select the required camera by entering <camera address> and pressing the CAM button on the keypad. -
Page 27: Record Pattern- What Is A Record Pattern
RECORD PATTERN- What is a record pattern This PTZ has an option to store a record pattern. A record pattern consists of a continuous sequence of standard pan and tilt movements or lens commands recorded within a 40 second interval. A record pattern does not use presets. - Page 28 Using the joystick up/down direction movement, select the PROGRAM menu. Use the joystick pan right movement to enter this menu. In the PROGRAM menu select RECORD PATTERN followed by pressing CLOSE button to save. STEP 2 – Now move the camera using the keypad joystick to record a forty second sequence and follow this by pressing the CLOSE button to save.
-
Page 29: Using The Ptz' S Advanced Functions
USING THE PTZ920’ S ADVANCED FUNCTIONS- On Screen Graphics (OSD) – The PTZ920 boasts six patrol (tour) options, an auto scan option and a record pattern option. All these can be configured using the OSD. To bring up the camera menu press CALL 95 Enter. The OSD is then displayed on the screen. You can navigate between the various options using the Joystick control –... -
Page 30: Using The Advanced Menu System
THE ADVANCED MENU SYSTEM Using the Advanced Menu System. This menu system allows the user to alter the PTZ menu instruction options and settings using a control keypad. This first page shows the initial main menu page and only describes the general functions. The following pages show the main menu option selected on the left hand side of the page and a breakdown of that menu page on the right hand side of the page. -
Page 31: Display Setup
DISPLAY SETUP To access Display Setup press the OPEN button on keypad or move the Joystick to the right. The menu below will be displayed. MAIN MENU DISPLAY SETUP 1. DISPLAY SETUP ID DISPLAY 2. CAMERA SETUP ID POS TOP-L 3. - Page 32 CAM DISPLAY ON / OFF When this is set to ON the camera screen will be opened. To toggle the settings move the Joystick to the right or press the OPEN button. To return to Main Menu use the Joystick down movement to RETURN and press the OPEN button on the keypad or move the Joystick to the right.
-
Page 33: Camera Setup
CAMERA SETUP Move the Joystick down to select Camera Setup and press the OPEN button or move the Joystick to the right. The menu below will be displayed. CAMERA SETUP MAIN MENU 1. DISPLAY SETUP SLOWSHUTTER AUTO 2. CAMERA SETUP BACK LIGHT 3. - Page 34 D-ZOOM ON / OFF Setup of digital zooming. This allows the digital zoom function to be switched on or off. To toggle the settings move the Joystick to the right or press the OPEN button. To return to Main Menu use the Joystick down movement to RETURN and press the OPEN button on the keypad or move the Joystick to the right.
-
Page 35: Control Setup
CONTROL SETUP Move the Joystick down to select Control Setup and press the OPEN button or move the Joystick to the right. The menu below will be displayed. MAIN MENU CONTROL SETUP 1. DISPLAY SETUP 2. CAMERA SETUP ALARM 3. CONTROL SETUP HOME OPTION 4. - Page 36 RETURN return to CONTROL SETUP menu by moving Joystick to the left. IR LED OFF/ON The default option of the Infrared Lamp is OFF. Normally the PTZ920 detects external illumination and opens and closes the infrared lamp automatically. If the user changes this option to ON, the operation of the Infrared becomes a manual operation.
-
Page 37: Camera Mask Set
CAMERA MASK SET Move the Joystick down to select Program and press the OPEN button or move the Joystick to the right. The menu below will be displayed. MAIN MENU CAMERA MASK SET 1. DISPLAY SETUP 2. CAMERA SETUP MASK PRIVACY MASK SHADE BLACK 3. -
Page 38: Program
PROGRAM Move the Joystick down to select Program and press the OPEN button or move the Joystick to the right. The menu below will be displayed. MAIN MENU PROGRAM DISPLAY SETUP AUTO PAN START POS CAMERA SETUP AUTO PAN END POS RUN AUTO PAN SLOW CONTROL SETUP... - Page 39 0-9, A-Z, +, - and space. NOTE: The first character of the title must be 0-9 or A-Z. SET PATROL To edit data for a patrol/tour. Select sequence number of patrol by using the Joystick pan left or pan right, press OPEN button to select edit mode and edit using the up/down Joystick movement, setting the POS (preset number), the Joystick pan right to select the PTZ speed (SP) and the dwell time (TM) followed by the CLOSE button to save and exit.
-
Page 40: Pal/Ntsc Camera
PAL CAMERA No sub-menu option for this. MAIN MENU 1. DISPLAY SETUP 2. CAMERA SETUP 3. CONTROL SETUP 4. CAMERA MASK SET 5. PROGRAM 6. PAL CAMERA 7. CAM DEFAULT SET 8. RESET PT 9. EXIT PAL / NTSC CAMERA To switch from PAL to NTSC camera use the Joystick pan left or pan right. -
Page 41: Cam Default Set
CAM DEFAULT SET No sub-menu option for this. MAIN MENU 1. DISPLAY SETUP 2. CAMERA SETUP 3. CONTROL SETUP 4. CAMERA MASK SET 5. PROGRAM 6. PAL CAMERA 7. CAM DEFAULT SET 8. RESET PT 9. EXIT CAM DEFAULT SET This option sets the camera default settings. -
Page 42: Reset Pt
RESET PT MAIN MENU 1. DISPLAY SETUP 2. CAMERA SETUP 3. CONTROL SETUP 4. CAMERA MASK SET 5. PROGRAM 6. PAL CAMERA 7. CAM DEFAULT SET 8. RESET PT 9. EXIT RESET PT This option resets the PTZ920 settings. The following display will be output OPERATION WILL Use the Joystick left or right pan to toggle between YES... -
Page 43: Exit
EXIT MAIN MENU 1. DISPLAY SETUP 2. CAMERA SETUP 3. CONTROL SETUP 4. CAMERA MASK SET 5. PROGRAM 6. PAL CAMERA 7. CAM DEFAULT SET 8. RESET PT 9. EXIT Use the Joystick to select the option and press the CLOSE button to exit menu. -
Page 44: Installation Instructions
Installation Instructions Product Dimensions Outline Sizes of the PTZ920 Side Elevation End Elevation... -
Page 45: Installation Steps
Shock Absorber sizes Installation Steps 1. Remove the bottom plate of the pan/tilt. 2. In accordance with the instructions detailed earlier in this manual set the address, protocol, baud rate and termination jumper. 3. Install the bottom plate of the pan/tilt and ensure that the waterproof seal is carefully located ensuring a good seal. - Page 46 4. Connect the output wires of the socket according to relative colours on the schematic drawing. Ensure that the correct cables are used. Attention: refer to power label +12v DC - GND 5. On the PTZ920 only the 7-core socket is used and the 10-core socket is disabled so that there is no alarm input connections.
-
Page 47: Technical Data Table
VI. Technical data table Installation Style Depends on camera type fitted Pixels Depends on camera type fitted Accessories Wiper and Heater Video Output 1.0 Vp-p/75 White Balance Auto / Manual Power Supply Required 12V DC 3.5A Specifications Power Consumption 30 VA Weight 10Kg Operating Temperature... -
Page 48: Appendix A: Lightning Proof And Surge Signal Proof
Appendix A: Lightning Proof and Surge Signal Proof This product adopts TVS lightning proof technology to prevent damage by a lightning strike below 1500 W and surge impulse signals. However it is also necessary to ensure that the following precautions are taken to ensure electrical safety: Keep the communication cables at least 50 meters away from high voltage equipment or cables.
