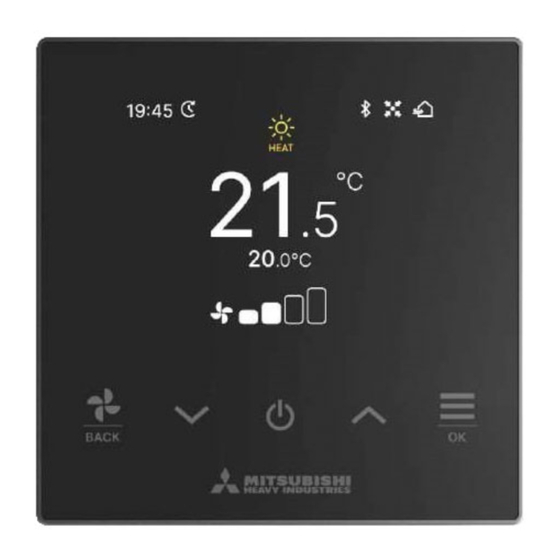

REMOTE CONTROL
USER'S MANUAL
Thank you very much for your purchasing the REMOTE CONTROL for our
packaged air conditioner.
This user's manual describes cautions for safety. Please read this manual carefully before use in order to operate the unit properly.
Keep this manual, after reading, at a safe place where you can consult it whenever it is necessary.
When the ownership of the unit is changed, please be sure to transfer this manual and the "Installation Manual" to a new owner.
It is not recommended for a user to install or move the unit by the user's own discretion. (Safety or functions may not be assured.)
ORIGINAL INSTRUCTIONS
RC-ES1
PJZ012A235A
202403

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC-ES1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mitsubishi Heavy Industries RC-ES1

  • Page 1 ORIGINAL INSTRUCTIONS REMOTE CONTROL RC-ES1 USER'S MANUAL Thank you very much for your purchasing the REMOTE CONTROL for our packaged air conditioner. This user's manual describes cautions for safety. Please read this manual carefully before use in order to operate the unit properly.
  • Page 2: Table Of Contents

    Contents 1. Before you use ……………………… 2 Safety precautions ………………………………………… 2 Precautions for waste disposal …………………………… 4 Unit specifications …………………………………………… 4 2. Functions and menu items of the remote control … 5 Names and functions of sections on the R/C …………… 5 Menu item ……………………………………………………...
  • Page 3: Before You Use

    1. Before you use Safety precautions ● P lease read the precautions written here carefully to operate the unit properly. You are required to observe these fully because every item of these instructions is important for safety. Failure to follow these instructions may result in serious consequences WARNING such as death, severe injury, etc.
  • Page 4 CAUTION Do not use or let use the R/C as play equipment. Improper operations could cause ill health or health disorder. Never disassemble the R/C. If you touch internal parts accidentally, you could get electric shocks or cause trouble. Consult your dealer when it is necessary to inspect its interior. Do not wash the R/C with water or liquid.
  • Page 5: Precautions For Waste Disposal

      Precautions for waste disposal Your Air Conditioning product may be marked with this symbol. It means that waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) should not be mixed with general household waste. Air conditioners should be treated at an authorized treatment facility for re-use, recycling and recovery and not be disposed of in the municipal waste stream.
  • Page 6: Functions And Menu Items Of The Remote Control

    2. Functions and menu items of the remote control Names and functions of sections on the R/C (Operating section) Run / Stop key Menu / OK key Fan speed / Back key Up key Down key 1 Run / Stop key 3 Fan speed / Back key On the TOP screen, tap this key to start the On the TOP screen, tap this key to change the fan...
  • Page 7 Names and functions of sections on the R/C (Display) TOP screen *All icons are shown for the sake of explanation. 1 Clock 2 Timer 3 Bluetooth 8 An error occurred 4 Operation mode 9 Information 5 Set temp : Other icons 6 Room temp 7 Fan speed 1 Clock...
  • Page 8: Menu Item

    Menu item The following operations can be performed with R/C. However, operations may be restricted depending on the R/C main/sub setting and the operation status of the A/C. Main/Sub of R/C Operation status R/C operations Page Mian Running Stopped Basic operation ●...
  • Page 9: Operation By Smartphone Application

      Operation by smartphone application Installing the dedicated app ”M-Air PRO” enables you to confi gure more detailed settings in addition to those shown on the page 7 using your own smartphone. The app is free of charge, but downloading the app and some For Android™ For iOS operations may require communication charges. Download the app from “Google Play”...
  • Page 10: Basic Operations

    3. Basic Operation Tap the key on the TOP screen. The operation mode and fan speed are displayed on the TOP screen, and operation starts. Stop Tap the key on the TOP screen while the unit is in operation. “OFF” is displayed on the screen, and operation stop. Note •...
  • Page 11: Change Set Temp

    Change set temp Tap the keys to down / up the set temperature on the TOP screen. Reference set temp ■ Cooling … 26 to 28°C … 24 to 26°C Heating … 20 to 24°C … Setting temp is not required. The setting temp range can be set from the app.
  • Page 12: Change The Fan Speed

    Change the fan speed Tap the key to change the fan speed on the TOP screen. Auto Fan speeds which can be set vary depending on the models of IU. ■ W hen the “Auto” is selected, the fan speed is changed automatically ■ depending on the capacity.
  • Page 13: Menu

    Menu Tap the key on the TOP screen to show the “Menu” screen. Select the next icon with the key and the previous icon with the key. Select your desired icon and tap the key to decide. Operation settings( ☞ page 13) • • • You can make settings related to A/C operation. Common settings( ☞...
  • Page 14: Operation Settings

    4. Operation settings You can make settings related to A/C operation. Perform the following operation. ⇒ Menu ⇒ Operation settings The “Operation settings” screen is displayed. Operation mode( ☞ page 13) • • • • • • • • • • • You can change the operation mode. High power operation( ☞...
  • Page 15: High Power Operation

    Advice If the air conditioner is a multi-type building air conditioning system, cooling/heating functions cannot be mixed for each of the connected IUs in certain cases. In that case, the “In the fan operation” icon : is displayed on the “Operation status” screen (☞page 36). If you set from the app, the cooling or heating icon is displayed next to the auto operation mode icon in auto operation mode.
  • Page 16: Timer

    Timer You can set ON/OFF timer. Operation of each timer ■ • Set ON timer by hour ( ☞ page 17) When the set time elapses, the air conditioner starts. Operating conditions at the start of operation can be set in case you set from the app. Operation takes place once at each setting.
  • Page 17 Perform the following operation. ⇒ Menu ⇒ ⇒ Operation settings Timer The “Timer” screen is displayed. Select your desired timer, ON timer or OFF timer. Tap the key. If you select the ON timer, the screen for switching valid/invalid of the ON timer will be displayed. Select ON and tap the key.
  • Page 18 When the timer type is set, the detailed setting screen will be displayed. ■ Set ON timer by hour To set the timer by hour, enter hours. Select desired hours for the period to start operation by timer with keys. Tap the key to set.
  • Page 19: Change Flap Direction

    Advice Warming up • You can set warming-up operation from the app(☞refer to app manual). • The microcomputer predicts the operation start time based on the last warming-up operation and starts the operation 5 to 60 minutes before the start time so the indoor temp becomes close to the set temp at the operation start set time. •...
  • Page 20 In the case of all FDFs, you can change flap direction ( ☞ page 22). In the case of a zone-compatible unit, you can switch each zone ON or OFF( ☞ page 23). In the case of all duct units , you cannot change flap direction. ─ 19 ─...
  • Page 21 (1) Upper/lower fl ap When even one IU with a upper/lower fl ap is connected, you can change upper/lower fl ap. Perform the following operation. ⇒ Menu ⇒ ⇒ Operation settings Upper/lower fl ap The “Upper/lower fl ap” screen is displayed. Tap the keys to select the desired fl ap direction and tap key to decide. To swing the fl ap, select "Swing." When FDK with a left/right fl ap is connected, you can select “3D auto”.
  • Page 22 Advice If the humidity around the IU is high, the flap position may differ from the set position in order to prevent condensation forming on the IU. In that case, the “During condensation prevention control” icon: is displayed on the “Operation status” screen (☞page 36). When the humidity drops, the flap returns to its original position. Note • Do not manually move the flaps or panel with anti draft by force. It could damage these flaps and panels. • Do not blow air downward for a long period of time during the cooling operation. Condensation may be generated and water may drip from the side panel.
  • Page 23 W hen multiple IUs are connected to the R/C for a mixed environment consisting of FDKs with a left/right flap and ■ IUs without a left/right flap, enabling the 3D auto flow operation will set the models without a left/right flap to a flap position set before the 3D auto flow operation was started. C hanging the left/right flap direction and 3D auto flow operation cannot be performed from the SC-SL2, SC-SL3, or ■ SC-SL4. Also note that 3D auto flow operation will not be disabled when you change the flap direction from the SC-SL2, SC-SL3, or SC-SL4 during 3D auto flow operation. Note • Do not manually move the flaps by force. It could damage these flaps and panels. • F or FDKs with a left/right flap, it is recommended that the flap should be set toward the right side when there is a wall on the left, or set toward the left side when there is a wall on the right. For more information, refer to the Individual flap control section in the app manual. (3) Flap direction (for FDF) In the case of all FDFs, you can change flap direction. Perform the following operation. ⇒ Menu ⇒ ⇒ Operation settings Flap direction The “Flap direction” screen is displayed. Tap the keys to select the desired flap direction and tap key to decide.
  • Page 24 (4) Zone ON/OFF In the case of the zone-compatible unit, you can switch each zone ON or OFF. Perform the following operation. ⇒ Menu ⇒ ⇒ Operation settings Zone ON/OFF The “Zone ON/OFF” screen is displayed. Tap the keys to select the desired zone to switch ON/ OFF and tap the key to decide.
  • Page 25: Ventilation Operation

    Ventilation operation (when ventilation device is installed) The ventilation is turned ON or OFF if the ventilation device is installed. Perform the following operation. ⇒ Menu ⇒ ⇒ Operation settings ventilation The “Ventilation” screen is displayed. Tap the keys to select ON and tap the key to start the ventilation device operation.
  • Page 26: Common Settings

    5. Common settings You can make settings of connection to smartphone, R/C display and operation sound. Perform the following operation. ⇒ Menu ⇒ Common settingss The “Common settings” screen is displayed. Bluetooth( ☞ page25) • • • • • • You can make settings of connection to smartphone.
  • Page 27 ■ Bluetooth ON/OFF You can turn Bluetooth of R/C ON or OFF. Perform the following operation. ⇒ Menu ⇒ ⇒ ⇒ Common settingss Bluetooth Bluetooth ON/OFF The “Bluetooth ON/OFF” screen is displayed. Tap the keys to select ON and tap the key to turn ON Bluetooth.
  • Page 28 ■ Pairing mode You can check the Bluetooth number and model name of the R/C. Perform the following operation. ⇒ Menu ⇒ ⇒ ⇒ Common settingss Bluetooth Pairing mode The “Pairing mode” screen is displayed. You can check the Bluetooth number and model name of the R/C. Note If your smartphone is Android, you can check the model name and Bluetooth number of each R/C when connecting (...
  • Page 29 ■ Connect a smartphone app Pair with a smartphone app. Perform the following operation to send a paring request from the app. ( ☞ refer to app manual) When not connected to the R/C, a screen as shown on the left is displayed. Tap the Bluetooth icon.
  • Page 30 This screen is displayed when tap the “connect” button on the app. Check the passkey and tap the key. This screen is displayed on the app when the pairing is completed. *Refer to the app manual for details on how to operate the smartphone app. Set temperature An error occurred Menu...
  • Page 31: Display & Sound

    Display & sound You can make settings of R/C display and operation sound. Perform the following operation. ⇒ Menu ⇒ ⇒ Common settingss Display & sound The “Display & sound” screen is displayed. Backlight brightness( ☞ page31) • • • • You can adjust the backlight brightness. Backlight lighting time( ☞...
  • Page 32 ■ Backlight brightness You can adjust the backlight brightness of the R/C display. Perform the following operation. ⇒ Menu ⇒ ⇒ ⇒ Common settingss Display & sound Backlight brightness The “Brightness” screen is displayed. You can adjust the backlight brightness of the screen to a desired level by tapping the keys.
  • Page 33 ■ Operation sound You can set to have the operation sound ON/OFF when the keys are operated. Perform the following operation. ⇒ Menu ⇒ ⇒ ⇒ Common settingss Display & sound Operation sound The “Operation sound setting” screen is displayed. Select ON or OFF for the operation sound by the keys.
  • Page 34: An Error Occurred

    6. An error occurred If an error occurs in your R/C or IU/OU that are connected to your R/C, the is displayed on the TOP screen. Perform the following operation, and then stop operation and contact the contact point ( ☞ page41) or your dealer. The displayed icon will vary depending on the error.
  • Page 35 <Error code or maintenance code related to the refrigerant sensor> Refrigerant leakage detected Appears when refrigerant is leaking. Ventilation the room immediately when you see this icon. Refrigerant sensor failure Displayed when the refrigerant sensor is faulty. Refrigerant sensor disconnected Displayed when the refrigerant sensor is disconnected.
  • Page 36 While the icon displayed on the farthest right is selected in the “An error occurred” screen, tap the key to display the “R/C status” screen. Error information of R/C is displayed. If there is no error occurred, “Normal” is displayed. In the “R/C status”...
  • Page 37: Information

    7. Information You can check the operation status, setting status, and contact point. Perform the following operation. ⇒ Menu ⇒ Information The “Information” screen is displayed. Operation status( ☞ page36) • • • You can check the operation status of R/C and the connected A/C. Setting status( ☞...
  • Page 38 <Operation status icon> In the temporary stop mode Displayed when the temporary stop is operated by IU's external input. This is not a failure because the mode is a result of IU's external input. In forced thermostat OFF Displayed when the forced thermostat OFF is operated by the IU's external input. This is not a failure because the mode is a result of IU's external input.
  • Page 39 In operation for warning up When Warm-up ON is selected with 'Set ON timer by hour' or 'Set ON timer by clock', the operation starts 5 to 60 minutes earlier based on the previous warm up operation to regulate the room temp. It will stay within the set temp range at the set time to start the operation.
  • Page 40: Setting Status

    Schedule of Periodical check Displayed when it becomes the scheduled time of periodical check. Schedule of Periodical check 1 Displayed when it becomes the scheduled time of periodical check OU. When the icon is displayed, contact your dealer or the number shown on the app to request a periodical check. Schedule of Periodical check 2 Displayed when it becomes the scheduled time of periodical check OU.
  • Page 41 <Setting status icon> In ON timer setting Displayed when the ON timer by hour or the ON timer by clock is set. In OFF timer setting Displayed when the OFF timer by hour or the OFF timer by clock is set. In WEEKLY TIMER setting Displayed when the weekly timer is set.
  • Page 42: Contact

    Contact You can check the contact point for customers to request service. Perform the following operation. ⇒ Menu ⇒ ⇒ Information Contact The “Contact” screen is displayed. Display the contact information for customers to request service. The information displayed is the information registered from app to the R/C from the smartphone app( ☞...
  • Page 43: Maintenance Mode

    8. Maintenance mode Some of the service functions can be set from the “Maintenance mode”. Holding down the key on the TOP screen. The “Maintenance mode” screen is displayed. A specifi c code is required to operate this mode. Enter this code as follows: ⇒ ⇒ ⇒ ⇒ ⇒ The list of the “Maintenance mode” screen is displayed. IU address …...
  • Page 44 IU address You can check the address of the IU. When select the IU and tap the key on the “IU address” screen, the fan of the selected IU can be operated. Tap the key again or select other IU by the keys to stop the fan operation.
  • Page 45 Error history You can check the error history. Displays the error date and time, IU address, and error code. Tap the key to display the next page. History can be deleted from app( ☞ refer to the app manual). Saving IU setting You can save IU setting.
  • Page 46 ■ Delete IU address Delete the memory of the IU address for multi (KX) units. ■ CPU reset Reset the microcomputer of the connected IUs & OUs (to the power restoration status) ■ Factory reset Reset the settings of the connected R/C and IUs to the initial settings (factory settings).
  • Page 47 Test run You can perform the test run of A/C. Tap the keys to select the desired test run and tap the key to decide. ■ Cooling test run This can be operated when the room temp is too low to start the cooling operation.
  • Page 48 Installation date You can set the installation date. Set in the order of date, month, and year. Select the number using the keys and tap the key to decide and to set the next item. ─ 47 ─...
  • Page 49: After-Sale Service

    9. After-sale service ● Inform your dealer ● Repairs after Warranty Period Consult your dealer. Fare-paying services may be possible at ●Model name the request of customer. ●Date of installation (The warranty period is one year counting from the date of ●Failure conditions: As precise as possible.
