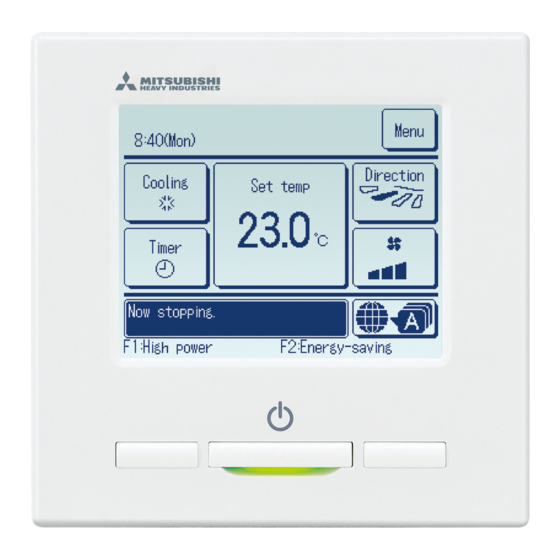

REMOTE CONTROL
USER'S MANUAL
Thank you very much for your purchasing the REMOTE CONTROL for our
packaged air conditioner.
This user's manual describes cautions for safety. Please read this manual carefully before use in order to operate the unit properly.
Keep this manual, after reading, at a safe place where you can consult it whenever it is necessary.
When the ownership of the unit is changed, please be sure to transfer this manual and the "Installation Manual" to a new owner.
It is not recommended for a user to install or move the unit by the user's own discretion. (Safety or functions may not be assured.)
ORIGINAL INSTRUCTIONS
RC-EXZ3A
PJZ012A185
201907

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC-EXZ3A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mitsubishi Heavy Industries RC-EXZ3A

Summary of Contents for Mitsubishi Heavy Industries RC-EXZ3A

  • Page 1 ORIGINAL INSTRUCTIONS REMOTE CONTROL RC-EXZ3A USER'S MANUAL Thank you very much for your purchasing the REMOTE CONTROL for our packaged air conditioner. This user's manual describes cautions for safety. Please read this manual carefully before use in order to operate the unit properly.

  • Page 3: Table Of Contents

    Contents 1. Before you use ……………………… 2  Safety precautions ………………………………… 2  Precautions for waste disposal …………………… 3 ………………………………… 3    Names and functions of sections on the R/C ………… 4  Menu item ………………………………………… 7 2. Menu items …………………………… 9  Run ……………………………………………… 9  Stop ………………………………………………...

  • Page 4: Before You Use

    1. Before you use Safety precautions ●Please read the precautions written here carefully to operate the unit properly. You are required to observe these fully because every item of these instructions is important for safety. Failure to follow these instructions may result in serious consequences WARNING such as death, severe injury, etc.

  • Page 5: Precautions For Waste Disposal

      Never disassemble the remote control. If you touch internal parts accidentally, you could get electric shocks or cause trouble. Consult your dealer when it is necessary to inspect its interior. Do not wash the remote control with water or liquid. Do not touch electric parts or operate buttons or screens with wet hands.

  • Page 6: Names And Functions Of Sections On The R/C

      Names and functions of sections on the R/C (Operating section) ⑤ LCD (With backlight) ③ F2 switch ④ Operation lamp ⑥ USB port (mini-B) Run/Stop ① switch ② F1 switch than the ① Run/Stop, ② F1 ③ F2 switches. Run/Stop changed.
  • Page 7   Names and functions of sections on the R/C (Display) ＊All icons are shown for the sake of explanation. ② Icon display TOP screen ③ Menu button ① Clock, Room name ⑤ Change set temp display button ④ Change operation ⑥...
  • Page 8 ① Clock, Room name display ⑩ Zone operation button   Displays the current time and the room name.   Tap this button to go to the zone operation screen. ② Icon display ⑪ Message display   Each icon is displayed when one of following settings is  ...

  • Page 9: Menu Item

      Menu item Main menu Basic operation                   Run ………………………………………………………………………………………… 9 Stop ………………………………………………………………………………………… 9 Change operation mode ………………………………………………………………… 10 Change set temp ………………………………………………………………………… 10 …………………………………………………………………… 11 Change the fan speed …………………………………………………………………… 14 Zone ON/OFF operation ………………………………………………………………… 14 Zone name setting………………………………………………………………………… 15 F1, F2 switch operation ……………………………………………………………………...

  • Page 10: Main Menu

      Main menu                     Service setting Installation settings Installation date ………………………………………………………… 29 Company information …………………………………………………… 29 Test run …………………………………………………………………… 29 Duct unit settings ………………………………………………………… 29 Please refer to the Change auto-address …………………………………………………… 29 installation manual. Address setting of main IU ……………………………………………… 29 IU back-up function ………………………………………………………...

  • Page 11: Menu Items

    2. Menu items Push the switch. Run/Stop Operation lamp (green) lights and operation starts. Stop Press the switch while the unit is in operation. Run/Stop The operation lamp turns off and the operation stops. When the operation stops, all operation buttons on the screen turn off. When the set lighting time of backlight (☞page41) is counted up, the backlight turns off.

  • Page 12: Change Operation Mode

      Change operation mode Tap the Change operation mode button on the TOP screen. When the Change operation mode screen is displayed, tap the button of desired mode. Change operation mode The operation mode changes, and the display returns to the TOP Cooling screen.

  • Page 13: Change Set Temp

      When the Change set temp screen is displayed, select the temperature as desired with using buttons. ▲ ▼ Change set temp After selecting the set temp, tap the button. The display Auto returns to the TOP screen. ■For allowable temperature setting ranges, refer to the range setting of set temp (☞ page 62).
  • Page 14   ① ☞2) 3D AUTO ② Room Outdoor Back displayed. (☞4) ③ 3D AUTO to enable the operation. 3D AUTO again. will also be disabled when you change the up/down or left/right Control ☞1) Back on the button, as shown on the left. −...
  • Page 15   ■ operation was started. ■   When the room temperature is higher than the set temp (In case of the heating operation)   When the “In operation for heating standby. ” or “In operation for defrosting.” is displayed (In case of the heating operation).  ...

  • Page 16: Change The Fan Speed

      Change the fan speed Tap the Change the fan speed button on the TOP screen. When the Change the fan speed screen is displayed, tap the button of desired fan speed. Change the fan speed After setting the fan speed, the display returns to the TOP screen. ■Fan speeds which can be set vary depending on the models of IU.

  • Page 17: Zone Name Setting

      Zone name setting (for zone control) Tap the Menu button on the TOP screen and select User setting Administrator settings . ⇒ The administrator password input screen is displayed. Enter the administrator password. When the administrator setting menu is displayed, select R/C display setting Zone name .

  • Page 18: F1/F2 Switch Operation

      The zone name input screen is displayed. The zone name can be set with up to 8 2-byte letters (16 1-byte letters). You can enter alphanumeric or Cyrillic. Tap the Back or Next button to display next character group. Set .

  • Page 19: Anti Draft On/Off Operation

      Anti draft ON/OFF operation (for using panel with anti draft) Anti draft can be turned ON/OFF (operated/stopped) with a single tap of the button. To turn ON/OFF the anti draft with the F1 or F2 switch, the anti draft ON/OFF function needs to be preset to the F1 or F2 switch.

  • Page 20: High Power Operation

      High power operation The high power operation adjusts the room temperature quickly to a pleasant level by increasing the operation capacity. The high power operation continues for 15 minutes at the maximum and returns to the normal operation automatically. When the operation mode is changed, the high power operation returns to the normal operation, too.

  • Page 21: Energy-Saving Operation

      Energy-saving operation °C in the cooling operation or 22°C in the heating operation. Since the capacity is controlled automatically based on the outdoor temperature, energy can be saved without losing comfort. Energy-saving operation must be set to the F1 or F2 switch (☞page 71) Energy-saving operation is set to the F2 switch as the factory setting.

  • Page 22: Quick Reference Of Menu Items

    3. Quick reference of menu items Quick reference of menu items It is necessary to input the Administrator password for menu items showing. Setting and display items Details Useful functions Set the moving range (upper and lower limit positions) of the page 31 Set also the left limit position-rights limit position if FDK is used.
  • Page 23   Setting and display items Details Filter Filter sign reset page 74 Set next cleaning date. User setting Initial settings Clock setting Set and correct the current date and time. ■When the power supply is interrupted for 80 hours or less, the clock continues to operate with the built-in backup page 38 batteries.

  • Page 24: Restrictions On The Sub R/C

      Restrictions on the sub R/C When one IU is controlled with 2 R/Cs, the following settings cannot be made on the sub R/C. It is necessary to use the main R/C. In case of the sub R/C, the icon S is displayed on the R/C screen. ○: operable ×: not operable R/C operations Main...

  • Page 25: Operations On Menu Screens

      Operations on menu screens Tap the Menu button on the TOP screen. Main menu screen is displayed. When a desired menu item is tapped, setting screen for each item is displayed. When there are two or more pages, the button is Next displayed at the leading page and the Previous button is...

  • Page 26: Cautions For Each Setting Screen

      When an item is referenced to Administrator password in this manual, the Input password screen is displayed after selecting the Input password menu. Input the administrator password. Enter the administrator password (4-digit number) and tap the Delete button. When the password is unknown or wrong, the setting cannot be changed.

  • Page 27: Settings And Operations

    4. Settings and operations Energy-saving setting [Administrator password] Tap the Menu button on the TOP screen and select Energy-saving setting Energy-saving setting . The Energy-saving setting menu Sleep timer screen is displayed. Peak-cut timer Automatic temp set back When the Energy-saving setting screen is displayed, select a desired Motion sensor control item.

  • Page 28: Peak-Cut Timer

    ■Peak-cut timer Set the times to start and stop the capacity (upper limit) limiting operation and the peak-cut %. Advice · When the peak-cut timer is used, be sure to make the Clock setting in advance (☞page 38). · The peak-cut timer control may not be performed depending on combination of IU and OU. Tap the Menu button on the TOP screen and select...
  • Page 29 Screen to check contents of current setting is displayed. When the contents are changed or new setting is added, select a ① Peak-cut timer setting line No. and tap the ② Change button. State Start time End time Enable 7:00 PM 8:00 PM Disable 7:00 AM...
  • Page 30 Set the peak-cut %. Set the peak-cut % with the buttons. ▲ ▼ Peak-cut timer The peak-cut % can be set at 0%, 40%, 60% or 80%. Wed: No.1 Peak-cut The lower the peak-cut % is, the higher the effect of energy-saving becomes.

  • Page 31: Automatic Temp Set Back

    ■Automatic temp set back It returns to the set temperature when the set time is counted up. Tap the Menu button on the TOP screen and select Automatic temp set back . The Energy-saving setting Automatic temp set back ⇒ Setting in cooling Automatic temp set back screen is displayed.

  • Page 32: Motion Sensor Control

    ■Motion sensor control (for IUs with motion sensors) Presence of humans and the amount of motion are detected by a motion sensor to perform various controls. ■When the R/C is set as the sub R/C, the motion sensor control cannot be set. Tap the button on the TOP screen and select Menu...
  • Page 33 ■ Tap the Menu button on the TOP screen and select Useful functions , or ⇒ tap the button on the TOP screen and select , and then enter the administrator password. When one IU is connected to the R/C: ☞3 When two or more IUs are connected to the R/C: ☞2...
  • Page 34 (☞4) №② ■ outlet No. ① will keep moving while the blow 制 №① №③ 御 箱 displayed on the screen shows the installed №④ selected will move. Drain hose side Pipe side 配管側  ドレンホース側  Advice Louver No. ルーバ№ [For FDT] ［FDTの場合］...
  • Page 35 Select one of the lower limit positions from 1 to 6 Flap❶ Swing range motion range. The range of motion between the upper and lower limit positions will be displayed in black. After you select the range, tap the button. Lower limit setting Back Select the lower limit No.
  • Page 36 Select one of the right limit positions from 1 to 5 Flap❷ Swing range motion range. The range of motion between the left and right limit positions will be displayed in black. After you select the range, tap the button. Right limit setting Back Select the right limit and tap [Set].

  • Page 37: Anti Draft Setting

    Anti draft setting (for using panel with anti draft) You can set ON/OFF (operation/stop) of the anti draft function and can also enable/disable the motion of panel with anti draft for each blow outlet for each operation mode. ■When the R/C is set as the sub R/C, the anti draft setting cannot be set. Tap the button on the TOP screen and select ⇒...
  • Page 38   Select the blow outlet number to set anti draft. ① will keep moving while the blow outlet selection ■ side. ■You can set all blow outlets at once by tapping the button. Bat.set. An icon that indicates the operation mode (☞page 10) is shown on each blow outlet button.

  • Page 39: Ventilation Operation

    ■ON/OFF setting The indoor unit No. and the ON/OFF state of each anti draft function are displayed to allow ON/OFF setting of the anti draft. Anti draft is turned OFF by tapping ON and turned ON by tapping OFF. When two or more indoor units equipped with anti draft function are connected to the R/C, the two or more indoor units are displayed.

  • Page 40: Initial Settings

      Initial settings Tap the Menu button on the TOP screen and select User setting ⇒ Initial settings . When the “Initial settings” menu screen is displayed, tap a desired Initial settings item. Clock setting ・Clock setting ……☞ page 38 Date &...

  • Page 41: Date & Time Display

    Set the “hour : minute” with the buttons on the ▲ ▼ clock setting screen. Clock setting Tap the button after the setting. To change “dd/mm/yy” tap the button. Date Date Back Set the time. ■Date & time display You can set and correct the date & time display. Tap the Menu button on the TOP screen and select...

  • Page 42: Summer Time

      ■Summer time You can adjust the current time by one hour. Tap the Menu button on the TOP screen and select User setting Initial settings ⇒ ⇒ Summer time . The Summer time setting screen is displayed. Changing from Disable to Enable … (Current time + 1 hr) is Summer time displayed.

  • Page 43: Backlight

    ■Backlight You can turn ON/OFF the backlight and set the lighting period. Tap the button on the TOP screen and select Menu User setting Initial settings ⇒ ⇒ Backlight . The Backlight setting screen is displayed. Tap the ON or OFF buttons for the backlight lighting and the lighting Backlight Period (5 - 90 sec, at 5-sec intervals).

  • Page 44: Timer

      ■Operation lamp luminance You can adjust the operation lamp luminance. Tap the Menu button on the TOP screen and select User setting Initial settings ⇒ ⇒ Operation lamp luminance The Operation lamp luminance adjustment screen is displayed. You can adjust the luminance of the operation lamp to a desired Operation lamp luminance level by tapping the ▲...
  • Page 45 ■Operation of each timer  ・Sleep timer (☞page 25) Stops the operation of the unit when the amount of time set has elapsed since the start of the operation. When the setting is enabled, this timer will activate whenever any operation starts.  ・Set ON timer by hour (☞page 44) ...

  • Page 46: Set On Timer By Hour

      ■Set ON timer by hour When the set time elapses, the air conditioner starts. Tap the button on the TOP screen and select Menu Useful functions ⇒ Timer ⇒ Set ON timer by hour . The Set ON timer by hour setting screen is displayed. Select desired hours for the period to start operation by timer with Set ON timer by hour buttons.
  • Page 47 Select a desired temperature (at 1°C intervals) with the buttons. Or tap the Auto button and select the ▲ ▼ Set ON timer by hour auto temp setting. Auto Tap the button after the adjustment. (☞4) When the No setting button is tapped, “--°C” is displayed, and it starts operation at the last setting temperature.

  • Page 48: Set Off Timer By Hour

      ■Set OFF timer by hour When the set time elapses, the air conditioner stops. Tap the Menu button on the TOP screen and select Useful functions ⇒ Timer ⇒ Set OFF timer by hour The Set OFF timer by hour setting screen is displayed. Select desired hours to stop operation with the ▲...

  • Page 49: Set On Timer By Clock

    ■Set ON timer by clock Starts the operation of the unit at the set clock time. Tap the button on the TOP screen and select Menu Useful functions ⇒ Timer ⇒ Set ON timer by clock The Set OFF timer by hour setting screen is displayed. Select a desired time to start operation (5-min intervals) with the Set ON timer by clock buttons.
  • Page 50   Select a desired temperature (at 1°C intervals) with the buttons. Or tap the Auto button and select the ▲ ▼ Set ON timer by clock auto temp setting. Auto Tap the button after the adjustment. (☞4) When the No setting button is tapped, “--°C” is displayed, and it starts operation at the last setting temperature.

  • Page 51: Set Off Timer By Clock

    ■Set OFF timer by clock Stops the operation of the unit at the set clock time. Tap the Menu button on the TOP screen and select Useful functions ⇒ Timer ⇒ Set OFF timer by clock The Set OFF timer by clock setting screen is displayed. Select a desired time to stop operation (5-min intervals) with the buttons.

  • Page 52: Weekly Timer

    ■ When you tap the button on the Timer menu screen, the contents of the current timer settings are displayed. ■When the warming up is set, is displayed in front of the operation ■The Zone button is displayed when performing zone settings. Tapping the Zone button will display the set zone states.
  • Page 53 When a desired day of the week ① is tapped on the display, contents of current setting for the day are displayed. (☞5) Weekly timer For the holiday setting, tap the block ② under the day to switch between “ ” (the holiday setting) and “(Blank)” (reset).  Timer does not operate on the day set as holiday.
  • Page 54 Set the following operating conditions. ① Warming up ON/OFF Weekly timer Details (Operation starts 5 to 60 minutes earlier in order to warm up the Cooling Set temp room temperature closed to the set temp at the set start time of Warming up operation.) ②...
  • Page 55 Tap a desired fan speed. When the No setting button is tapped, starts operation at the last Weekly timer fan speed. (☞7) After setting desired contents at the screen of 7, tap the Auto button. No setting Back Select the fan speed. Tapping the Zones button will transition to the zone operation setting screen.

  • Page 56: Home Leave Mode

    Home leave mode [Administrator password] Use this function to maintain the room temperature at a moderate level for avoiding extremely hot or cool after leaving home. ■Cooling and heating operations are controlled according to the outdoor air temperature. ■The set temperature and fan speed can be set. Advice ·...
  • Page 57 [To change the operation conditions] Tap the Menu button on the TOP screen and select Useful functions Home leave ⇒ ⇒ Details The Details setting menu is displayed. The following items can be Home leave mode set. Determine temp rule in cooling ①...
  • Page 58 Set the outdoor temperature for the “Determine temp rule in heating”. Select a desired set temp (0°C to 15°C, at 5°C intervals) with the Determine temp rule in heating buttons. to set offset value. ▲▼ ▲ ▼ Tap the button after the setting. Back Set the indoor temperature to start operation in cooling after setting the “Determine temp rule in cooling”.

  • Page 59: Registering Favorite Settings

    Set the fan speed in heating mode. Tap a desired fan speed. Fan speed rule in heating Back Select the fan speed. After the settings of steps to 8, the display returns to the Details setting menu 1. Tap the Back button to return to the home leave mode screen. To start operation, tap the Start button. Registering favorite settings Operation mode, set temp, fan speed, fan direction can be registered as Favorite set 1 and Favorite set 2.

  • Page 60: Favorite Setting Operation

    Favorite setting operation You can start an operation with the operation mode, set temp, fan speed, flap direction registered to Favorite set 1 and Favorite set 2. Settings for the operation mode, set temp, fan speed, flap direction can be registered from Favorite setting on the menu (☞page 57).

  • Page 61: Administrator Settings

    Administrator settings [Administrator password] Tap the Menu button on the TOP screen and select User setting ⇒ Administrator settings The administrator password input screen is displayed. Enter the administrator password. When the administrator setting menu is displayed, tap a desired Administrator settings item.

  • Page 62: Permission/Prohibition Setting

    ■Permission/Prohibition setting Tap the Menu button on the TOP screen and select User setting ⇒ Administrator settings ⇒ Permission/Prohibition setting . The Permission/Prohibition setting menu is displayed. Following items can be selected, and the Permission or Prohibition Permission/Prohibition setting can be set for them. Bat.set.

  • Page 63: Outdoor Unit Silent Mode Timer

    for each item. Permission Prohibition Run/Stop Permission Prohibition Back Select the item. ■Outdoor unit silent mode timer Set the period of time to operate the OU with prioritizing the quietness. When the Outdoor unit silent mode timer setting is Enabled, the silent mode operation starts and ends everyday at the same time until the setting is Disable.

  • Page 64: Setting Temp Range

    Set the start time for the Outdoor unit silent mode timer. Select a desired time (at 5-min intervals) with the ▲ ▼ Outdoor unit silent mode timer Start time buttons. If the Set button is tapped after setting the start time, the display changes to the end time setting screen.
  • Page 65 Set the range of setting temperature in the cooling operation. Menu Select at desired lower and upper limit temperatures (at 1°C Setting upper/lower limit temp in cooling intervals) with the buttons. Cool/Dry/Fan ▲ ▼ lower limit upper limit After Selecting the desired settings, tap the Set button. Back to set temp &...

  • Page 66: Temp Increment Setting

    ■Temp increment setting Temperature increment for the change of the set temp can be changed. Tap the Menu button on the TOP screen and select User setting Administrator settings ⇒ ⇒ Temp increment setting The Temp increment setting screen is displayed. Tap a desired temperature increment.

  • Page 67: R/C Display Setting

    ■R/C display setting Contents of display on the R/C can be changed. Tap the Menu button on the TOP screen and select User setting Administrator settings ⇒ ⇒ R/C display setting . The R/C display setting menu screen is displayed. R/C display setting ①...
  • Page 68 ① Room name Set the room name to be displayed on the TOP screen. Tap the Menu button on the TOP screen and select User setting Administrator settings ⇒ ⇒ R/C display setting Room name . ⇒ The Room name input screen is displayed. Room name The room name can be set with up to 9 2-byte letters (18 1-byte letters).
  • Page 69 When the letter selection screen is displayed same as at the setting Name of IU of the name of R/C (☞ 66), enter letters. The name of IU can be entered up to 4 2-byte (8 1-byte) letters. Number Alphabet カナ...
  • Page 70 When R/C sensor setting is enabled, the room temperature (R/C) ○ MEETING1 °C is displayed (refer to the installation manual on how to make Menu 16 ： 00 (Mon) these settings). Direction Auto Set temp Timer Room(R/C) In operation for running. F1: High power F2: Energy-saving ④...
  • Page 71 ⑥ Defrost operation display When frost on the OU heat exchanger is accumulated and the conditions for start defrosting are established, the defrost operation control is performed automatically. Select ON/OFF for the Defrost operation display. Tap the button on the TOP screen and select Menu User setting Administrator settings...

  • Page 72: Change Administrator Password

    ⑧ Display temp of R/C, Room, Outdoor Select ON/OFF for the display of the R/C sensor temperature, room temperature and outdoor temperature. Tap the button on the TOP screen and select Menu User setting Administrator settings ⇒ ⇒ R/C display setting Display temp of R/C, Room, Outdoor ⇒...

  • Page 73: F1/F2 Function Setting

    ■F1/F2 function setting Use the F1 and F2 switches to change the functions to operate. Tap the Menu button on the TOP screen and select User setting Administrator settings ⇒ ⇒ F1/F2 function setting . The F1/F2 function setting screen is displayed. On the F1/F2 function setting screen, tap the side ( F1 or F2 F1/F2 function setting Select the function of F1/F2...

  • Page 74: Silent Mode Control

    Silent mode control The OU is controlled with priority on quietness. You can start/stop the silent mode control. Menu 【Starting control with button】 Tap the button on the TOP screen and select Menu Useful functions Silent mode control ⇒ The administrator password input screen is displayed. Enter the administrator password.

  • Page 75: Select The Language

    Select the language Select the language to be displayed on the R/C. 【Selecting the language with the button】 Tap the button on the TOP screen while the air conditioner is stopped. ■Depending on how the Permission/Prohibition setting (☞page 60) is set, the administrator password input screen may be displayed.

  • Page 76: Filter Sign Reset

    Filter sign reset Tap the message display on the TOP screen. MEETING1 Menu 16 ： 00 (Mon) message “Filter cleaning. Touch here.” is displayed. Direction Set temp Tap the button on the TOP screen and select Menu Timer Filter sign reset . Filter ⇒...

  • Page 77: Maintenance Of Unit And Lcd

    5. Maintenance of unit and LCD Maintenance of unit and LCD ■Wipe the surface of LCD and main body of the remote control with a dry cloth when cleaning is required. ■If the dirt on the surface cannot be removed, soak the cloth in neutral detergent diluted with water, squeeze the cloth tightly, and clean the surface.

  • Page 78: Useful Information

    6. Useful information Contact company & Error display If any error occurs on the air conditioner, the “Unit protection stop” is indicated on the message display. Take the following measures, stop the operation and consult your dealer. The “Unit protection stop” is displayed on the message display. Menu Tap the Menu button.

  • Page 79: Notice Of Inspection Date

    7. Notice of inspection date If the next service date is set on the Service & Maintenance menu by your dealer, the following screen is displayed for 5 seconds at the start of operation and for 20 seconds from the end of operation on the beginning of the month which includes the set date.
  • Page 80   ■ “In operation for defrosting.” display When frost forms on the OU, the heating performance will decrease. Menu This will cause the unit to automatically switch to defrost operation, and 20 ： 20 (Tue) hot air will stop blowing out from the IO. Direction Heating Set temp...
  • Page 81     ■ “In operation for rotation.”, “In operation for capacity back-up”, “In operation for fault back-up” displays When rotation, capacity back-up, or fault back-up operation is enabled Menu during installation, a message indicating the operation that is set and 16 ：...
  • Page 82   ■ “OU silent operation by external input” display The message “OU silent operation by external input” will be displayed when silent mode control is operated through a central control device (not included) or an IO external input (not included). When “OU silent operation by external input”...

  • Page 83: After-Sale Service

      9 . After-sale service ● Inform your dealer ● Repairs after Warranty Period  Consult your dealer. Fare-paying services may be possible at ●Model name the request of customer. ●Date of installation  (The warranty period is one year counting from the date of ●Failure conditions: As precise as possible.
