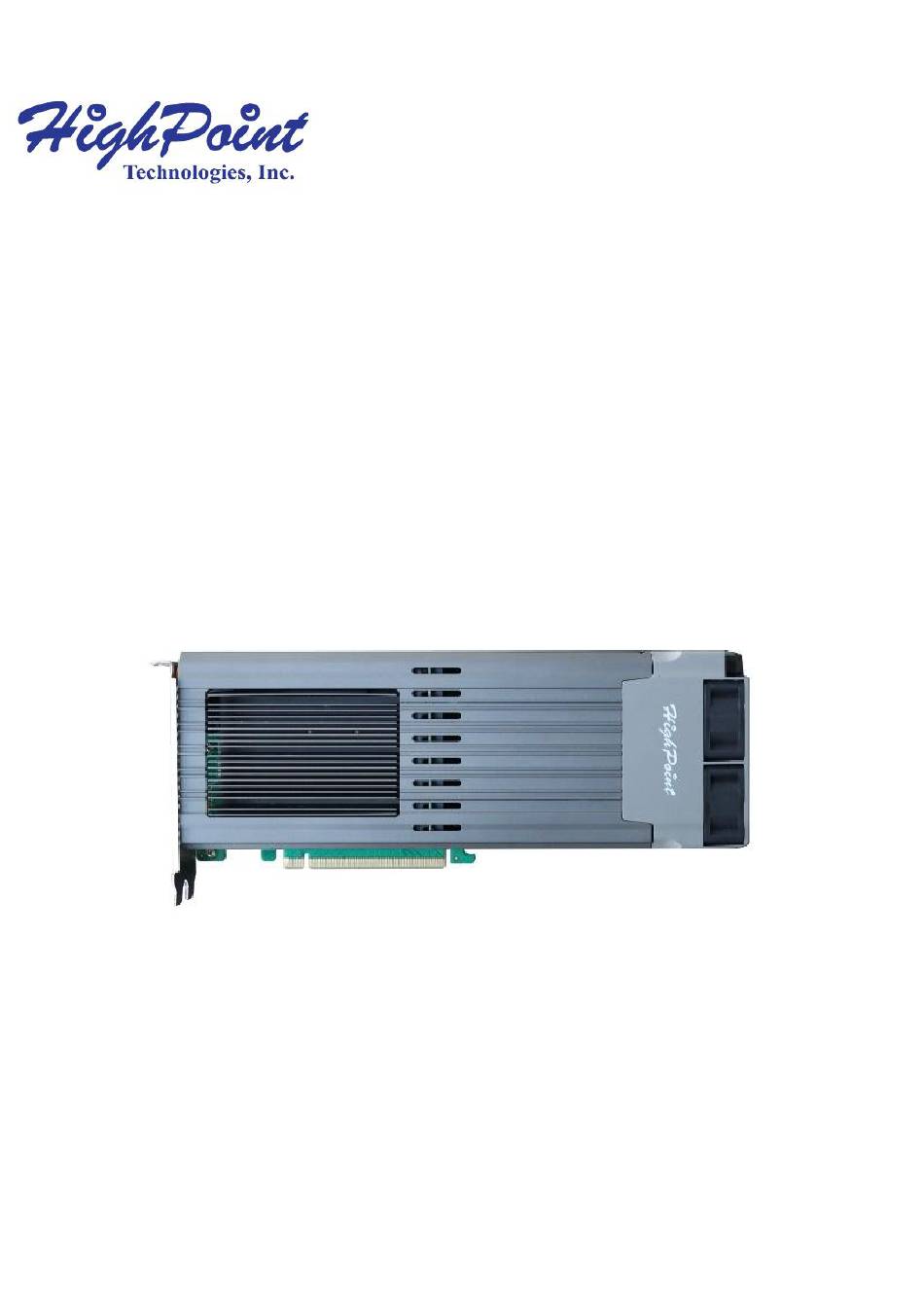

SSD7749M
8x M.2 Port to PCIe 4.0 x16 NVMe RAID Controller
Quick Installation Guide
V1.02
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSD7000 Gen4 Series and is the answer not in the manual?

Questions and answers

Related Manuals for HighPoint SSD7000 Gen4 Series

Summary of Contents for HighPoint SSD7000 Gen4 Series

  • Page 1 SSD7749M 8x M.2 Port to PCIe 4.0 x16 NVMe RAID Controller Quick Installation Guide V1.02...

  • Page 2: System Requirements

    System Requirements PC Requirements System with a free PCIe4.0 (or 3.0) x16 slot  Windows 11, 10 / Server 2022, 2019, 2016 / Microsoft Hyper-V  RHEL/Debian/Ubuntu/Fedora/Proxmox/ Rocky Linux  (Linux kernel 3.10 and later) macOS 10.13.6 ~ macOS 13.x ...
  • Page 3 SSD7749M Hardware Front View Full-Length anodized aluminum heat sink Full Height form factor External power port PCIe 4.0 x16 Host Interface Low-Noise Cooling Fan...
  • Page 4 PORT2 SSD LED PORT1 SSD LED PORT4 SSD LED POTR3 SSD LED PORT6 SSD LED PORT5 SSD LED PORT8 SSD LED PORT7 SSD LED SSD LED Green flashing: The disk is doing I/O.  Solid Red: The disk has failed. ...

  • Page 5: Hardware Installation

    Hardware Installation Step 1. Apply pressure to release the lock, turn it counterclockwise, and remove the tray. Warning: Please pay attention to opening the fan module carefully to avoid causing damage to the fan module. Step 2. Loose the screw and remove the film. Step 3.
  • Page 6 Step 4. Refasten the screw to secure the NVMe SSD. Step 5. After installing all SSDs, carefully insert the Trays into the slots. Repeat Steps 1 to 5 to install the remaining NVMe SSDs. The following example shows eight Gen4 SSDs installed into Ports 1-8: PORT1 PORT2...
  • Page 7 Note: Ensure the NVMe SSD is carefully but securely mounted to each port. Loose connections can cause various stability and performance issues and may ultimately result in data loss. Step 4. Align the fan module and press down to secure. Step 5.
  • Page 8 SSD7749M relies on two power sources to support eight SSDs; power supplied through the PCIe bus, and power from the system’s PSU via an external 6 pin PCIe power cable. If the external cable is not connected, there will be insufficient power to support all 8 SSDs;...
  • Page 9 In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. For Software Downloads, Documentation, and more information about this product, please visit the following website: https://www.highpoint-tech.com/nvme1/ssd7749m FAQ & Troubleshooting: FAQ - HighPoint Technologies, Inc. (helpjuice.com)

  • Page 10: Customer Support

    Customer Support If you encounter any problems while utilizing the SSD7749M or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
