HighPoint SSD7105 Quick Installation Manual
4x m.2 port to pcie 3.0x16 nvme raid controller
Hide thumbs
Also See for SSD7105:
- Installation manual (42 pages) ,
- Manual (32 pages) ,
- Using manual (19 pages)
Related Manuals for HighPoint SSD7105
Summary of Contents for HighPoint SSD7105
- Page 1 SSD7105 4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller Quick Installation Guide V1.00...
- Page 2 Windows 10/11, Windows server 2012 r2, Windows Server 2016, Windows Server 2019, Windows server 2022 and Microsoft Hyper-V • Linux kernel 3.10 and later • macOS 10.13 and later SSD7105 Kit Content • SSD7105 Controller Card • Quick Installation Guide...

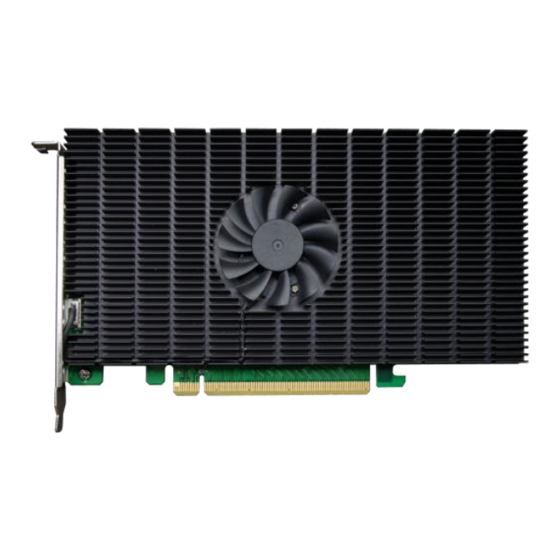

- Page 3 SSD7105 Hardware Front View Full-Height form factor Anodized aluminum heat sink Low-Noise Cooling Fan PCIe 3.0 x16 Host Interface...
- Page 4 SSD7105 Hardware Installation: Step 1. On the rear of the SSD7105, remove the six screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD7105. Step 2. After removing the casing, carefully turn it over to view the thermal pad.
- Page 5 Step 3. These 4 screws are used to install the NVMe SSDs. Step 4. Please remove the screws on the right side of SSD7105 Step 5. Gently insert the SSD into the slot. Note: Please make sure all disks are clean before you insert them into the slot to avoid unexpected situations.
- Page 6 The following example shows four SSDs installed into Port 1, 2, 3 & 4; Step 7. Replace the heat sink after installing all SSDs Step 8. On the rear of the SSD7105, refasten the 6 screws that were removed in step 1. ：...
- Page 7 Note: Install the driver in the system first and then install the board Resources A variety of manuals, guides and FAQ’s are available for the SSD7105 RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides.
- Page 8 Customer Support If you encounter any problems while utilizing the SSD7105 drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
