Universal holding cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Scan for
Additional
Information
Operation Manual
Universal Holding Cabinet
UHC 600
EN
FM05-370 A 23 February

Advertisement

Table of Contents
loading

Related Manuals for Henny Penny McDonald's UHC 600

Summary of Contents for Henny Penny McDonald's UHC 600

  • Page 1 Scan for Additional Information Operation Manual Universal Holding Cabinet UHC 600 FM05-370 A 23 February...
  • Page 3 Henny Penny Universal Holding Cabinet Table of Contents Chapter 1 Overview Safety Symbols Guide Intended Use Chapter 2 Installation Specifications Dimensions Uncrated Crated Electrical Cord and Plug Required Clearance Requirements Electrical Selecting a Location Unpacking Removing from Carton Performing the Initial Start-up...

  • Page 4: Table Of Contents

    Henny Penny Universal Holding Cabinet Touch Screen Features Touch Screen Icons Using the Universal Holding Cabinet First In and First Out (FIFO) Theory of Operation GO Menu Theory of Operation Daily Set-up Selecting Menu Languages Enabling Energy (ECO) Save Mode...
  • Page 5 Henny Penny Universal Holding Cabinet Setting Eco Mode Options Shelf Temperature Suggest Eco Mode Setting Languages Changing the Manager Password Setting the Suggest Screen Clean Mode Chapter 4 Maintenance Using Clean Screen Lock Cleaning Daily Accessing Cleaning Mode Cleaning the Racks, Trays, and Shelves...
  • Page 6 Henny Penny Universal Holding Cabinet Overview FM05-370 A...
  • Page 7 Chapter 1 Overview Safety Henny Penny products have many safety features incorporated. However, the only way to ensure safe operation is to fully understand the proper installation, operation, and main- tenance procedures. These instructions have been prepared to aid you in learning the proper procedures.
  • Page 8 Henny Penny Universal Holding Cabinet Symbol Reference No. Symbol Title Description Caution, risk Identifies equipment, for example the Shock Hazard of electric power source, that has risk of electric Symbol shock shock. To indicate that the marked item can be...
  • Page 9 Henny Penny Universal Holding Cabinet Symbol Reference No. Symbol Title Description Flammable ISO 7010-W021 To warn of flammable material. material Hot water To warn of hot water. Do not Heat Do not apply direct heat to the tem- Temperature perature probe.
  • Page 10 For proper disposal, please con- tact your nearest Henny Penny dis- tributor. Intended Use The holding cabinet is used to preserve food quality and health safety standards during com- mercial production of food products.
  • Page 11 See Henny Penny oper- ation instruction. NOTICE - Unit should not be operated using an external timer or remote control system. These are the original version controlled Henny Penny instructions for the Universal Holding Cabinet Model UHC 600 Overview FM05-370 A...
  • Page 12 Henny Penny Universal Holding Cabinet Installation FM05-370 A...
  • Page 13 Henny Penny Universal Holding Cabinet Chapter 2 Installation Specifications Dimensions Uncrated Height Unit Width Unit Depth Offset Width Lid Depth 26 in. (660.4 22 in. (559 mm) 22.5 in. (571.5 25.5 in. (851 24 in. (603.9 Crated Height Width Depth Shipping Weight 34.07 in.
  • Page 14 Henny Penny Universal Holding Cabinet Single Phase - New Style Interlock Twist - Older Style Pin and Sleeve w/ 6' Cord Twist Lock w/ 6' Cord Required Clearance Sides Back 1.50 in. (38 mm) 1.50 in. (38 mm) 1.50 in. (38 mm)
  • Page 15 Cooling (fan) vents on either side must not be blocked or restricted. Unpacking The Henny Penny UHC 600 has been tested, inspected, and expertly packed to ensure arrival at its destination in the best possible condition. NOTICE - Any shipping damage should be noted in the presence of the delivery agent and signed prior to his or her departure.
  • Page 16 Henny Penny Universal Holding Cabinet Heavy Object Take care when moving the unit to prevent per- sonal injury. The units weigh approximately 225 lbs (102 kg). Removing from Carton 1. Carefully cut banding strips. 2. Lift carton off the unit.
  • Page 17 Henny Penny Universal Holding Cabinet Setting up the Hardware Units stored in cold environments, must sit in a room temperature environment for 24 hrs. before installation to prevent damage to tem- perature probes, and other circuitry. If not, the warranty may be void.
  • Page 18 See sep- arately provided Franke instructions. Note: These can be reused from an existing unit, or can be purchased through your KES. Not available through Henny Penny. Unpack and use the ECOLab cleaning kit to perform an initial cleaning before use.
  • Page 19 Henny Penny Universal Holding Cabinet Additionally, the control needs to be customized for each operator. As an example, sound level, sound types, control brightness, language, etc. Also, the menu and options need to be maintained throughout the life of the unit. Use the following instructions to program the con- trol.
  • Page 20 Henny Penny Universal Holding Cabinet Step Action Navigation QR Code Settings (swipe down) Set for Fahrenheit or Celsius Home > Cabinet Set- Click or Scan QR ting > Fahrenheit or Code Celsius (swipe down) Set the suggested screen clean Home > Cabinet Set-...
  • Page 21 Henny Penny Universal Holding Cabinet Product Menu Checklist Step Action Navigation QR Code Set product items parameters, Home > Recipe Book Click or Scan QR which includes: > Product Code Product Name Upper Temperature: must match lower Lower Temperature: must...
  • Page 22 Henny Penny Universal Holding Cabinet Step Action Navigation QR Code Default is green. IMPORTANT: Only one tem- Home > Recipe Book Click or Scan QR perature per shelf can be set, > Group Code regardless of front or back side of the shelf, or top shelf heater or bot- tom.
  • Page 23 Henny Penny Universal Holding Cabinet Step Action Navigation QR Code shelf. Installation FM05-370 A...
  • Page 24 Henny Penny Universal Holding Cabinet Operation FM05-370 A...
  • Page 25 Henny Penny Universal Holding Cabinet Chapter 3 Operation Components Front View Used to manage settings and to operate the unit, such as starting timers, etc. Item No. Name Description Control Panel Touch screen control used for operating the cabinet, set- ting parameters, and menus.
  • Page 26 Henny Penny Universal Holding Cabinet Item No. Name Description other helpful content. Power Switch Used to safety power on and heat the unit in the morning to operating temperature. Unit is powered off last thing at night to conserve energy.
  • Page 27 Henny Penny Universal Holding Cabinet Item No. Name Description power source. Reset Breaker Under unexpected conditions the reset breaker will pop out. Press to reset. Contact Technical Support if needed. Control Panel Touch screen control used for operating the cabinet, set- ting parameters, and menus.

  • Page 28: Touch Screen Features

    Henny Penny Universal Holding Cabinet Touch Screen Features Tap a menu from the Home screen to access the following options. 1. Press & GO (GO menu) displays the timers used in day-to-day operation. 2. Recipe menu displays the Product, Group, and Day Part settings, 3.
  • Page 29 Henny Penny Universal Holding Cabinet Menu Loca- Icon Name Description tion inmactive. Change Over Used to change all the timers and shelvse over to a different menu (en mass) or swipe left-right one slot at a time. Back Arrow Return to the previous menu.

  • Page 30: Using The Universal Holding Cabinet

    Henny Penny Universal Holding Cabinet Menu Loca- Icon Name Description tion Group Create or modify Groups. Day Part Assign- Create or modify Day Part Assign- ment ments Settings Displays in the Cabinet Settings menu. Lock Displays in various menus. Always locks a screen or function.

  • Page 31: First In And First Out (Fifo) Theory Of Operation

    Henny Penny Universal Holding Cabinet The Universal Holding Cabinet (UHC) maintains freshness and presentation of menu items before serving. Additionally, the UHC helps the operator manage product First In and First Out (FIFO) inventory to ensure just in time availability, with minimal product waste.

  • Page 32: Go Menu Theory Of Operation

    Henny Penny Universal Holding Cabinet GO Menu Theory of Operation IMPORTANT: The type and quantity of product cooked and held is unique to each store, day, and time. All the Recipe Book menu parameters are used by the UHC and the operator when using the GO menu to manage product.

  • Page 33: Selecting Menu Languages

    Henny Penny Universal Holding Cabinet 3. The shelves begin to heat. Wait until all shelves are heated and ready to use. It can take 35 minutes to fully heat. Orange indicates the progress of the shelves as they heat. Yellow indicates the time left to heat.

  • Page 34: Enabling Energy (Eco) Save Mode

    Henny Penny Universal Holding Cabinet 1. Tap the Language icon. The Language menu displays. 2. Tap a language from the menu. 3. Tap the Green Checkmark to save and continue, or Red X to exit without making a change. Enabling Energy (ECO) Save Mode If enabled in Home >...

  • Page 35: Starting And Canceling A Timer

    Henny Penny Universal Holding Cabinet 1. Tap the Green Checkmark to enable Eco mode for the row. 2. Tap the Red X to exit without making a change. Starting and Canceling a Timer The UHC uses a First In and First Out product rotation. Instead of using one wide bin, mul- tiple narrow bins can be used to rotate product, to reduce product waste.

  • Page 36: Swiping Menu Items

    Henny Penny Universal Holding Cabinet 1. Tap a menu item to start a timer. A countdown timer displays on the bin. 2. Tap the same timer again, and the timer pauses. 3. Tap the timer again to reduce the cook time by 5 minutes, each tap.

  • Page 37: Managing Rows

    Henny Penny Universal Holding Cabinet 1. Watch for timers turning yellow, which indicates they are expiring. 2. Cook more product if needed. 3. Tap to stop (cancel) the timer flashing discard. 4. Discard expired product. Managing Rows Use Row Management to manage Day Part Assignments, Enable Eco Mode, and Power Off Unused Shelves.

  • Page 38: Changing Day Part Assignments

    Henny Penny Universal Holding Cabinet Changing Day Part Assignments Use for the changeover from breakfast to the rest of the day. 1. Swipe individual shelves to change an individual product menu type. 2. Tap the changeover (left-right) arrow to change all product menu types.

  • Page 39: Powering Off Unused Shelves

    Henny Penny Universal Holding Cabinet Powering Off Unused Shelves Use to turn off unused shelves. Unlike Eco mode, this option turns the shelf com- pletely off. 4. Tap the right on-off button, to power off an unused shelf. The power icon switches from green to red.

  • Page 40: Editing Settings

    Henny Penny Universal Holding Cabinet 1. Tap the Language icon. The Language menu displays. 2. Tap a language from the menu. 3. Tap the Green Checkmark to save and continue, or Red X to exit without making a change. Editing Settings To edit the Recipe Book and Cabinet Settings, you must use the Lock icon to enable and dis- able editing.
  • Page 41 Henny Penny Universal Holding Cabinet Tap the Lock icon to unlock editing. A password screen displays. Type 1122, and then tap the Green Checkmark to continue, or Back arrow to exit without making a change. When finished, tap the Lock icon to lock editing.

  • Page 42: Selecting Options

    Henny Penny Universal Holding Cabinet Selecting Options UHC allows for customizable options. Tap the Lock icon to unlock editing. A password screen displays. Type 1122, and then tap the Green Checkmark to continue, or Back arrow to exit without making a change. When finished, tap the Lock icon to lock editing.

  • Page 43: Changing The Font Size

    Henny Penny Universal Holding Cabinet Checked: The screen dims to 10% of set brightness after 180 seconds of no activity. Reactivates upon any activity. Unchecked: Screen remains at set brightness. 5. Select as applicable, and then tap the Green Checkmark to save and continue, or Red X to exit without making a change.

  • Page 44: Changing The Sound Level

    Henny Penny Universal Holding Cabinet Navigation: Home > Settings > Brightness (swiped down) 1. Use the slider to increase or decrease the menu brightness level. 2. Tap the Green Checkmark to save and continue, or Red X to exit without making a change.

  • Page 45: Changing The Temperature Unit

    Henny Penny Universal Holding Cabinet 1. Use the slider to increase or decrease the volume level. 2. Tap the Green Checkmark to save and continue, or Red X to exit without making a change. Changing the Temperature Unit UHC supports both Fahrenheit or Celsius temperatures.

  • Page 46: Adding, Or Modifying A Product Menu Item

    Henny Penny Universal Holding Cabinet 1. Select Fahrenheit or Celsius. 2. Tap the Green Checkmark to save and continue, or Red X to exit without making a change. Adding, or Modifying a Product Menu Item Each product must be configured here for use in the GO menu. Use McDonald's values to complete entry of every product held in the UHC.
  • Page 47 Henny Penny Universal Holding Cabinet 1. Tap the Product icon, select a product from the list. 2. Tap Add (Green Plus), or Modify (Pencil Icon) to change a product menu item as applicable. The Item screen displays. 3. Tap the field to add or change value. The Value screen displays. Note: Fields and values are examples, yours may vary.
  • Page 48 Henny Penny Universal Holding Cabinet 4. Tap the key pad to select the value. Product items parameters includes: Product Name Upper Temperature: must match lower Lower Temperature: must match upper Holding Time: total time before disposal. Follow McD food safety guidelines...

  • Page 49: Deleting A Product Menu Item

    Henny Penny Universal Holding Cabinet 5. Tap the Green Checkmark to continue, or the Back arrow to exit without making a change. The Item screen displays. 6. Use steps 3 thru 6 to add each value to the menu item.

  • Page 50: Editing The Group Menu

    Henny Penny Universal Holding Cabinet Editing the Group Menu Products with the same holding temperatures must be grouped together on the same tem- perature shelve. The shelf rows cannot be configured with multiple different temperatures. Tap the Lock icon to unlock editing. A password screen displays. Type 1122, and then tap the Green Checkmark to continue, or Back arrow to exit without making a change.
  • Page 51 Henny Penny Universal Holding Cabinet while still serving breakfast. Empty breakfast bins can be changed individually, earlier by swiping a single bin. When breakfast is over, the entire menu can be changed all at once. Tap the Lock icon to unlock editing. A password screen displays. Type 1122, and then tap the Green Checkmark to continue, or Back arrow to exit without making a change.

  • Page 52: Configuring Alerts

    Henny Penny Universal Holding Cabinet 3. Read and follow the top and bottom instructions on the screen, and then do one of the following: Add by tapping an empty bin, and then select a product. Edit by tapping an empty bin, and then select a product.

  • Page 53: Setting The Calendar

    Henny Penny Universal Holding Cabinet 1. Tap OPEN. The Audio Configuration screen displays. 2. Select sounds for alerts. Use the Green Right-Arrow to test the sound. 3. Tap the Green Checkmark to save and continue, or Red X to exit without making a change.

  • Page 54: Setting The Date

    Henny Penny Universal Holding Cabinet Tap the Lock icon to unlock editing. A password screen displays. Type 1122, and then tap the Green Checkmark to continue, or Back arrow to exit without making a change. When finished, tap the Lock icon to lock editing.

  • Page 55: Setting The Time

    Henny Penny Universal Holding Cabinet Setting the Time 2. Tap the time setting field, The time setting screen displays. 3. Tap to set A.M. or P.M. 4. Tap to set Hours, Minutes, and Seconds. 5. Tap the Green Checkmark to continue, or Back arrow to exit without making a change.

  • Page 56: Setting The Time Format

    Henny Penny Universal Holding Cabinet Setting the Time Format 6. Select either 12 hr. (noon to midnight) or 24 hr. (midnight to midnight). Setting the Time Zone For countries or regions that use Coordinated Universal Time (UTC). 7. Tap and select Coordinated Universal Time (UTC).

  • Page 57: Setting Daylight Savings Time (Dst)

    Henny Penny Universal Holding Cabinet Setting Daylight Savings Time (DST) For countries or regions that use Daylight Savings Time (DST). 8. Tap Daylight Savings Time (DST). Setting Day Parts This setting allows for additional or custom Day Part menus in the Recipe Book. Select all you want to display and to be selectable.
  • Page 58 Henny Penny Universal Holding Cabinet 1. Tap the Day Part titles you would like to use in the Recipe Book. 2. Tap the Green Checkmark to save and continue, or Red X without making a change. Setting Eco Mode Options Use this option to set the Eco Mode options when in the GO menu, using Eco Mode.
  • Page 59 Henny Penny Universal Holding Cabinet Shelf Temperature 1. Tap one of the following options: Turn shelf heater completely off: completely shuts down shelf heating when selected. Turn shelf temperature to: select the temperature the shelf should cool to when in Eco Mode. Default is recommended. Note: the shelf will need to reheat to holding temperature when placed back into use.
  • Page 60 Henny Penny Universal Holding Cabinet Tap the Lock icon to unlock editing. A password screen displays. Type 1122, and then tap the Green Checkmark to continue, or Back arrow to exit without making a change. When finished, tap the Lock icon to lock editing.
  • Page 61 Henny Penny Universal Holding Cabinet 1. Tap Change Manager Password. The Manager Pin (Password) screen displays. 2. Tap 1122 (default), and then tap the Green Checkmark to save and continue, or Red X to exit without making a change. 3. Tap Change Manager Password again. The new password screen displays.
  • Page 62 Henny Penny Universal Holding Cabinet Tap the Lock icon to unlock editing. A password screen displays. Type 1122, and then tap the Green Checkmark to continue, or Back arrow to exit without making a change. When finished, tap the Lock icon to lock editing.
  • Page 63 Henny Penny Universal Holding Cabinet Maintenance FM05-370 A...
  • Page 64 Henny Penny Universal Holding Cabinet Chapter 4 Maintenance Using Clean Screen Lock As necessary throughout the day, wipe the front of the control panel to remove fingerprints and grease, which may effect operation of the touchscreen. 1. Tap the Lock icon from the Clean menu or the Clean Screen button, The ten second lock screen displays.
  • Page 65 Henny Penny Universal Holding Cabinet Tap the Lock icon to unlock editing. A password screen displays. Type 1122, and then tap the Green Checkmark to continue, or Back arrow to exit without making a change. When finished, tap the Lock icon to lock editing.
  • Page 66 Henny Penny Universal Holding Cabinet 2. Tap the Green Checkmark to begin the cool down cycle or Red X to cancel. If you tap the checkmark to continue, the Cooling Down screen displays. 3. Once the screen turns green and Safe to Clean displays, clean the holding cabinet.
  • Page 67 Henny Penny Universal Holding Cabinet 1. Once cooled, remove trays and racks, wash in sink or warewasher. 2. If using warewasher, skip to step 4. 3. If washing in sink, do the following: a. Place trays and tracks into wash compartment of the sink filled with fresh hot (110-120°F) APSC Solution.
  • Page 68 Henny Penny Universal Holding Cabinet 6. Scrub inside of each UHC cabinet shelf with Hi-Temp Multi-use tool with Pad. 7. Repeat for all UHC shelves. 8. Remove Multi-use pad, and then set aside. 9. Retrieve white universal pad from clean towel bucket and wring it out thoroughly.
  • Page 69 Henny Penny Universal Holding Cabinet 2. Wipe exterior of cabinet. 3. Discard towel into soiled towel bucket after use. 4. Power cycle UHC system when complete. 5. Wash, rinse, and sanitize tools at wash sink. Maintenance FM05-370 A...
  • Page 70 Henny Penny Universal Holding Cabinet Troubleshooting FM05-370 A...
  • Page 71 Henny Penny Universal Holding Cabinet Chapter 5 Troubleshooting Error Codes Display Cause Solution E-4A Cabinet enclosure overheating. Contact Technical Support The system goes into safe mode by turning off all heaters. E-4B Control board heat sink is over- Contact Technical Support heating.
  • Page 72 Henny Penny Universal Holding Cabinet Display Cause Solution E-205 Failure of the system to upload / Try another USB drive. Contact Technical download settings from a USB Support if needed. drive. E-210 Failure of one of the fans. As long as at least one fan is running, can continue with operation.

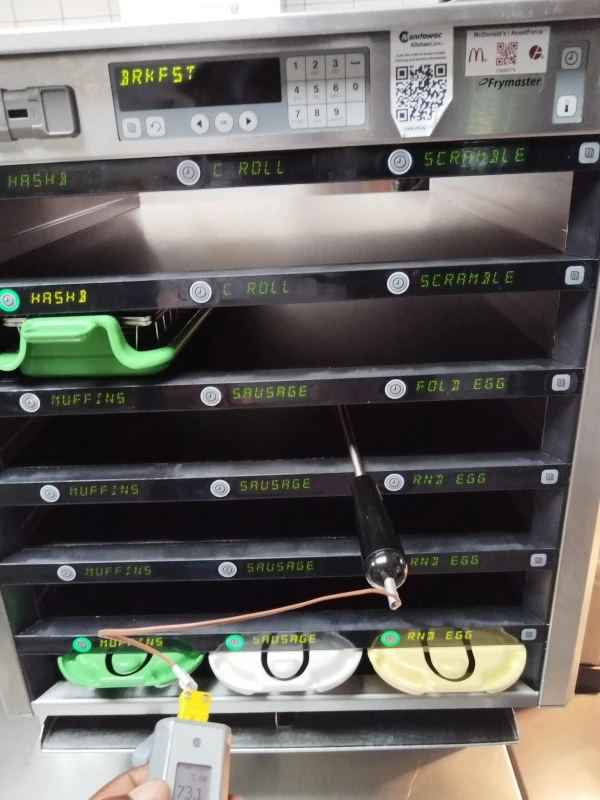

  • Page 73 Henny Penny Universal Holding Cabinet 1. From the main menu screen, tap the Thermometer. The current temperatures of the shelves displays. 2. Exit the menu by tapping the back arrow. Note: If a shelf is consistently out of tem- perature range, call Technical Services.
  • Page 75 Contact Technical Support phone: U.S. and Canada: +1-800-417-8405 Global: +1-937-456-8405 text: +1-937-456-8405 email: technicalservices@hennypenny.com live chat Copyright belongs to Henny Penny Contact Parts by: Corporation 2024 All rights reserved. email: partsdepartment@hennypenny.com Contact Warranty by: email: warranty@hennypenny.com Henny Penny Corporation 1219 U.S. 35, Eaton, OH 45320...
