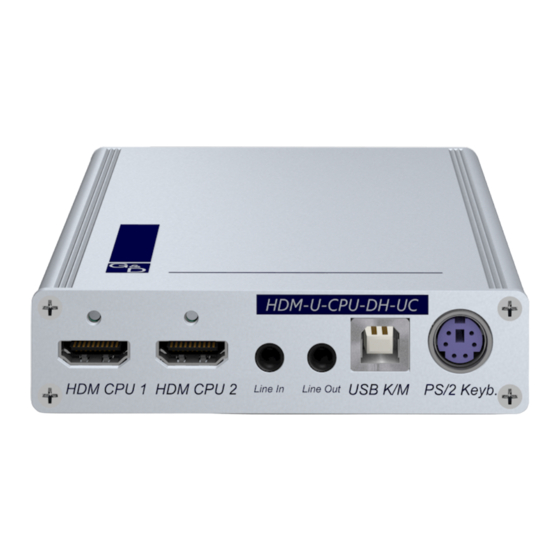

G&D HDM-CPU Series Installation And Operation Manual

Computer modules
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
G&D Computer Modules
EN
Installation and Operation
HDM-CPU series
A9200154-1.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDM-CPU Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for G&D HDM-CPU Series

Summary of Contents for G&D HDM-CPU Series

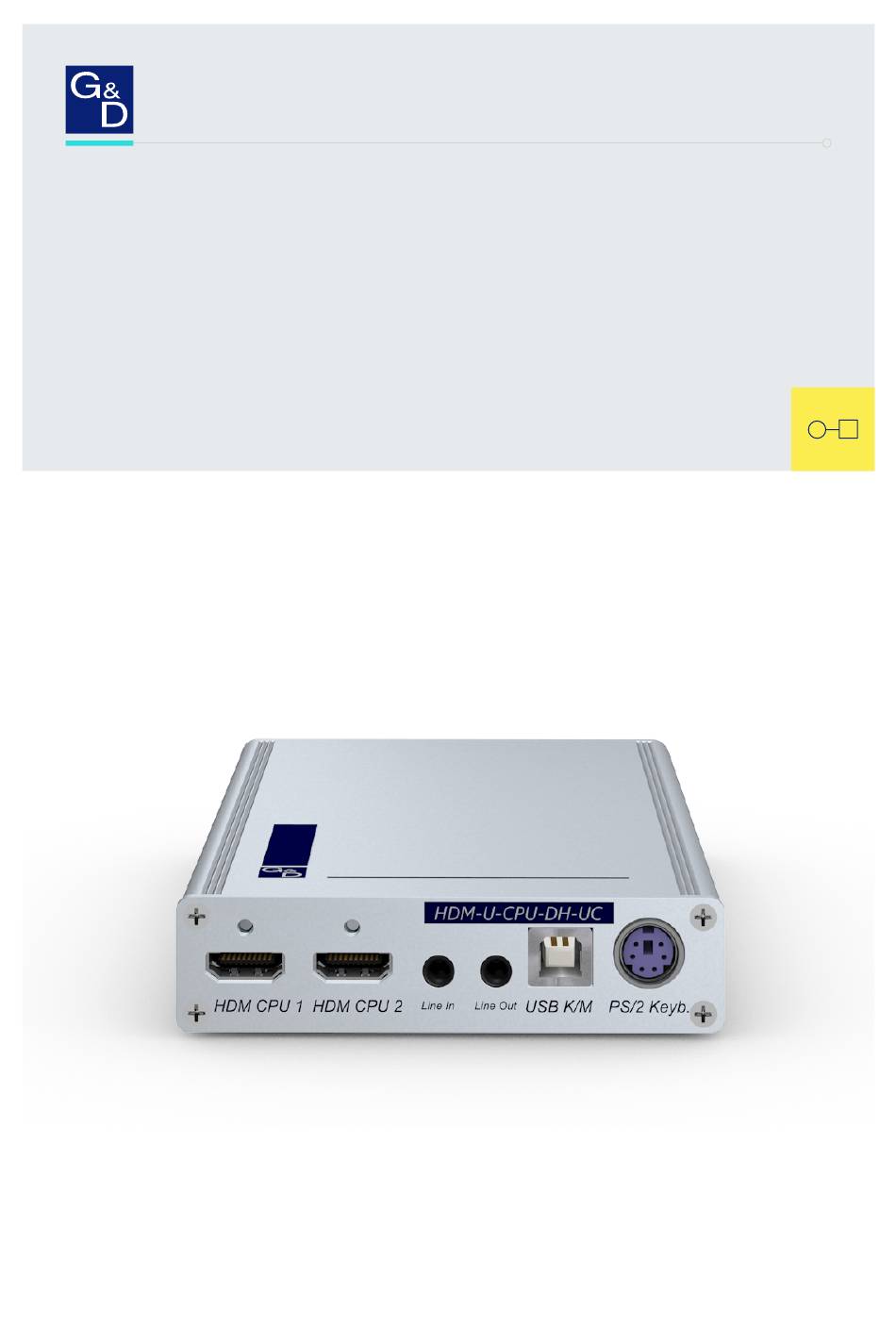

  • Page 1 G&D Computer Modules Installation and Operation HDM-CPU series A9200154-1.11...
  • Page 2 © Guntermann & Drunck GmbH 2024. All rights reserved. Version 1.11 – 31/01/2024 Guntermann & Drunck GmbH Obere Leimbach 9 57074 Siegen Germany Phone +49 271 23872-0 +49 271 23872-120 www.gdsys.com sales@gdsys.com i · Computer modules of the HDM-CPU series...
  • Page 3  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Computer modules of the HDM-CPU series · ii...

  • Page 4: Table Of Contents

    Enabling/disabling the console module’s Generic HID mode ......52 Enabling/disabling the computer module’s Generic HID mode ...... 53 Chapter C: Extender mode Opening the OSD in extender mode ..............55 Configuration ....................56 iii · Computer modules of the HDM-CPU series...

  • Page 5: Safety Instructions

    When installing the devices, ensure that the devices’ mains plugs remain accessible at all time. Do not cover the ventilation openings For device variants with ventilation openings, it must always be ensured that the ventilation openings are not covered. Computer modules of the HDM-CPU series · 1...
  • Page 6 Failure to observe this precautionary measure can result in injuries and damage to the device. Operate the device exclusively in the intended field of application The devices are designed for indoor use. Avoid extreme cold, heat or humidity. 2 · Computer modules of the HDM-CPU series...
  • Page 7 The guarantee of complying with all relevant instructions can only be given by applying original components. Therefore, the devices have to be operated with G&D certified transmission modules only. Computer modules of the HDM-CPU series · 3...

  • Page 8: Chapter A: Computer Modules

     1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  1 × Category 5e (or better) twisted pair cable to connect the computer module to the matrix switch 4 · Computer modules of the HDM-CPU series...
  • Page 9 You can also connect the computer module directly to a compatible console module. Power supply Insert the power pack’s connection cable to this interface. Power In: Connect the power cable to the power pack and a power socket. Computer modules of the HDM-CPU series · 5...
  • Page 10 No console module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing console module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 6 · Computer modules of the HDM-CPU series...
  • Page 11 Approx. 105 × 26 × 164 mm Weight: Approx. 0.39 kg Operational Temperature: +5 to +45°C environment Air humidity: 20% to 80%, non-condensing Storage Temperature: -20 to +60°C environment Air humidity: 15% to 85%, non-condensing Computer modules of the HDM-CPU series · 7...
  • Page 12 Computer module »HDM-CPU« HDM-CPU Conformity CE, UKCA, FCC class B, TAA, EAC, RoHS, WEEE, REACH 8 · Computer modules of the HDM-CPU series...

  • Page 13: Computer Module "Hdm-Cpu-Dh-Uc

     1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  2 × Category 5e (or better) twisted pair cables to connect the computer module to two different matrix switches Computer modules of the HDM-CPU series · 9...
  • Page 14 Use the USB device cable to connect one of the computer’s USB interfaces to this interface. Use an optional PS/2 cable to connect the computer’s PS/2 keyboard PS/2 Keyb.: interface to this interface. 10 · Computer modules of the HDM-CPU series...
  • Page 15 Connect this interface to a Dynamic Port (RJ45) of the second matrix switch. ADVICE: You can also connect the computer module directly to up to two compatible console modules. Power supply Power In: Insert the power pack’s connection cable to this interface. Computer modules of the HDM-CPU series · 11...
  • Page 16 No console module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing console module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 12 · Computer modules of the HDM-CPU series...
  • Page 17 Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Power supply Type: Portable power pack (12 V/2 A) Connector: 1 × Mini-DIN 4 socket Power input: 0.7A @ 12 VDC Computer modules of the HDM-CPU series · 13...
  • Page 18 +5 to +45°C environment Air humidity: 20% to 80%, non-condensing Storage Temperature: -20 to +60°C environment Air humidity: 15% to 85%, non-condensing Conformity CE, UKCA, FCC class B, TAA, EAC, RoHS, WEEE, REACH 14 · Computer modules of the HDM-CPU series...

  • Page 19: Computer Module "Hdm-Cpu-Fiber

     1 × Power cable (only with variants incl. PowerPack)  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  1 × Compatible optical fibre cable to connect the computer module to the matrix switch Computer modules of the HDM-CPU series · 15...
  • Page 20 Use the USB device cable to connect one of the computer’s USB interfaces to this interface. PS/2 Keyb.: Use an optional PS/2 cable to connect the computer’s PS/2 keyboard interface to this interface. 16 · Computer modules of the HDM-CPU series...
  • Page 21 You can also connect the computer module directly to a compatible console module. Power supply Connect the cable of the power pack to this interface. Now connect the Power In: power cable to the power pack and a power socket. Computer modules of the HDM-CPU series · 17...
  • Page 22 No console module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing console module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 18 · Computer modules of the HDM-CPU series...
  • Page 23 Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Power supply Type: Portable power pack (12 V/2 A) Connector: 1 × Mini-DIN 4 socket Power input: 0.6A @ 12 VDC Computer modules of the HDM-CPU series · 19...
  • Page 24 +5 to +45°C environment Air humidity: 20% to 80%, non-condensing Storage Temperature: -20 to +60°C environment Air humidity: 15% to 85%, non-condensing Conformity CE, UKCA, FCC class B, TAA, EAC, RoHS, WEEE, REACH 20 · Computer modules of the HDM-CPU series...

  • Page 25: Computer Module "Hdm-Cpu-Fiber-Dh-Uc

    Users at the consoles of the matrix switch can access the computer module and operate the connected computer. ADVICE: At consoles with only one monitor, use the key combination Alt+arrow right to switch to the video stream of the computer's second video output (see page 58). Computer modules of the HDM-CPU series · 21...
  • Page 26  1 × Power cable (only with variants incl. PowerPack)  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  2 × Compatible optical fibre cable to connect the computer module to two different matrix switches 22 · Computer modules of the HDM-CPU series...
  • Page 27  Only use G&D certified transmission modules on page 3 NOTE: Use optical fibres with LC plugs to connect the devices. The cables are available as accessories. IMPORTANT: For each matrix switch, connect only one Trans. interface of the computer module! Computer modules of the HDM-CPU series · 23...
  • Page 28 Insert the power pack’s connection cable to this interface. Start-up Connect the power cable to the power pack and a power socket. The computer module starts as soon as it is supplied with power. 24 · Computer modules of the HDM-CPU series...
  • Page 29 No console module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing console module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. Computer modules of the HDM-CPU series · 25...
  • Page 30 The device supports monitors with a DDC/CI function. The DDC information are transparently forwarded to the moni- tor to support a maximum number of monitors. However, the support cannot be guaranteed for all monitor models. 26 · Computer modules of the HDM-CPU series...
  • Page 31 +5 to +45 °C environment Air humidity: 20% to 80%, non-condensing Storage Temperature: -20 to +60°C environment Air humidity: 15% to 85%, non-condensing Conformity CE, UKCA, FCC class B, TAA, EAC, RoHS, WEEE, REACH Computer modules of the HDM-CPU series · 27...

  • Page 32: Computer Module "Hdm-U-Cpu

     1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  1 × Category 5e (or better) twisted pair cable to connect the computer module to the matrix switch 28 · Computer modules of the HDM-CPU series...
  • Page 33 You can also connect the computer module directly to a compatible console module. Power supply Insert the power pack’s connection cable to this interface. Power In: Connect the power cable to the power pack and a power socket. Computer modules of the HDM-CPU series · 29...
  • Page 34 No console module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing console module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 30 · Computer modules of the HDM-CPU series...
  • Page 35 1 × Mini-DIN 4 socket Power input: 0.6A @ 12 VDC Housing Material: Anodised aluminium Dimensions (W × H × D): Approx. 105 × 26 × 164 mm Weight: Approx. 0.39 kg Computer modules of the HDM-CPU series · 31...
  • Page 36 +5 to +45°C environment Air humidity: 20% to 80%, non-condensing Storage Temperature: -20 to +60°C environment Air humidity: 15% to 85%, non-condensing Conformity CE, UKCA, FCC class B, TAA, EAC, RoHS, WEEE, REACH 32 · Computer modules of the HDM-CPU series...

  • Page 37: Computer Module "Hdm-U-Cpu-Dh-Uc

    16 Mbit/s. ADVICE: At consoles with only one monitor, use the key combination Alt+arrow right to switch to the video stream of the computer's second video output (see page 58). Computer modules of the HDM-CPU series · 33...
  • Page 38  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  2 × Category 5e (or better) twisted pair cables to connect the computer module to two different matrix switches 34 · Computer modules of the HDM-CPU series...
  • Page 39 Use the USB device cable to connect one of the computer’s USB interfaces to this interface. Use an optional PS/2 cable to connect the computer’s PS/2 keyboard PS/2 Keyb.: interface to this interface. Computer modules of the HDM-CPU series · 35...
  • Page 40 Connect this interface to a Dynamic Port (RJ45) of the second matrix switch. Trans. 2: ADVICE: You can also connect the computer module directly to up to two compatible console modules. Power supply Insert the power pack’s connection cable to this interface. Power In: 36 · Computer modules of the HDM-CPU series...
  • Page 41 No console module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing console module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. Computer modules of the HDM-CPU series · 37...
  • Page 42 Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s 38 · Computer modules of the HDM-CPU series...
  • Page 43 +5 to +45°C environment Air humidity: 20% to 80%, non-condensing Storage Temperature: -20 to +60°C environment Air humidity: 15% to 85%, non-condensing Conformity CE, UKCA, FCC class B, TAA, EAC, RoHS, WEEE, REACH Computer modules of the HDM-CPU series · 39...

  • Page 44: Computer Module "Hdm-U-Cpu-Fiber

     1 × Power pack (12V/2A, only with variants incl. PowerPack)  1 × Power cable (only with variants incl. PowerPack)  1 × »Manual information« flyer  1 × »Safety instructions« flyer 40 · Computer modules of the HDM-CPU series...
  • Page 45 Use the USB device cable to connect one of the computer’s USB interfaces to this interface. PS/2 Keyb.: Use an optional PS/2 cable to connect the computer’s PS/2 keyboard interface to this interface. Computer modules of the HDM-CPU series · 41...
  • Page 46 You can also connect the computer module directly to a compatible console module. Power supply Connect the cable of the power pack to this interface. Now connect the Power In: power cable to the power pack and a power socket. 42 · Computer modules of the HDM-CPU series...
  • Page 47 No console module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing console module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. Computer modules of the HDM-CPU series · 43...
  • Page 48 Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s 44 · Computer modules of the HDM-CPU series...
  • Page 49 +5 to +45°C environment Air humidity: 20% to 80%, non-condensing Storage Temperature: -20 to +60°C environment Air humidity: 15% to 85%, non-condensing Conformity CE, UKCA, FCC class B, TAA, EAC, RoHS, WEEE, REACH Computer modules of the HDM-CPU series · 45...

  • Page 50: Computer Module "Hdm-U-Cpu-Fiber-Dh-Uc

    DP-U-CON DP-HR-U-CON 16 Mbit/s. ADVICE: At consoles with only one monitor, use the key combination to switch to the video stream of the computer's second video output Alt+arrow right (see page 58). 46 · Computer modules of the HDM-CPU series...
  • Page 51 Use the USB device cable to connect one of the computer’s USB interfaces to this interface. Use an optional PS/2 cable to connect the computer’s PS/2 keyboard PS/2 Keyb.: interface to this interface. Computer modules of the HDM-CPU series · 47...
  • Page 52 Dynamic Port provided at the second matrix switch. ADVICE: You can also connect the computer module directly to up to two compatible console modules. 48 · Computer modules of the HDM-CPU series...
  • Page 53 No console module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing console module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. Computer modules of the HDM-CPU series · 49...
  • Page 54 The device supports monitors with a DDC/CI function. The DDC information are transparently forwarded to the moni- tor to support a maximum number of monitors. However, the support cannot be guaranteed for all monitor models. 50 · Computer modules of the HDM-CPU series...
  • Page 55 +5 to +45°C environment Air humidity: 20% to 80%, non-condensing Storage Temperature: -20 to +60°C environment Air humidity: 15% to 85%, non-condensing Conformity CE, UKCA, FCC class B, TAA, EAC, RoHS, WEEE, REACH Computer modules of the HDM-CPU series · 51...

  • Page 56: Chapter B: Generic Hid

    How to enable/disable the console module’s Generic HID mode: 1. Press Ctrl+Num (default) to open the on-screen display (OSD). 2. Press to open the Configuration menu. 3. Select Console and press Enter Computer modules of the HDM-CPU series · 52...

  • Page 57: Enabling/Disabling The Computer Module's Generic Hid Mode

    Ctrl+Num (default) to open the OSD. 2. Press to open the Configuration menu. 3. Select Target and press Enter 4. Select the computer module whose settings you want to change and press Computer modules of the HDM-CPU series · 53...
  • Page 58 USB computer modules additionally support certain USB input devices. After selecting the specific USB keyboard mode of such a device, you can use the special features of these USB input devices. 6. Click to save your changes. 54 · Computer modules of the HDM-CPU series...

  • Page 59: Chapter C: Extender Mode

    You can use the configured hotkey to open the OSD at the console. How to open the OSD: 1. Press (default) to open the OSD. Alt+Num Configuration Hotkey... EDID... Keyboard/Mouse... Mouse utility... Console utility... Information... ESC: Exit 55 · Computer modules of the HDM-CPU series...

  • Page 60: Configuration

    Pause: Pause key Insert: Insert key Delete: Delete key Home: Home key End: End key PgUp: Page Up key PgDn: Page Down key Space: Space key 5. Press to save your settings. 56 · Computer modules of the HDM-CPU series...
  • Page 61 Open OSD by pressing Shift twice Print: Open OSD by pressing Druck twice ADVICE: Press Ctrl+F8 to show a list including all options. Select the desired option and press Enter 4. Press to save your settings. Computer modules of the HDM-CPU series · 57...
  • Page 62 Select stream Cursor left,right: Video switching with Hotkey+arrow left Hotkey+arrow right (default) Num+,Num-: Video switching with Hotkey+Num+ Hotkey+Num- 4. Press to save your settings. 58 · Computer modules of the HDM-CPU series...
  • Page 63 ADVICE: In some cases it is recommended to send the EDID profile of the console monitor to the computer module. Now the connected computer receives the EDID data of the console monitor. Computer modules of the HDM-CPU series · 59...
  • Page 64 Special PixelPower Rapid Action keyboard SKIDATA1: Special SKIDATA1 keyboard ADVICE: Press to show a list including all options. Select the desired Ctrl+F8 option and press Enter 4. Press to save your settings. 60 · Computer modules of the HDM-CPU series...
  • Page 65 USB devices if a USB keyboard or mouse does not respond to your inputs during operation. How to enable/disable the reinitialisation of USB devices: 1. Press the Alt+Num (default) hotkey to open the on-screen display. 2. Select and press Keyboard/Mouse Enter Computer modules of the HDM-CPU series · 61...
  • Page 66 OSD cannot be opened by mouse Yes: opens OSD via mouse keys 4 and 5 of a compatible mouse 4. Press to save your settings. 62 · Computer modules of the HDM-CPU series...
  • Page 67 Wacom Intuos4 M  Wacom Int.4M Wacom Intuos4 L  Wacom Int.4L Wacom Intuos4 XL  Wacom Int.4XL Wacom Intuos5  Wacom Int.5 Wacom Intuos Pro L  Wacom Int. Pro L Computer modules of the HDM-CPU series · 63...
  • Page 68 You can use the emulation of »Solaris Shortcut Keys« in the SUN DE SUN US keyboard mode only. If the computer module is provided with a Sun Keyboard, you can use Solaris Shortcut Keys after enabling their support. 64 · Computer modules of the HDM-CPU series...
  • Page 69 Yes: Support for servers of IBM’s RS/6000 series is activated Support for servers of IBM’s RS/6000 series is deactivated 4. Press to save your settings. Computer modules of the HDM-CPU series · 65...
  • Page 70 Activates the PS/2 mouse of a Linux computer Enable Intelli: Activates the PS/2 wheel mouse of a Linux computer Enable Intelli-Explorer: Activates the PS/2 wheel mouse with additional keys of a Linux computer 66 · Computer modules of the HDM-CPU series...
  • Page 71 Local OSD via 2x keypress Modifier: Configured key to open the OSD via double keypress Local selectkeys Keys: Selected set of select keys: HARDWARE INFORMATION Serial number: Serial number of console module Computer modules of the HDM-CPU series · 67...
  • Page 72 2. Select Information and press Enter 3. Use the arrow keys to select the desired menu item (see above). 4. Press to show the desired information. Enter 5. Press to leave the menu. 68 · Computer modules of the HDM-CPU series...
