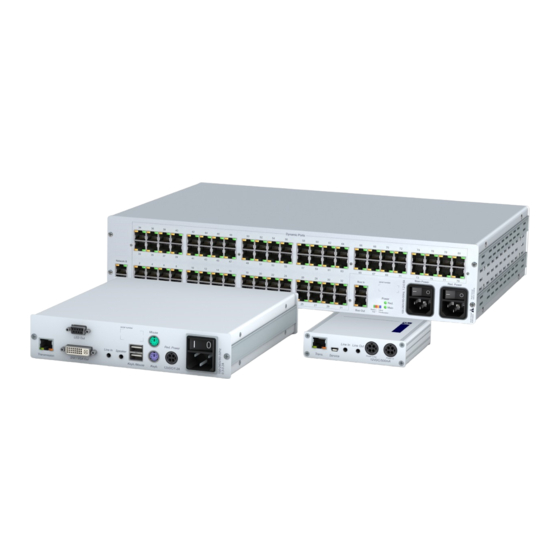

G&D Computer and Console Modules
EN
Installation and Operation
DP-HR-U variants
A9200141-1.31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-HR-U-CPU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for G&D DP-HR-U-CPU

Summary of Contents for G&D DP-HR-U-CPU

  • Page 1 G&D Computer and Console Modules Installation and Operation DP-HR-U variants A9200141-1.31...
  • Page 2 About this manual This manual has been carefully compiled and examined to the state-of-the-art. G&D neither explicitly nor implicitly takes guarantee or responsibility for the qual- ity, efficiency and marketability of the product when used for a certain purpose that differs from the scope of service covered by this manual.
  • Page 3 FCC Statement The devices named in this manual comply with Part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) the devices may not cause harm- ful interference, and (2) the devices must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Table of contents Table of Contents Safety instructions .................... 1 Chapter A: Computer modules Computer module »DP-HR-U-CPU« ..............4 Computer module »DP-HR-U-CPU-UC« ............9 Computer module »DP-HR-U-CPU-MC2« ............. 15 Computer module »DP-HR-U-CPU-MC2-UC« ..........21 Computer module »DP-HR-U-CPU-Fiber« ............ 28 Computer module »DP-HR-U-CPU-Fiber-UC« ..........34 Computer module »DP-HR-U-CPU-Fiber-MC2«...
  • Page 5 Table of contents Chapter C: Generic HID Enabling/disabling the console module’s Generic HID mode ......179 Enabling/disabling the computer module’s Generic HID mode ....180 Chapter D: Extender mode Opening the OSD in extender mode .............. 182 Configuration ....................183 Computer and console modules (DP-HR-U) ·...

  • Page 6: Safety Instructions

    Safety instructions Safety instructions Please read through the following safety guidelines before putting the G&D product into operation. The guidelines help to avoid damage to the product and prevent potential injuries. Keep these safety guidelines ready to hand for all persons who use this product. Observe all warnings and operating information given at the device or in this operat- ing manual.
  • Page 7 Safety instructions Ensure correct installation position for devices with ventilation openings For reasons of electric safety, devices with ventilation openings must only be installed in an upright, horizontal position. Do not insert any objects through the device’s openings Objects should never be inserted through the device’s openings. Dangerous voltage could be present.
  • Page 8 Safety instructions Special advices for dealing with laser technology Fiber devices of the computer modules and console modules use components with laser technology which comply with laser class 1 or better. They meet the requirements according to EN 60825-1:2014 as well as U.S.

  • Page 9: Chapter A: Computer Modules

    Computer modules Computer module »DP-HR-U-CPU« With computer modules, you can connect a computer with DP-HR-U-CPU DisplayPort graphics output to a digital matrix switch of the ControlCenter-Compact or Control- Center-Digital series. Users at the consoles of the matrix switch can access the computer module and operate the connected computer.
  • Page 10 Computer module »DP-HR-U-CPU« Installation Connecting the computer Line In Line Out Keyb. Mouse DP CPU USB K/M DP CPU: Use the supplied video cables to connect the computer’s Display Port video output to this interface. Use one of the supplied audio cables to connect the computer’s Line Out Line In: interface to this interface.
  • Page 11 Computer module »DP-HR-U-CPU« Status displays The Power LED on the back panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 12 Computer module »DP-HR-U-CPU« Technical data DP-HR-U-CPU Interfaces to Video: 1 × DisplayPort computer Keyboard and mouse signals 2 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Data transmission to Interface: 1 × RJ45 socket the counterpart Transmission distance: Max.
  • Page 13 Computer module »DP-HR-U-CPU« DP-HR-U-CPU Power supply Type: Portable power pack (12 V/2 A) Connector: 1 × Mini-DIN 4 socket Power input: 0.6A @ 12 VDC Housing Material: Anodised aluminium Dimensions (W × H × D): Approx. 105 × 26 × 164 mm Weight: Approx.

  • Page 14: Computer Module "Dp-Hr-U-Cpu-Uc

    Computer module »DP-HR-U-CPU-UC« Computer module »DP-HR-U-CPU-UC« With computer modules, you can connect a computer with DP-HR-U-CPU-UC Display- Port graphics output to two different digital matrix switch of the ControlCenter-Compact or ControlCenter-Digital series. At the consoles of both matrix switches, users can access a computer module to operate the connected computer.
  • Page 15 Computer module »DP-HR-U-CPU-UC« Installation Connecting the computer DP CPU Line In Line Out USB K/M Keyb. Mouse DP CPU: Use the supplied video cables to connect the computer’s Display Port video output to this interface. Line In: Use an audio cable to connect the computer’s Line-Out interface to this port.
  • Page 16 Computer module »DP-HR-U-CPU-UC« Trans. 1: Connect this interface to a Dynamic Port (RJ45) of a matrix switch. Connect this interface to a Dynamic Port (RJ45) of another matrix switch. Trans. 2: ADVICE: You can also connect the computer module directly to up to two compatible console modules.
  • Page 17 Computer module »DP-HR-U-CPU-UC« Status displays The Power LED on the back panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 18 Computer module »DP-HR-U-CPU-UC« Technical data DP-HR-U-CPU-UC Interfaces to Video: 1 × DisplayPort computer: Keyboard and mouse signals: 2 × PS/2 socket 1 × USB-B Audio: 2 × 3.5 mm jack socket Data transmission Interface: 2 × RJ45 sockets to counterparts Transmission length Max.
  • Page 19 Computer module »DP-HR-U-CPU-UC« DP-HR-U-CPU-UC Power supply Type: Power pack (12 V/2 A) Connection: 1 × Mini-DIN 4 socket Current consumption: 0.6A @ 12 VDC Casing Material: Anodised aluminium Dimensions (W × H × D): Approx. 105 × 26 × 164 mm Weight: Approx.

  • Page 20: Computer Module "Dp-Hr-U-Cpu-Mc2

    Computer module »DP-HR-U-CPU-MC2« Computer module »DP-HR-U-CPU-MC2« With computer modules, you can connect a computer with DP-HR-U-CPU-MC2 Display- Port graphics outputs (dual-head) to a digital matrix switch of the ControlCenter-Com- pact or ControlCenter-Digital series. Users at the consoles of the matrix switch can access the computer module and operate the connected computer.
  • Page 21 Computer module »DP-HR-U-CPU-MC2« Installation Connecting the computer DP CPU 2 DP CPU 1 Line In Line Out USB K/M Keyb. Mouse Use one of the supplied video cables to connect the computer’s first Display DP CPU 1: Port video output to this interface.
  • Page 22 Computer module »DP-HR-U-CPU-MC2« Connect this interface to a Dynamic Port (RJ45) of the matrix Trans.|Channel 1: switch. Trans.|Channel 2: Connect this interface to another Dynamic Port (RJ45) of the matrix switch. NOTE: You can also connect the computer module directly to a compatible console module.
  • Page 23 Computer module »DP-HR-U-CPU-MC2« Status displays The Power LED on the back panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 24 Computer module »DP-HR-U-CPU-MC2« Technical data DP-HR-U-CPU-MC2 Interfaces to Video: 2 × DisplayPort computer Keyboard and mouse signals 2 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Data transmission to Interface: 2 × RJ45 socket the counterpart Transmission distance: Max.
  • Page 25 Computer module »DP-HR-U-CPU-MC2« DP-HR-U-CPU-MC2 Power supply Type: Portable power pack (12 V/2 A) Connector: 1 × Mini-DIN 4 socket Power input: 1A @ 12 VDC Housing Material: Anodised aluminium Dimensions (W × H × D): Approx. 105 × 46 × 164 mm Weight: Approx.

  • Page 26: Computer Module "Dp-Hr-U-Cpu-Mc2-Uc

    Computer module »DP-HR-U-CPU-MC2-UC« Computer module »DP-HR-U-CPU-MC2-UC« With DP-HR-U-CPU-MC2 computer modules, you can connect a computer with Display- graphics outputs (dual-head) to two different digital matrix switches of the Control- Port Center-Compact or ControlCenter-Digital series. At the consoles of both matrix switches, users can access a computer module to operate the connected computer.
  • Page 27 Computer module »DP-HR-U-CPU-MC2-UC« Installation Connecting the computer DP CPU 2 DP CPU 1 Line In Line Out USB K/M Keyb. Mouse Use one of the supplied video cables to connect the computer’s first Display DP CPU 1: Port video output to this interface.
  • Page 28 Computer module »DP-HR-U-CPU-MC2-UC« Connections to the matrix switches IMPORTANT: Connect only one of the computer module’s Trans. interfaces for each matrix switch! NOTE: Only use category 5e (or better) twisted pair cables to connect the devices. Power Trans. 2 Trans. 1...
  • Page 29 Computer module »DP-HR-U-CPU-MC2-UC« Automatic grouping of channels When operating the computer module for the first time, the matrix switch recognises the main channel and the computer module’s additional channel. The channels are automatically added to a channel group. NOTE: You can adjust any manually or automatically created channel group.
  • Page 30 Computer module »DP-HR-U-CPU-MC2-UC« Status displays The Power LED on the front panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 31 Computer module »DP-HR-U-CPU-MC2-UC« Technical data DP-HR-U-CPU-MC2-UC Interfaces to Video: 2 × DisplayPort computer Keyboard and mouse signals 2 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Date transmission to Interface: 4 × RJ45 socket counterparts Transmission distance: Max.
  • Page 32 Computer module »DP-HR-U-CPU-MC2-UC« DP-HR-U-CPU-MC2-UC Power supply Type: Portable power pack (12 V/2 A) Connector: 1 × Mini-DIN 4 socket Power input: 1.2A @ 12 VDC Housing Material: Anodised aluminium Dimensions (W × H × D): Approx. 105 × 46 × 164 mm Weight: Approx.

  • Page 33: Computer Module "Dp-Hr-U-Cpu-Fiber

    Computer module »DP-HR-U-CPU-Fiber« Computer module »DP-HR-U-CPU-Fiber« With computer modules, you can connect a computer with DP-HR-U-CPU-Fiber Dis- playPort graphics output to a digital matrix switch of the ControlCenter-Compact or Con- trolCenter-Digital series. NOTE: This computer module can be connected to a compatible fiber port of...
  • Page 34 Computer module »DP-HR-U-CPU-Fiber« Required accessories  1 × Compatible optical fibre cable to connect the computer module to the matrix switch Installation Connecting the computer DP CPU Line In Line Out USB K/M Keyb. Mouse Use the supplied video cables to connect the computer’s Display Port video DP CPU: output to this interface.
  • Page 35 Computer module »DP-HR-U-CPU-Fiber« Connection to the matrix switch IMPORTANT: The devices use components with laser technology which comply with laser class 1. They meet the requirements in accordance to EN 60825-1:2014 as well as U.S. CFR 1040.10 1040.11 Mind the following instructions when dealing with laser beams: ...
  • Page 36 Computer module »DP-HR-U-CPU-Fiber« Status displays The Power LED on the back panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 37 Computer module »DP-HR-U-CPU-Fiber« Technical data DP-HR-U-CPU-FIBER Interfaces to Video: 1 × DisplayPort computer Keyboard and mouse signals 2 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Data transmission to Interface: 1 × LC-Duplex socket the counterpart Transmission distance: ...
  • Page 38 Computer module »DP-HR-U-CPU-Fiber« DP-HR-U-CPU-FIBER Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Power supply Type: Portable power pack (12 V/2 A) Connector: 1 ×...

  • Page 39: Computer Module "Dp-Hr-U-Cpu-Fiber-Uc

    Computer module »DP-HR-U-CPU-Fiber-UC« Computer module »DP-HR-U-CPU-Fiber-UC« With computer modules, you can connect a computer with DP-HR-U-CPU-Fiber-UC Dis- playPort graphics output to two different digital matrix switches of the ControlCenter- Compact or ControlCenter-Digital series. NOTE: This computer module can be connected to a compatible fiber port of...
  • Page 40 Computer module »DP-HR-U-CPU-Fiber-UC« Required accessories  2 × Compatible optical fibre cable to connect the computer module to two matrix switches Installation Connecting the computer DP CPU Line In Line Out USB K/M Keyb. Mouse Use the supplied video cables to connect the computer’s Display Port video DP CPU: output to this interface.
  • Page 41 Computer module »DP-HR-U-CPU-Fiber-UC« IMPORTANT: For each matrix switch, connect only one Trans. interface of the computer module! Power Trans. 2 Trans. 1 Service Power In Trans. 1|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the other...
  • Page 42 Computer module »DP-HR-U-CPU-Fiber-UC« Status displays The Power LED on the back panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 43 Computer module »DP-HR-U-CPU-Fiber-UC« Technical data DP-HR-U-CPU-FIBER-UC Interfaces to Video: 1 × DisplayPort computer Keyboard and mouse signals 2 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Data transmission to Interface: 2 × LC-Duplex socket counterparts Transmission distance: ...
  • Page 44 Computer module »DP-HR-U-CPU-Fiber-UC« DP-HR-U-CPU-FIBER-UC Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Power supply Type: Portable power pack (12 V/2 A) Connector: 1 ×...

  • Page 45: Computer Module "Dp-Hr-U-Cpu-Fiber-Mc2

    Computer module »DP-HR-U-CPU-Fiber-MC2« Computer module »DP-HR-U-CPU-Fiber-MC2« With computer modules, you can connect a computer with DP-HR-U-CPU-Fiber-MC2 DisplayPort graphics outputs (dual-head) to a digital matrix switch of the Control- Center-Compact or ControlCenter-Digital series. NOTE: This computer module can be connected to a compatible fiber port of...
  • Page 46 Computer module »DP-HR-U-CPU-Fiber-MC2« Package contents  1 × Computer module DP-HR-U-CPU-Fiber-MC2  2 × DisplayPort video cable (DP-Cable-M/M-2)  1 × USB device cable  2 × Audio cable  1 × Power pack (12V/2A, only with variants incl. PowerPack) ...
  • Page 47 Computer module »DP-HR-U-CPU-Fiber-MC2« Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the computer’s PS/2 mouse interface to this interface. Connection to the matrix switch IMPORTANT: The devices use components with laser technology which comply with laser class 1.
  • Page 48 Computer module »DP-HR-U-CPU-Fiber-MC2« Power supply Power In: Insert the power pack’s connection cable to this interface. Start-up Connect the power cable to the power pack and a power socket. The computer module starts as soon as it is supplied with power. During start-up, the channels are automatically grouped (see below).
  • Page 49 Computer module »DP-HR-U-CPU-Fiber-MC2« Status displays The Power LED on the back panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 50 Computer module »DP-HR-U-CPU-Fiber-MC2« Technical data DP-HR-U-CPU-FIBER-MC2 Interfaces to Video: 2 × DisplayPort computer Keyboard and mouse signals 2 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Data transmission to Interface: 2 × LC-Duplex socket the counterpart Transmission distance: ...
  • Page 51 Computer module »DP-HR-U-CPU-Fiber-MC2« DP-HR-U-CPU-FIBER-MC2 Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Power supply Type: Portable power pack (12 V/2 A) Connector: 1 ×...

  • Page 52: Computer Module "Dp-Hr-U-Cpu-Fiber-Mc2-Uc

    Computer module »DP-HR-U-CPU-Fiber-MC2-UC« Computer module »DP-HR-U-CPU-Fiber-MC2-UC« With DP-HR-U-CPU-Fiber-MC2-UC computer modules, you can connect a computer with two graphics outputs (dual-head) to two different digital matrix DisplayPort switches of the ControlCenter-Compact or ControlCenter-Digital series. NOTE: This computer module can be connected to a compatible fiber port of...
  • Page 53 Computer module »DP-HR-U-CPU-Fiber-MC2-UC« Installation Connecting the computer DP CPU 2 DP CPU 1 Line In Line Out USB K/M Keyb. Mouse Use one of the supplied video cables to connect the computer’s first Display DP CPU 1: Port video output to this interface.
  • Page 54 Computer module »DP-HR-U-CPU-Fiber-MC2-UC« Connections to the matrix switches The devices use components with laser technology which comply with laser class 1. They meet the requirements according to EN 60825-1:2007 EN 60825- as well as 2:2004+A1:2007 U.S. CFR 1040.10 1040.11 Mind the following instructions when dealing with laser beams: ...
  • Page 55 Computer module »DP-HR-U-CPU-Fiber-MC2-UC« Connecting the second first matrix switch Insert the LC plug of a compatible optical fibre cable. Connect Trans. 2|Channel 1|Tx: the other end of the cable to the interface of a Dynamic Port provided at the second matrix switch.
  • Page 56 Computer module »DP-HR-U-CPU-Fiber-MC2-UC« Status displays The Power LED on the front panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 57 Computer module »DP-HR-U-CPU-Fiber-MC2-UC« Technical data DP-HR-U-CPU-FIBER-MC2-UC Interfaces to Video: 2 × DisplayPort computer Keyboard and mouse signals 2 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Date transmission to Interface: 4 × LC-Duplex socket counterparts Transmission distance: ...
  • Page 58 Computer module »DP-HR-U-CPU-Fiber-MC2-UC« DP-HR-U-CPU-FIBER-MC2-UC Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Power supply Type: Portable power pack (12 V/2 A) Connector: 1 ×...

  • Page 59: Computer Module "Dp-Hr-U-Cpu-Dh

    Computer module »DP-HR-U-CPU-DH« Computer module »DP-HR-U-CPU-DH« With the DP-HR-U-CPU-DH computer module you can connect a computer with up to DisplayPort graphics outputs (dual monitor) to a digital matrix switch of the Con- trolCenter-Compact or ControlCenter-Digital series by using one cable only.
  • Page 60 Computer module »DP-HR-U-CPU-DH« Required accessories  1 × Category 5e (or better) twisted pair cable to connect the computer module to the matrix switch Installation Connecting the computer DP CPU 1 DP CPU 2 Line In Line Out USB K/M PS/2 Keyb.
  • Page 61 Computer module »DP-HR-U-CPU-DH« Connection to the matrix switch NOTE: Only use category 5e (or better) twisted pair cable to connect the devices. Power Trans. Service Power In Connect this interface to a Dynamic Port (RJ45) of the matrix switch. Trans.:...
  • Page 62 Computer module »DP-HR-U-CPU-DH« Status displays The Power LED on the back panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 63 Computer module »DP-HR-U-CPU-DH« Technical data DP-HR-CPU-DH Interfaces to Video: 2 × Display Port computer Keyboard and mouse signals 1 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Data transmission to Interface: 1 × RJ45 socket...
  • Page 64 Computer module »DP-HR-U-CPU-DH« DP-HR-CPU-DH Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Power supply Type: Portable power pack (12 V/2 A) Connector: 1 ×...

  • Page 65: Computer Module "Dp-Hr-U-Cpu-Dh-Uc

    Computer module »DP-HR-U-CPU-DH-UC« Computer module »DP-HR-U-CPU-DH-UC« With the computer module you can connect a computer with up DP-HR-U-CPU-DH-UC to two DisplayPort graphics outputs (dual monitor) to two different digital matrix switches of the ControlCenter-Compact or ControlCenter-Digital series by using one cable only.
  • Page 66 Computer module »DP-HR-U-CPU-DH-UC« Package contents  1 × Computer module DP-HR-U-CPU-DH-UC  2 × DisplayPort video cable (DP-Cable-M/M-2)  1 × USB device cable  2 × Audio cable  1 × Power pack (12V/2A, only with variants incl. PowerPack) ...
  • Page 67 Computer module »DP-HR-U-CPU-DH-UC« Connections to the matrix switches IMPORTANT: Connect only one of the computer module’s Trans. interfaces for each matrix switch! NOTE: Only use category 5e (or better) twisted pair cables to connect the devices. Power Trans. 2 Trans. 1...
  • Page 68 Computer module »DP-HR-U-CPU-DH-UC« Status displays The Power LED on the front panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 69 Computer module »DP-HR-U-CPU-DH-UC« Technical data DP-HR-U-CPU-DH-UC Interfaces to Video: 2 × DisplayPort computer Keyboard and mouse signals 1 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Date transmission to Interface: 2 × RJ45 socket counterparts Transmission distance: Max.
  • Page 70 Computer module »DP-HR-U-CPU-DH-UC« DP-HR-U-CPU-DH-UC Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Power supply Type: Portable power pack (12 V/2 A) Connector: 1 ×...

  • Page 71: Computer Module "Dp-Hr-U-Cpu-Fiber-Dh

    Computer module »DP-HR-U-CPU-Fiber-DH« Computer module »DP-HR-U-CPU-Fiber-DH« NOTE: This computer module can be connected to a compatible fiber port of ControlCenter-Compact matrix switches or ControlCenter-Digital matrix switches (requires CCD-I/O 16-Card-Fiber IMPORTANT: Both, the computer module and the fiber ports are available as single- mode variants or as multimode variants.
  • Page 72 Computer module »DP-HR-U-CPU-Fiber-DH« Package contents  1 × Computer module DP-HR-U-CPU-Fiber-DH  2 × DisplayPort video cable (DP-Cable-M/M-2)  1 × USB device cable  2 × Audio cable  1 × Power pack (12V/2A, only with variants incl. PowerPack) ...
  • Page 73 Computer module »DP-HR-U-CPU-Fiber-DH« Connection to the matrix switch IMPORTANT: The devices use components with laser technology which comply with laser class 1. They meet the requirements in accordance to EN 60825-1:2014 as well as U.S. CFR 1040.10 1040.11 Mind the following instructions when dealing with laser beams: ...
  • Page 74 Computer module »DP-HR-U-CPU-Fiber-DH« Status displays The Power LED on the back panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 75 Computer module »DP-HR-U-CPU-Fiber-DH« Technical data DP-HR-U-CPU-FIBER-DH Interfaces to Video: 2 × DisplayPort computer Keyboard and mouse signals 1 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Data transmission to Interface: 1 × LC-Duplex socket the counterpart Transmission distance: ...
  • Page 76 Computer module »DP-HR-U-CPU-Fiber-DH« DP-HR-U-CPU-FIBER-DH Video Examplary resolutions: Channel 1:  2048 × 2048 @ 60 Hz (2K×2K)  2048 × 2160 @ 60 Hz  2560 × 1600 @ 60 Hz  3840 × 2160 @ 30 Hz (Ultra HD) ...

  • Page 77: Computer Module "Dp-Hr-U-Cpu-Fiber-Dh-Uc

    Computer module »DP-HR-U-CPU-Fiber-DH-UC« Computer module »DP-HR-U-CPU-Fiber-DH-UC« NOTE: This computer module can be connected to a compatible fiber port of ControlCenter-Compact matrix switches or ControlCenter-Digital matrix switches (requires CCD-I/O 16-Card-Fiber IMPORTANT: Both, the computer module and the fiber ports are available as single- mode variants or as multimode variants.
  • Page 78 Computer module »DP-HR-U-CPU-Fiber-DH-UC« Package contents  1 × Computer module DP-HR-U-CPU-Fiber-DH-UC  2 × DisplayPort video cable (DP-Cable-M/M-2)  1 × USB device cable  2 × Audio cable  1 × Power pack (12V/2A, only with variants incl. PowerPack) ...
  • Page 79 Computer module »DP-HR-U-CPU-Fiber-DH-UC« Connections to the matrix switches The devices use components with laser technology which comply with laser class 1. They meet the requirements in accordance to EN 60825-1:2014 as well as U.S. CFR 1040.10 1040.11 Mind the following instructions when dealing with laser beams: ...
  • Page 80 Computer module »DP-HR-U-CPU-Fiber-DH-UC« Power supply Power In: Insert the power pack’s connection cable to this interface. Start-up Connect the power cable to the power pack and a power socket. The computer module starts as soon as it is supplied with power.
  • Page 81 Computer module »DP-HR-U-CPU-Fiber-DH-UC« Status displays The Power LED on the front panel of the computer module shows the status of the external power pack: Status Meaning Power Lights up The external power pack is connected, and voltage of 12 Volt green is available.
  • Page 82 Computer module »DP-HR-U-CPU-Fiber-DH-UC« Technical data DP-HR-U-CPU-FIBER-DH-UC Interfaces to Video: 2 × DisplayPort computer Keyboard and mouse signals 1 × PS/2 socket 1 × USB-B Audio: 2 × 3,5 mm jack plug Date transmission to Interface: 2 × LC-Duplex socket counterparts Transmission distance: ...
  • Page 83 Computer module »DP-HR-U-CPU-Fiber-DH-UC« DP-HR-U-CPU-FIBER-DH-UC Video Examplary resolutions: Channel 1:  2048 × 2048 @ 60 Hz (2K×2K)  2048 × 2160 @ 60 Hz  2560 × 1600 @ 60 Hz  3840 × 2160 @ 30 Hz (Ultra HD) ...

  • Page 84: Chapter B: Console Modules

    At the installed console, matrix switch users can access a computer module to operate the connected computer. The data stream of the connected USB devices is transmitted to the active computer module with up to 16 Mbit/s ( series DVI-U-CPU DP-U-CPU DP-HR-U-CPU VGA-U-CPU only). Package contents  1 × DP-HR-U-CON console module ...
  • Page 85 Console module »DP-HR-U-CON« Installation Connecting the console devices LED Out USB Devices Mouse Generic Transmission DisplayPort Out Micro In Speaker Keyb./Mouse Keyb. Red. Power Connect the monitor of the local console. DisplayPort Out: NOTE: Check the monitor's manual if the OSD provides a setting for the mode of the DisplayPort input.
  • Page 86 Console module »DP-HR-U-CON« LED Out: If you expanded the functional range of the matrix switch by purchasing the TradeSwitch function, connect the optional TS-LED-2 (order number A6100041) to this interface. Connection to the matrix switch Use a category 5e (or better) twisted pair cable to connect the Transmis- Transmission: sion interface to a Dynamic Port (RJ45) of the matrix switch.
  • Page 87 Console module »DP-HR-U-CON« Status displays Front panel USB Devices Console Service Power Status Video Red. Trans. Main System The LEDs on the front panel of the console module show the system’s operating status. Section Status Meaning Power Red. The optional power pack is connected and supplies 12 Volt. The optional power pack is not (properly) connected.
  • Page 88 Console module »DP-HR-U-CON« Back panel LED Out USB Devices Mouse Generic Transmission Micro In Keyb. Red. Power DisplayPort Out Speaker Keyb./Mouse The Transmission interface at the back panel of the console module provides addi- tional status LEDs. The LEDs have the following meaning: Interface Status Meaning...
  • Page 89 Console module »DP-HR-U-CON« Technical data DP-HR-U-CON Interfaces to Video: 1 × DisplayPort console: Keyboard and mouse signals: 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack socket USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 socket Data transmission to Interface: 1 ×...
  • Page 90 Console module »DP-HR-U-CON« DP-HR-U-CON Main power supply Type: Internal power pack Connection: 1 × IEC plug(IEC-320 C14) Current consumption: 100 - 240 VAC; 0.5 A - 0.3 A Redundant Type: External power pack power supply Connection: 1 × Mini-DIN 4 socket (Power In) ...

  • Page 91: Console Module "Dp-Hr-U-Con-2

    The data stream of the connected USB devices is transmitted to the active computer module with up to 16 Mbit/s ( series DVI-U-CPU DP-U-CPU DP-HR-U-CPU VGA-U-CPU only). The buttons on the front panel of the console module or configured key combina- tions (select keys) let users switch between the connected matrix switches.
  • Page 92 Console module »DP-HR-U-CON-2« Installation Connecting the console devices Transmission 2 LED Out USB Devices Mouse Generic Transmission 1 DisplayPort Out Micro In Speaker Keyb./Mouse Keyb. Red. Power DisplayPort Out: Connect the monitor/projector of the local console. NOTE: Check the monitor's manual if the OSD provides a setting for the mode of the DisplayPort input.
  • Page 93 Console module »DP-HR-U-CON-2« LED Out: If you purchased and added the TradeSwitch feature to the matrix switch, con- nect the optional TS-LED2 here (order number A6100041). Connection to the matrix switch NOTE: Use category 5e (or better) twisted pair cables to connect the devices. Transmission 1: Connect this interface to a Dynamic Port (RJ45) of the matrix switch.
  • Page 94 Console module »DP-HR-U-CON-2« Status displays Front panel USB Devices Trans. 1 Trans. 2 Active Status Power Status Console Service Video Red. Trans. Main System The LEDs on the front panel of the console module show the system’s operating status. Section Status Meaning Power...
  • Page 95 Console module »DP-HR-U-CON-2« Back panel Transmission 2 LED Out USB Devices Mouse Generic Transmission 1 DisplayPort Out Micro In Speaker Keyb./Mouse Keyb. Red. Power The Transmission interface at the back panel of the console module provides addi- tional status LEDs. The LEDs have the following functions: Interface Status Meaning...
  • Page 96 Console module »DP-HR-U-CON-2« Technical data DP-HR-U-CON-2 Interfaces to Video: 1 × DisplayPort console Keyboard/mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack socket USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 scoket Data transmission to Interface: 2 ×...
  • Page 97 Console module »DP-HR-U-CON-2« DP-HR-U-CON-2 Main power supply Type: Internal power pack Connection: 1 × IEC plug (IEC-320 C14) Power input: 100 - 240 VAC; 0.6 A - 0.3 A Redundant Type: Portable power pack power supply Connection: 1 × Mini-DIN 4 socket (Power In) ...

  • Page 98: Console Module "Dp-Hr-U-Con-Mc2

    The data stream of the connected USB devices is transmitted to the active computer module with up to 16 Mbit/s ( series DVI-U-CPU DP-U-CPU DP-HR-U-CPU VGA-U-CPU only). When using the console to access a computer module DP-HR-CPU-MC2 connected to a dual-head computer, the monitors display the separate images of the graphics out- puts.
  • Page 99 Console module »DP-HR-U-CON-MC2« Required accessories  2 × Category 5e (or better) twisted pair cables to connect the console module to a KVM matrix switch Installation Connecting console devices LED Out USB Devices Mouse Generic Transmission 2 DisplayPort Out 2 Transmission 1 DisplayPort Out 1 Micro In...
  • Page 100 Console module »DP-HR-U-CON-MC2« Connection to the matrix switch LED Out USB Devices Mouse Generic Transmission 2 DisplayPort Out 2 Transmission 1 DisplayPort Out 1 Micro In Speaker Keyb./Mouse Keyb. Red. Power NOTE: Use category 5e (or better) twisted pair cables to connect the devices. Connect this interface to a Dynamic Port (RJ45) of the matrix switch.
  • Page 101 Console module »DP-HR-U-CON-MC2« Automatic channel grouping When operating the console module for the first time, the matrix switch recognises the main channel and the console module’s additional channel. The channels are auto- matically added to a channel group. NOTE: You can adjust any channel groups that were created automatically or manually.
  • Page 102 Console module »DP-HR-U-CON-MC2« Status displays Front panel USB Devices Console Service Power Status Video 2 Red. Trans. 1 Video 1 Main System Trans. 2 Section Status Meaning Power Red. The optional power pack is connected and supplies 12 Volt. The optional power pack is not (properly) connected. Main The power pack is turned on and supplies the required voltage.
  • Page 103 Console module »DP-HR-U-CON-MC2« Back panel LED Out USB Devices Mouse Generic Micro In Keyb. Red. Power Transmission 2 DisplayPort Out 2 Transmission 1 DisplayPort Out 1 Speaker Keyb./Mouse The Transmission interfaces at the console module’s back panel provide additional status LEDs. Interface Status Meaning...
  • Page 104 Console module »DP-HR-U-CON-MC2« Technical data DP-HR-U-CON-MC2 Interfaces to console Video: 2 × DisplayPort Keyboard and mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack plug USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 socket Data transmission to Interfaces: 2 ×...
  • Page 105 Console module »DP-HR-U-CON-MC2« DP-HR-U-CON-MC2 Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Main power supply Type: Internal power pack Connector: 1 × IEC plug (IEC-320 C14) Power input: 100 - 240 VAC; 0.6 A - 0.3 A Redundant Type: External power pack...

  • Page 106: Console Module "Dp-Hr-U-Con-Mc4

    16 Mbit/s ( series DVI-U-CPU DP-U-CPU DP-HR-U-CPU VGA-U-CPU only). When using the console to access a multi-monitor computer with four graphics out- puts, the separate images of the graphics outputs are displayed on the console moni- tors.
  • Page 107 Console module »DP-HR-U-CON-MC4« Installation Connecting the console devices LED Out USB Devices Mouse Generic Transmission 2 DisplayPort Out 2 Transmission 1 DisplayPort Out 1 Micro In Speaker Keyb./Mouse Keyb. Red. Power Connect the first console monitor. DisplayPort Out 1: DisplayPort Out 2: Connect the second console monitor.
  • Page 108 Console module »DP-HR-U-CON-MC4« Transmission 4 DisplayPort Out 4 Transmission 3 DisplayPort Out 3 Transmission 2 DisplayPort Out 2 Transmission 1 DisplayPort Out 3: Connect the third console monitor. Connect the fourth console monitor. DisplayPort Out 4: Connection to the matrix switch LED Out USB Devices Mouse...
  • Page 109 Console module »DP-HR-U-CON-MC4« Power supply LED Out USB Devices Mouse Generic Transmission 2 DisplayPort Out 2 Transmission 1 DisplayPort Out 1 Micro In Speaker Keyb./Mouse Keyb. Red. Power Main Power: Connect the supplied power cable. Insert the cable’s Schuko plug in a power socket. Red.
  • Page 110 Console module »DP-HR-U-CON-MC4« Status displays Front panel Power Console Service Status Video 2 Red. Trans. 1 Video 1 Main System Trans. 2 Section Status Meaning Power Red. The optional power pack is connected and supplies 12 Volt. The optional power pack is not (properly) connected. Main The power pack is turned on and supplies the required voltage.
  • Page 111 Console module »DP-HR-U-CON-MC4« Console Service Video 1 Video 2 Video 3 Video 4 Trans. 2 Trans. 3 Trans. 4 Video 3 Strong video signal atthird video input. No signal at third video input, or the signal quality is too weak to be processed by the system.
  • Page 112 Console module »DP-HR-U-CON-MC4« Back panel LED Out USB Devices Mouse Generic Transmission 2 DisplayPort Out 2 Transmission 1 DisplayPort Out 1 Micro In Speaker Keyb./Mouse Keyb. Red. Power The Transmission interfaces at the console module’s back panel provide additional status LEDs. Interface Status Meaning...
  • Page 113 Console module »DP-HR-U-CON-MC4« Technical data DP-HR-U-CON-MC4 Interfaces to console Video: 4 × DisplayPort Keyboard and mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack plug USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 socket Data transmission to Interfaces: 4 ×...
  • Page 114 Console module »DP-HR-U-CON-MC4« DP-HR-U-CON-MC4 Main power supply Type: Internal power pack Connector: 1 × IEC plug (IEC-320 C14) Power input: 100 - 240 VAC; 0.6 A - 0.4 A Redundant Type: External power pack power supply Connector: 1 × Mini-DIN 4-Buchse Power input: 3.5A @ 12 VDC Housing...

  • Page 115: Console Module "Dp-Hr-U-Con-Fiber

    At the installed console, matrix switch users can access a computer module to operate the connected computer. The data stream of the connected USB devices is transmitted to the active computer module with up to 16 Mbit/s ( DVI-U-CPU DP-U-CPU DP-HR-U-CPU VGA-U-CPU series only). Package contents  1 ×...
  • Page 116 Console module »DP-HR-U-CON-Fiber« Installation Connecting the console devices LED Out USB Devices Mouse Generic Transmission DisplayPort Out Micro In Speaker Keyb./Mouse Keyb. Red. Power DisplayPort Out: Connect the monitor of the local console. NOTE: Check the monitor's manual if the OSD provides a setting for the mode of the DisplayPort input.
  • Page 117 Console module »DP-HR-U-CON-Fiber« LED Out: If you expanded the functional range of the matrix switch by purchasing the TradeSwitch function, connect the optional TS-LED-2 (order number A6100041) to this interface. Connection to the matrix switch IMPORTANT: The devices use components with laser technology which comply with laser class 1.
  • Page 118 Console module »DP-HR-U-CON-Fiber« Status displays Front panel USB Devices Power Status Console Service Video Red. Trans. Main System The LEDs on the front panel of the console module show the system’s operating status. Section Status Meaning Power Red. The optional power pack is connected and supplies 12 Volt. The optional power pack is not (properly) connected.
  • Page 119 Console module »DP-HR-U-CON-Fiber« Back panel LED Out USB Devices Mouse Generic Transmission DisplayPort Out Micro In Speaker Keyb./Mouse Keyb. Red. Power The Transmission interface at the back panel of the console module provides addi- tional status LEDs. The LEDs have the following meaning: Interface Status Meaning...
  • Page 120 Console module »DP-HR-U-CON-Fiber« Technical data DP-HR-U-CON-FIBER Interfaces to Video: 1 × DisplayPort console: Keyboard and mouse signals: 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack socket USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 socket Data transmission to Interface: 1 ×...
  • Page 121 Console module »DP-HR-U-CON-Fiber« DP-HR-U-CON-FIBER Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Sampling rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Main power supply Type: Internal power pack Connection: 1 × IEC plug(IEC-320 C14) Current consumption: 100 - 240 VAC;...

  • Page 122: Console Module "Dp-Hr-U-Con-2-Fiber

    The data stream of the connected USB devices is transmitted to the active computer module with up to 16 Mbit/s ( DVI-U-CPU DP-U-CPU DP-HR-U-CPU VGA-U-CPU series only). The buttons on the front panel of the console module or configured key combina- tions (select keys) let users switch between the connected matrix switches.
  • Page 123 Console module »DP-HR-U-CON-2-Fiber« Package contents  1 × DP-HR-U-CON-2-Fiber console module  1 × Power cable  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  2 × Compatible optical fibre cable to connect the console module to two matrix switches Installation Connecting the console devices...
  • Page 124 Console module »DP-HR-U-CON-2-Fiber« Enable the mode (see page 179 f.) if you want to connect another USB Generic HID input device. In this mode, data of the USB input device remains unaltered when transmitted to the active computer module. IMPORTANT: With enabled Generic HID mode, it is not possible to operate the OSD...
  • Page 125 Console module »DP-HR-U-CON-2-Fiber« Power supply Connect the power cable to the power pack and a power outlet. Main Power: Red. Power: If required, connect the power cable of the optional power pack to this interface. This provides a redundant power supply. Connect the power cable with the power pack and a power outlet of a different power circuit.
  • Page 126 Console module »DP-HR-U-CON-2-Fiber« Status displays Front panel USB Devices Trans. 1 Trans. 2 Active Status Power Status Console Service Video Red. Trans. Main System The LEDs on the front panel of the console module show the system’s operating status. Section Status Meaning Power...
  • Page 127 Console module »DP-HR-U-CON-2-Fiber« Back panel Trans. 2 LED Out USB Devices Mouse Generic Trans. 1 DisplayPort Out Micro In Speaker Keyb./Mouse Keyb. Red. Power The Transmission interface at the back panel of the console module provides addi- tional status LEDs. The LEDs have the following functions: Interface Status Meaning...
  • Page 128 Console module »DP-HR-U-CON-2-Fiber« Technical data DP-HR-U-CON-2-FIBER Interfaces to Video: 1 × DisplayPort console Keyboard/mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack socket USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 scoket Data transmission to Interface: 2 ×...
  • Page 129 Console module »DP-HR-U-CON-2-Fiber« DP-HR-U-CON-2-FIBER Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Sampling rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Main power supply Type: Internal power pack Connection: 1 × IEC plug (IEC-320 C14) Power input: 100 - 240 VAC;...

  • Page 130: Console Module "Dp-Hr-U-Con-Fiber-Mc2

    The data stream of the connected USB devices is transmitted to the active computer module with up to 16 Mbit/s ( series DVI-U-CPU DP-U-CPU DP-HR-U-CPU VGA-U-CPU only). When using the console to access a computer module DP-HR-U-CPU-MC2 connected to a dual-head computer, the monitors display the separate images of the graphics out- puts.
  • Page 131 Console module »DP-HR-U-CON-Fiber-MC2« Package contents  1 × Console module DP-HR-U-CON-Fiber-MC2  1 × Power cable  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  2 × Compatible optical fibre cable to connect the console module to a KVM matrix switch Installation Connecting console devices...
  • Page 132 Console module »DP-HR-U-CON-Fiber-MC2« Enable the Generic HID mode (see page 179 f.) if you want to connect another USB input device. In this mode, data of the USB input device remains unaltered when transmitted to the active computer module. IMPORTANT: With enabled Generic HID mode, it is not possible to operate the OSD...
  • Page 133 Console module »DP-HR-U-CON-Fiber-MC2« Transmission 2|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the other end of the cable to the interface of another Dynamic Port provided at the matrix switch. Transmission 2|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the other end of the cable to the interface of the same Dynamic Port provided at the matrix switch.
  • Page 134 Console module »DP-HR-U-CON-Fiber-MC2« Status displays Front panel USB Devices Console Service Power Status Video 2 Red. Trans. 1 Video 1 Trans. 2 Main System Section Status Meaning Power Red. The optional power pack is connected and supplies 12 Volt. The optional power pack is not (properly) connected. Main The power pack is turned on and supplies the required voltage.
  • Page 135 Console module »DP-HR-U-CON-Fiber-MC2« Back panel LED Out USB Devices Mouse Generic Transmission 2 DisplayPort Out 2 Transmission 1 DisplayPort Out 1 Micro In Speaker Keyb./Mouse Keyb. Red. Power The Transmission interfaces at the console module’s back panel provide additional status LEDs. Interface Status Meaning...
  • Page 136 Console module »DP-HR-U-CON-Fiber-MC2« Technical data DP-HR-U-CON-FIBER-MC2 Interfaces to console Video: 2 × DisplayPort Keyboard and mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack plug USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 socket Data transmission to Interface: 2 ×...
  • Page 137 Console module »DP-HR-U-CON-Fiber-MC2« DP-HR-U-CON-FIBER-MC2 Audio Transmission type: transparent, bidirectional Resolution: 24 bits Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Main power supply Type: Internal power pack Connector: 1 × IEC plug (IEC-320 C14) Power input: 100 - 240 VAC;...

  • Page 138: Console Module "Dp-Hr-U-Con-Fiber-Mc4

    16 Mbit/s ( series DVI-U-CPU DP-U-CPU DP-HR-U-CPU VGA-U-CPU only). When using the console to access a multi-monitor computer with four graphics out- puts, the separate images of the graphics outputs are displayed on the console moni- tors.
  • Page 139 Console module »DP-HR-U-CON-Fiber-MC4« Package contents  1 × Console module DP-HR-U-CON-Fiber-MC4  1 × Power cable  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  4 × Compatible optical fibre cable to connect the console module to a KVM matrix switch Installation Connecting the console devices...
  • Page 140 Console module »DP-HR-U-CON-Fiber-MC4« Enable the Generic HID mode (see page 179 f.) if you want to connect another USB input device. In this mode, data of the USB input device remains unaltered when transmitted to the active computer module. IMPORTANT: With enabled Generic HID mode, it is not possible to operate the OSD...
  • Page 141 Console module »DP-HR-U-CON-Fiber-MC4« Transmission 1|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the other end of the cable to the interface of a Dynamic Port provided at the matrix switch. Transmission 1|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the other end of the cable to the interface of the same Dynamic Port provided at the matrix switch.
  • Page 142 Console module »DP-HR-U-CON-Fiber-MC4« Startup Turn on the console module after its installation. Use the Main Power power pack or a redundant power pack to establish the power supply:  Turn on the Main Power power pack.  Use an optional power pack to supply the Red.
  • Page 143 Console module »DP-HR-U-CON-Fiber-MC4« Status displays Front panel USB Devices Power Status Console Service Red. Video 2 Trans. 1 Video 1 Trans. 2 Main System Section Status Meaning Power Red. The optional power pack is connected and supplies 12 Volt. The optional power pack is not (properly) connected. Main The power pack is turned on and supplies the required voltage.
  • Page 144 Console module »DP-HR-U-CON-Fiber-MC4« Console Service Video 1 Video 2 Video 3 Video 4 Trans. 2 Trans. 3 Trans. 4 Video 3 Strong video signal at second video input. No signal at second video input, or the signal quality is too weak to be processed by the system.
  • Page 145 Console module »DP-HR-U-CON-Fiber-MC4« Transmission 4 Transmission 3 Transmission 2 Transmission 1 DisplayPort Out 4 DisplayPort Out 3 DisplayPort Out 2 Display Interface Status Meaning Transmission Yellow No data connection to the counterpart. Flashing Data connection to the counterpart established. Green No user is logged in at the console module.
  • Page 146 Console module »DP-HR-U-CON-Fiber-MC4« Technical data DP-HR-U-CON-FIBER-MC4 Interfaces to console Video: 4 × DisplayPort Keyboard and mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack plug USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 socket Data transmission to Interface: 2 ×...
  • Page 147 Console module »DP-HR-U-CON-Fiber-MC4« DP-HR-U-CON-FIBER-MC4 Audio Transmission type: transparent, bidirectional Resolution: 24 bits Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Main power supply Type: Internal power pack Connector: 1 × IEC plug (IEC-320 C14) Power input: 100 - 240 VAC;...

  • Page 148: Console Module "Dp-Hr-U-Con-Dh

    The data stream of the connected USB devices is transmitted to the active computer module of the series with up to 16 Mbit/s. DVI-U-CPU DP-U-CPU DP-HR-U-CPU NOTE: Accessing a computer module occupies the entire back channel (including signal). Hence, these signals are not provided to the console Micro In USB 2.0...
  • Page 149 Console module »DP-HR-U-CON-DH« Package contents  1 × Console module DP-HR-U-CON-DH  1 × Power cable  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  1 × Category 5e (or better) twisted pair cable to connect the console module to a KVM matrix switch Computer and console modules (DP-HR-U) ·...
  • Page 150 Console module »DP-HR-U-CON-DH« Installation Connecting console devices LED Out USB Devices Mouse Generic DisplayPort Transmission Out 1 Out 2 Micro In Speaker Keyb./Mouse Keyb. Red. Power DisplayPort Out 1: Connect the first console monitor. Connect the second console monitor. DisplayPort Out 2: NOTE: Check the monitor's manuals if the OSDs provide a setting for the mode of the DisplayPort input.
  • Page 151 Console module »DP-HR-U-CON-DH« LED Out: If you purchased and added the TradeSwitch feature to the matrix switch, connect the optional TS-LED2 here (order number A6100041). Connection to the matrix switch LED Out USB Devices Mouse Generic DisplayPort Transmission Out 1 Out 2 Micro In Speaker...
  • Page 152 Console module »DP-HR-U-CON-DH« Status displays Front panel USB Devices Power Status Console Service Video Red. Trans. Main System Section Status Meaning Power Red. The optional power pack is connected and supplies 12 Volt. The optional power pack is not (properly) connected. Main The power pack is turned on and supplies the required voltage.
  • Page 153 Console module »DP-HR-U-CON-DH« Back panel LED Out USB Devices Mouse Generic DisplayPort Transmission Out 1 Out 2 Micro In Speaker Keyb./Mouse Keyb. Red. Power The Transmission interfaces at the console module’s back panel provide additional status LEDs. Interface Status Meaning Transmission Yellow No data connection to the counterpart.
  • Page 154 Console module »DP-HR-U-CON-DH« Technical data DP-HR-U-CON-DH Interfaces to console Video: 2 × DisplayPort Keyboard and mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack plug USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 socket Data transmission to Interfaces: 1 ×...
  • Page 155 Console module »DP-HR-U-CON-DH« DP-HR-U-CON-DH Video Examplary resolutions: Channel 1:  2048 × 2048 @ 60 Hz (2K×2K)  2048 × 2160 @ 60 Hz  2560 × 1600 @ 60 Hz  3840 × 2160 @ 30 Hz (Ultra HD) ...

  • Page 156: Console Module "Dp-Hr-U-Con-2-Dh

    16 Mbit/s. DVI-U-CPU DP-U-CPU DP-HR-U-CPU The buttons on the front panel of the console module or configured key combina- tions (select keys) let users switch between the connected matrix switches. NOTE: Accessing a computer module occupies the entire back channel (including Micro In USB 2.0...
  • Page 157 Console module »DP-HR-U-CON-2-DH« Package contents  1 × DP-HR-U-CON-2-DH console module  1 × Power cable  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  2 × Category 5e (or better) twisted pair cables to connect the console module to two the matrix switches Computer and console modules (DP-HR-U) ·...
  • Page 158 Console module »DP-HR-U-CON-2-DH« Installation Connecting the console devices Transmission 2 LED Out USB Devices Mouse Generic DisplayPort Transmission 1 Out 1 Out 2 Micro In Speaker Keyb./Mouse Keyb. Red. Power DisplayPort Out 1: Connect the first console monitor. Connect the second console monitor. DisplayPort Out 2: NOTE: Check the monitor's manual if the OSD provides a setting for the mode of...
  • Page 159 Console module »DP-HR-U-CON-2-DH« LED Out: If you purchased and added the TradeSwitch feature to the matrix switch, con- nect the optional TS-LED2 here (order number A6100041). Connection to the matrix switch Transmission 2 LED Out USB Devices Mouse Generic DisplayPort Transmission 1 Out 1 Out 2...
  • Page 160 Console module »DP-HR-U-CON-2-DH« Start-up Turn on the console module after its installation. Use the power pack or a Main Power redundant power pack to establish the power supply:  Turn on the Main Power power pack.  Use an optional power pack to supply the Red.
  • Page 161 Console module »DP-HR-U-CON-2-DH« Status displays Front panel USB Devices Trans. 1 Trans. 2 Active Status Console Service Power Status Video Red. Trans. Main System The LEDs on the front panel of the console module show the system’s operating status. Section Status Meaning Power...
  • Page 162 Console module »DP-HR-U-CON-2-DH« Back panel Transmission 2 LED Out USB Devices Mouse Generic DisplayPort Transmission 1 Micro In Keyb. Red. Power Out 1 Out 2 Speaker Keyb./Mouse The Transmission interface at the back panel of the console module provides addi- tional status LEDs.
  • Page 163 Console module »DP-HR-U-CON-2-DH« Technical data DP-HR-U-CON-2-DH Interfaces to Video: 2 × DisplayPort console Keyboard/mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack socket USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 scoket Data transmission to Interface: 2 ×...
  • Page 164 Console module »DP-HR-U-CON-2-DH« DP-HR-U-CON-2-DH Video Examplary resolutions: Channel 1:  2048 × 2048 @ 60 Hz (2K×2K)  2048 × 2160 @ 60 Hz  2560 × 1600 @ 60 Hz  3840 × 2160 @ 30 Hz (Ultra HD) ...

  • Page 165: Console Module "Dp-Hr-U-Con-Fiber-Dh

    The data stream of the connected USB devices is transmitted to the active computer module of the series with up to 16 Mbit/s. DVI-U-CPU DP-U-CPU DP-HR-U-CPU NOTE: Accessing a computer module occupies the entire back channel (including signal). Hence, these signals are not provided to the console Micro In USB 2.0...
  • Page 166 Console module »DP-HR-U-CON-Fiber-DH« Package contents  1 × Console module DP-HR-U-CON-Fiber-DH  1 × Power cable  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  1 × Compatible optical fibre cable to connect the console module to a KVM matrix switch 161 ·...
  • Page 167 Console module »DP-HR-U-CON-Fiber-DH« Installation Connecting console devices LED Out USB Devices Mouse Generic DisplayPort Transmission Out 1 Out 2 Micro In Speaker Keyb./Mouse Keyb. Red. Power Connect the first console monitor. DisplayPort Out 1: DisplayPort Out 2: Connect the second console monitor. NOTE: Check the monitor's manuals if the OSDs provide a setting for the mode of the DisplayPort input.
  • Page 168 Console module »DP-HR-U-CON-Fiber-DH« LED Out: If you purchased and added the TradeSwitch feature to the matrix switch, connect the optional TS-LED2 here (order number A6100041). Connection to the matrix switch IMPORTANT: The devices use components with laser technology which comply with laser class 1.
  • Page 169 Console module »DP-HR-U-CON-Fiber-DH« Power supply LED Out USB Devices Mouse Generic DisplayPort Transmission Out 1 Out 2 Micro In Speaker Keyb./Mouse Keyb. Red. Power Connect the supplied power cable. Insert the cable’s Schuko plug in a Main Power: power socket. Red.
  • Page 170 Console module »DP-HR-U-CON-Fiber-DH« Status displays Front panel USB Devices Power Status Console Service Video Red. Trans. Main System Section Status Meaning Power Red. The optional power pack is connected and supplies 12 Volt. The optional power pack is not (properly) connected. Main The power pack is turned on and supplies the required voltage.
  • Page 171 Console module »DP-HR-U-CON-Fiber-DH« Back panel LED Out USB Devices Mouse Generic DisplayPort Transmission Out 1 Out 2 Micro In Speaker Keyb./Mouse Keyb. Red. Power The Transmission interfaces at the console module’s back panel provide additional status LEDs. Colour Status Meaning Left Yellow No connection to network.
  • Page 172 Console module »DP-HR-U-CON-Fiber-DH« Technical data DP-HR-U-CON-FIBER-DH Interfaces to console Video: 2 × DisplayPort Keyboard and mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack plug USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 socket Data transmission to Interface: 1 ×...
  • Page 173 Console module »DP-HR-U-CON-Fiber-DH« DP-HR-U-CON-FIBER-DH Video Examplary resolutions: Channel 1:  2048 × 2048 @ 60 Hz (2K×2K)  2048 × 2160 @ 60 Hz  2560 × 1600 @ 60 Hz  3840 × 2160 @ 30 Hz (Ultra HD) ...

  • Page 174: Console Module "Dp-Hr-U-Con-2-Fiber-Dh

    16 Mbit/s. DVI-U-CPU DP-U-CPU DP-HR-U-CPU The buttons on the front panel of the console module or configured key combina- tions (select keys) let users switch between the connected matrix switches. NOTE: Accessing a computer module occupies the entire back channel (including Micro In USB 2.0...
  • Page 175 Console module »DP-HR-U-CON-2-Fiber-DH« When using the console to access a computer module connected to a dual-head computer, the monitors display the separate images of the graphics outputs. When accessing a computer module with one graphics input only, only the first monitor displays an image.
  • Page 176 Console module »DP-HR-U-CON-2-Fiber-DH« Package contents  1 × Console module DP-HR-U-CON-2-Fiber-DH  1 × Power cable  1 × »Manual information« flyer  1 × »Safety instructions« flyer Required accessories  2 × Compatible optical fibre cable to connect the console module to up to two KVM matrix switches Installation Connecting the console devices...
  • Page 177 Console module »DP-HR-U-CON-2-Fiber-DH« Enable the Generic HID mode (see page 179 f.) if you want to connect another USB input device. In this mode, data of the USB input device remains unaltered when transmitted to the active computer module. IMPORTANT: With enabled mode, it is not possible to operate the OSD Generic HID...
  • Page 178 Console module »DP-HR-U-CON-2-Fiber-DH« Transmission 1|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the other end of the cable to the interface of the same Dynamic Port provided at the matrix switch. Insert the LC plug of a compatible optical fibre cable. Connect the Transmission 2|Tx: other end of the cable to the interface of another Dynamic Port provided at the...
  • Page 179 Console module »DP-HR-U-CON-2-Fiber-DH« Switching The buttons on the front panel of the console module or configured key combina- tions (select keys) let users switch between the connected matrix switches. How to switch channels via buttons:  Press the button of the desired channel to activate it. How to switch channels via key combinations: ...
  • Page 180 Console module »DP-HR-U-CON-2-Fiber-DH« Status displays Front panel USB Devices Trans. 1 Trans. 2 Active Status Power Status Console Service Video Red. Trans. Main System Section Status Meaning Power Red. The optional power pack is connected and supplies 12 Volt. The optional power pack is not (properly) connected. Main The power pack is turned on and supplies the required voltage.
  • Page 181 Console module »DP-HR-U-CON-2-Fiber-DH« Back panel Trans. 2 LED Out USB Devices Mouse Generic DisplayPort Trans. 1 Out 1 Out 2 Micro In Speaker Keyb./Mouse Keyb. Red. Power The Transmission interfaces at the console module’s back panel provide additional status LEDs. Colour Status Meaning...
  • Page 182 Console module »DP-HR-U-CON-2-Fiber-DH« Technical data DP-HR-U-CON-2-FIBER-DH Interfaces to console Video: 2 × DisplayPort Keyboard and mouse signals 2 × PS/2 socket 3 × USB-A Audio: 2 × 3.5 mm jack plug USB 2.0: 4 × USB-A socket Tradeswitch-LED: 1 × D-SUB 9 socket Data transmission to Interface: 2 ×...
  • Page 183 Console module »DP-HR-U-CON-2-Fiber-DH« DP-HR-U-CON-2-FIBER-DH Video Examplary resolutions: Channel 1:  2048 × 2048 @ 60 Hz (2K×2K)  2048 × 2160 @ 60 Hz  2560 × 1600 @ 60 Hz  3840 × 2160 @ 30 Hz (Ultra HD) ...

  • Page 184: Chapter C: Generic Hid

    Generic HID mode, data of the USB input device connected to the socket of Generic HID Generic the console module remains unaltered when transmitted to the active computer module. The use of Generic HID devices is possible only after you enable the Generic HID mode of the console module and of the computer module.

  • Page 185: Enabling/Disabling The Computer Module's Generic Hid Mode

    Enabling/disabling the computer module’s Generic HID mode 4. Select Generic HID and press to select one of the following options: off: Connect either a USB keyboard or a USB mouse to the console module’s Generic interface. The data of any USB input device connected to the console module’s interface remains unaltered when transmitted to the active Generic computer module.
  • Page 186 Enabling/disabling the computer module’s Generic HID mode 5. Select USB keyboard and press to select one of the following options. Multimedia: PC keyboard with additional multimedia keys (default) Standard: PC keyboard with standard keyboard layout Generic: Any USB input device NOTE: USB computer modules additionally support certain USB input devices.

  • Page 187: Chapter D: Extender Mode

    Extender mode The console modules and the computer modules for the digital matrix switch can be operated in extender mode. Connect a console module directly with a compatible computer module. Use the same cable types as for the connection of a matrix switch (see Installation). The modules auto-recognise direct connections.

  • Page 188: Configuration

    Configuration Configuration With the console module’s OSD, you can view and change the settings in extender mode. Changing the hotkey to open the OSD When in extender mode, press (default) to open the console module’s local Alt+Num OSD. NOTE: The hotkey consists of at least one hotkey modifier key and an additional hotkey, which you can select from multiple options.
  • Page 189 Configuration Opening the OSD via double keypress In addition to opening the OSD with the key combination , you can open Alt+Num the OSD by pressing a previously selected key twice. How to define the key to open the OSD via double keypress: 1.
  • Page 190 Configuration Key combination for video switching of the DH-CPU computer modules When a user of a console with only one monitor connects to a computer with two video outputs on a computer module, the screen of the second video output DH-CPU cannot be displayed.
  • Page 191 Configuration Changing the select keys NOTE: Select keys can only be used and configured at console modules providing at least two channels (e. g. DVI-CON-2 In the default settings, the select keys are active to switch between the con- nected computer modules. You can also select another set of select keys.
  • Page 192 Configuration How to transmit the EDID profile of the connected monitor to the computer module: 1. Press the Alt+Num (default) hotkey to open the OSD. 2. Select and press EDID Enter 3. Select Send monitor‘s EDID and press Enter 4. Press to close the EDID menu.
  • Page 193 Configuration Adjusting the scancode set of a PS/2 keyboard If a key is pressed on the PS/2 keyboard, the keyboard processor sends a data packet that is called scan code. The two common scan code sets (sets 2 and 3) contain dif- ferent scan codes.
  • Page 194 Configuration 3. Select the USB Auto Refresh entry and press to select the keyboard type: off: The status of the USB devices is monitored. If communication to a USB device is interrupted, the device is reinitialised all: The status of the USB devices is monitored. If communication to one USB device is interrupted, all devices are reinitialised.
  • Page 195 Configuration Choosing the USB keyboard mode NOTE: This setting has only an impact if a USB cable connects the computer module to the target. USB computer modules support different USB input devices. You can use the special features of a USB input device after selecting the specific USB keyboard mode. ...
  • Page 196 Configuration  Controller: With ShuttlePRO v2 multimedia controllers, you can operate audio and video programs. You can use a special USB keymode to operate computers con- nected to the computer module using the controller: INPUT DEVICE SETTING Contour ShuttlePRO v2 ...
  • Page 197 Configuration When using a standard keyboard, you can perform these functions by using the key combinations listed below: KEY COMBINATIONS »SOLARIS SHORTCUT KEY« OF SUN KEY- BOARDS Ctrl+Alt+F2 Again Ctrl+Alt+F3 Props Ctrl+Alt+F4 Undo Ctrl+Alt+F5 Front Ctrl+Alt+F6 Copy Ctrl+Alt+F7 Open Ctrl+Alt+F8 Paste Ctrl+Alt+F9 Find...
  • Page 198 Configuration Enable/disable the startup without a keyboard By default, console modules start without a keyboard. As an alternative, the console module can interrupt startup by showing a message regarding the missing keyboard. Once you connect a keyboard to the console module, the startup process continues. How to enable/disable the startup of a console module without a keyboard: 1.
  • Page 199 Configuration Resetting the default settings This setting resets the default settings of the extender mode. All settings that have been changed by the user are reset. How to reset the default settings of the extender mode: 1. Press the (default) hotkey to open the OSD. Alt+Num 2.
  • Page 200 Configuration How to show status information in the OSD: 1. Press the (default) hotkey to open the OSD. Alt+Num 2. Select Information and press Enter 3. Use the arrow keys to select the desired menu item (see above). 4. Press to show the desired information.
  • Page 204 G&D. FEELS RIGHT. Hauptsitz | Headquarter US-Büro | US-Office Guntermann & Drunck GmbH Systementwicklung G&D North America Inc. Obere Leimbach 9 | D-57074 Siegen | Germany 4540 Kendrick Plaza Drive, Suite 100 | Houston, TX 77032 | USA Phone +49 271 23872-0 Phone +1-346-620-4362 sales@gdsys.com | www.gdsys.com sales.us@gdsys.com | www.gdsys.com...
