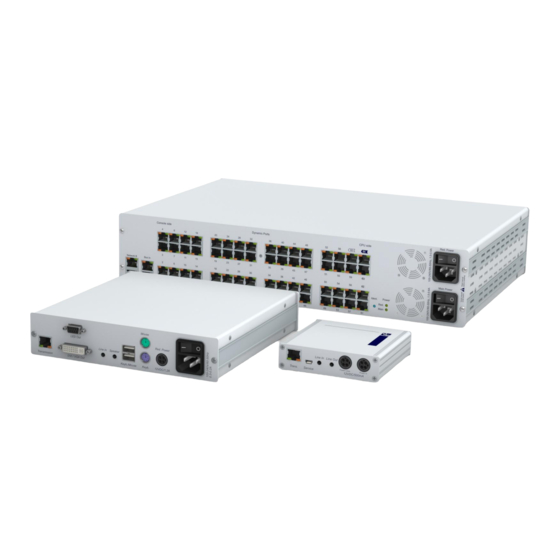

Page 1 G&D Target and User Modules Installation and Operation DP-HR-U variants A9200141-1.30...
Page 2 © Guntermann & Drunck GmbH 2022. All rights reserved. Version 1.30 – 29/09/2022 Guntermann & Drunck GmbH Obere Leimbach 9 57074 Siegen Germany Phone +49 271 23872-0 +49 271 23872-120 www.gdsys.com sales@gdsys.com i · Target and user modules (DP-HR-U)
Page 3  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Target and user modules (DP-HR-U) · ii...
Page 4: Table Of Contents
User module »DP-HR-U-CON-2-Fiber« ............117 User module »DP-HR-U-CON-Fiber-MC2« ..........125 User module »DP-HR-U-CON-Fiber-MC4« ..........133 User module »DP-HR-U-CON-DH« ............. 143 User module »DP-HR-U-CON-2-DH« ............150 User module »DP-HR-U-CON-Fiber-DH« ........... 158 User module »DP-HR-U-CON-2-Fiber-DH« ..........166 iii · Target and user modules (DP-HR-U)
Page 5 Enabling/disabling the user module’s Generic HID mode ......175 Enabling/disabling the target module’s Generic HID mode ......176 Chapter D: Extender mode Opening the on-screen display in extender mode ........... 178 Configuration ....................179 Target and user modules (DP-HR-U) · iv...
Page 6: Safety Instructions
When installing the devices, ensure that the devices’ mains plugs remain accessible at all time. Do not cover the ventilation openings For device variants with ventilation openings, it must always be ensured that the ventilation openings are not covered. 1 · Target and user modules (DP-HR-U)
Page 7 Failure to observe this precautionary measure can result in injuries and damage to the device. Operate the device exclusively in the intended field of application The devices are designed for indoor use. Avoid extreme cold, heat or humidity. Target and user modules (DP-HR-U) · 2...
Page 8 The guarantee of complying with all relevant instructions can only be given by applying original components. Therefore, the devices have to be operated with G&D certified transmission modules only. 3 · Target and user modules (DP-HR-U)
Page 9: Chapter A: Target Modules
 1 × Power cable (only with variants incl. PowerPack)  1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  1 × Category 5e (or better) twisted pair cable to connect the target module to the matrix switch 4 · Target and user modules (DP-HR-U)
Page 10 You can also connect the target module directly to a compatible user module. Power supply Insert the power pack’s connection cable to this interface. Power In: Connect the power cable to the power pack and a power socket. 5 · Target and user modules (DP-HR-U)
Page 11 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. Target and user modules (DP-HR-U) · 6...
Page 12 16/20/24 bit Sampling rates: up to 48 kHz Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s 7 · Target and user modules (DP-HR-U)
Page 13 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 8...
Page 14: Target Module "Dp-Hr-U-Cpu-Uc
 1 × Power cable (only with variants incl. PowerPack)  1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  2 × Category 5e (or better) patch cables to connect the target module to two different matrix switches 9 · Target and user modules (DP-HR-U)
Page 15 Only connect one Trans. interface of the target module per matrix switch. NOTE: Use category 5e twisted pair cables (or better) to connect the devices. Power Trans. 2 Trans. 1 Service Power In Target and user modules (DP-HR-U) · 10...
Page 16 You can also connect the target module directly to up to two compatible user modules. Power supply Plug the power cable of the power pack in this interface. Then connect the Power In: power cable to the power pack and a power outlet. 11 · Target and user modules (DP-HR-U)
Page 17 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. Target and user modules (DP-HR-U) · 12...
Page 18 16/20/24 bit Sampling rates: up to 48 kHz Audio Transmission type: transparent, bidirectional Resolution: 24 bits Sampling rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s 13 · Target and user modules (DP-HR-U)
Page 19 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 14...
Page 20: Target Module "Dp-Hr-U-Cpu-Mc2
 1 × Power cable (only with variants incl. PowerPack)  1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  2 × Category 5e (or better) twisted pair cables to connect the target module to the matrix switch 15 · Target and user modules (DP-HR-U)
Page 21 Use the green plug of an optional Twin-PS/2 cable to connect the computer’s PS/2 mouse interface to this interface. Connection to the matrix switch NOTE: Only use category 5e (or better) twisted pair cables to connect the devices. Power Trans. Service Power In Target and user modules (DP-HR-U) · 16...
Page 22 NOTE: You can adjust any channel groups that were created automatically or manually. More information about channel groups is given in the separate manu- als of the matrix switch web applications. 17 · Target and user modules (DP-HR-U)
Page 23 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. Target and user modules (DP-HR-U) · 18...
Page 24 16/20/24 bit Sampling rates: up to 48 kHz Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s 19 · Target and user modules (DP-HR-U)
Page 25 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 20...
Page 26: Target Module "Dp-Hr-U-Cpu-Mc2-Uc
 2 × Audio cable  1 × Power pack (12V/2A, only with variants incl. PowerPack)  1 × Power cable (only with variants incl. PowerPack)  1 × EasyStart flyer  1 × »Safety instructions« flyer 21 · Target and user modules (DP-HR-U)
Page 27 Use the purple plug of an optional Twin-PS/2 cable to connect the computer’s Keyb.: PS/2 keyboard interface to this interface. Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the computer’s PS/2 mouse interface to this interface. Target and user modules (DP-HR-U) · 22...
Page 28 Connect the power cable to the power pack and a power socket. The target module starts as soon as it is supplied with power. During start-up, the channels are automatically grouped (see below). 23 · Target and user modules (DP-HR-U)
Page 29 NOTE: You can adjust any manually or automatically created channel group. More information about channel groups is given in the separate manuals of the matrix switch web applications. Target and user modules (DP-HR-U) · 24...
Page 30 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 25 · Target and user modules (DP-HR-U)
Page 31 16/20/24 bit Sampling rates: up to 48 kHz Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Target and user modules (DP-HR-U) · 26...
Page 32 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 27 · Target and user modules (DP-HR-U)
Page 33: Target Module "Dp-Hr-U-Cpu-Fiber
 2 × Audio cable  1 × Power pack (12V/2A, only with variants incl. PowerPack)  1 × Power cable (only with variants incl. PowerPack)  1 × EasyStart flyer  1 × »Safety instructions« flyer Target and user modules (DP-HR-U) · 28...
Page 34 Use the purple plug of an optional Twin-PS/2 cable to connect the computer’s Keyb.: PS/2 keyboard interface to this interface. Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the computer’s PS/2 mouse interface to this interface. 29 · Target and user modules (DP-HR-U)
Page 35 You can also connect the target module directly to a compatible user module. Power supply Connect the cable of the power pack to this interface. Now connect the Power In: power cable to the power pack and a power socket. Target and user modules (DP-HR-U) · 30...
Page 36 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 31 · Target and user modules (DP-HR-U)
Page 37 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz Target and user modules (DP-HR-U) · 32...
Page 38 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 33 · Target and user modules (DP-HR-U)
Page 39: Target Module "Dp-Hr-U-Cpu-Fiber-Uc
 2 × Audio cable  1 × Power pack (12V/2A, only with variants incl. PowerPack)  1 × Power cable (only with variants incl. PowerPack)  1 × EasyStart flyer  1 × »Safety instructions« flyer Target and user modules (DP-HR-U) · 34...
Page 40  Always connect optical connections or cover them with protection caps on page 3  Only use G&D certified transmission modules on page 3 NOTE: Use optical fibres with LC plugs to connect the devices. The cables are available as accessories. 35 · Target and user modules (DP-HR-U)
Page 41 You can also connect the target module directly to a compatible user module. Power supply Power In: Connect the cable of the power pack to this interface. Now connect the power cable to the power pack and a power socket. Target and user modules (DP-HR-U) · 36...
Page 42 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 37 · Target and user modules (DP-HR-U)
Page 43 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz Target and user modules (DP-HR-U) · 38...
Page 44 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 39 · Target and user modules (DP-HR-U)
Page 45: Target Module "Dp-Hr-U-Cpu-Fiber-Mc2
At consoles with one monitor only, the image of the computer’s second video out- put is not displayed. Target and user modules (DP-HR-U) · 40...
Page 46 Use the USB device cable to connect one of the computer’s USB interfaces to this interface. Use the purple plug of an optional Twin-PS/2 cable to connect the computer’s Keyb.: PS/2 keyboard interface to this interface. 41 · Target and user modules (DP-HR-U)
Page 47 Dynamic Port provided at the matrix switch. ADVICE: You can also connect the target module directly to a compatible user mod- ule. Target and user modules (DP-HR-U) · 42...
Page 48 NOTE: You can adjust any channel groups that were created automatically or manually. More information about channel groups is given in the separate manu- als of the matrix switch web applications. 43 · Target and user modules (DP-HR-U)
Page 49 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. Target and user modules (DP-HR-U) · 44...
Page 50 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz 45 · Target and user modules (DP-HR-U)
Page 51 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 46...
Page 52: Target Module "Dp-Hr-U-Cpu-Fiber-Mc2-Uc
At consoles with one monitor only, the image of the computer’s second video out- put is not displayed. 47 · Target and user modules (DP-HR-U)
Page 53 Use the USB device cable to connect one of the computer’s USB interfaces to this interface. Keyb.: Use the purple plug of an optional Twin-PS/2 cable to connect the computer’s PS/2 keyboard interface to this interface. Target and user modules (DP-HR-U) · 48...
Page 54 Insert the LC plug of a compatible optical fibre cable. Connect Trans. 1|Channel 2|Rx: the other end of the cable to the interface of the same Dynamic Port provided at the first matrix switch. 49 · Target and user modules (DP-HR-U)
Page 55 NOTE: You can adjust any manually or automatically created channel group. More information about channel groups is given in the separate manuals of the matrix switch web applications. Target and user modules (DP-HR-U) · 50...
Page 56 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 51 · Target and user modules (DP-HR-U)
Page 57 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz Target and user modules (DP-HR-U) · 52...
Page 58 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 53 · Target and user modules (DP-HR-U)
Page 59: Target Module "Dp-Hr-U-Cpu-Dh
 1 × Power cable (only with variants incl. PowerPack)  1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  1 × Category 5e (or better) twisted pair cable to connect the target module to the matrix switch Target and user modules (DP-HR-U) · 54...
Page 60 Use the USB device cable to connect one of the computer’s USB interfaces to this interface. Use an optional PS/2 cable to connect the computer’s PS/2 keyboard PS/2 Keyb.: interface to this interface. 55 · Target and user modules (DP-HR-U)
Page 61 Insert the power pack’s connection cable to this interface. Power In: Start-up Connect the power cable to the power pack and a power socket. The target module starts as soon as it is supplied with power. Target and user modules (DP-HR-U) · 56...
Page 62 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 57 · Target and user modules (DP-HR-U)
Page 63 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz Target and user modules (DP-HR-U) · 58...
Page 64 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 59 · Target and user modules (DP-HR-U)
Page 65: Target Module "Dp-Hr-U-Cpu-Dh-Uc
 1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  2 × Category 5e (or better) twisted pair cables to connect the target module to two different matrix switches Target and user modules (DP-HR-U) · 60...
Page 66 Use the USB device cable to connect one of the computer’s USB interfaces to this interface. Use an optional PS/2 cable to connect the computer’s PS/2 keyboard PS/2 Keyb.: interface to this interface. 61 · Target and user modules (DP-HR-U)
Page 67 Connect this interface to a Dynamic Port (RJ45) of the second matrix switch. ADVICE: You can also connect the target module directly to up to two compatible user modules. Power supply Power In: Insert the power pack’s connection cable to this interface. Target and user modules (DP-HR-U) · 62...
Page 68 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 63 · Target and user modules (DP-HR-U)
Page 69 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz Target and user modules (DP-HR-U) · 64...
Page 70 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 65 · Target and user modules (DP-HR-U)
Page 71: Target Module "Dp-Hr-U-Cpu-Fiber-Dh
 1 × Power cable (only with variants incl. PowerPack)  1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  1 × Compatible optical fibre cable to connect the target module to the matrix switch Target and user modules (DP-HR-U) · 66...
Page 72  Always connect optical connections or cover them with protection caps on page 3  Only use G&D certified transmission modules on page 3 NOTE: Use optical fibres with LC plugs to connect the devices. The cables are available as accessories. 67 · Target and user modules (DP-HR-U)
Page 73 The external power pack is connected, and voltage of 12 Volt blue is available. The Ident. LED to quickly identify the device has been activated (for example, via the web application). The external power pack is not (properly) connected. Target and user modules (DP-HR-U) · 68...
Page 74 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 69 · Target and user modules (DP-HR-U)
Page 75 24 Bit Video bandwidth: 25 to 300 MP/s (Channel 1) 25 to 165 MP/s (Channel 2) Max. 330 MP/s (total) Vertical frequency: 24 Hz to 120 Hz Horizontal frequency: 25 kHz to 135 kHz Target and user modules (DP-HR-U) · 70...
Page 76 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 71 · Target and user modules (DP-HR-U)
Page 77: Target Module "Dp-Hr-U-Cpu-Fiber-Dh-Uc
 1 × Power cable (only with variants incl. PowerPack)  1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  2 × Compatible optical fibre cable to connect the target module to two different matrix switches Target and user modules (DP-HR-U) · 72...
Page 78  Only use G&D certified transmission modules on page 3 NOTE: Use optical fibres with LC plugs to connect the devices. The cables are available as accessories. IMPORTANT: For each matrix switch, connect only one Trans. interface of the tar- get module! 73 · Target and user modules (DP-HR-U)
Page 79 Insert the power pack’s connection cable to this interface. Start-up Connect the power cable to the power pack and a power socket. The target module starts as soon as it is supplied with power. Target and user modules (DP-HR-U) · 74...
Page 80 No user module is accessing. Flickering Keyboard and mouse inputs are forwarded by the accessing user module. The flickering is defined by the user’s entries. Yellow Flashing A firmware update is carried out. 75 · Target and user modules (DP-HR-U)
Page 81 24 Bit Video bandwidth: 25 to 300 MP/s (Channel 1) 25 to 165 MP/s (Channel 2) Max. 330 MP/s (total) Vertical frequency: 24 Hz to 120 Hz Horizontal frequency: 25 kHz to 135 kHz Target and user modules (DP-HR-U) · 76...
Page 82 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 77 · Target and user modules (DP-HR-U)
Page 83: Chapter B: User Modules
 1 × Power cable  1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  1 × Category 5e (or better) twisted pair cable to connect the user module to the matrix switch 78 · Target and user modules (DP-HR-U)
Page 84 Generic socket. USB Devices: Connect any USB devices to these interfaces. The data stream of the connected USB device is transmitted to a compatible target module with up to 16 Mbit/s. 79 · Target and user modules (DP-HR-U)
Page 85 Start-up Start the user module by pressing the Main Power button of the power pack. ADVICE: The active hotkey configuration is displayed during the System Startup of the matrix switch. Target and user modules (DP-HR-U) · 80...
Page 86 A local keyboard was detected. No power at PS/2 interface or USB bus. Flashing The CPU input (PS/2 or USB) is active and ready. A local keyboard was not detected. 81 · Target and user modules (DP-HR-U)
Page 87 NOTE: Keyboard and mouse signals can only access another user module or a tar- get computer if you activated the TradeSwitch function for the matrix switch. Target and user modules (DP-HR-U) · 82...
Page 88 16/20/24 bit Sampling rates: up to 48 kHz Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Sampling rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s 83 · Target and user modules (DP-HR-U)
Page 89 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 84...
Page 90: User Module "Dp-Hr-U-Con-2
 1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  2 × Category 5e (or better) twisted pair cables to connect the user module to two the matrix switches 85 · Target and user modules (DP-HR-U)
Page 91 Generic Connect any USB devices to these interfaces. The data stream of the USB Devices: connected USB device is transmitted to a compatible target module with up to 16 Mbit/s. Target and user modules (DP-HR-U) · 86...
Page 92  Press the button of the desired channel to activate it. How to switch channels via key combinations:  On the console keyboard, press local Hotkey+Select key In the default settings, the select keys are (channel 1) and (channel 2). Alt+1 Alt+2 87 · Target and user modules (DP-HR-U)
Page 93 Active Active channel. Inactive channel. Status The communication to the counterpart station of this chan- nel was established successfully. The communication to the counterpart station of this active channel could not be established. Target and user modules (DP-HR-U) · 88...
Page 94 NOTE: Keyboard and mouse signals can only access another user module or a tar- get computer if you purchased the TradeSwitch feature for the matrix switch. 89 · Target and user modules (DP-HR-U)
Page 95 16/20/24 bit Sampling rates: up to 48 kHz Audio Transmission type: transparent, bidirectional Resolution: 24 Bit Sampling rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Target and user modules (DP-HR-U) · 90...
Page 96 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 91 · Target and user modules (DP-HR-U)
Page 97: User Module "Dp-Hr-U-Con-Mc2
In this case, add both target modules in the web application to channel group. Package contents  1 × User module DP-HR-U-CON-MC2  1 × Power cable  1 × EasyStart flyer  1 × »Safety instructions« flyer Target and user modules (DP-HR-U) · 92...
Page 98 USB device is transmitted to a compatible target module with up to 16 Mbit/s. LED Out: If you purchased and added the TradeSwitch feature to the matrix switch, connect the optional TS-LED2 here (order number A6100041). 93 · Target and user modules (DP-HR-U)
Page 99  Turn on the Main Power power pack.  Use an optional power pack to supply the Red. Power socket with power. Target and user modules (DP-HR-U) · 94...
Page 100 NOTE: You can adjust adjsut any channel groups that were created automatically or manually. More information about channel groups is given in the separate manuals of the matrix switch web applications. 95 · Target and user modules (DP-HR-U)
Page 101 No signal at second video input, or the signal quality is too weak to be processed by the system. Trans. 2 The communication to the counterpart station is estab- lished successfully. The communication to the counterpart station could not be established. Target and user modules (DP-HR-U) · 96...
Page 102 NOTE: Keyboard and mouse signals can only be switched to another user module or target computer if you purchased the TradeSwitch function for the matrix switch 97 · Target and user modules (DP-HR-U)
Page 103 Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz Audio Transmission type: transparent, bidirectional Resolution: 24 bits Refresh rate: 96 kHz Bandwidth: 22 kHz Target and user modules (DP-HR-U) · 98...
Page 104 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 99 · Target and user modules (DP-HR-U)
Page 105: User Module "Dp-Hr-U-Con-Mc4
More information about this topic is given in the chap- ter Expanding the system through port grouping of the web application manual. When accessing the system with a target module with only one graphics input, only the first monitor shows an image. Target and user modules (DP-HR-U) · 100...
Page 106  1 × Power cable  1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  4 × Category 5e (or better) twisted pair cables to connect the user module to the matrix switch 101 · Target and user modules (DP-HR-U)
Page 107 USB device is transmitted to a compatible target module with up to 16 Mbit/s. If you purchased and added the TradeSwitch feature to the matrix switch, con- LED Out: nect the optional TS-LED2 here (order number A6100041). Target and user modules (DP-HR-U) · 102...
Page 108 Use category 5e (or better) twisted pair cables to connect the devices. Connect this interface to another Dynamic Port (RJ45) of the matrix Transmission 3: switch. Transmission 4: Connect this interface to another Dynamic Port (RJ45) of the matrix switch. 103 · Target and user modules (DP-HR-U)
Page 109 NOTE: You can adjust adjsut any channel groups that were created automatically or manually. More information about channel groups is given in the separate manuals of the matrix switch web applications. Target and user modules (DP-HR-U) · 104...
Page 110 No signal at second video input, or the signal quality is too weak to be processed by the system. Trans. 2 The communication to the counterpart station is estab- lished successfully. The communication to the counterpart station could not be established. 105 · Target and user modules (DP-HR-U)
Page 111 No signal at fourth video input, or the signal quality is too weak to be processed by the system. Trans. 4 The communication to the counterpart station is established successfully. The communication to the counterpart station could not be established. Target and user modules (DP-HR-U) · 106...
Page 112 NOTE: Keyboard and mouse signals can only be switched to another user module or target computer if you purchased the TradeSwitch function for the matrix switch 107 · Target and user modules (DP-HR-U)
Page 113 16/20/24 bit Sampling rates: up to 48 kHz Audio Transmission type: transparent, bidirectional Resolution: 24 bits Refresh rate: 96 kHz Bandwidth: 22 kHz Specification: USB 2.0 Transmission type: transparent Transmission rate: Max. 16 Mbit/s Target and user modules (DP-HR-U) · 108...
Page 114 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 109 · Target and user modules (DP-HR-U)
Page 115: User Module "Dp-Hr-U-Con-Fiber
 1 × Power cable  1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  1 × Compatible optical fibre cable to connect the user module to the matrix switch Target and user modules (DP-HR-U) · 110...
Page 116 Generic socket. USB Devices: Connect any USB devices to these interfaces. The data stream of the connected USB device is transmitted to a compatible target module with up to 16 Mbit/s. 111 · Target and user modules (DP-HR-U)
Page 117 Start-up Start the user module by pressing the Main Power button of the power pack. ADVICE: The active hotkey configuration is displayed during the System Startup of the matrix switch. Target and user modules (DP-HR-U) · 112...
Page 118 A local keyboard was detected. No power at PS/2 interface or USB bus. Flashing The CPU input (PS/2 or USB) is active and ready. A local keyboard was not detected. 113 · Target and user modules (DP-HR-U)
Page 119 NOTE: Keyboard and mouse signals can only access another user module or a tar- get computer if you activated the TradeSwitch function for the matrix switch. Target and user modules (DP-HR-U) · 114...
Page 120 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz 115 · Target and user modules (DP-HR-U)
Page 121 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 116...
Page 122: User Module "Dp-Hr-U-Con-2-Fiber
The buttons on the front panel of the user module or configured key combinations (select keys) let users switch between the connected matrix switches. ADVICE: Instead of a matrix switch, you can also connect a compatible target module to each of the two channels. 117 · Target and user modules (DP-HR-U)
Page 123 Mixed operation, for example connecting a USB mouse and a PS/2 key- board is supported, too. Generic: By default ( Keyb./Mouse mode), you can use this interface to connect another USB input device or supported displays or tablets. Target and user modules (DP-HR-U) · 118...
Page 124 Insert the LC plug of a compatible optical fibre cable. Connect the other end of the cable to the interface of the same Dynamic Port provided at the second matrix switch. ADVICE: You can also connect the Transmission interface directly to a compatible target module. 119 · Target and user modules (DP-HR-U)
Page 125  Press the button of the desired channel to activate it. How to switch channels via key combinations:  On the console keyboard, press local Hotkey+Select key In the default settings, the select keys are (channel 1) and (channel 2). Alt+1 Alt+2 Target and user modules (DP-HR-U) · 120...
Page 126 Active Active channel. Inactive channel. Status The communication to the counterpart station of this chan- nel was established successfully. The communication to the counterpart station of this active channel could not be established. 121 · Target and user modules (DP-HR-U)
Page 127 NOTE: Keyboard and mouse signals can only access another user module or a tar- get computer if you purchased the TradeSwitch feature for the matrix switch. Target and user modules (DP-HR-U) · 122...
Page 128 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz 123 · Target and user modules (DP-HR-U)
Page 129 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 124...
Page 130: User Module "Dp-Hr-U-Con-Fiber-Mc2
Instead of an target module, you can also connect a dual-head com- puter by using two separate target modules DP-HR-U-CPU In this case, add both target modules in the web application to channel group. 125 · Target and user modules (DP-HR-U)
Page 131 Connect the console’s PS/2 mouse. Connect the console’s USB keyboard and/or USB mouse. Keyb./Mouse: Generic: By default ( Keyb./Mouse mode), you can use this interface to connect another USB input device or supported displays or tablets. Target and user modules (DP-HR-U) · 126...
Page 132 Transmission 1|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the other end of the cable to the interface of the same Dynamic Port provided at the matrix switch. 127 · Target and user modules (DP-HR-U)
Page 133 NOTE: You can adjust adjsut any channel groups that were created automatically or manually. More information about channel groups is given in the separate manuals of the matrix switch web applications. Target and user modules (DP-HR-U) · 128...
Page 134 No signal at second video input, or the signal quality is too weak to be processed by the system. Trans. 2 The communication to the counterpart station is estab- lished successfully. The communication to the counterpart station could not be established. 129 · Target and user modules (DP-HR-U)
Page 135 NOTE: Keyboard and mouse signals can only be switched to another user module or target computer if you purchased the TradeSwitch function for the matrix switch Target and user modules (DP-HR-U) · 130...
Page 136 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz 131 · Target and user modules (DP-HR-U)
Page 137 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 132...
Page 138: User Module "Dp-Hr-U-Con-Fiber-Mc4
More information about this topic is given in the chap- ter Expanding the system through port grouping of the web application manual. When accessing the system with a target module with only one graphics input, only the first monitor shows an image. 133 · Target and user modules (DP-HR-U)
Page 139 Connect the console PS/2 mouse. Mouse: Keyb./Mouse: Connect the console USB keyboard and/or USB mouse. By default ( mode), you can use this interface to connect another Generic: Keyb./Mouse USB input device or supported displays or tablets. Target and user modules (DP-HR-U) · 134...
Page 140 Use optical fibres with LC plugs to connect the devices. The cables are available as accessories. LED Out USB Devices Mouse Generic Transmission 2 DisplayPort Out 2 Transmission 1 DisplayPort Out 1 Micro In Speaker Keyb./Mouse Keyb. Red. Power 135 · Target and user modules (DP-HR-U)
Page 141 Connect the supplied power cable. Insert the cable’s Schuko plug in a power socket. Connect the connection cable of a compatible power pack to provide the Red. Power: user module with a second, redundant power supply. Target and user modules (DP-HR-U) · 136...
Page 142 NOTE: You can adjust adjsut any channel groups that were created automatically or manually. More information about channel groups is given in the separate manuals of the matrix switch web applications. 137 · Target and user modules (DP-HR-U)
Page 143 No signal at second video input, or the signal quality is too weak to be processed by the system. Trans. 2 The communication to the counterpart station is estab- lished successfully. The communication to the counterpart station could not be established. Target and user modules (DP-HR-U) · 138...
Page 144 No data connection to the counterpart station. Flashing Data connection to the counterpart station established. Green No user is logged in at the user module. A user is logged in at the user module. 139 · Target and user modules (DP-HR-U)
Page 145 NOTE: Keyboard and mouse signals can only be switched to another user module or target computer if you purchased the TradeSwitch function for the matrix switch Target and user modules (DP-HR-U) · 140...
Page 146 However, the support cannot be guaranteed for all monitor models. Audio Transmission type: 2 channel LPCM, stereo  DisplayPort Digital Resolutions: 16/20/24 bit Sampling rates: up to 48 kHz 141 · Target and user modules (DP-HR-U)
Page 147 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 142...
Page 148: User Module "Dp-Hr-U-Con-Dh
 1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  1 × Category 5e (or better) twisted pair cable to connect the user module to a KVM matrix switch 143 · Target and user modules (DP-HR-U)
Page 149 Generic socket. USB Devices: Connect any USB devices to these interfaces. The data stream of the connected USB device is transmitted to a compatible target module with up to 16 Mbit/s. Target and user modules (DP-HR-U) · 144...
Page 150  Turn on the Main Power power pack.  Use an optional power pack to supply the socket with power. Red. Power 145 · Target and user modules (DP-HR-U)
Page 151 A local keyboard was detected. No power at PS/2 interface or USB bus. Flashing The CPU input (PS/2 or USB) is active and ready. A local keyboard was not detected. Target and user modules (DP-HR-U) · 146...
Page 152 NOTE: Keyboard and mouse signals can only be switched to another user module or target computer if you purchased the TradeSwitch function for the matrix switch 147 · Target and user modules (DP-HR-U)
Page 153 24 Bit Video bandwidth: 25 to 300 MP/s (Channel 1) 25 to 165 MP/s (Channel 2) Max. 330 MP/s (total) Vertical frequency: 24 Hz to 120 Hz Horizontal frequency: 25 kHz to 135 kHz Target and user modules (DP-HR-U) · 148...
Page 154 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 149 · Target and user modules (DP-HR-U)
Page 155: User Module "Dp-Hr-U-Con-2-Dh
 1 × EasyStart flyer  1 × »Safety instructions« flyer Required accessories  2 × Category 5e (or better) twisted pair cables to connect the user module to two the matrix switches Target and user modules (DP-HR-U) · 150...
Page 156 Generic Connect any USB devices to these interfaces. The data stream of the USB Devices: connected USB device is transmitted to a compatible target module with up to 16 Mbit/s. 151 · Target and user modules (DP-HR-U)
Page 157 If required, connect the power cable of the optional power pack to this Red. Power: interface. This provides a redundant power supply. Connect the power cable with the power pack and a power outlet of a different power circuit. Target and user modules (DP-HR-U) · 152...
Page 158  Press the button of the desired channel to activate it. How to switch channels via key combinations:  On the console keyboard, press Hotkey+Select key In the default settings, the select keys are Alt+1 (channel 1) and Alt+2 (channel 2). 153 · Target and user modules (DP-HR-U)
Page 159 The communication with the connected matrix switch or the target module of this channel was established success- fully. The communication with a matrix switch or target module of this active channel could not be established. Target and user modules (DP-HR-U) · 154...
Page 160 NOTE: Keyboard and mouse signals can only access another user module or a tar- get computer if you purchased the TradeSwitch feature for the matrix switch. 155 · Target and user modules (DP-HR-U)
Page 161 24 Bit Video bandwidth: 25 to 300 MP/s (Channel 1) 25 to 165 MP/s (Channel 2) Max. 330 MP/s (total) Vertical frequency: 24 Hz to 120 Hz Horizontal frequency: 25 kHz to 135 kHz Target and user modules (DP-HR-U) · 156...
Page 162 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 157 · Target and user modules (DP-HR-U)
Page 163: User Module "Dp-Hr-U-Con-Fiber-Dh
Package contents  1 × User module DP-HR-U-CON-Fiber-DH  1 × Power cable  1 × EasyStart flyer  1 × »Safety instructions« flyer Target and user modules (DP-HR-U) · 158...
Page 164 Generic socket. Connect any USB devices to these interfaces. The data stream of the USB Devices: connected USB device is transmitted to a compatible target module with up to 16 Mbit/s. 159 · Target and user modules (DP-HR-U)
Page 165 Transmission|Rx: other end of the cable to the interface of the same Dynamic Port provided at the matrix switch. ADVICE: You can also connect the user module directly to a compatible target module. Target and user modules (DP-HR-U) · 160...
Page 166  Turn on the power pack. Main Power  Use an optional power pack to supply the socket with power. Red. Power 161 · Target and user modules (DP-HR-U)
Page 167 A local keyboard was detected. No power at PS/2 interface or USB bus. Flashing The CPU input (PS/2 or USB) is active and ready. A local keyboard was not detected. Target and user modules (DP-HR-U) · 162...
Page 168 NOTE: Keyboard and mouse signals can only be switched to another user module or target computer if you purchased the TradeSwitch function for the matrix switch 163 · Target and user modules (DP-HR-U)
Page 169 24 Bit Video bandwidth: 25 to 300 MP/s (Channel 1) 25 to 165 MP/s (Channel 2) Max. 330 MP/s (total) Vertical frequency: 24 Hz to 120 Hz Horizontal frequency: 25 kHz to 135 kHz Target and user modules (DP-HR-U) · 164...
Page 170 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS 165 · Target and user modules (DP-HR-U)
Page 171: User Module "Dp-Hr-U-Con-2-Fiber-Dh
ADVICE: Instead of a matrix switch, you can also connect a compatible target module to each of the two channels. Target and user modules (DP-HR-U) · 166...
Page 172 Connect the console PS/2 mouse. Keyb./Mouse: Connect the console USB keyboard and/or USB mouse. By default ( mode), you can use this interface to connect another Generic: Keyb./Mouse USB input device or supported displays or tablets. 167 · Target and user modules (DP-HR-U)
Page 173 Red. Power Transmission 1|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the other end of the cable to the interface of a Dynamic Port provided at the matrix switch. Target and user modules (DP-HR-U) · 168...
Page 174 Startup Start the user module by pressing the Main Power button of the power pack. ADVICE: The active hotkey configuration is displayed during the System Startup of the matrix switch. 169 · Target and user modules (DP-HR-U)
Page 175  Press the button of the desired channel to activate it. How to switch channels via key combinations:  On the console keyboard, press Hotkey+Select key In the default settings, the select keys are Alt+1 (channel 1) and Alt+2 (channel 2). Target and user modules (DP-HR-U) · 170...
Page 176 The communication with the connected matrix switch or the target module of this channel was established success- fully. The communication with a matrix switch or target module of this active channel could not be established. 171 · Target and user modules (DP-HR-U)
Page 177 NOTE: Keyboard and mouse signals can only be switched to another user module or target computer if you purchased the TradeSwitch function for the matrix switch Target and user modules (DP-HR-U) · 172...
Page 178 24 Bit Video bandwidth: 25 to 300 MP/s (Channel 1) 25 to 165 MP/s (Channel 2) Max. 330 MP/s (total) Vertical frequency: 24 Hz to 120 Hz Horizontal frequency: 25 kHz to 135 kHz 173 · Target and user modules (DP-HR-U)
Page 179 +5 °C to +45 °C environment Air humidity: 20 % to 80 %, non-condensing Storage Temperature: -20°C to +55°C environment Air humidity: 15 % to 85 %, non-condensing Conformity CE, EAC, FCC Class B, RoHS Target and user modules (DP-HR-U) · 174...
Page 180: Chapter C: Generic Hid
Generic HID mode How to enable/disable the user module’s Generic HID mode: 1. Press Ctrl+Num (default) to open the on-screen display. 2. Press to open the Configuration menu. 3. Select and press Console Enter Target and user modules (DP-HR-U) · 175...
Page 181: Enabling/Disabling The Target Module's Generic Hid Mode
Ctrl+Num (default) to open the on-screen display. 2. Press to open the Configuration menu. 3. Select Target and press Enter 4. Select the target module whose settings you want to change and press Target and user modules (DP-HR-U) · 176...
Page 182 USB target modules additionally support certain USB input devices. After selecting the specific USB keyboard mode of such a device, you can use the special features of these USB input devices. 6. Click to save your changes. 177 · Target and user modules (DP-HR-U)
Page 183: Chapter D: Extender Mode
You can use the configured hotkey to open the on-screen display at the console. How to open the on-screen display: 1. Press Alt+Num (default) to open the on-screen display. Configuration Hotkey... EDID... Keyboard/Mouse... Mouse utility... Console utility... Information... ESC: Exit 178 · Target and user modules (DP-HR-U)
Page 184: Configuration
. Then, press Modifier Ctrl: Ctrl key Alt: Alt key Alt Gr: Alt Gr key Win: Windows key Shift: Shift key 179 · Target and user modules (DP-HR-U)
Page 185 Open OSD by pressing Alt twice Alt Gr: Open OSD by pressing Alt Gr twice Win: Open OSD by pressing Win twice Shift: Open OSD by pressing Shift twice Print: Open OSD by pressing Druck twice Target and user modules (DP-HR-U) · 180...
Page 186 ADVICE: In some cases it is recommended to send the EDID profile of the console monitor to the target module. Now the connected computer receives the EDID data of the console monitor. 181 · Target and user modules (DP-HR-U)
Page 187 PixelPower C: Special PixelPower Rapid Action keyboard SKIDATA1: Special SKIDATA1 keyboard ADVICE: Press to show a list inclduing all options. Select the desired Ctrl+F8 option and press Enter 4. Press to save your settings. Target and user modules (DP-HR-U) · 182...
Page 188 All USB devices are regularly reinitialised. only faulty: The status of USB devices is monitored. If the communica- tion with a USB devices is interrupted, the device is reini- tialised. 4. Press to save your settings. 183 · Target and user modules (DP-HR-U)
Page 189 Wacom Intuos3  Wacom Int.3 Wacom Intuos4 S  Wacom Int.4S Wacom Intuos4 M  Wacom Int.4M Wacom Intuos4 L  Wacom Int.4L Wacom Intuos4 XL  Wacom Int.4XL Wacom Intuos5  Wacom Int.5 Target and user modules (DP-HR-U) · 184...
Page 190 You can use the emulation of »Solaris Shortcut Keys« in the SUN DE SUN US keyboard mode only. If the target module is provided with a Sun Keyboard, you can use Solaris Shortcut Keys after enabling their support. 185 · Target and user modules (DP-HR-U)
Page 191 Yes: Support for servers of IBM’s RS/6000 series is activated Support for servers of IBM’s RS/6000 series is deactivated 4. Press to save your settings. Target and user modules (DP-HR-U) · 186...
Page 192 How to reset the default settings of the matrix switch: 1. Press the Alt+Num (default) hotkey to open the on-screen display. 2. Select and press Console utility Enter 3. Select Set system defaults and press Enter 187 · Target and user modules (DP-HR-U)
Page 193 2. Select Information and press Enter 3. Use the to select the desired menu item (see above). arrow keys 4. Press Enter to show the desired information. 5. Press to leave the menu. Target and user modules (DP-HR-U) · 188...
Page 196 G&D. AND KVM FEELS RIGHT. Hauptsitz | Headquarter US-Büro | US-Office Guntermann & Drunck GmbH Systementwicklung G&D North America Inc. Obere Leimbach 9 | D-57074 Siegen | Phone +49 271 23872-0 4001 W. Alemada Avenue | Suite 100, Burbank, CA 91505 | Phone +1-818-748-3383 sales.us@gdsys.com | www.gdsys.com sales@gdsys.com | www.gdsys.com...

G&D DP-HR-U Installation And Operations

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for G&D DP-HR-U

Summary of Contents for G&D DP-HR-U

This manual is also suitable for:

Table of Contents
