INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Weight Carrying Capacity
Gross trailer weight (GTW)
Tongue weight (TW)
Weight Distribution Capacity
Weight distribution (WD)
WD tongue weight (WDTW)
Parts List
Item Qty Description
1
2
U-shaped spacer,
3/16" x 1" x 2"
2
6
Square-hole spacer,
3/8" x 1-1/4" x 2-1/2"
3
4
Carriage bolt,
5/8"-11 x 1-3/4", grade 8
4
4
Serrated-flange nut,
5/8"-11, grade 8
5
4
Fishwire, 5/8"
6
1
Flange bolt ,
M8 -1.25 x 25mm, CL10.9
Tools Required
Ratchet
Torque wrench
Socket, 10mm
Socket, 15/16"
Socket, 13mm
Masking tape
HUSKYTOW.COM
PRODUCT & WARRANTY SUPPORT: 877.544.4449
WARNING
Never exceed the vehicle manufacturer's recommended towing capacity.

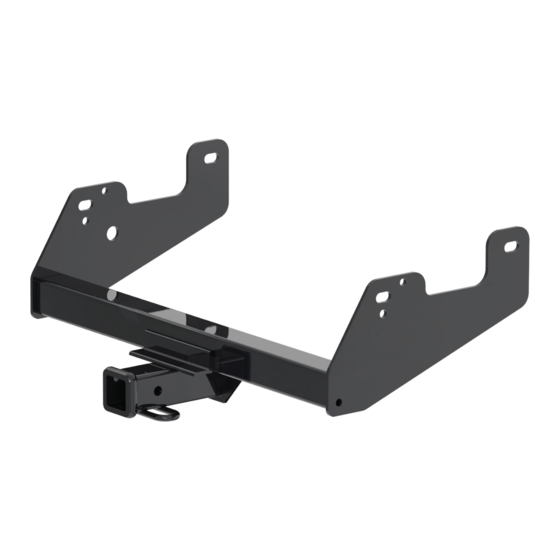

Product Photo
6,000 lbs.
900 lbs.
10,000 lbs.
1,000 lbs.
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
This installation requires:
• Lowering of the spare tire
• Fishwiring to install hardware
• Temporary ground cable removal, if applicable
Periodic inspection of the trailer hitch should be performed to ensure all
mounting hardware remains tight and structural components are secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Warranty Information
Our products are backed by industry-leading warranties. For a copy
of the product warranties or to provide feedback, please contact our
support line using the phone number at the bottom of this document.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.
FAX: 855.242.8922
69650C-INS-RA
69650C
02/16/2021
ECN8025
PAGE 1
