INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Weight Carrying Capacity
Gross trailer weight (GTW)
Tongue weight (TW)
Parts List
Item Qty Description
1 6 Carriage bolt,
1/2"-13 x 1-1/2", grade 8
2 6 Serrated-flange nut, 1/2"-13
3 6 Spacer, 1/4" x 1" x 2-1/2"
4 6 Fishwire, 1/2"
Tools Required
Socket, 7mm Ratchet
Socket, 10mm Torque wrench
Socket, 3/4" Fishwire, 1/2"
Socket extension, 6" Rotary tool
HUSKYTOW.COM
• PRODUCT & WARRANTY SUPPORT: 877.544.4449
WARNING
Never exceed the vehicle manufacturer's recommended towing capacity.

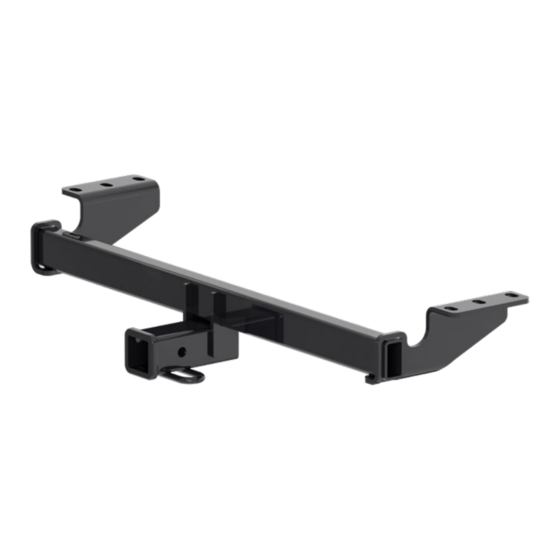

Product Photo
3,500 lbs.
525 lbs.
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
This installation requires:
• Partial removal and trimming of underbody panel
• Trimming of rear bumper fascia
• Temporary lowering of exhaust
Periodic inspection of the trailer hitch should be performed to ensure all
mounting hardware remains tight and structural components are secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.
Warranty Information
Our products are backed by industry-leading warranties. For a copy
of the product warranties or to provide feedback, please contact our
support line using the phone number at the bottom of this document.
FAX: 855.242.8922 69666C-INS-RA
• •
69666C
12/17/2021 ECN9125 PAGE 1
• • •
