Summary of Contents for AUDAC SCP206
- Page 1 User manual SCP2xx audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ audac.eu. REV-3.7...
-
Page 3: Table Of Contents
Table of contents Introduction Compact dual-channel power amplifier � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5 Precautions Chapter 1 Connections and connectors �... - Page 4 SCP2xx - User manual...
-
Page 5: Introduction

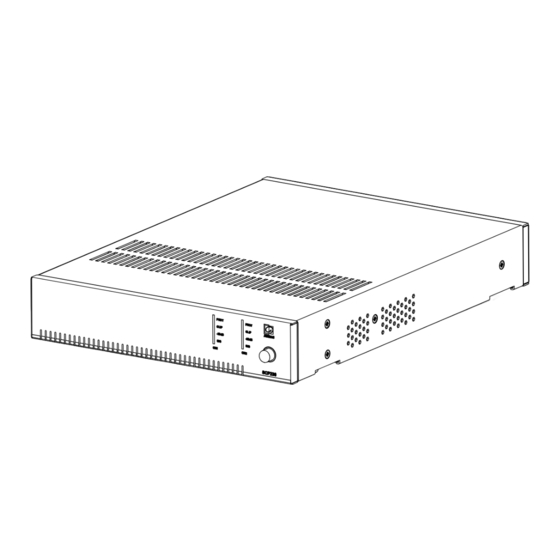

Introduction Compact dual-channel power amplifier The SCP series is a range of extremely powerful compact dual-channel power amplifiers for commercial use. These half 19” devices can be used in stereo low impedance or 70/100V bridge mode. There are several different models to serve a wide range of applications with power ratings that vary between 120W to 1000W in a half 19”... -
Page 6: Precautions
Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE. - Page 7 2014/30/EU (EMC) and 2014/35/EU (LVD). All related standards are listed in a Declaration of Conformity (DoC), which can be found in the products download section on the web-page audac.eu, our through scanning the QR code on page 2 of this user manual.
-
Page 8: Connections And Connectors
Chapter 1 Connections and connectors CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment 3-Pin Terminal block: For balanced line input connections Left: Signal - (XLR Pin 3) -
Page 9: Front Panel Overview
Chapter 2 Front panel overview Indicator LEDs (VU): Channel monitoring is made convenient by four indicator LEDs for each channel. The LEDs give a continuous indication of the operation of the corresponding channel. The green signal LED illuminates whenever a signal is present, while the -20dB LED illuminates when the input signal exceeds the -20 dB level. -
Page 10: Rear Panel Overview
SCP2xx connected in stereo mode SCP2xx connected in bridge mode SCP series minimum load impedance in 4 Ohm stereo output mode Output voltage Impedance Power SCP206 15.5 Volt 4 Ohm 2 x 60 Watt SCP212 22 Volt 4 Ohm... - Page 11 Pinout and colour coding are described in Chapter 1 of this instruction manual. The remote volume controller connection is designed for use with a suitable volume controller (e.g. Audac WP200, VC3208). It is a VCA input, working between 0-10V (linear envelope), and can be used with an external 0-10V control system.
- Page 12 70V / 100V switch: When switched in Hi-Z mode (STEREO - BTL-HPF) the output voltage can be switched between 70/100V using this switch. In Hi-Z mode, the amplifier channel CH1 input is used and the input source should be a mono-summed signal which is configured on the source side. When using a WP2XX as the source, the wallpanel needs to be set to Mono mode using the DIP switch on the back.
-
Page 13: Technical Specifications
Technical specifications SCP206 SCP212 SCP224 RMS/AES power @ 4 Ohm stereo 2 x 60 Watt 2 x 120 Watt 2 x 240 Watt handling @ 8 Ohm stereo 2 x 30 Watt 2 x 60 Watt 2 x 120 Watt... - Page 14 Technical specifications SCP230 SCP250 RMS/AES power @ 4 Ohm stereo 2 x 300 Watt 2 x 500 Watt handling @ 8 Ohm stereo 2 x 150 Watt 2 x 250 Watt @ 70/100V bridge 600 Watt 1000 Watt (800 Watt @ 70V) Frequency response 20 Hz - 20 kHz Signal / Noise...
- Page 15 Notes...
- Page 16 Discover more on audac.eu...
