- Page 1 User manual SCP2xx audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu. SCP2xx - User manual...
-
Page 3: Table Of Contents
Table of contents Introduction Compact dual-channel power amplifier � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5 Precautions Chapter 1 Connections and connectors �... - Page 4 SCP2xx - User manual...
-
Page 5: Introduction
Introduction Compact dual-channel power amplifier The SCP series is a range of extremely powerful compact dual-channel power amplifiers for commercial use. These half 19” devices can be used in stereo low impedance or 70/100V bridge mode. There are 3 different models to serve a wide range of applications with power ratings that vary between 240W to 600W in a half 19”... -
Page 6: Precautions
Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE. - Page 7 2014/30/EU (EMC) and 2014/35/EU (LVD). All related standards are listed in a Declaration of Conformity (DoC), which can be found in the products download section on the web- page audac.eu, our through scanning the QR code on page 2 of this user manual. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) The WEEE marking indicates that this product should not be disposed with regular household waste at the end of its life cycle.
-
Page 8: Connections And Connectors
Chapter 1 Connections and connectors CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment 3-Pin Terminal block: For balanced line input connections Left: Signal - (XLR Pin 3) -
Page 9: Front Panel Overview

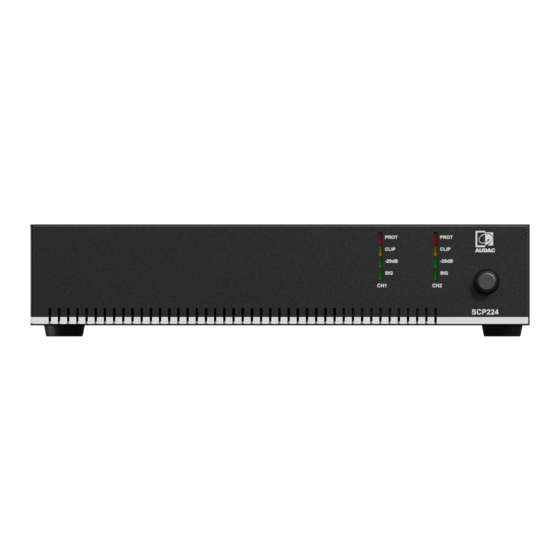

Chapter 2 Front panel overview Indicator LEDs (VU): Channel monitoring is made convenient by four indicator LEDs for each channel. The LEDs give a continuous indication of the operation of the corresponding channel. The green signal LED illuminates whenever a signal is present, while the -20dB LED illuminates when the input signal exceeds the -20 dB level. The Clip LED illuminates when the corresponding channel is working at maximum level. -
Page 10: Rear Panel Overview
Rear panel overview AC Power inlet with fuse: The mains power supply (100-240V AC - 50/60 Hz) has to be applied to this AC power inlet. Mute connection: A priority mute contact connection is present which allows complete muting of background music at presence of a contact closure between both ‘MUTE’... - Page 11 Chapter 1 of this instruction manual. The remote volume controller connection is designed for use with a suitable volume controller (e.g. Audac WP200, VC3208). It is a VCA input, working between 0-10V (linear envelope), and can be used with an external 0-10V control system. The amplifiers overall volume is controlled dependent on the applied control voltage.
-
Page 12: Technical Specifications
Technical specifications SCP212 SCP224 SCP230 RMS/AES power handling @ 4 Ohm stereo 2 x 120 Watt 2 x 240 Watt 2 x 300 Watt @ 8 Ohm stereo 2 x 60 Watt 2 x 120 Watt 2 x 150 Watt @ 70/100V bridge 240 Watt 480 Watt... - Page 13 Notes SCP2xx - User manual...
