KI Tributaire Nesting Screens Assembly Instructions

non-locking
caster
locking
caster
stringer
attachment
bracket
Detail A - (top view)
non-locking
caster

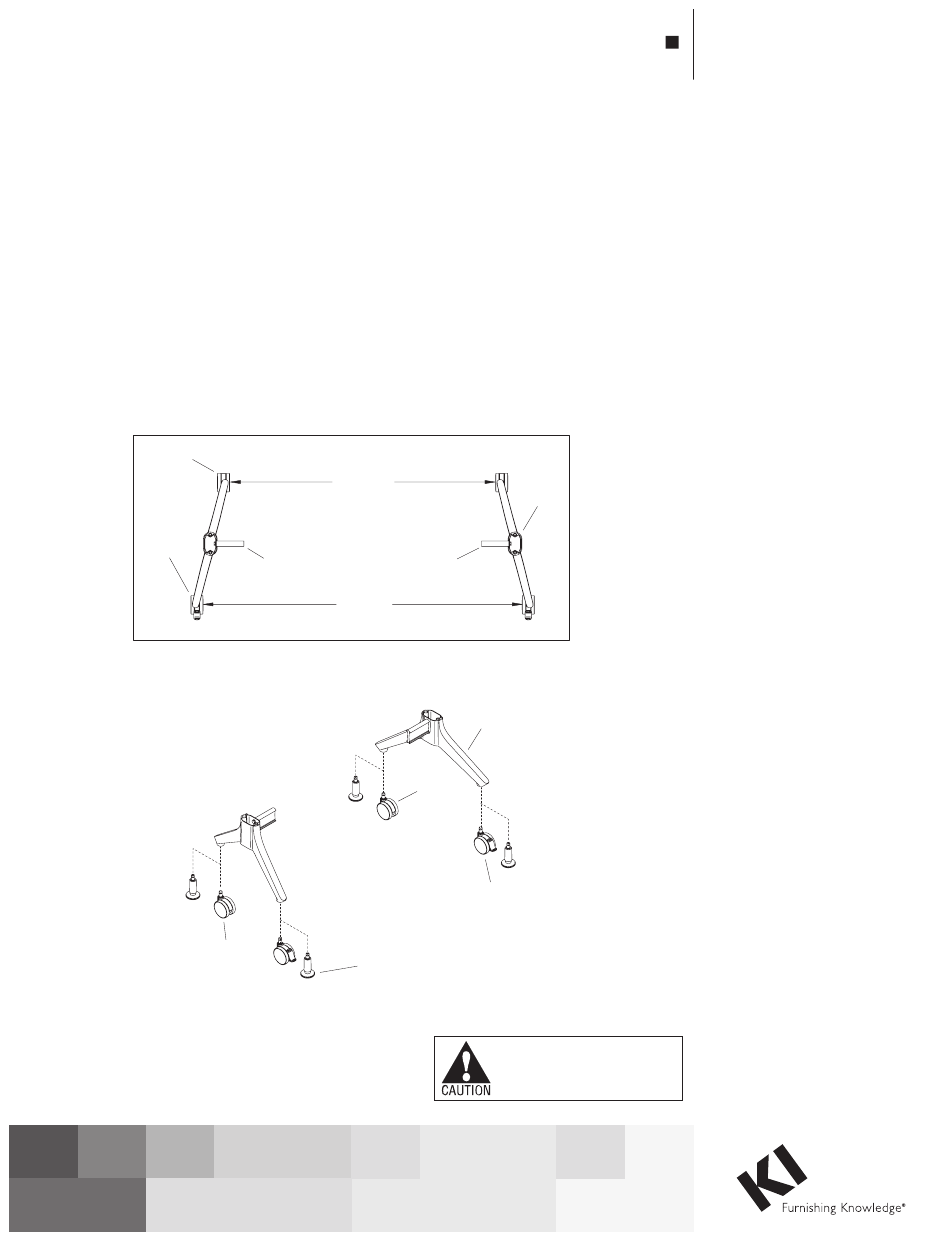

Figure 1
Assembly Instructions
Tributaire™ Collection

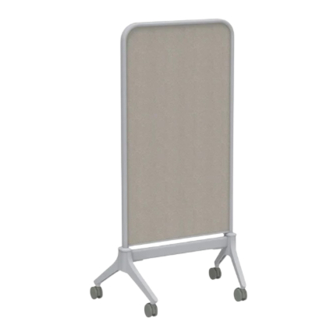

Tributaire Nesting Screens
Overview
1. Carefully remove contents from
shipping packaging, then identify
parts and hardware supplied.
Note: The two legs, when assembled
together with the stringer between
them are designed to have a smaller
gap between the feet on one side,
and have a larger gap between the
feet on the other side.
smaller gap
between feet
stringer
attachment
bracket
larger gap
between feet
leg
non-locking
caster
locking
caster
telescopic
glide
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Nesting Screens
March 2024
2. Carefully stand the two legs to the upright
3. If the screen being assembled is a caster
Caster Installation
leg
4. Locate the locking and non-locking
5. Proceed to "Stringer Installation"
Telescopic Glide Installation
6. Press-in fully to install the stem of two
7. Proceed to "Stringer Installation"
position with stringer attachment brackets
facing each other as illustrated. Orient the
legs so the stringer attachment brackets
on each leg are inline to each other, then
identify the front/back side of the leg pair
that has a larger gap between the feet
(Figure 1 & Detail A).
leg unit, proceed to "Caster Installation"
instructions on this page, otherwise
proceed to "Telescopic Glide Installation"
instructions on this page.
Note: Casters are designed as locking,
and non-locking. It is recommended that
the same type of caster be placed on the
front/back leg pair that either has the larger
gap between the feet, or the smaller gap
between the feet for each nesting screen
assembly. Take care and follow directions
below when positioning legs for caster
assembly. If casters are not installed
to the proper locations, disassembly
and reassembly may be required. The
illustrations throughout this instruction
will show the locking casters being
installed to the front/back leg pair that
has the larger gap between the feet. Your
configuration may vary.
casters. Locking casters are to be
installed on the same side of each leg,
and non-locking casters are to be installed
on the opposite side of each leg. Press-in
fully to install the stem of one locking and
one non-locking caster into the mounting
holes at the underside of each foot
(Figure 1).
instructions on the next page.
telescopic glides into the mounting holes
at the underside of each foot (Figure 1).
instructions on the next page.
