VEVOR ZX2-D - Steering Endoscope Manual

PRODUCT DESCRIPTION

This product is a handheld high-definition detection endoscope, which can be displayed on the screen in real time through the front camera image.
The products are widely used in the fields of auto repair inspection, pipeline inspection, fire protection and security, etc.
Warm reminder:

1. It cannot be used as a medical device
2. The camera of this product cannot be used in a high temperature environment. There will be a buzzer alarm when the temperature is higher than 85 ℃.

Please remove the camera from the high temperature environment when giving an alarm.

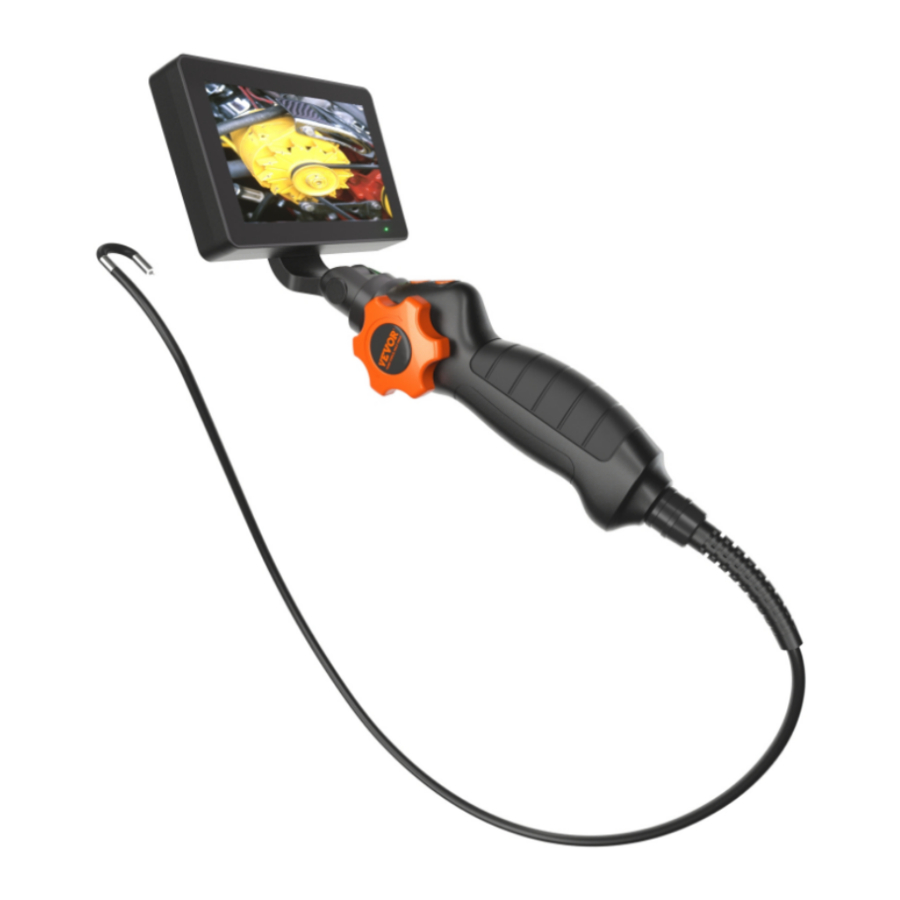

PRODUCT INTRODUCTION

(There are different colors, and the products are subject to the physical objects received)

1. Camera
2. SnakeTube
3. Handle Body
4. Steering Wheel
5. Camera Key
6. Light Key
7. Display Screen

8. Lock Catch
9. Display screen connection base
10. Handle connection base
11. Reset hole

Removal and installation of display screen
Installation method:
Move the latch on the back of the display to the right and connect the handle to the display
Removal method:
Move the latch on the back of the display to the right and take the display out of the handle

DISPLAY OPERATION INSTRUCTIONS

Key Operation Instructions

In the process of use, if the picture is stuck and the machine cannot be shut down, use the card reader to align with the reset hole on the back of the display screen, press once, and then retest
No TF card is inserted, can only observe normally, can not take photos/videos (Delivered without TF card)
Charging prompt: when charging, the charging indicator light will be red, and when fully charged, the charging indicator light will be green
Warm reminder: Charge the display before use

DESCRIPTION OF KEYS AT THE HANDLE BODY

1. Photo key: short press to take photos/long press to record
2. Light key: press briefly to adjust camera brightness
3. Steering wheel: turn left and right to adjust the camera direction

PRODUCT PARAMETERS

Lens diameter: 6.4mm
Snake tube length: 1M
Lens pixel: 1 Million
Lens light source: built-in bright LED
Display screen: 5 inches
Charging voltage: 5V 2A
Effective focal length: 3-8CM
Rotation angle: ≥ 180° in both directions
Endurance: about 4 hours

MATTERS NEEDING ATTENTION

1. Do not use brute force during installation and removal
2. The effective focal length of the camera is 3-8cm. Please view the image within this range
3. This product cannot be used for medical and human body testing
4. Please keep this product out of the reach of children to avoid unnecessary damage and property loss
5. Please keep the product clean and avoid exposure to sunlight and direct contact with corrosive liquids
6. Pull out the coil after confirming that the steering wheel returns to the middle position.
   It is strictly forbidden to turn the steering wheel violently
7. Do not twist or pull the bending body at the front of the coil
8. Please handle with care. Do not bend the snake tube excessively. The bending limit of the snake tube is one circle
9. The camera temperature of this product cannot be higher than 85 ℃

TROUBLESHOOTING

Tips: Charge before use
