Slide-In Range - GE Performance JS966 Technical Service Manual

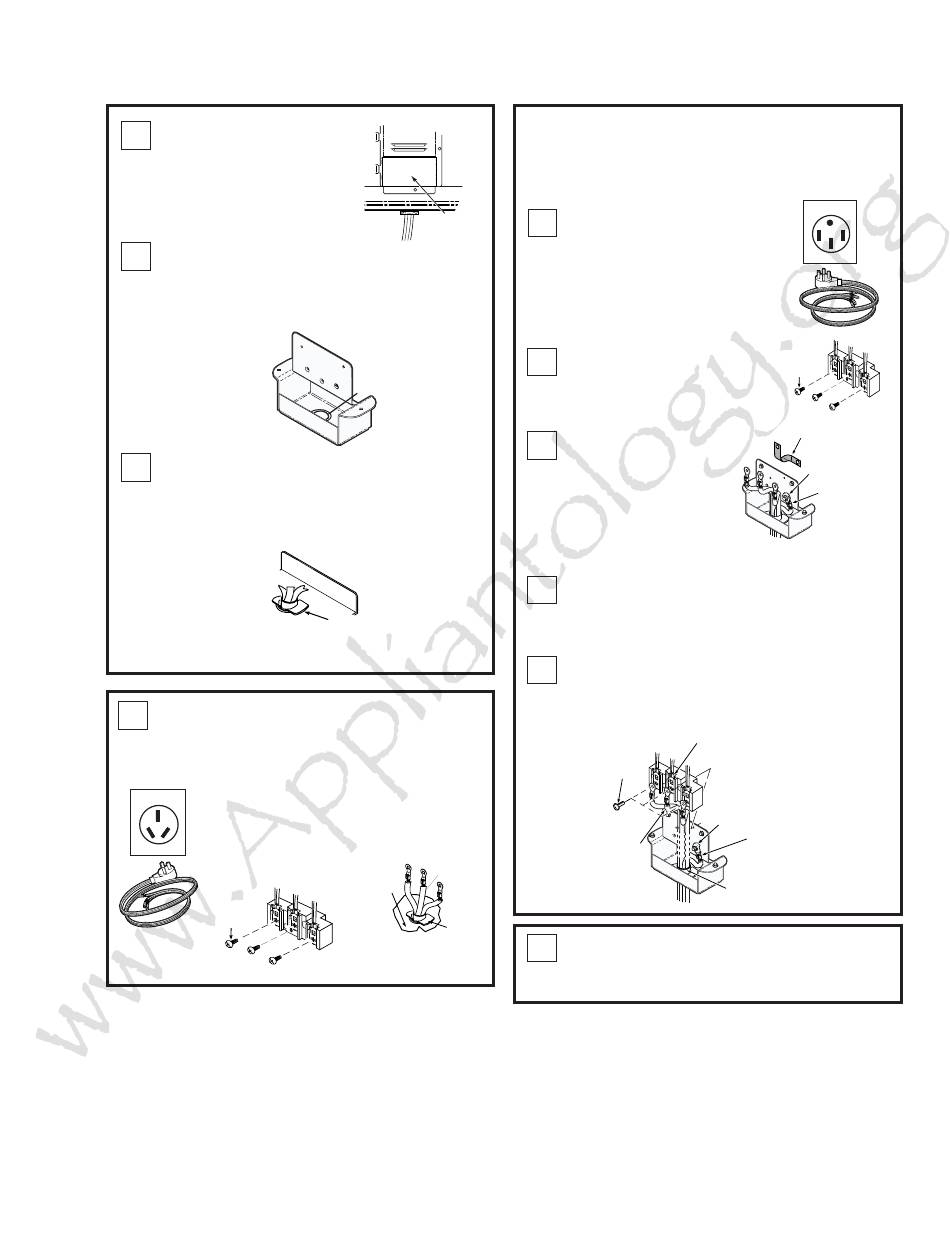

Electrical Connections

Slide-In Range

Remove wire cover at
C1
lower rear of range.
When using a power cord, remove the
C2
knockout in the connection plate with
pliers as required by the size of the
strain relief or clamp supplied with cord.
Terminal
Housing
C3 Insert power cord through hole in the
terminal housing, engage and tighten
strain relief clamp, leaving enough wire
length to attach terminals to terminal
block.
FOLLOW INSTRUCTIONS BELOW IF
C3a
YOUR CORD IS 3 WIRE.
The power cord center wire must
be connected to middle terminal
50 Amp 3 Wire
on block. Attach remaining wires
securely. Do not remove ground
strap
Black
Remove
3 screws
WIRE COVER
Knockout
Strain
Relief
Clamp
3 wire
cord kit
Connection
White
Plate
Red
Strain
Relief
Clamp
OR
NEW CONSTRUCTION AND FOUR
CONDUCTOR BRANCH CIRCUIT
C4a Follow instructions
below if your cord is 4
wire.
C4b Remove the screws on
the terminal block. Do
not remove terminal
block.
C4c Remove the
green ground
screw. Then
remove the
ground strap and
discard it.
C4d Attach the green or bare wire below the
terminal block with the green ground
screw and washer that were removed
earlier.
C4e Connect the red and black wires to the
outside terminals. The white wire must be
connected to the center terminal.
Black
White
3-Screws
Center
Wire
(white)
Re-install the wire cover making sure
C5
the wires do not become pinched
between wire cover and housing.
11
50 Amp 4 Wire
Remove
3 screws
REMOVE & DISCARD
GROUND STRAP
REUSE
GROUND WASHER
& GROUND SCREW
GROUND
WIRE
Terminal Block
Grounded
Neutral
Terminal
Red
Ground Screw
& Washer
Ground
Wire
Strain
Relief
Clamp
GEA01051
