4. Remove the 2 screws that secure the bake
element to the rear wall of the oven.
5. Carefully lift the front of the bake element up
and pull forward to access the wiring harness
connectors, remove the connectors from the
element terminals and remove the element.

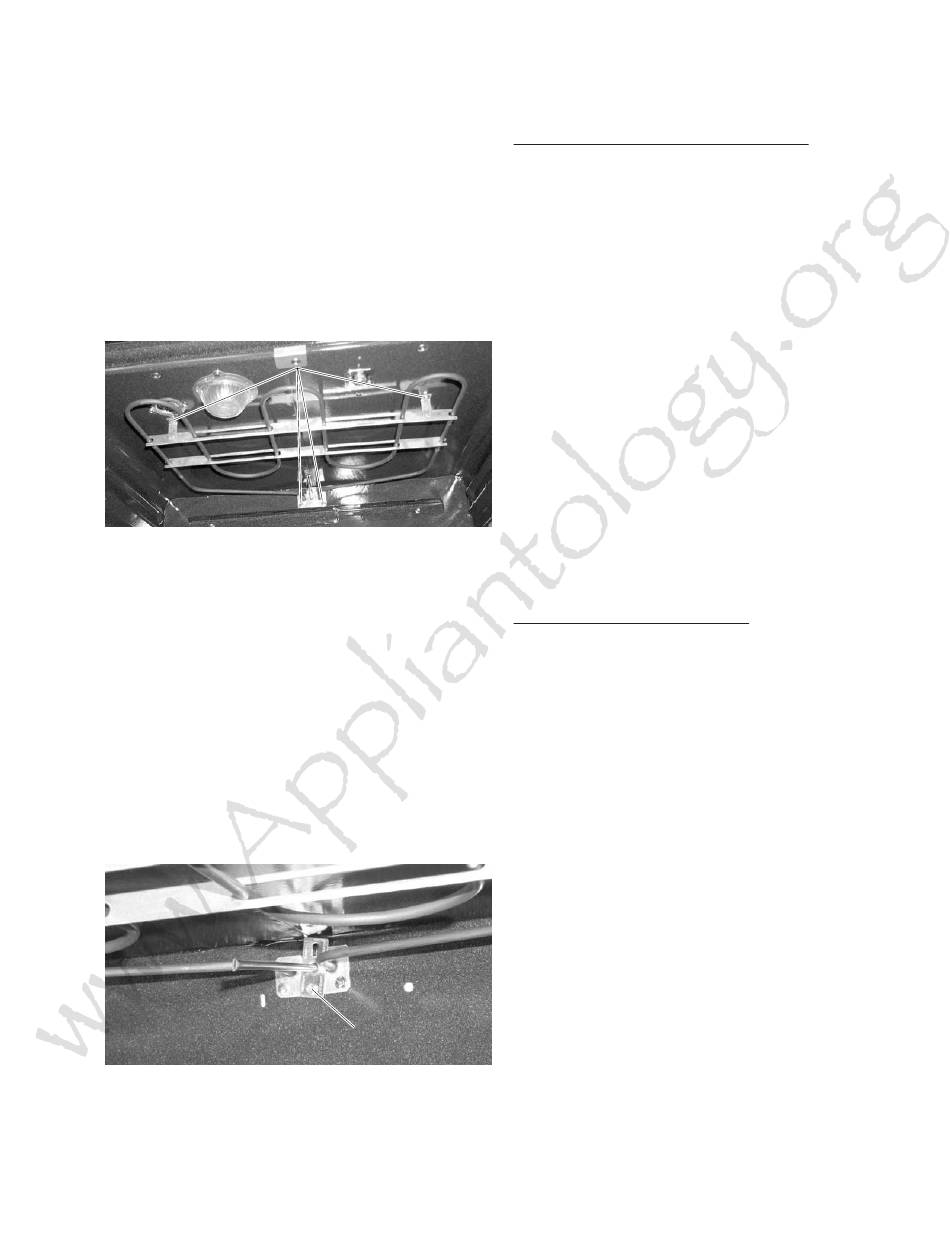

Broil Element Removal

1. Remove the 3 screws that secure the oven
temperature sensor and broil element to the
rear wall of the oven.
Screws Screws
2. Remove the 2 screws that secure the
broil element mounting bracket to the top of
the oven.
`
3. Carefully pull the broil element forward to
access the wiring harness connectors, remove
the connectors from the element terminals,
and remove the element.

Oven Temperature Sensor Removal

1. Remove the screw that secures the sensor to
the rear wall of the oven.
2. Pull the sensor out to access the wiring
harness connection, disconnect and remove
the sensor.

Range Removal

Note: Range removal is only necessary for
access to the convection fan motor.
Slide-in models JSP46, JSP56, JS966
1. Remove the oven door (see procedure).
2. Remove the storage drawer.
3. Unplug the range through the storage drawer
Caution: Take the necessary precautions to
protect the floor from damage that could be
caused by moving the range.
4. Carefully pull the range out until the rear
5. Using a 1-7/16 in. wrench, screw the back
6. Using a 1-7/16 in. wrench, screw the front
GEA01076
7. Carefully pull the range out while lifting up until
Drop-in models JDP46, JD966
WARNING: Remove house fuse or open circuit
breaker before servicing.
Note: Range removal is only necessary for
access to the convection fan motor.
1. Remove oven door (see procedure).
2. Remove 2 screws and the lower trim from the
Caution: Take the necessary precautions to
protect the floor from damage that could be
caused by moving the range.
Note: It is suggested that two people lift the range
from the cabinet.
3. Lift up and pull the range forward.
4. Remove the range from the cabinet and place
Screw Screw
GEA01107
31
opening.
leveling leg has cleared the Anti-tip Bracket.
leveling legs out to raise the rear of the range
above the counter.
leveling legs out to raise the front of the range
above the counter.
the back of the range is accessible.
side trim.
it in front of the cabinet opening.
