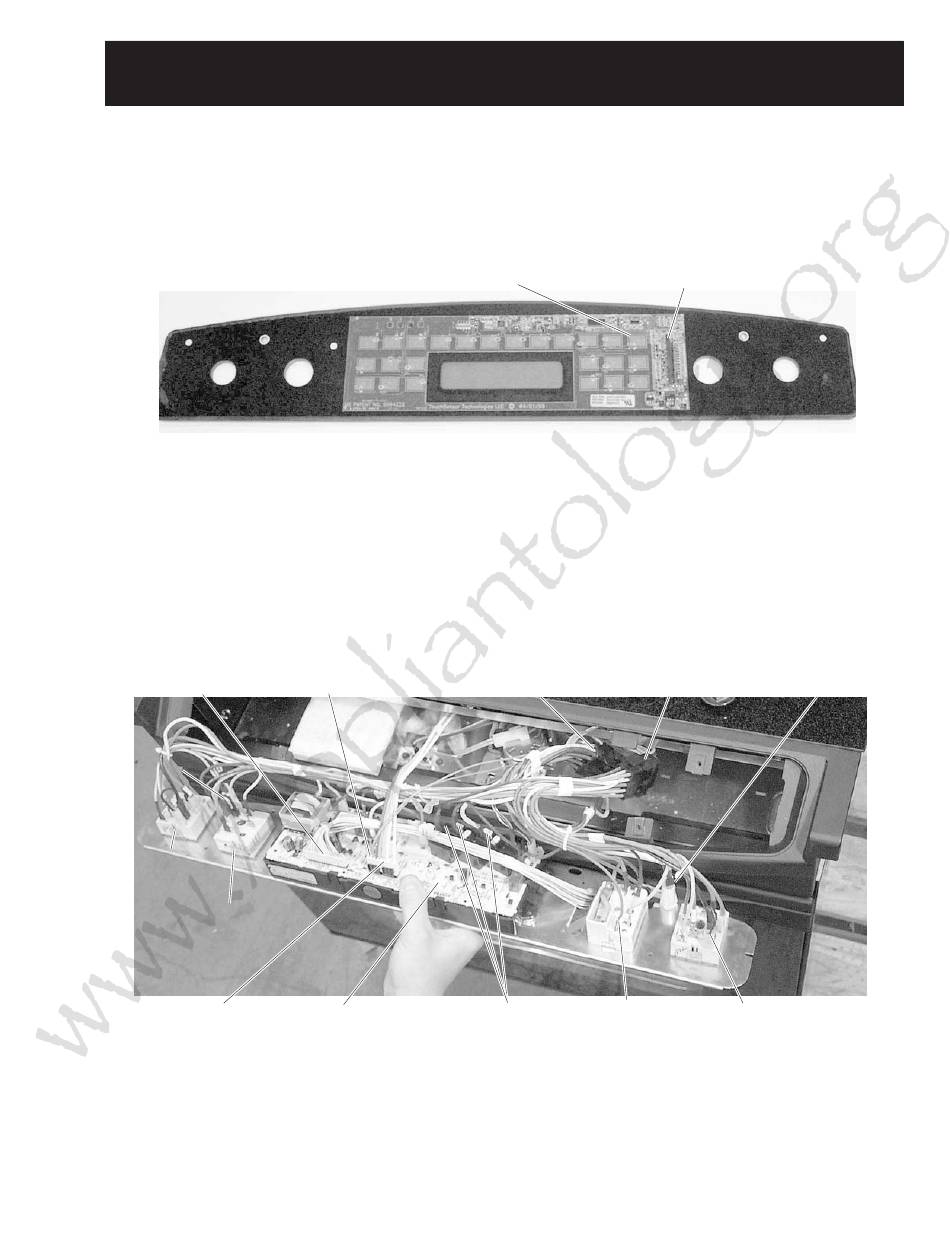

Component and Connector Locator Views

JD966 and JS966
17-Pin Header 17-Pin Header
ON Lights ON Lights
Left Front Left Front
Surface Switch Surface Switch
Left Rear Left Rear
Surface Switch Surface Switch
Lock Motor Lock Motor
Electronic Oven Electronic Oven
Connector Connector
Meat Probe Meat Probe
Connector Connector
Oven Element Oven Element
Control Control Connectors Connectors
Touch Board Touch Board
17-Pin Header 17-Pin Header
14-Pin Power 15-Pin Cooktop 15-Pin Cooktop
14-Pin Power
Connector Connector Connector Connector
Right Rear Right Rear
Surface Switch Surface Switch
41
GEA01062
ON Lights ON Lights
Right Front Right Front
Surface Switch Surface Switch
GEA01063
