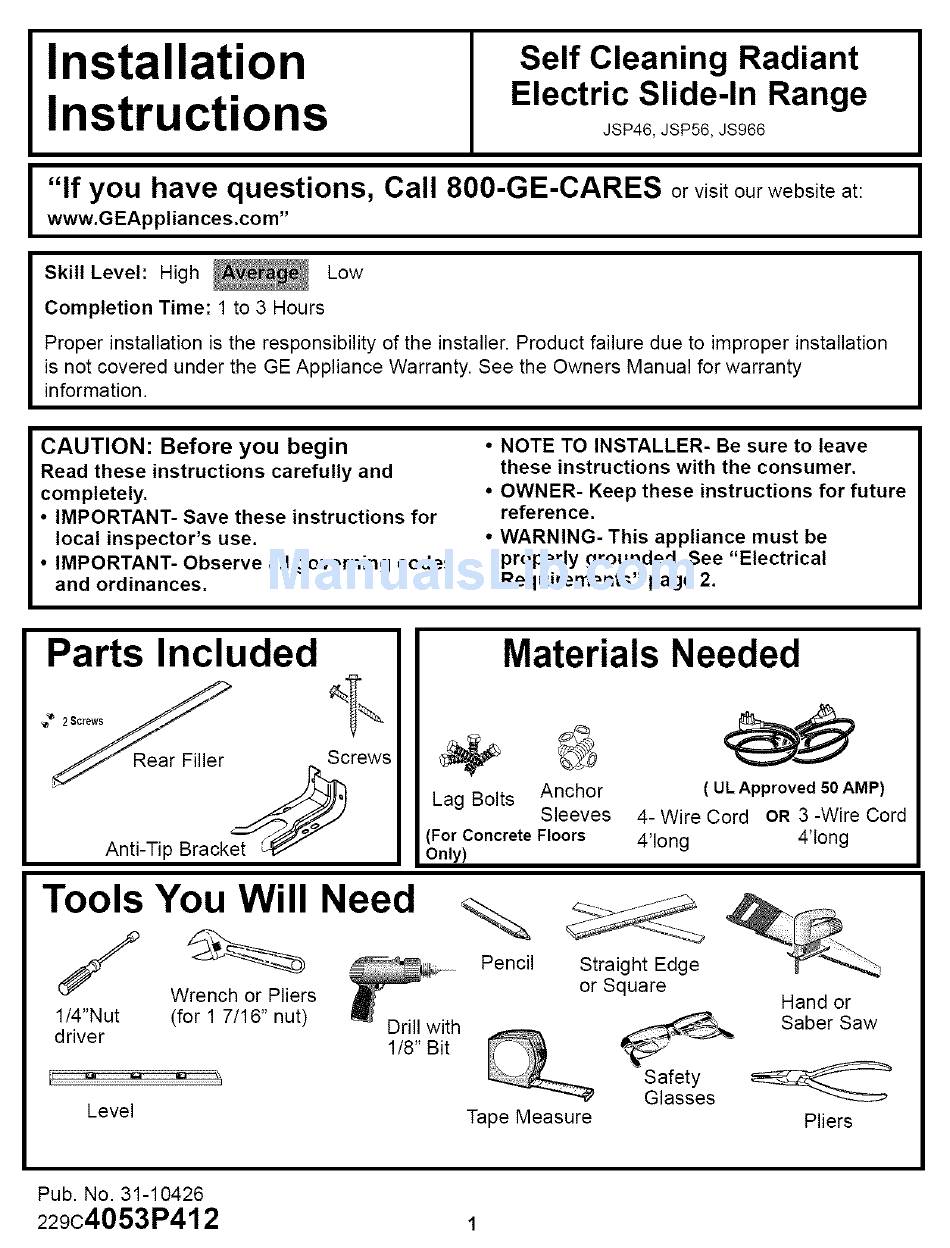

Installation
Instructions
Self Cleaning Radiant
Electric Slide-In Range
JSP46, JSP56, JS966
"If you have questions, Call 800-GE-CARES
or
visit ourwebsite
at:
www.GEAppliances.com"
Skill Level:
High
Low
Completion
Time: 1 to 3 Hours
Proper installation
is the responsibility
of the installer. Product failure due to improper
installation
is not covered
under the GE Appliance
Warranty.
See the Owners
Manual for warranty
information.
CAUTION:
Before you begin
Read these instructions
carefully
and
completely.
• IMPORTANT-
Save these instructions
for
local inspector's
use.
• IMPORTANT-
Observe
all governing
codes
and ordinances.
• NOTE TO INSTALLER-
Be sure to leave
these instructions
with the consumer.
• OWNER-
Keep these instructions
for future
reference.
• WARNING-
This appliance
must be
properly
grounded,
See "Electrical
Requirements"
page 2.
Parts Included
2 Screws
_
__
Screws
Anti-Tip Bracket__
Tools You Will Need
/
1/4"N ut
driver
Wrench or Pliers
(for 1 7/16" nut)
Level
Materials Needed
6
Lag Bolts
Anchor
Sleeves
(For Concrete Floors
Only)
( UL Approved
50 AMP)
4- Wire
Cord
OR 3 -Wire
Cord
4'long
4'long
Drill with
1/8" Bit
Pencil
Tape Measure
Straight
Edge
or Square
Safety
Glasses
Hand or
SaberSaw
Pliers
Pub. No. 31-10426
22gc4053P412
1
Advertisement
Table of Contents
Related Manuals for GE JSP46
Summary of Contents for GE JSP46
- Page 1 Installation Self Cleaning Radiant Electric Slide-In Range Instructions JSP46, JSP56, JS966 "If you have questions, Call 800-GE-CARES visit ourwebsite www.GEAppliances.com" Skill Level: High Completion Time: 1 to 3 Hours Proper installation is the responsibility of the installer. Product failure due to improper...
-
Page 2: Important Safety Instructions
Installation Instructions IMPORTANT SAFETY INSTRUCTIONS For Your Safety Electrical Requirements This appliance must be supplied with the proper voltage and frequency, and connected to an WARNING: For personal safety remove house fuse or open circuit individual properly grounded branch circuit, breaker before beginning protected by a circuit breaker or fuse having installation. -
Page 3: Pre-Installation
Forcing the cook top to fit may cause excessive gaps and could break glass and void warranty. To Procure Kits: a. Visit GE Web Site, see page 1. b. Call GE Answer Center, see page 1. c. Contact... - Page 4 Installation Instructions Pre- Installation Checklist Storage Drawer Removal Open oven door and remove literature pack, broiler pan and grid, and oven racks. Pull the drawer out until it stops. Lift the front of the drawer until the stops clear the guides. RAIL Open door to the Broil Stop position.
- Page 5 Installation Instructions Pre-Installation Cutout and Required Clearances If cabinets are placed less than 30" above the range, see alternate construction page 12. NOTE: Product meets UL requirements for 0" clearance to back and side walls. Wall coverings, counters and cabinets around range must withstand heat (up to 200°F)
-
Page 6: Standard Installation
Installation Instructions _-_ Standard Installation Standard Installation Wall---_ 1/4" Min, Flat 25"Typically 23-3/16" 9/16" Min. 9/16" Min. Flat "--_ 29 -15/16 to 30 -1/16" -"--_1 Smooth FLAT AREA 36" t/4"-m_ If the construction of your cabinet cannot Be careful not to damage the adjacent provide a 1/4"... -
Page 7: Electrical Connections
Installation Instructions Electrical Connections Remove wire cover at NEW CONSTRUCTION AND FOUR lower rear of range. CONDUCTOR BRANCH CIRCUIT 50 Amp 4 Wire below if your cord is 4 Follow instructions wire. When using a power cord, remove the knockout in the connection plate with pliers as required by the size of the... -
Page 8: Installing The Anti-Tip Bracket
Installation Instructions Installing the Anti-Tip Bracket Locating The Bracket Installing The Bracket in Wood or Concrete a. Decide whether the bracket will be INSTALLATION-WOOD CONSTRUCTION installed on the right or left side of range a. Locate the centers of the four holes identified opening. -
Page 9: Installing The Range
Installation Instructions Installing the Range SLIDE RANGE INTO OPENING Carefully push the range into the Position the range in front of the opening until the counter top fully cabinet opening. engages the control panel. The back glass overhang should cover the cutout opening. - Page 10 Installation Instructions Installing the Range <ooo .) Final Check of the Anti-Tip Bracket Replacing the Storage Drawer Place the drawer rail on When installation complete and the the guides. range is in place, inspect to be sure Push the rear leveling leg drawer in until Stop is fully inserted into...
-
Page 11: Final Check List
Installation Instructions Final Check List Check to make sure the circuit breaker is closed (Reset) or the circuit fuses are replaced. Be sure power is in service to the building. Check to be sure that all packing materials and tape on metal panel (if applicable) under control knobs and drawer have been removed. - Page 12 Alternate Construction Installation Instruction Preparation [-A-'B-] Countertops higher than 36 1/2" Optional Maintop Filler or Backguard Flat& Level ..If counter opening extends to the wail, it will require If countertop height //w_th _o_k is between 36 1/2" Maintop Filler Kit (supplied with the range) or and 38"...
