Summary of Contents for Ronix RP-0100C

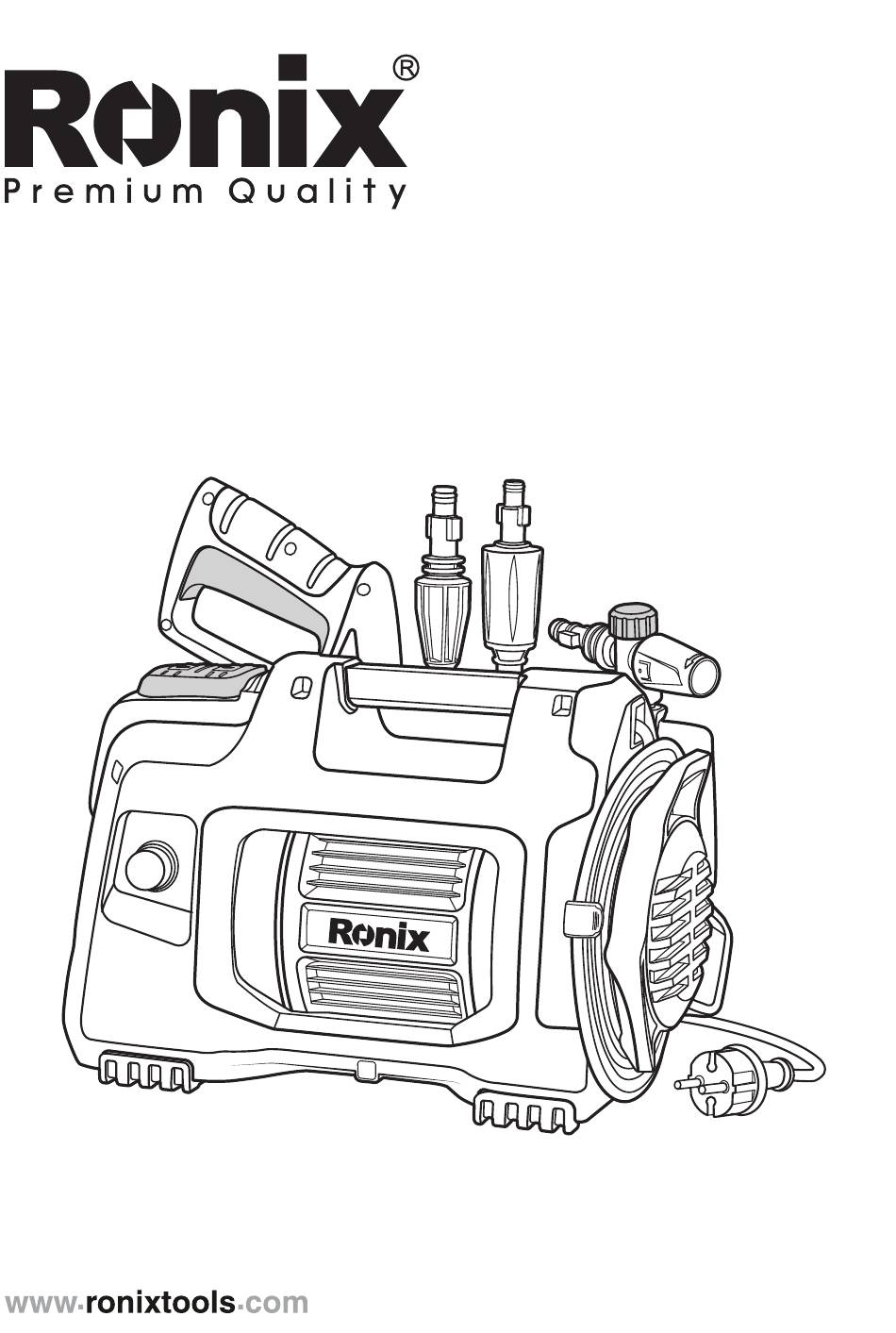

- Page 1 HIGH PRESSURE WASHER INDUCTION MOTOR RP-O100C...
-
Page 2: Specifications
SPECIFICATIONS Model RP-0100C Power 1400W Voltage 220-240V Frequency 50-60Hz Detergent Tank Type External Max Rated Flow 6.0L/Min Weight 10 KG Dimension 410*290*280mm Max Pressure 100Bar Motor Type Induction Supplied In Color box Quick connector, Water inlet nut, Adjustable Includes Lances, 5-meter High-pressure PVC hose... -
Page 3: Product Description
PRODUCT DESCRIPTION PURPOSE - The high pressure cleaner is designed to clean vehicle, machines, buildings, facades, etc. in the private sector. AREAS OF APPLICATION - Never use the machine in potentially explosive areas under any circumstances! - The operating temperature must be between 0 and +40°C - The machine consists of an assembly with a pump, which is encased in a shock absorbing housing. - Page 4 Children should be supervised to ensure that they do not play with the appliance.Before starting up your machine please check it carefully for any defects. If you find any, do not start up your machine and contact your distributor. ESPECIALLY CHECK The insulation of the power cord should be faultless and without any cracks.
- Page 5 - High pressure cleaners shall not be used by children or untrained personnel. - To ensure appliance safety, use only original spare parts from the manufacturer or approved by the manufacturer. WARNING! Water that has flown through backflow preventers is considered to be non-potable.
-
Page 6: Electrical Shock Hazard
construction. - Inadequate extension cords and be dangerous. - Comply with the below-mentioned requirements for length and cored dimensions. 1.0mm max.12.5m 1.5mm max. 20m 2.5mm max. 30m - Power cord connections should be kept dry and off the ground. - If the power cord is damaged, it must be replaced by the manufacturer or his service agent or similarly qualified person in order to avoid a hazard. -
Page 7: Mains Power Connection
MAINS POWER CONNECTION The following should be observed when connecting the high pressure washer to the electric installation: - The electric installation shall be made by a certified electrician and comply with IEC-60364. It is recommended that the electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms. - Page 8 - Connect the high pressure hose to the trigger gun - Connect the sliver end of the high-pressure hose to the trigger gun and twist the nut as indicated to secure the connection. - Connect the high-pressure hose to the water outlet - Connect the other end of the high-pressure hose to the water outlet on the washer and twist the black rotatable end-piece as indicated to secure the connection.
-
Page 9: Operation
the pressure washer, then thread your garden hose(male end) into the garden hose adaptor. NOTE: The machine not suitable for connection to the potable water main. WARNING! The intake water temperature must not exceed 40. The water supply must not exceed 0.7 MPa. CAUTION: The washer must only be used with clean water;... - Page 10 - Release the safety lock then press the trigger for a few seconds to allow air to escape and dis charge residual pressure in the hose. - Keeping the trigger pressed push the switch to start the motor. - When re-starting the motor, always keep the trigger pressed. NOTE: THE MOTOR ONLY RUNS WHEN THE TRIGGER IS OPERATED.
-
Page 11: Maintenance
- Avoid allowing the rinsing water to run on to unwanted surfaces. STORAGE - Switch off the washer. - Turn off the water supply tap. - After use, the detergent residuals should be removed from the tank. - Discharge residual pressure by pressing the trigger until no more water comes out of the lance nozzle. -
Page 12: Troubleshooting
filters after every 50 hours of operation. - clean the nozzle with tool provided. remove the lance from the gun, remove any dirt from the nozzle hole and rinse. TROUBLESHOOTING Disconnect from the electrical power supply before carrying out user maintenance or checking is correct functioning. - Page 13 Symptom Cause Recommended Action Machine - Machine not plugged in - Plug in machine refuses to - Defective socket - Try another socket start - Fuse has blown - Replace fuse - Defective extension cord - Switch off other machine - Try without the extension cord Fluctuating - Pump sucking air...
