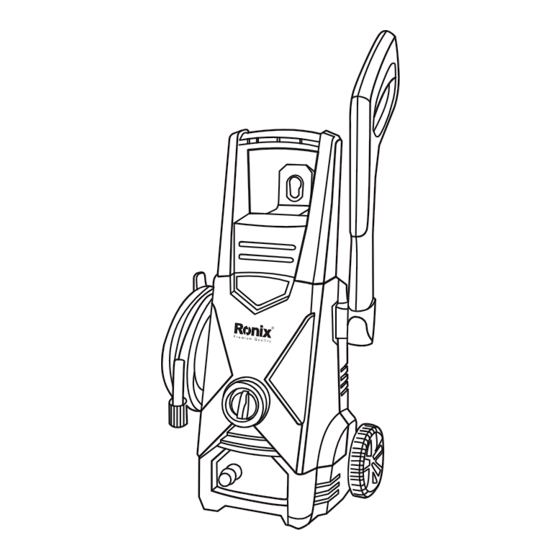

- Page 1 INDUCTION PRESSURE WASHER RP-0100...
-
Page 2: Specifications
SPECIFICATIONS Model RP-0100 Power 1400W Voltage 220-240V Frequency 50-60Hz Max. pressure 100Bar Max. flow 6.5L/min Net. Weight 10.5Kg Detergent Tank Type External Dimension 350×282×470mm Quick connector, Water inlet nut, Adjustable and turbo lances, 5-meter Includes high-pressure PVC hose, Detergent tank,... -
Page 3: Product Description
PRODUCT DESCRIPTION PURPOSE - The high pressure cleaner is designed to clean vehicle, machines, buildings, facades, etc. in the private sector. AREAS OF APPLICATION - Never use the machine in potentially explosive areas under any circumstances! - The operating temperature must be between 0 and +40°C - The machine consists of an assembly with a pump, which is encased in a shock absorbing housing. - Page 4 ESPECIALLY CHECK The insulation of the power cord should be faultless and without any cracks. If the power cord is damaged, an authorized distributor should replace it. WARNING! - Do not use this appliance without reading this instruction sheets. - The electric supply connection shall be made by a qualified electrician and comply with IEC60364-1.
- Page 5 WARNING! Water that has flown through backflow preventers is considered to be non-potable. WARNING! The machine shall be disconnected from its power source during cleaning or maintenance and when replacing parts for mains operated machines by removing the plug from the socket-outlet. WARNING! High pressure hoses, fittings and couplings are important for safety of the appliance.
- Page 6 1.0mm max. 12.5m 1.5mm max. 20m 2.5mm max. 30m - Power cord connections should be kept dry and off the ground. - If the power cord is damaged, it must be replaced by the manufacturer or his service agent or similarly qualified person in order to avoid a hazard. - All keep the machine on a stable and flat surface during operation, handling, transportation and storage.
- Page 7 It is recommended that the electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30mA for 30ms. IMPOTANT: Only use water without any impurities. - Safety devices - If there is a risk of running sands in the inlet water (i.e.
- Page 8 - Connect the gun to high pressure hose. - Connect the high pressure hose to the water outlet on the washer. Outlet - Connect the water supply hose to female coupler. Then connect to the water inlet of the washer. The supply hose must have an internal diameter of at least 13mm (1/2 in) and must be reinforced.
-
Page 9: Operation
WARNING! The intake water temperature must not exceed 40. The water supply must not exceed 0.7 MPa. CAUTION: The washer must only be used with clean water; use of unfiltered water of corrosive chemicals will damage the washer. - Push the motor switch to “OFF” position. - Check that the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the washer rating plate. - Page 10 - Release the safety lock then press the trigger for a few seconds to allow air to escape and dis charge residual pressure in the hose. - Keeping the trigger pressed, push the switch to start the motor - When re-starting the motor, always keep the trigger pressed. NOTE: THE MOTOR ONLY RUNS WHEN THE TRIGGER IS OPERATED.
- Page 11 WARNING! DO NOT ADJUST THE NOZZLE WHILE THE TRIGGER IS SQUEEZED. RECOMMENDED CLEANINIG PROCEDURE - Dissolve dirty by applying detergent with the fan jet to the dry surface. On vertical surfaces, work from the bottom upwards. Leave the detergent to act tor 1 to 2 minutes, but do not allow to dry out. Apply the high from the surface, working from the bottom upwards.
-
Page 12: Maintenance
MAINTENANCE CAUTION: Before working on the washer, disconnect the lug from the power supply socket. - to ensure good performance. check and clean the suction and detergent filters after every 50 hours of operation. - Clean the nozzle with the tool provided. Remove the lance from the gun;... -
Page 13: Troubleshooting
TROUBLESHOOTING Disconnect from the electrical power supply before carrying out user maintenance or checking is correct functioning. To avoid unnecessary disappointments, you should check the following before contacting the service organization. In case problems other than the above occur, please contact your local distributor. - Page 14 Allow machine to run with open trigger until regular working pressure resumes - Air in inlet hose - Check the water supply Inadequate supply of corresponds to specifications mains water Machine pulsating required - Nozzle partially blocked - Avoid using long, thin hoses water filter blocked (min1/2”) - Hose kinked...
