Summary of Contents for Ronix RP-U130

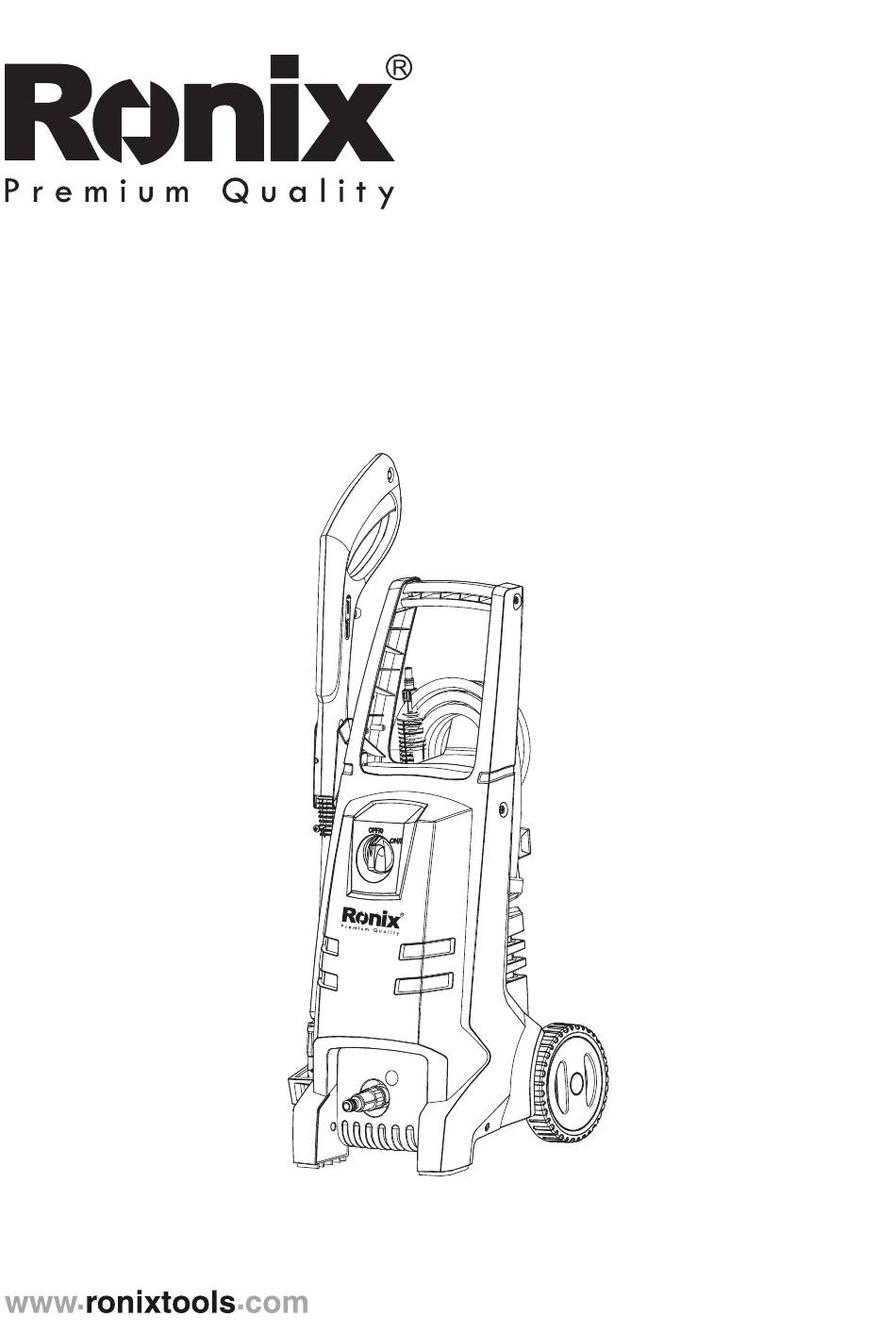

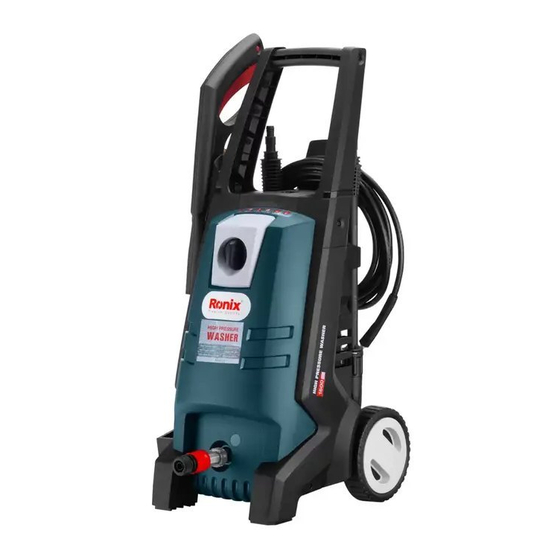

- Page 1 UNIVERSAL PRESSURE WASHER 130BAR RP-U130...
-
Page 3: Specifications
SPECIFICATIONS Model RP-U130 Power 1600W Voltage 220V Frequency 50Hz Protection class Degree of protection IPX5 Rated pressure 90 Bar Max. pressure 130 Bar Rated flow 5.5 L/min Max. flow 7.2 L/min Rated temperature 0 - 40°C Max inlet pressure 0.7MPa... -
Page 4: Areas Of Application
12) Wheel 13) Turbo lance PRODUCT DESCRIPTION PURPOSE - The high pressure cleaner is designed to clean vehicle, machines, buildings, facades, etc. in the private sector. AREAS OF APPLICATION - Never use the machine in potentially explosive areas under any circumstances! - The operating temperature must be between 0 and +40°C - The machine consists of an assembly with a pump, which is encased in a shock absorbing housing. -
Page 5: Important Safety Instructions
IMPORTANT: This machine is not suitable for connection to the potable water mains. IMPORTANT SAFETY INSTRUCTIONS WARNING! This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely. - Page 6 that will interrupt the earth circuit. WARNING! This appliance has been designed for use with the cleaning agent supplied or recommended by the manufacturer. The use of other cleaning agents or chemical may adversely affect the safely of the appliance. WARNING! Do not use the appliance within range of person unless they wear protective clothing.
- Page 7 WARNING! The machine shall be disconnected from its power source during cleaning or maintenance and when replacing parts for mains operated machines by removing the plug from the socket-outlet. WARNING! High pressure hoses, fittings and couplings are important for safety of the appliance. Use only hoses, fitting and couplings recommended by the manufacturer.
- Page 8 1.0mm max.12.5m 1.5mm max. 20m 2.5mm max. 30m - Power cord connections should be kept dry and off the ground. - If the power cord is damaged, it must be replaced by the manufacturer or his service agent or similarly qualified person in order to avoid a hazard.
-
Page 9: Mains Power Connection
MAINS POWER CONNECTION The following should be observed when connecting the high pressure washer to the electric installation: - The electric installation shall be made by a certified electrician and comply with IEC-364. It is recommended that the electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms. - Page 10 - Fit the lance into the gun and rotate it until the two parts are completely locked. - Connect the gun to high pressure hose. - Connect the high pressure hose to the water outlet on the washer. - Connect the water supply hose to female coupler. Then connect to the water inlet of the washer.
-
Page 11: Operation
must have an internal diameter of at least 13mm (1/2 in) and must be reinforced. the water supply must be at least equal to the washer delivery capacity. WARNING! The intake water temperature must not exceed 40. The water supply must not exceed 0.7 MPa. CAUTION: The washer must only be used with clean water;... - Page 12 - Release the safety lock then press the trigger for a few seconds to allow air to escape and dis charge residual pressure in the hose. - Keeping the trigger pressed push the switch to start the motor. - When re-starting the motor, always keep the trigger pressed. NOTE: THE MOTOR ONLY RUNS WHEN THE TRIGGER IS OPERATED.
- Page 13 WARNING! DO NOT ADJUST THE NOZZLE WHILE THE TRIGGER IS SQUEEZED. RECOMMENDED CLEANINIG PROCEDURE - Dissolve dirt by applying detergent with the fan jet to the dry surface. on vertical surfaces, work from the bottom upwards. leave the detergent to act for 1 to 2 minutes, but do not allow to dry out.
-
Page 14: Maintenance
WARNING! BEFORE REUSING, COMPLETELY FLUSH THE UNIT OUT WISH PLAIN WATER. ANTI-FREEZE CAN DAMAGE PAINTWORK SO YOU MUST ENSURE THERE IS NO ANTI-FREEZE LEFT IN THE SYSTEM BEFORE USING IT AGAIN. MAINTENANCE CAUTION: Before working on the washer, disconnect the lug from the power supply socket. -
Page 15: Troubleshooting
TROUBLESHOOTING Disconnect from the electrical power supply before carrying out user maintenance or checking is correct functioning. To avoid unnecessary disappointments, you should check the following before contacting the service organization. In case problems other than the above occur, please contact your local distributor. - Page 16 Fuse blows Fuse too small - Change to an installation higher than the amp consumption of the machine - You may try without the extension cord Machine pulsating - Air in inlet hose Allow machine to run with open Inadequate supply of trigger until regular working pressure mains water resumes...
