Ronix RP-U100 Manual

Universal pressure washer
Hide thumbs Also See for RP-U100:
Table of Contents

Advertisement

Quick Links

Download this manual
UNIVERSAL PRESSURE WASHERW
RP-U100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP-U100 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix RP-U100

Summary of Contents for Ronix RP-U100

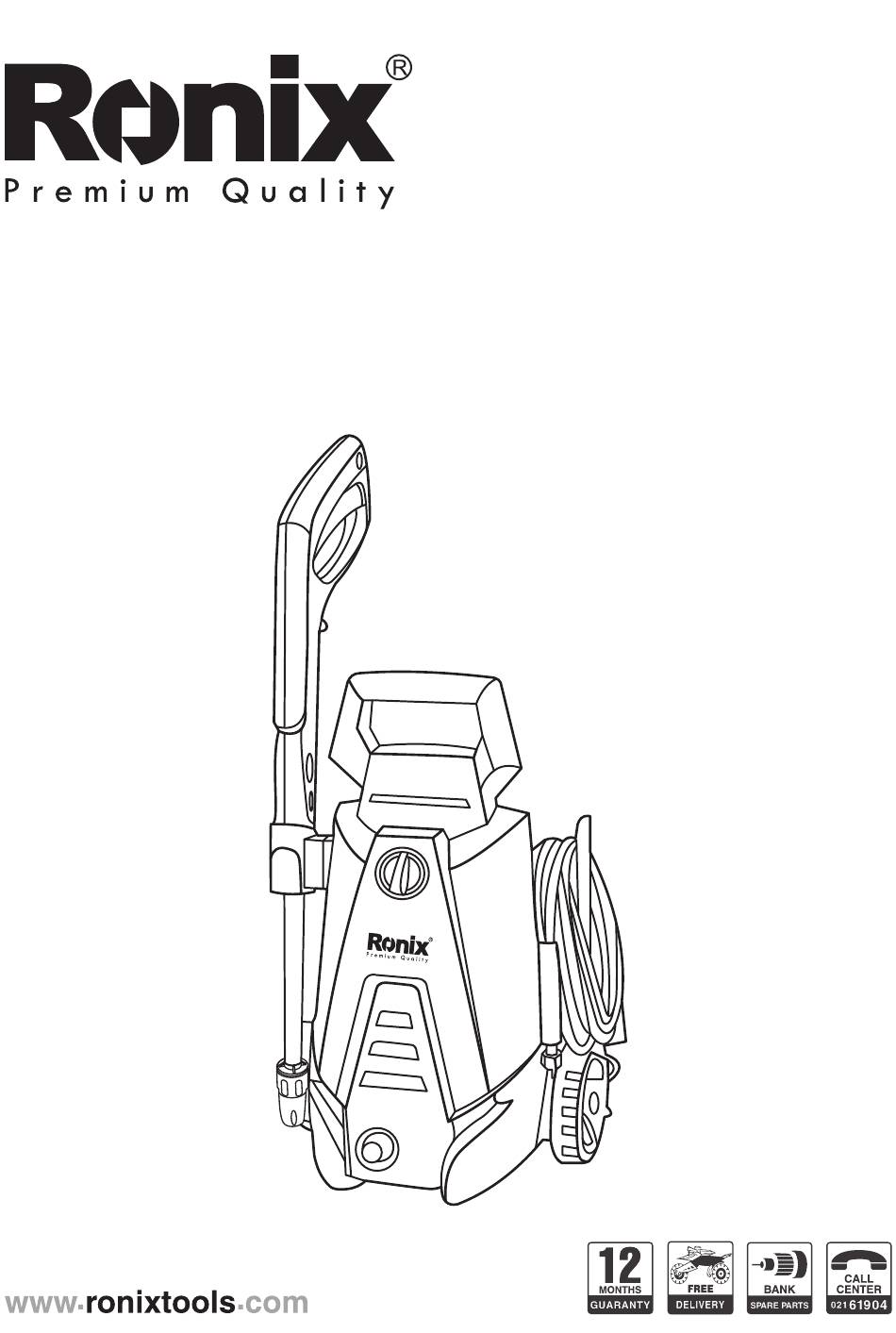

  • Page 1 UNIVERSAL PRESSURE WASHERW RP-U100...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS Model RP-U100 Power 1400W Voltage 220V Frequency 50Hz Protection class Degree of protection IPX5 Rated pressure 70 Bar Max. pressure 100 Bar Rated flow 5.5 L/min Max. flow 6.5 L/min Rated temperature 0 - 40°C Max inlet pressure 0.7MPa...

  • Page 3: Areas Of Application

    PRODUCT DESCRIPTION PURPOSE - The high pressure cleaner is designed to clean vehicle, machines, buildings, facades, etc. in the private sector. AREAS OF APPLICATION - Never use the machine in potentially explosive areas under any circumstances! - The operating temperature must be between 0 and +40°C - The machine consists of an assembly with a pump, which is encased in a shock absorbing housing.
  • Page 4 the appliance. Before starting up your machine please check it carefully for any defects. If you find any, do not start up your machine and contact your distributor. ESPECIALLY CHECK The insulation of the power cord should be faultless and without any cracks.
  • Page 5 - Disconnect from the electrical power supply before carrying out user maintenance. - High pressure cleaners shall not be used by children or untrained personnel. - To ensure appliance safety, use only original spare parts from the manufacturer or approved by the manufacturer. WARNING! Water that has flown through backflow preventers is considered to be non-potable.

  • Page 6: Electrical Shock Hazard

    WARNING! - Cord on drums should always be completely un winded to prevent the cord from overheating. - If an extension cord is used, the plug and socket must be of watertight construction. - Inadequate extension cords and be dangerous. - Comply with the below-mentioned requirements for length and cored dimensions.

  • Page 7: Mains Power Connection

    person if you are unsure if an outlet is properly grounded. DO NOT modify the plug provided with the appliance to fit an outlet, have a proper outlet installed by a qualified electrician. MAINS POWER CONNECTION The following should be observed when connecting the high pressure washer to the electric installation: - The electric installation shall be made by a certified electrician and comply with IEC-364.
  • Page 8 - Fit the lance into the gun and rotate it until the two parts are completely locked. - Connect the gun to high pressure hose. - Connect the high pressure hose to water outlet on the washer. Outlet - Connect the water supply hose to female coupler. Then connect to water inlet of the washer.

  • Page 9: Operation

    NOTE: The machine not suitable for connection to the potable water main. WARNING! The intake water temperature must not exceed 40. The water supply must not exceed 0.7 MPa. CAUTION: The washer must only be used with clean water; use of unfiltered water of corrosive chemicals will damage the washer.
  • Page 10 - Keeping the trigger pressed push the switch to start the motor. - When re-starting the motor, always keep the trigger pressed. NOTE: THE MOTOR ONLY RUNS WHEN THE TRIGGER IS OPERATED. CORRECT USE OF STANDARD ACCESSORIES - The washer is equipped with adjustable nozzle. - Jet adjustment from pencil to fan.

  • Page 11: Maintenance

    - After use, the detergent residuals should be removed from the tank. - Discharge residual pressure by pressing the trigger until no more water comes out of the lance nozzle. - Engage the gun safety lock. - Remove the plug from the socket. - Operate the washer with non-corrosive /non-toxic antifreeze before storing for the winter.

  • Page 12: Troubleshooting

    - clean the nozzle with tool provided. remove the lance from the gun, remove any dirt from the nozzle hole and rinse. TROUBLESHOOTING Disconnect from the electrical power supply before carrying out user maintenance or checking is correct functioning. To avoid unnecessary disappointments, you should check the following before contacting the service organization.
  • Page 13 Fuse blows Fuse too small - Change to an installation higher than the amp consumption of the machine - You may try without the extension cord Machine pulsating - Air in inlet hose Allow machine to run with open Inadequate supply of trigger until regular working mains water pressure resumes...
