Summary of Contents for Ronix RP-1160

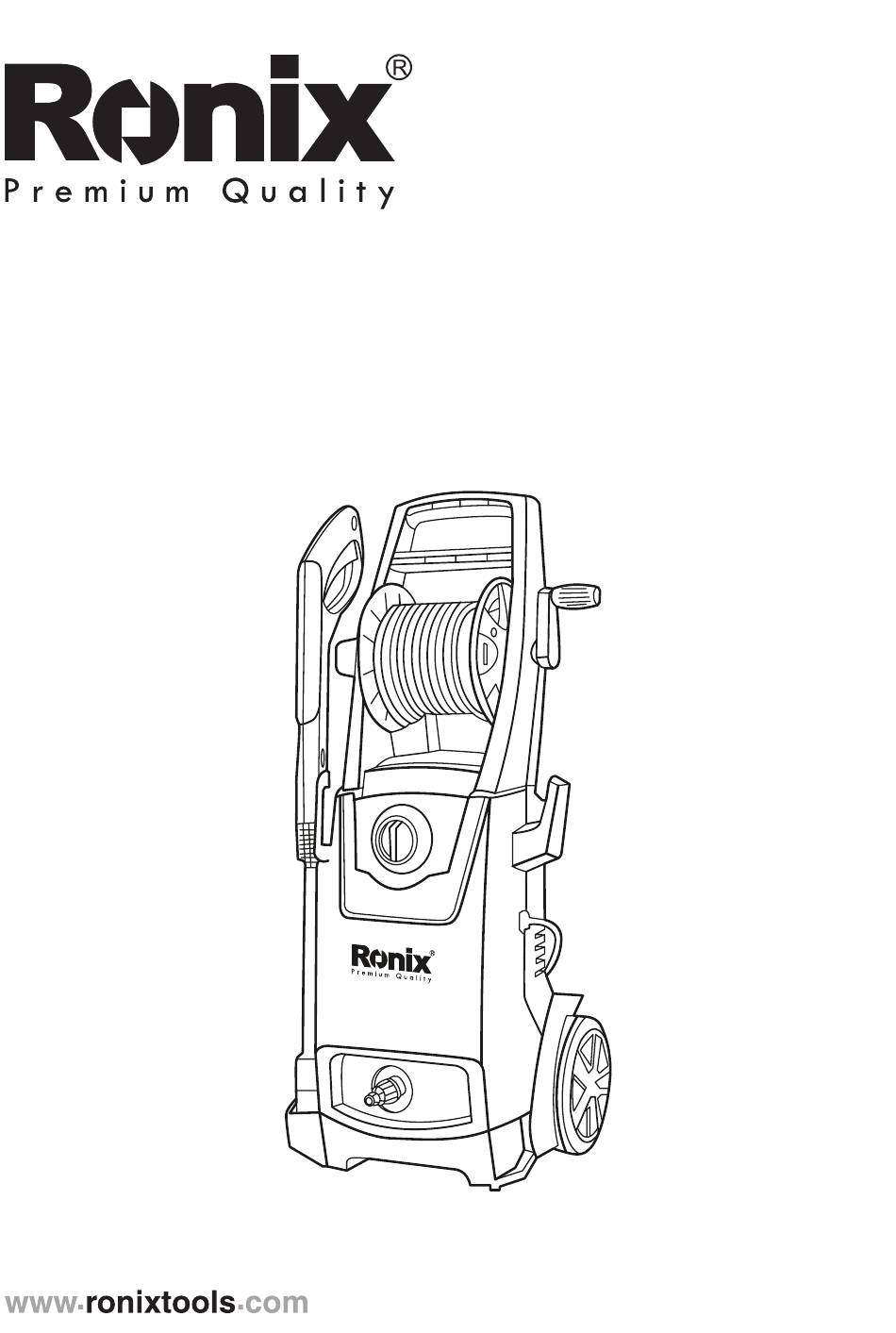

- Page 1 INDUCTION PRESSURE WASHER RP-1160...
-
Page 2: Specifications
SPECIFICATIONS Model RP-1160 Power 2200W Voltage 220V Frequency 50Hz Max. pressure 160Bar Max. flow 7.3 L/min Net. Weight 19.58 Kg PARTS LIST Handle Gun lock Trigger High pressure hose Spray gun Detergent On/Off switch bottle Rating label Warning label Spray lance... -
Page 3: Product Description
PRODUCT DESCRIPTION PURPOSE - The high pressure cleaner is designed to clean vehicle, machines, buildings, facades, etc. in the private sector. AREAS OF APPLICATION - Never use the machine in potentially explosive areas under any circumstances! - The operating temperature must be between 0 and +40°C - The machine consists of an assembly with a pump, which is encased in a shock absorbing housing. - Page 4 ESPECIALLY CHECK The insulation of the power cord should be faultless and without any cracks. If the power cord is damaged, an authorized distributor should replace it. WARNING! - Do not use this appliance without reading this instruction sheets. - The electric supply connection shall be made by a qualified electrician and comply with IEC60364-1.
- Page 5 WARNING! Water that has flown through backflow preventers is considered to be non-potable. WARNING! The machine shall be disconnected from its power source during cleaning or maintenance and when replacing parts for mains operated machines by removing the plug from the socket-outlet. WARNING! High pressure hoses, fittings and couplings are important for safety of the appliance.
- Page 6 1.0mm max. 12.5m 1.5mm max. 20m 2.5mm max. 30m - Power cord connections should be kept dry and off the ground. - If the power cord is damaged, it must be replaced by the manufacturer or his service agent or similarly qualified person in order to avoid a hazard. - All keep the machine on a stable and flat surface during operation, handling, transportation and storage.
- Page 7 It is recommended that the electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30mA for 30ms. IMPOTANT: Only use water without any impurities. - Safety devices - If there is a risk of running sands in the inlet water (i.e.
- Page 8 - Connect the gun to high pressure hose. - Connect the high pressure hose to the water outlet on the washer. Outlet - Connect the water supply hose to female coupler. Then connect to the water inlet of the washer. The supply hose must have an internal diameter of at least 13mm (1/2 in) and must be reinforced.
-
Page 9: Operation
WARNING! The intake water temperature must not exceed 40. The water supply must not exceed 0.7 MPa. CAUTION: The washer must only be used with clean water; use of unfiltered water of corrosive chemicals will damage the washer. - Push the motor switch to “OFF” position. - Check that the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the washer rating plate. - Page 10 - Release the safety lock then press the trigger for a few seconds to allow air to escape and dis charge residual pressure in the hose. - Keeping the trigger pressed, push the switch to start the motor - When re-starting the motor, always keep the trigger pressed. NOTE: THE MOTOR ONLY RUNS WHEN THE TRIGGER IS OPERATED.
- Page 11 WARNING! DO NOT ADJUST THE NOZZLE WHILE THE TRIGGER IS SQUEEZED. RECOMMENDED CLEANINIG PROCEDURE - Dissolve dirty by applying detergent with the fan jet to the dry surface. On vertical surfaces, work from the bottom upwards. Leave the detergent to act tor 1 to 2 minutes, but do not allow to dry out. Apply the high from the surface, working from the bottom upwards.
-
Page 12: Maintenance
MAINTENANCE CAUTION: Before working on the washer, disconnect the lug from the power supply socket. - to ensure good performance. check and clean the suction and detergent filters after every 50 hours of operation. - Clean the nozzle with the tool provided. Remove the lance from the gun;... - Page 13 In case problems other than the above occur, please contact your local distributor. Symptom Cause Recommended Action - Plug in machine - Machine not plugged in - Try another socket Machine refuses to - Defective socket - Replace fuse start - Fuse has blown - Switch off other machine - Defective extension cord...
- Page 14 Machine often starts Pump/spray gun is leaking Contact your nearest and stops by itself Centre Service - Pump/hoses or accesso- - Wait for Pump/hoses or ry frozen accessory to thaw Machine starts, but no - No water supply - Connect inlet water water comes out - Water filter blocked - Clean the filter...
