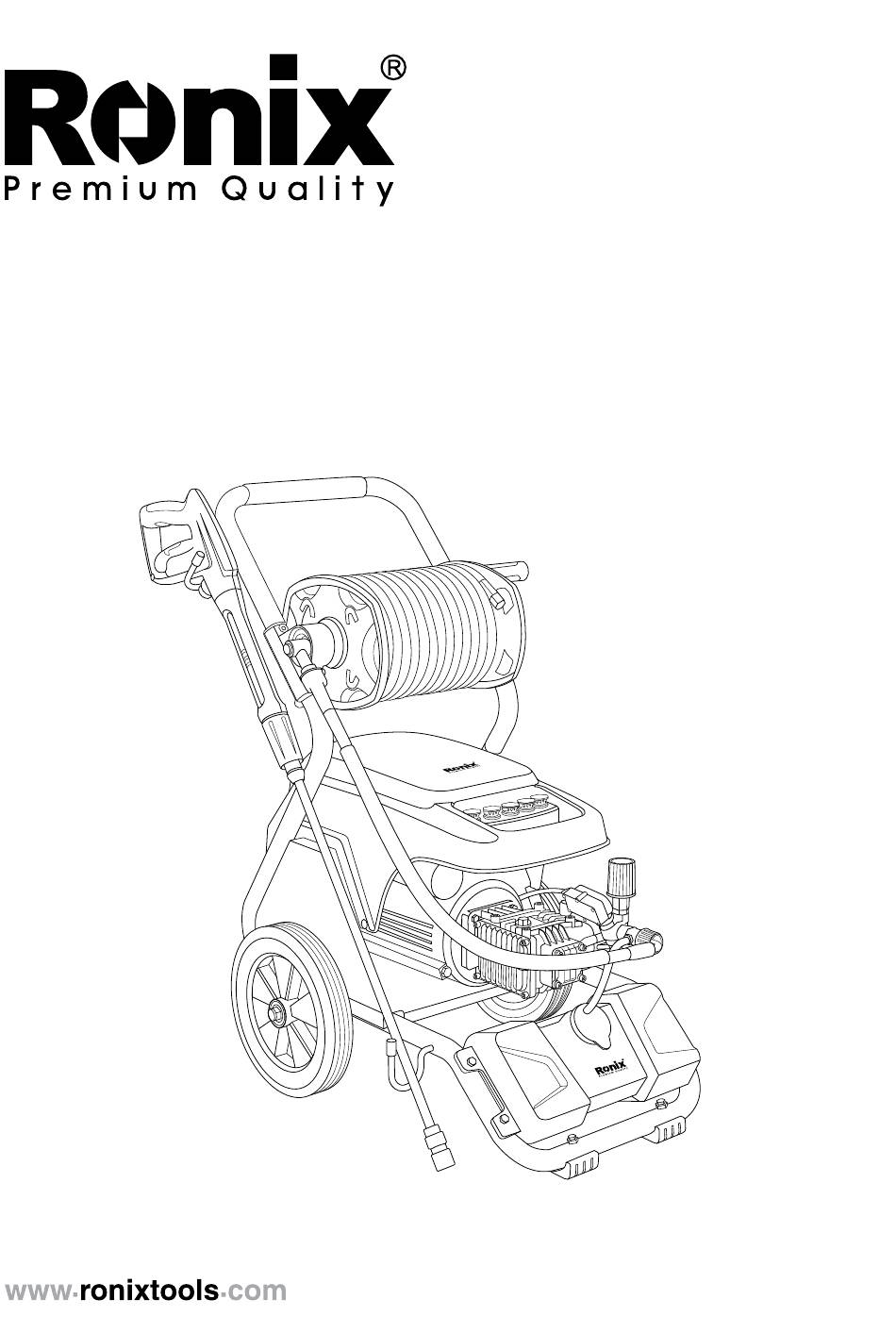

- Page 1 INDUCTION HIGH PRESSURE WASHER RP-0230...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION RP-0230 Model Power 2800W Voltage 220-240V Frequency 50-60Hz Motor Type Induction Motor Winding Material Copper Max Pressure 230Bar Rated Pressure 140Bar Max Flow 8.2L/min Working Flow 6.7L/Min Weight 55Kg YLG06gun+quick lance+0° 15° 25° 40° nozzle 10M steel armed... -
Page 4: Part List
PART LIST 1- Handle 2- High pressure hose 3- Power cord holder 4- Hose reel 5- Power cord 6- Machine rack 7- Nozzles 8- Pressure regulating valve assembly 9- Water outlet connector 10- Detegent bottle 11- Wheel 12- Trigger gun 13- Quick lance INDUCTION PRESSURE WASHER... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners. Apart from the notes contained herein the general safety provisions and rules for the prevention of accidents by the legislator must be observed. -
Page 6: Safe Handling
Check the power cord with the mains plug for damage prior to every use. Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high-pressure hoses, trigger gun. All current-conducting parts in the working area must be protected against jet water. - Page 7 not operate appliance with damaged components. The appliance has been designed for use with the cleaning agent supplied or recommended by the manufacturer. The use of the other cleaning agents or chemicals may adversely affect the safety of the appliance. High-pressure jets can be dangerous if subject to misuse.
-
Page 8: Other Risks
OTHER RISKS DANGER! The appliance may not operate in explosive atmospheres. Risk of explosion-Do not spray flammable liquids. Never draw i n f l u i d s c o n taining solvents or undiluted acids and solvents! This includes petrol, paint thinner, and heating oil. The spray mist is highly inflammable, explosive, and poisonous. -
Page 9: Residual Risks
and during transport to prevent accidents or injuries. Several hours of continuous use of the appliance can lead to numbness in the hands of rare cases. - Wear gloves. - Keep hands warm. - Take breaks at regular intervals. WARNING! The improper use, of detergents can cause severe injuries or oxidation. -
Page 10: Personal Protective Equipment
LOCK TRIGGER GUN This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance. Water that has flowed through backflow preventers is considered to be non-potable. PRESSURE SWITCH If the lever on the trigger gun is released the pressure switch turns off the pump, and the high-pressure jet is stopped. - Page 11 This high-pressure cleaner is designated with a rated input current. The intended use of this product covers the cleaning of vehicles, buildings, terraces, facades, and garden equipment using clean water and biodegradable chemical detergents. Likewise, the product can be used to clean paving slabs or rain gutters. This product may not be used to clean clothing, shoes, and other textiles.
- Page 12 3- Install handle. 4- Replace the dipstick. Inlet Outlet 5- Connect the gun and spray wand. 6- Install nozzle. 7- Connect the inlet water and outlet water hose . INDUCTION PRESSURE WASHER...
- Page 13 8- Connect the trigger and high-pressure hose. 9- Plug power supply. 10- Turn on the switch. STARTUP Park the appliance on an even surface. Insert the mains plug into the socket. USER MANUAL...
-
Page 14: Water Supply
WATER SUPPLY ATTENTION! Impurities in the water can damage the high-pressure pump and the accessories. - Water supply from mains. - Drawing in water from the open reservoirs. - This high-pressure cleaner is suited to work with the suction hose with a back-flow valve to draw in surface water, e.g. - Page 15 CAUTION! Make sure the on/off switch is set tothe “OFF/ON” position and insert the plug into a properly installed socket. ATTENTION! - The washer must be used on a secure and stable surface in a standing, upright position. Connect the product to power and the power supply as described. - Open the water supply - Hold the spray gun with both hands.
-
Page 16: Operation With Detergent
WARNING! Beware of kickback when pressing the trigger! OPERATION WITH DETERGENT Detergent can only be added when the device is operated in low pressure mode. DANGER! When using detergents, the material data safety sheet issued by the detergent manufacturer must be adhered to, especially the instructions regarding personal protective equipment. -
Page 17: When Transporting By Hand
- Put the trigger gun with the spray lance into the parking position. - During longer breaks (more than 5 minutes), also turn the appliance off using the “OFF/ON” switch. FINISH OPERATION - Release the lever of the trigger gun. - Turn off the appliance “... -
Page 18: When Transporting In Vehicles
- Pull the appliance by its transport handle. WHEN TRANSPORTING IN VEHICLES - Prior to horizontal transport: close the cap of the clean detergent bottle. - Tilt the product towards you until it balances on the wheels. Then move it by its transportation handle. - Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. -
Page 19: Care And Maintenance
destroyed by frost.Completely drain Appliances and accessories and protect them against frost. To avoid damage: - Detach the appliance from the water supply. - Detach the spray lance from the trigger gun. - Turn on the appliance “ON/OFF”. - Push the lever of the trigger gun until no more water is escaping. - Release the lever of the trigger gun. -
Page 20: Clean The Sieve In The Water Connection
CLEAN THE SIEVE IN THE WATER CONNECTION Remove the coupling from the water connection, and rinse with warm water to prevent any foreign matter from clogging the pump. Clean the nozzle with the needle clean-out tool provided. Remove the spray wand from the gun. - Page 21 USER MANUAL...
