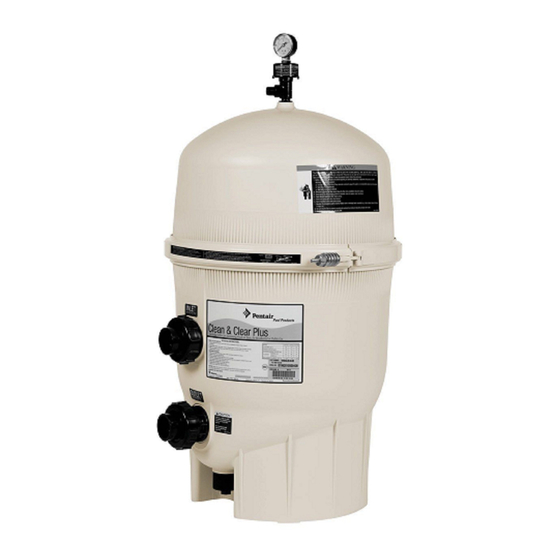

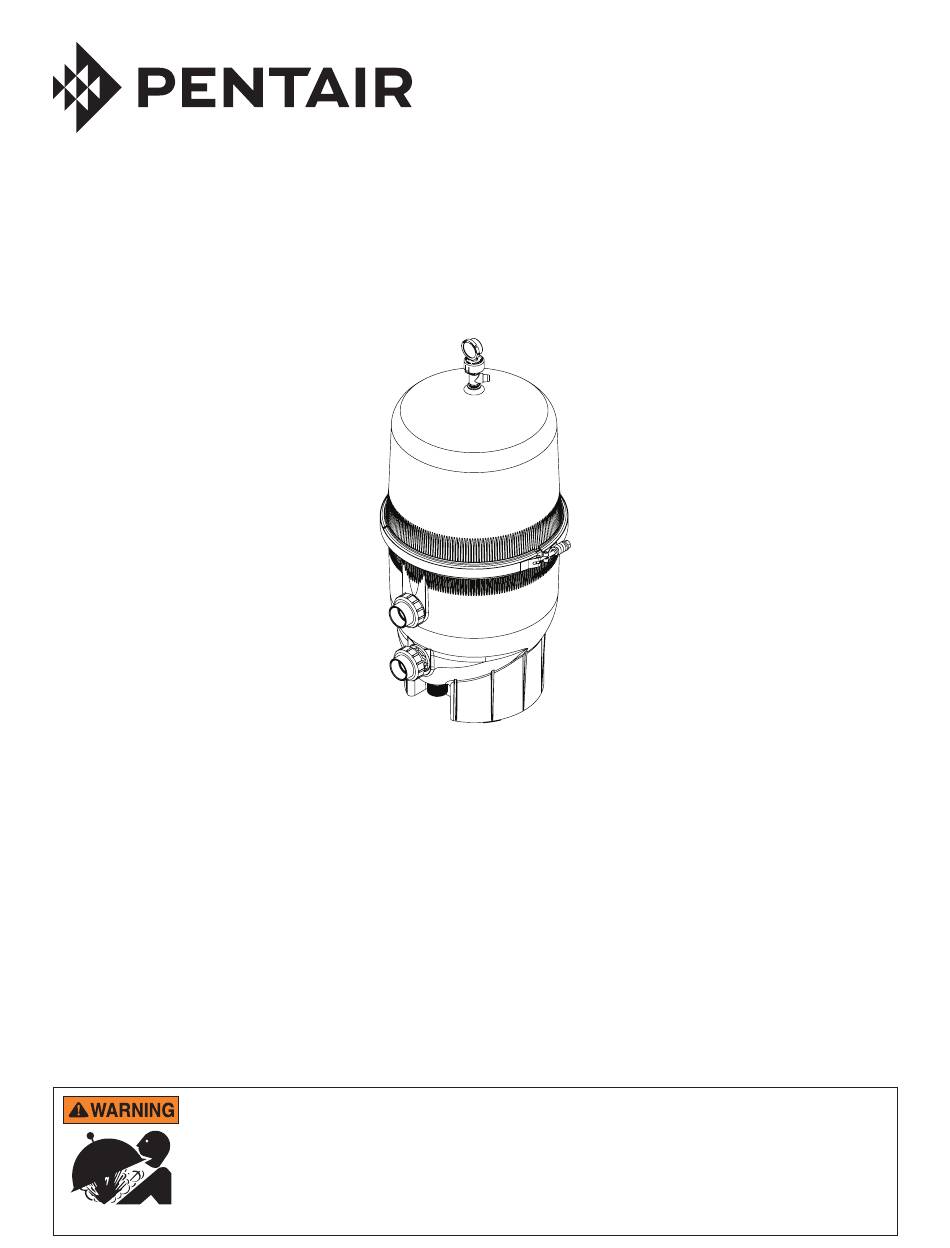

CLEAN AND CLEAR® PLUS
CARTRIDGE FILTER
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
Pressurized air can cause the lid to separate from the tank with great force. To reduce the
risk of severe injury or death, relieve pressure by opening air relief valve before opening filter.
Before starting the pump after servicing, ensure that clamp band is correctly fastened. See
IMPORTANT SAFETY INSTRUCTIONS, page ii and follow all instructions exactly; including
the Opening the Filter on page 4, Installing the Filter Lid and Clamp Ring on page 5,
and Start-Up Instructions on page 6.
SAVE THESE INSTRUCTIONS
INSTALLATION AND
USER'S GUIDE
Advertisement
Table of Contents
Related Manuals for Pentair CLEAN
Summary of Contents for Pentair CLEAN
- Page 1 CLEAN AND CLEAR® PLUS CARTRIDGE FILTER INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS Pressurized air can cause the lid to separate from the tank with great force. To reduce the risk of severe injury or death, relieve pressure by opening air relief valve before opening filter.
-
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS ... MAINTENANCE ..........Maintaining the Pressure Gauge GENERAL INFORMATION ........ Cleaning the Manual Air Relief Valve Filter Overview When to Clean Your Filter General Operation Information Cleaning the Filter Cartridges Pressure Tests Acid Soaking the Filter Cartridges INSTALLATION ........... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT NOTICE: This guide provides installation and operation instructions for the Clean and Clear Plus Cartridge Filter. Consult Pentair with ® any questions regarding this equipment. Attention Installer: This guide contains important information about the installation, operation and safe usage of this product. This information should be given to the owner and/or operator of this equipment after installation. - Page 4 Maximum Pressure that the filtration system will be subjected to does not exceed the maximum working pressure of any of the components contained within the system. CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide ®...
-
Page 5: General Information
4. The pressure gauge is the primary indicator of how the filter is operating. Maintain your pressure gauge in good working order. 5. Clean your filter when pressure reads approximately 10 psi higher than the “Original Starting Pressure”, or when significant reduction in flow is noticed. -
Page 6: Installation
The provided filter plumbing connections include an O-ring seal. Use PTFE or silicone based lubricants when lubricating the O-rings on the union and bulkhead couplings. Use of petroleum based products will damage the equipment. CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide ®... -
Page 7: Installing The Manual Air Relief Valve
5. Wrap the pressure gauge connection threads with thread seal tape (two full wraps of tape will be enough). 6. Thread the pressure gauge into the top of the manual air relief valve. Hand tighten only! 7. Follow Start-Up Instructions on page 6 exactly. CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide ®... -
Page 8: Opening, Closing And Start-Up
7. Place the tank lid and O-ring in a safe place where it will not be damaged while performing maintenance. Note: Minimize the amount of debris that comes in contact with the tank O-ring while it is exposed. CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide... -
Page 9: Installing The Filter Lid And Clamp Ring
OPEN POSITION • Rubber Mallet ONTO T-BOLT PROCEDURE: 1. Ensure the O-ring is clean and properly seated on the tank bottom. Seat the filter lid onto the tank bottom so the O-ring fits in between the tank halves. TIGHTEN WITH 2. -
Page 10: Start-Up Instructions
If any of these conditions exist, shut off the pump immediately. Open the manual air relief valve to relieve pressure and clean the valve (see Cleaning the Manual Air Relief Valve, page 7). If the problem persists, call Pentair Technical Service at (800) 831-7133 for assistance. -
Page 11: Maintenance
FIGURE 7). FILTER TANK 3. Pull the valve stem and cover assembly away from the valve body. 4. Clean and check the valve stem and body: FIGURE 7 a. Remove any debris. b. Ensure the air passage is open by inserting a 5/16-inch drill bit through the valve body. -
Page 12: When To Clean Your Filter
Proper operation can prevent avoidable repairs and maintenance. Use the pressure gauge to determine when to clean your filter for proper operation. The pressure reading increases as dirt is filtered from your pool. This buildup of pressure will vary due to different bathing loads, temperature, environmental conditions, etc. -
Page 13: Acid Soaking The Filter Cartridges
45-degree angle to the cartridge. See FIGURE 9 on page 8. 8. Reinstall the cartridges and dispose of the acid solution in FIGURE 10 accordance with local regulations. CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide ®... -
Page 14: Replacing Filter Cartridges
6. Install the replacement cartridges onto the bottom manifold. Reinstall the top manifold on to the new cartridges. Note: Be sure the spring and standpipe assembly are retained on the top manifold. 7. Follow Installing the Filter Lid and Clamp Ring on page 5 exactly. CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide ®... -
Page 15: Troubleshooting
Plaster dust can be responsible for short filter cycles, requiring frequent cleaning. 3. PRESSURE DROP ON GAUGE. If pressure drops on gauge, check skimmer basket and pump basket first for debris. If the baskets are clean, there is likely a problem with the pump. Refer to pump manual for pump troubleshooting. -
Page 16: Technical Data
43" DIM A R 10.7” [27.2 cm] 2.4” [6.1 cm] CCP 420 49" CCP 520 56" 21.9” [55.6 cm] 7.5” [19.1 cm] 8.1” [20.6 cm] 23” [58.4 cm] CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide ®... -
Page 17: Replacement Parts
Ring, Steel, Back-up 192019 Drain Plug Wrench 171013 Label Kit w/ Air Relief, C&C 240 171014 Label Kit w/ Air Relief, C&C 320/420/520 190106z Air Bleed Screen Cap CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide ®... - Page 18 NOTES CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide ®...
- Page 19 NOTES CLEAN AND CLEAR PLUS Cartridge Filter Installation and User’ s Guide ®...
- Page 20 1620 HAWKINS AVE., SANFORD, NC 27330 • (919) 566-8000 10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • (805) 553-5000 All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
