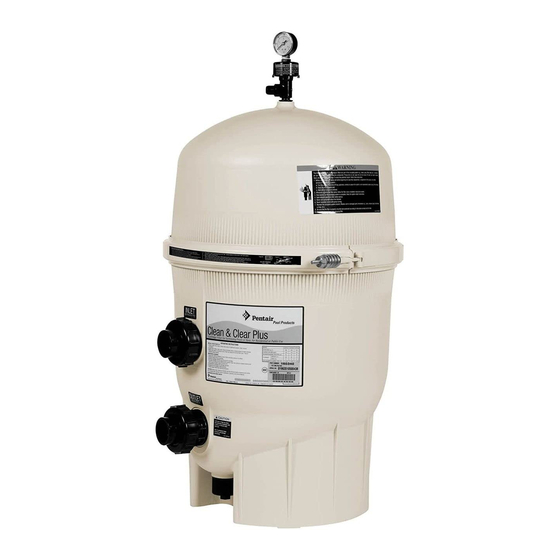

CLEAN AND CLEAR® PLUS
CARTRIDGE FILTER
CARTRIDGE CLEANING GUIDE
This guide provides instructions regarding the proper procedures and safety measures when opening, cleaning and
reassembling the Clean & Clear Plus Cartridge Filter. For your safety, follow all instructions given in this guide, and
the Clean and Clear Plus Installation and User's Guide (P/N 178558).
This information should be read carefully since it outlines the proper manner of care and
operation for your filter system. As a result of following these instructions and taking the
necessary preventative care, you can expect maximum efficiency and life from your filtration
system.
To access video instructions and digital copies of all Clean and Clear Plus manuals and
guides, visit www.pentair.com/cleanandclearplus,
THIS SYSTEM OPERATES UNDER HIGH PRESSURE
When any part of the circulating system, (e.g., closure, pump, filter, valve(s), etc.), is serviced, air can enter the system
and become pressurized. Pressurized air can cause the top closure to separate which can result in severe injury, death,
or property damage. To avoid this potential hazard, follow these instructions:
1. Let air and pressure out of system before and after servicing.
2. Install lid and clamp ring properly.
3. Maintain circulation system properly to help prevent air entering the system.
4. Verify that the return line to the pool is unobstructed. Ensure return valves are open and any winterizing
Your filter is a piece of machinery, do not tamper with it, attempt to disassemble it or otherwise adjust it unless you fully
understand it's operation. Serious injury or death can occur if the equipment is improperly handled. Consult a pool
service professional for maintenance and service assistance.
Always disconnect power to the pool circulating system at the circuit breaker before servicing the filter. Ensure that
the disconnected circuit is locked out or properly tagged so that it cannot be switched on while you are working on the
filter. Failure to do so could result in serious injury or death to serviceman, pool users or others due to electric shock.
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
a. Shut off pump and RELIEVE PRESSURE by opening the manual air/pressure relief valve before
servicing, including before tightening the clamp bolt. Follow the Opening the Filter, page 4
instructions exactly.
b. Follow the start-up instructions given Start-Up Instructions on page 6 exactly after completing
service. The air/pressure relief valve must remain open until water comes out, allowing all air out
of the system.
a. Follow the Installing the Filter Lid and Clamp Ring on page 5 instructions exactly. The nut must
be tightened until the spring is compressed when clamp is installed. Tap the clamp with a rubber
mallet or similar tool after clamp installation to ensure proper seating.
a. Replace worn or damaged parts immediately, (e.g., closure, pressure gauge, valve(s), O-rings, etc.).
b. Maintain proper water level in the pool or spa.
plugs are removed.
SAVE THESE INSTRUCTIONS
or scan the QR code to the right.
