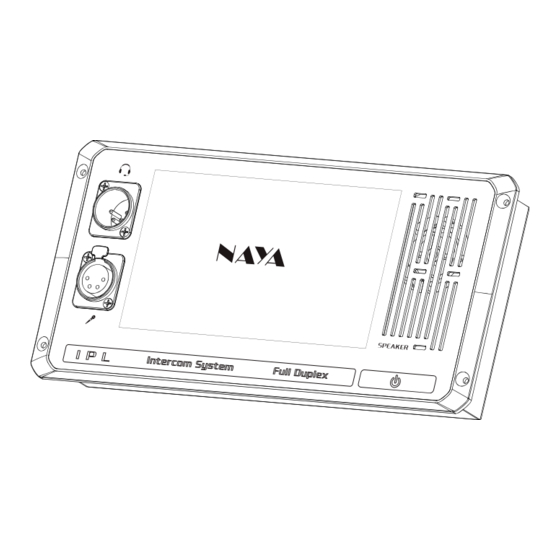

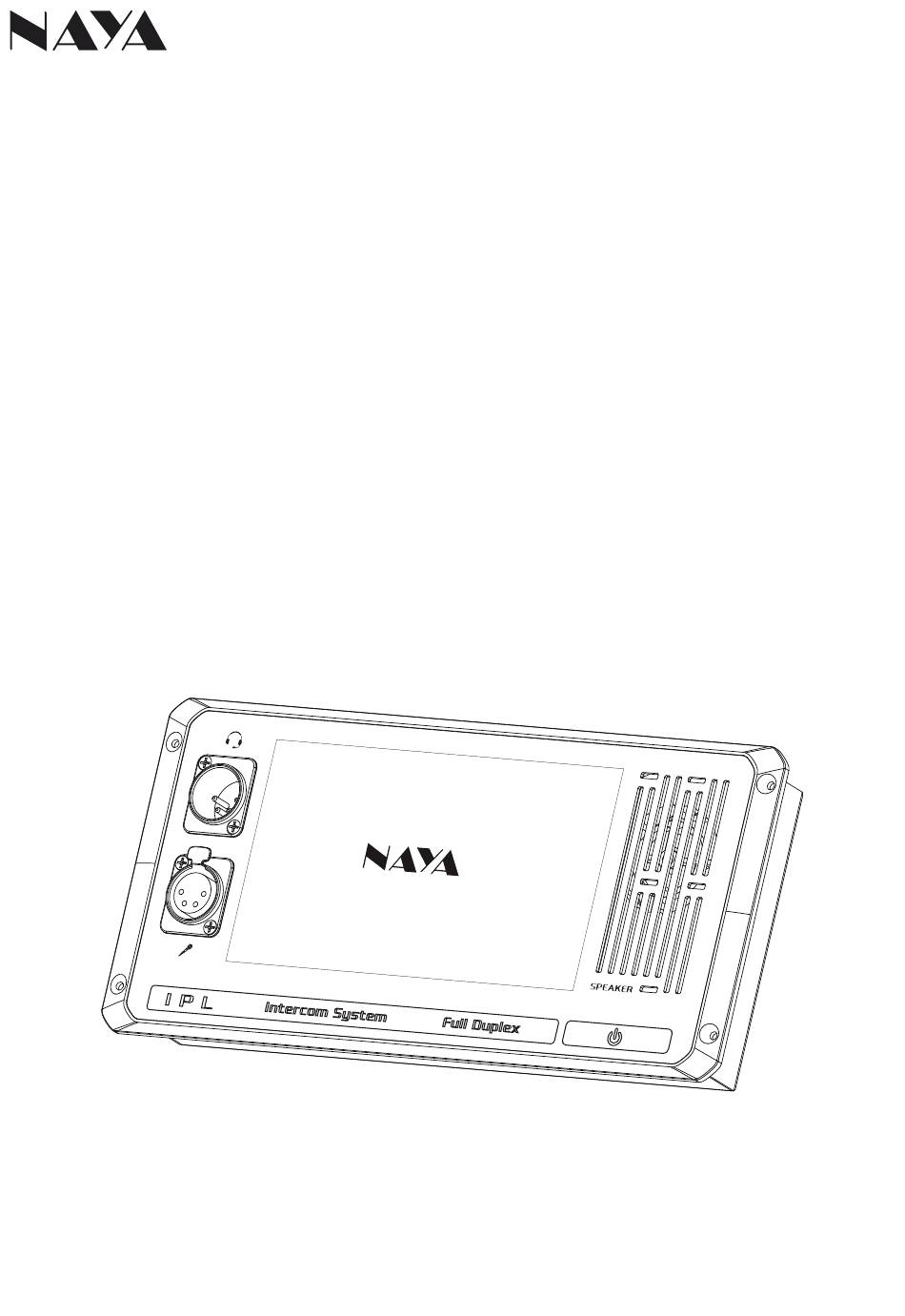

- Page 1 User Manual of Intercom Dispatcher IPL-DT4320 Please read the manual carefully before use, and keep it properly for inquiries when necessary...
-
Page 2: Table Of Contents
Focus on R&D Stable and reliable Content 1 Check the items in the package···············································································3 2 Parts introduction·································································································3 2.1 Front panel····································································································3 2.2 Back panel····································································································4 3 Preparation before using························································································5 3.1 Power on/off··································································································5 3.2 Networking····································································································5 3.3 Voice call······································································································5 3.4 Call mode switching························································································5 3.5 Voice adjustment····························································································6 4 Status description·································································································6 4.1 Intercom status ······························································································6 4.2 Grouping status······························································································6... -
Page 3: Check The Items In The Package
Focus on R&D Stable and reliable 1 Check the items in the package The package contains the following items, if any damage or loss, please contact Naya or the dealer you purchased from. Item Q’ty Dispatch host 1 PCS ①... -
Page 4: Back Panel
Focus on R&D Stable and reliable Item Description MIC socket 4-pin XLR female, for gooseneck mic ① Headset socket 4-pin XLR male, for headphone ② Shortcut menu Quick control, slave ID.No., MIC return, default setting ③ Menu display Main interface, shortcut menu content/control display ④... -
Page 5: Preparation Before Using
Focus on R&D Stable and reliable Item Description Configuration port RS232, for configuration ① Network port RJ45, 10M/100M Ethernet ② Power port GX12 3-pin aviation socket, DC12V/2A ③ 3 Preparation before using 3.1 Power on/off Operating voltage of the device is DC 12V/2A, with special adapter that connected to city electricity AC 110/220V. - Page 6 Please read the manual carefully before using the product Website: http://www.nayatec.com Manufacturer: Shanghai Naya Intelligence Technology. Co.,Ltd. Address: No.7001 Zhongchun RD., Minhang district, Shanghai, 201101, China 20230727...
-
Page 7: Status Description
Focus on R&D Stable and reliable 3.5 Volume adjustment In quick control main interface, voice adjustment can be made when drag up/down the volume bar or touch volume icon +/-. Remarks: Its impossible to adjust volume in interface of slave ID.No. Setting, MIC return setting, factory reset. -
Page 8: Slave Id
Focus on R&D Stable and reliable Quick control Slave ID.No. MIC return Default setting Diagram 1 ◆ Grouping interface In grouping status, press the icon quick control to switch to dispatch interface as below. Quick control Slave ID.No. MIC return Default setting Diagram 2 5.2 Slave ID.No... -
Page 9: Mic Return
Focus on R&D Stable and reliable 5.3 MIC return Click MIC return icon , to enter the interface as below. Then select left/right to set MIC return 0-100%. ◆ Exit to keep the modification and return to main interface. After MIC return is on, audio from this device can be heard. The higher of the level, the louder of MIC ◆... -
Page 10: Installation Method
Focus on R&D Stable and reliable 6 Installation method 6.1 Flush mounting Product size and cut-out size refer to the drawings inside the package(1:1), to fix it with screws after cutout. 6.2 Bracket mounting Brackets are optional, as below, could adjust the angle after installation. Diagram 6 7 Maintenance and Cleaning In order to ensure that this equipment can exert its good performance and extend its service life,... -
Page 11: Warranty And Maintenance Terms
Focus on R&D Stable and reliable ◆ If the equipment casing becomes dirty, you can use neutral detergent and no obstruction cloth to clean it, do not use stain remover, alcohol, spray and other chemical preparations to avoid damage to the equipment, be sure to ensure that the equipment is completely dry, otherwise do not use. -
Page 12: Warranty Card
Focus on R&D Stable and reliable 9 Warranty card In order to protect your rights and interests, please fill in it carefully and keep it properly as a certificate for maintenance. Reseller information Model Sales date Reseller Contact telephone/E-mail User information User Contact telephone Address...
