Summary of Contents for Naya Tally 280

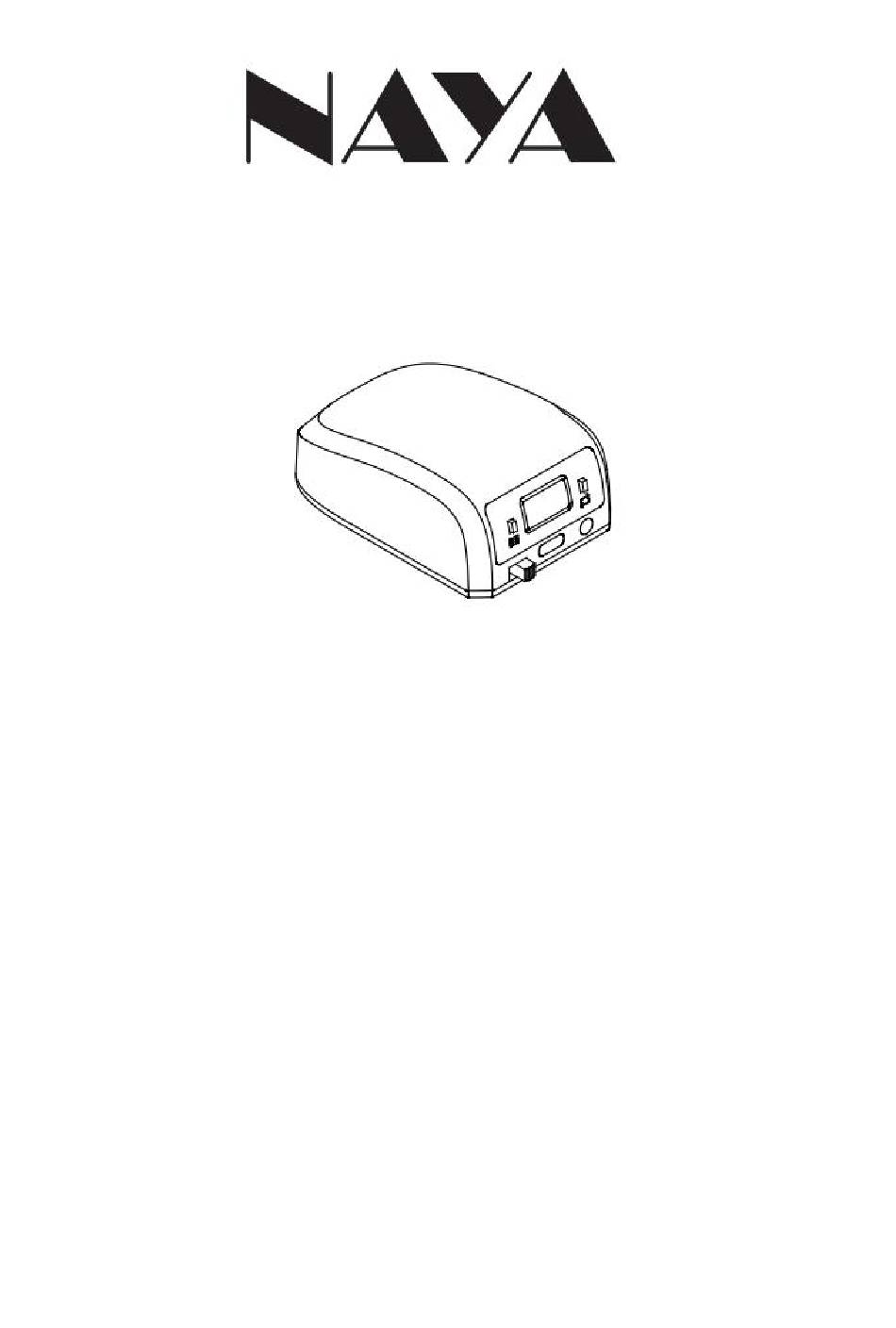

- Page 1 Users’ Manual...
- Page 2 Function ① ON/OFF Turn or turn off the tally light. “ON”indicates turn on the tally light, and “OFF” indicates turn off the tally light. ② Menu Push the “Menu” button to enter a menu setting. Push again to switch to the next menu setting.
- Page 3 Function ③ Modify In standby mode, push the “Modify” button to display power status. In menu setting mode, push “Modify” button to set present menu data. ④ Screen Display the tally light ID, power status and setting information. The display contents are listed below.
- Page 4 Function ⑤ Charging Indicator The charging indicator includes 4 blue lights. When the tally light is under charging, the blue lights will flicker in sequence. All the 4 blue lights will be lit up once get fully charged. ⑥ Sleep Mode Indicator The sleep mode indicator is a blue light.
- Page 5 Function ⑧ TALLY Signal Output Tally signal output interface is 3.5mm socket, which is compatible with various monitor screen tally interface. Please contact factory for the output connection cable. The specifications of 3.5mm socket are listed below. The connection types include external power supply and internal power supply. The specifications are listed below.
- Page 6 Please read the users’ manual carefully before operation Welcome to visit our website www.nayatec.com Manufacturer: Shanghai Naya Intelligence Technology Co., Ltd. Address: 7001 Zhongchun Rd. Minhang District, Shanghai, China.
- Page 7 Setting ① Brightness Setting In standby mode, push the “Menu” button only once to enter brightness setting menu. The flickering number indicates brightness degree. Push the “Modify” button to adjust brightness grade. Just wait for 5 seconds or push the “Menu” button 3 times to save and exit setting.
- Page 8 Connection Wireless Tally Lights...
-
Page 9: Maintenance And Cleaning
Maintenance and Cleaning Please read the following contents carefully in order for smoothly operation, long service life, better daily maintenance and cleaning. Maintenance Do not use hard material to puncture or scrape device. Do not put device in hard corrosive environment that may damage circuits. ... -
Page 10: Warranty Card
Quality Commitment and Maintenance Terms We promises warranty services for material and manufacturing process defect under normal operation since purchase date. Warranty Scope and Duration 12 months Warranty Claim You have to provide product warranty card or valid purchase invoice to apply repair. - Page 11 Shanghai Naya Intelligence Technology Co., Ltd www.nayatec.com...
