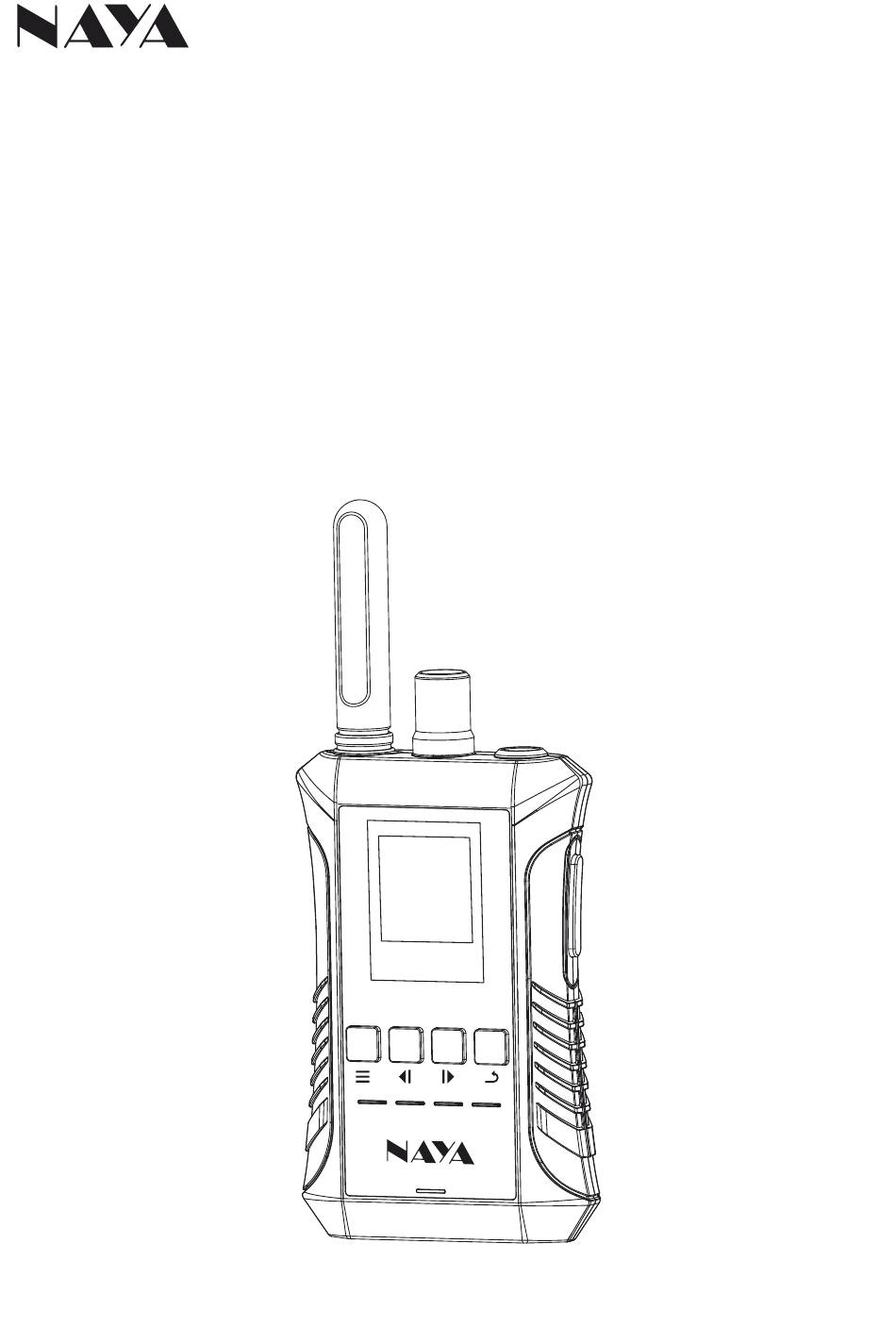

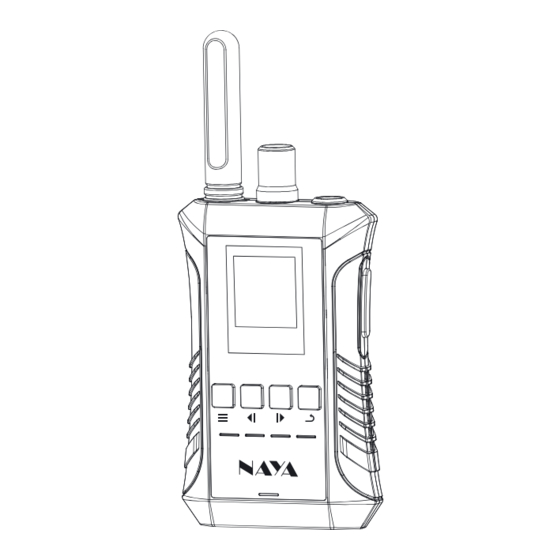

- Page 1 User’s Manual of Wireless Intercom EFDI-PT326 Please keep the instruction manual for reference...
-
Page 2: Table Of Contents
Focus on R&D Stable and reliable Content 1.Check the items in the package.................3 2.Parts introduction.......................3 3.Preparation before using....................4 3.1 Charge the battery.....................4 3.2 Install antenna....................5 3.3 Install headset....................5 4.Basic operation......................5 4.1 Power on/off.......................5 4.2 Volume adjustment.....................5 4.3 Setting.........................6 4.4 Channel setting....................6 4.5 Scene voice setting...................6 4.6 Call control setting.....................6 4.7 Headset type......................7... -
Page 3: Check The Items In The Package
Focus on R&D Stable and reliable 1. Check the items in the package ◆The package contains the following items, if any damage or loss, please contact Naya or the dealer you purchased from. Item Q’ty Beltpack ① Antenna ② USB charger ③... -
Page 4: Preparation Before Using
Focus on R&D Stable and reliable ⑩ ⑧ ⑦ ⑨ ⑥ ① ④ ② ③ ⑤ Item Description The indicator will be lit in working state, Power indicator ① and flicker for standby status. Signal transmission The indicator flickers when the device transmit audio signal. ②... -
Page 5: Install Antenna
Focus on R&D Stable and reliable ◆Plug the power adapter into a power outlet. ◆Plug the charging cable into the charging connector on the bottom of the beltpack. ◆When the device is charging, the charging indicator lights red, and lights green when fully charged. -
Page 6: Setting
Focus on R&D Stable and reliable 4.3 Setting ◆Press the menu key, and then press the back key to enter the settings menu page. Use the left and right selection buttons to toggle between various setting options, including channel setting, scene voice setting, call control, headset type, slave ID.No., Tally function, grouping setting, and MIC return. -
Page 7: Headset Type
Focus on R&D Stable and reliable beltpacks speaking in same channel. Continuous speaking ◆Press “TALK”and then release it, when hearing “beep”, continuous speaking state begins. Press “TALK” again, when hearing “boom”, this device just can receive the voice from other devices, can’t send the signal. Double-click for continuous speaking ◆... - Page 8 Please read the manual carefully before using the product Website: http://www.nayatec.com Manufacturer: Shanghai Naya Intelligence Technology. Co.,Ltd Address: No.7001 Zhongchun RD., Minhang district, Shanghai, 201101, China version：20230606...
-
Page 9: Tally Function
Focus on R&D Stable and reliable Head-mounted ◆Headsets are suitable for most places, that is recommended. In-ear type ◆In-ear headphones are suitable for use in relatively quiet environments, or for special purposes. 4.8 Tally function ◆Turn on the TALLY function, the display background color will display red and green according to the switcher signal. -
Page 10: Group No
Focus on R&D Stable and reliable Menu Slave ID.number Slave ID.number 1 To set slave ID.number, range from 1 to 99. Slave ID.number Exit Enter Exit 4.11 Group No ◆Different groups are set under the control of the base station for calls, the group number is displayed in the lower-right corner of the slave. -
Page 11: Call Mode
Focus on R&D Stable and reliable 5. Call mode ◆After powering on, please use the TALK button to initiate a voice call. When another user initiates a call, you can hear the user no matter the device in call mode or not. ◆Up to 8 beltpacks are allowed to speak simultaneously in same channel. -
Page 12: Tally Function
Focus on R&D Stable and reliable 6. Tally function ◆This system supports the TALLY function when used in the field of broadcast media. The base station is connected to the TALLY interface of the video switcher which transmit the signal PGM and PVW. Background color of the beltpack screen changed according to the received signal, which visually remind the cameraman about director's intent. -
Page 13: Maintenance And Cleaning
8. Warranty and Maintenance Terms ◆Naya promises that defects in material or workmanship under normal operating and maintenance conditions of all devices produced by our company, are covered by the warranty service specified below from the date of purchase. -
Page 14: Warranty Card
Focus on R&D Stable and reliable 9. Warranty card ◆In order to protect your rights and interests, please fill in carefully and keep it properly as a certificate for repair. Reseller information Model Sales date Contact telephone Reseller or E-mail User information User Contact telephone...
