- Page 1 Wireless Full Duplex Intercom System Base Station HDI-BS 180 Users’Manual Please read the manual carefully before operation...

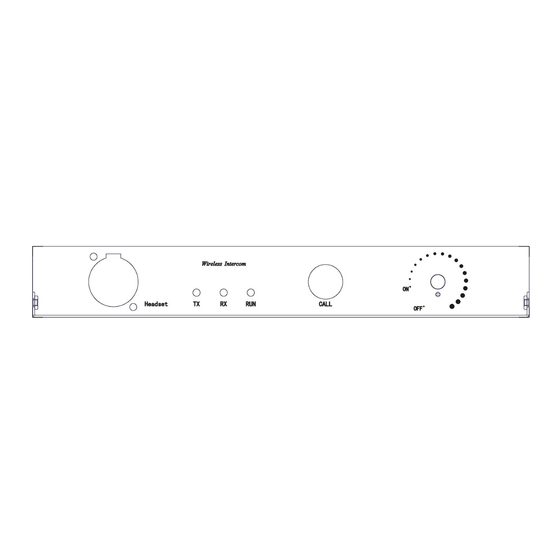

- Page 2 Chapter 1 Check the Contents of the Package The package contains the following items. If there is any damage or loss, please contact the dealer. Descriptions List Amount Base Station Power adapter Antenna Configuration cable Chapter 2 Indicators and Interfaces 3.1 Front Panel Item Description...
- Page 3 3.2 Rear Panel Item Description External pipe style antenna ① Antenna interface DB9 connector. Able to be connected with ② COM port computer by configuration cable. ③ UART TALLY UART port input. ④ DB25 male interface for GPI tally input. TALLY interface ⑤...
- Page 4 on, the base station could transfer and receive signal. Click again to turn off the indicator. Now the headset microphone is turned off, the base station could only receive signal. 3.5 Tally Function Choose suitable tally cable for different switchers to connect with the base station. Our base station is able to be connected with common brands video switchers to transfer tally signal.
- Page 5 If the equipment is dirty, clean with neutral detergent and non-woven fabric, do not use detergent, alcohol, spray and other chemical agents to avoid the damage of the equipment. Be sure to make sure that the equipment is dry thoroughly. Otherwise, do not use it.
- Page 6 Warranty Card In order to safeguard your rights and interests, please fill in carefully and keep it properly as a voucher for maintenance. Dealer’s information Product model Date of sale Dealer’s name Contact number User’s information User’s name Contact number Address E-mail...
- Page 7 NAYA WeChat Subscription Number Shanghai Naya Intelligence Technology Co., Ltd. www.nayatec.com...
