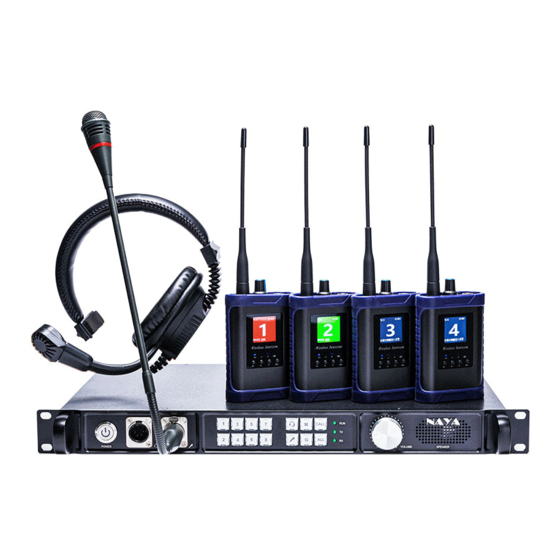

- Page 1 Wireless Full Duplex Intercom System Base Station FDI-BS 350 Users’Manual Please read the manual carefully before operation...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Item List ........................3 Preparations ......................3 Chapter 2 Chapter 3 Indicators and Interfaces ..................4 Chapter 4 Interface Connection ....................5 Headset Interface ......................5 MIC Interface ........................5 ANT Antenna Interface ....................5 COM Port ......................... -
Page 3: Chapter 1 Item List
The FDI-BS 350 wireless intercom system and accessories could be installed in standard chassis, box, and cabinet. 2.2 AC Input Power Requirements FDI-BS 350 consists of a switching power supply, The operating voltage of the device is AC 110V/220V, it should be earthed correctly to ensure safety. 2.3 Grounded Well grounded is required, power plug has to be connected to a grounded receptacle. -
Page 4: Chapter 3 Indicators And Interfaces
Chapter 3 Indicators and Interfaces 3.1 Front Panel Item Description Press the Power button, the button light is on and the Power button device is started. Press again the device is turned off. Headset External cannon-type headset interface MIC interface External gooseneck shaped microphone You can talk to any person or groups no more than 8 at the Digital keypad... -
Page 5: Chapter 4 Interface Connection
3.2 Rear Panel Item Description Antenna Connected with external N-type antenna connector COM port DB9 connector. It is able to be connected with computer by configuration cable. TALLY connector DB25 male connector for GPI tally input. AUX IN 3-pin cannon receptacle connector AUX OUT 3-pin cannon receptacle connector Power receptacle AC 110/220V Power receptacle... -
Page 6: Tally Interface
change configurations, such as channel. It also supports tally signal input with RS232/RS485/RS422 type. Tally Connector Connect video switcher via dedicated Tally cable. This connector supports GPI type tally input. Pin 1-12 indicates PGM/red signal, pin 14-25 indicates PVW/green signal, pin 13 is GND. -
Page 7: Power Connection
3-pin cannon connector. The input level of the analog speech signal shall be 1Vrms. Power Connection Each unit is attached with a power cable, which is used to connect AC 110V/220V power supply with grounded receptacle. Chapter 5 Basic Operations（Calling process） 5.1 Introduction to call operation Press button of base station, the lights are on. -
Page 8: Grouped Calling
The base station could turn off one or more of the digital keypad buttons 1-8. The unselected belt-packs could send a voice signal request to base station, but cannot send or receive voice signals. The flashing light on the base station indicates that the corresponding belt-pack is on the call. -
Page 9: Chapter 6 Optional Accessories
menu, press button to change setting. The menu includes channel setting, background noise level, noise suppression level, reset all settings and exit configuration mode. After change you should restart the base station to load the new configurations. 5.5.1 Channel Setting The base station includes 90 channels, press button to change channel as voice hint. -
Page 10: Maintenance And Cleaning
video switcher. Sometimes some video switcher, vidicom, SDI cables, HDMI cable or mixer with bad EMI Attenuator design, may be influenced by RF signal. You have to attach an attenuator to base station to compatible with them. While the working distance will be short. -
Page 11: Chapter 8 Quality Commitment And Maintenance Terms
Chapter 8 Quality Commitment and Maintenance Terms We promises warranty services for material and manufacturing process defect under normal operation since purchase date. Warranty Scope and Duration 12 months for the base station Warranty Claim You have to provide product warranty card or valid purchase invoice to apply repair. - Page 12 NAYA WeChat Subscription Number Shanghai NAYA intelligence Co. Ltd. http://www.nayatec.com...
