Wintex Agro 3000 Instruction Manual

Hide thumbs Also See for 3000:
Table of Contents

Advertisement

Quick Links

Download this manual
P A G E
| 1

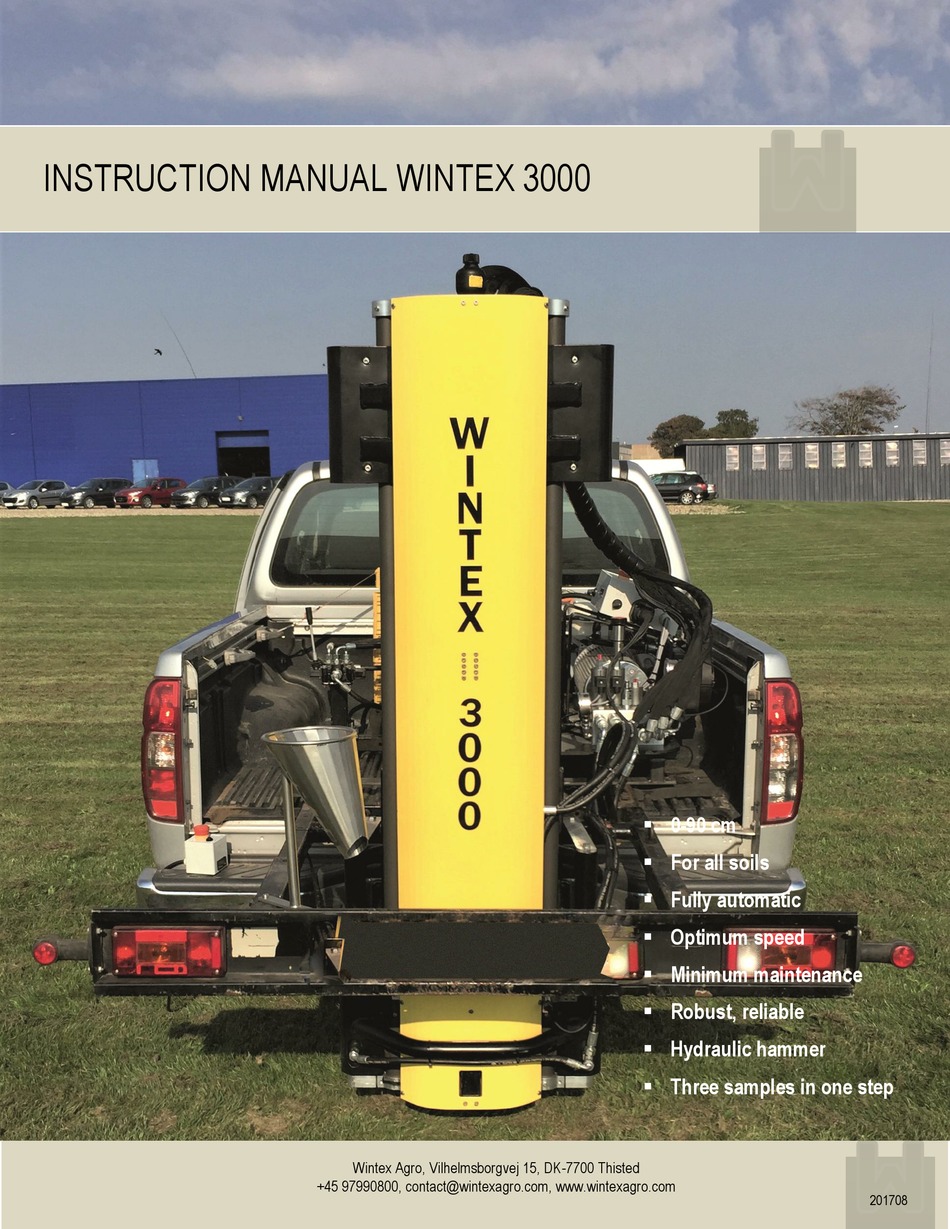

INSTRUCTION MANUAL WINTEX 3000
 0-90 cm
 For all soils
 Fully automatic
 Optimum speed
 Minimum maintenance
 Robust, reliable
 Hydraulic hammer
 Three samples in one step
Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted
+45 97990800, contact@wintexagro.com, www.wintexagro.com
201708

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wintex Agro 3000

Summary of Contents for Wintex Agro 3000

  • Page 1 INSTRUCTION MANUAL WINTEX 3000  0-90 cm  For all soils  Fully automatic  Optimum speed  Minimum maintenance  Robust, reliable  Hydraulic hammer  Three samples in one step Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com 201708...

  • Page 2: For Your Safety

    Before starting the WINTEX 3000 please make sure that nobody is present within a range of 10 meters. When inspecting the WINTEX 3000, you must always activate the emergency stop, and the vehicle must be turned off. Every time you start the WINTEX 3000, you must test the emergency stop.

  • Page 3: Adjusting The Depth

    P A G E 1. STARTING THE WINTEX 3000 Start the vehicle, and deactivate the emergency stop. The red button must be up. Make sure that the dead-man’s vigilance system is activated. Note: The emergency stop must always be activated at long stops, or the battery might be discharged.
  • Page 4 Remove the soil boxes, and unscrew the six bolts. One half of the plate can now be removed. Unscrew the three bolts. The revolving platform can now be pulled down along the probe. Caution: The probe has sharp edges! Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 5: Replacement Of O-Ring

    Then adjust the chain for rotation by turning the insex bolt (clockwise to tighten the chain, counter- clockwise to loosen the chain. When the chain is adjusted correctly, the four screws must be tightened again. Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 6 This valve is for adjusting the main pressure. The main pressure is pre-set on 120 bar. It must only be adjusted after signing a written agreement with Wintex Agro. Fuse: There is a 7.5 amp fuse for current control in the box and a 15 amp fuse for the oil cooler.
  • Page 7 When turning to the right, the probe will slow down. The adjusting screw must be set to 50 r.p.m. Press the button down. Turn it to the left so that it stays down. Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 8 The gap between both sensors and the sensor plates must be 2-3 mm. Make sure that the gap of both sensors towards the sensor plates is exactly the same. It is recommended to adjust the sensors in relation to the lower sensor plate. Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 9: Protection Against Overheating

    Wait until the temperature of the oil has lowered. In extremely hot areas or if the oil temperature would become a problem, shift to another oil type. Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 10 P A G E | 10 12. ELECTRICITY BOX Connection of wires in the electricity box Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 11 P A G E | 11 13. HYDRAULICS Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 12: Maintenance

    Exchange after 500 hours in use and at least once a year: 10000002 Hydraulic oil filter 10000002 Hydraulic oil Exchange if necessary: 15101196 Oil level rod with filter cap Honda GX200 motor: See instruction manual Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 13: Problem Solving

    | 13 15. PROBLEM SOLVING PROBLEM CAUSE POSSIBLE SOLUTIONS The WINTEX 3000 does not start soil 1) The fuse is blown. 1) Replace the fuse with a new 7.5 amp fuse. sampling. 2) The emergency stop is activated. 2) Deactivate the emergency stop.
  • Page 14 3) Charge the accumulator with nitrogen or 3) The accumulator pressure is too low. replace it. 4) Check the power source, the hoses and the 4) The return pressure is too high. filter. Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 15 In case of a defective diaphragm, the accumulator must be replaced Loosen the charging screw. If the accumulator is in order, you can hear a whistling sound of Nitrogen. In this case merely recharge the accumulator. Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 16: Changing Oil And Oil Filter

    Remove both hoses. Unbolt the engine and the tank. Remember the bolt under the tank. Slide the engine and the tank out under the cooler bracket and unbolt the engine. Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 17 P A G E | 17 Move the tank into an upright position. Unscrew the pump. Replace the filter with a new one. Clean the tank thoroughly. Then remount pump, tank and engine. Wintex Agro, Vilhelmsborgvej 15, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
