P A G E
| 1

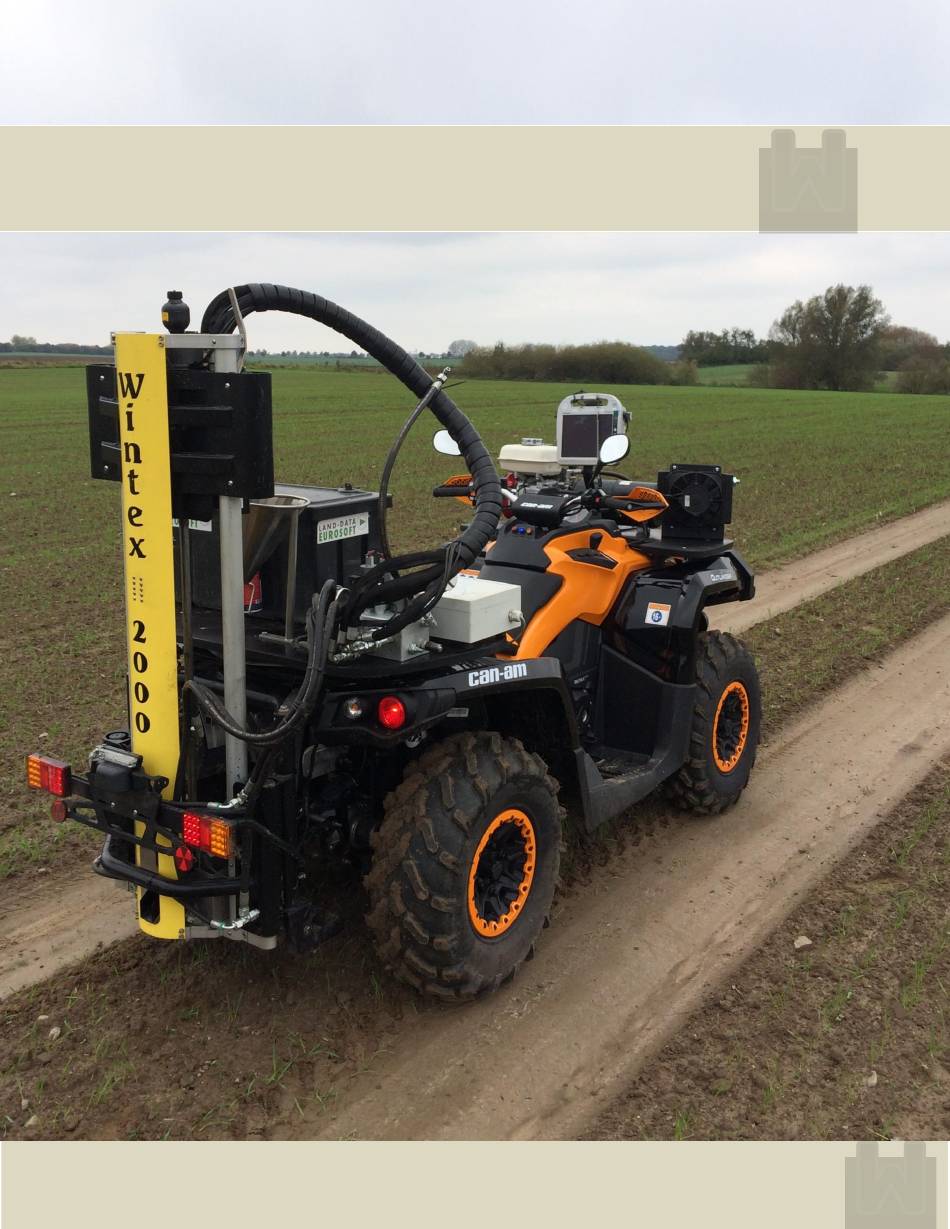

INSTRUCTION MANUAL WINTEX 2000
▪ 0-60 cm
▪ For all soils
▪ Fully automatic
▪ Optimum speed
▪ Minimum maintenance
▪ Robust, reliable
▪ Hydraulic hammer
▪ Two samples in one step
Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted
+45 97990800, contact@wintexagro.com, www.wintexagro.com
201905

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Wintex Agro 2000

Summary of Contents for Wintex Agro 2000

  • Page 1 INSTRUCTION MANUAL WINTEX 2000 ▪ 0-60 cm ▪ For all soils ▪ Fully automatic ▪ Optimum speed ▪ Minimum maintenance ▪ Robust, reliable ▪ Hydraulic hammer ▪ Two samples in one step Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com 201905...

  • Page 2: For Your Safety

    If the emergency stop does not turnoff the soil sampler, you must not use it. The WINTEX 2000 has sliding and rotating parts. Keep your limbs away from the soil sampler unless it is turned off, and stay away from the foot / the base of the soil sampler.

  • Page 3: Adjusting The Depth

    P A G E 1. STARTING THE WINTEX 2000 Start the vehicle, and deactivate the emergency stop. The red button must be up. Activate the foot switch and the brake on the handle bar, and shortly push the button at your right hand.
  • Page 4 Remove the soil box, and unscrew the six bolts with a 5 mm hex key. Both halves of the retainer can now be removed. Unscrew the three bolts. The revolving platform can now be pulled down along the probe. Caution: The probe has sharp edges! Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 5: Replacement Of O-Ring

    P A G E Remove the coupling nut with the special key which is delivered together with the WINTEX 2000. It is now possible to remove the probe. Coupling nut Special key REPLACEMENT OF O-RING When the probe is removed, it is possible to replace the O-ring.
  • Page 6 This valve is for adjusting the main pressure. The main pressure is pre-set on 120 bar. It must only be adjusted after signing a written agreement with Wintex Agro. Fuse: There is a 7.5 amp fuse for current control in the box and a 15 amp fuse for the oil cooler.
  • Page 7 When turning to the right, the probe will slow down. Adjust the screw until the probe is set to 50 r.p.m. Press the button down. Turn it to the left so that it stays down. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 8 The gap between both sensors and the sensor plates must be 2-3 mm. Make sure that the gap of both sensors towards the sensor plates is exactly the same. It is recommended to adjust the sensors in relation to the lower sensor plate. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 9: Protection Against Overheating

    Wait until the temperature of the oil has lowered. In extremely hot areas, or if the oil temperature would become a problem, shift to another oil type. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 10 P A G E | 10 12. ELECTRICITY BOX Connection of wires in the electricity box Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 11 P A G E | 11 13. HYDRAULICS Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 12: Maintenance

    Exchange after 500 hours in use and at least once a year: 10000002 Hydraulic oil filter 10000002 Hydraulic oil Exchange if necessary: 15101196 Oil level rod with filter cap Honda GX200 motor: See instruction manual Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 13: Problem Solving

    | 13 15. PROBLEM SOLVING PROBLEM CAUSE POSSIBLE SOLUTIONS The WINTEX 2000 does not start soil 1) The fuse is blown. 1) Replace the fuse with a new 7.5 amp fuse. sampling. 2) The emergency stop is activated. 2) Deactivate the emergency stop.
  • Page 14 3) Charge the accumulator with nitrogen or 3) The accumulator pressure is too low. replace it. 4) Check the power source, the hoses and the 4) The return pressure is too high. filter. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 15 If the accumulator is in order, you can hear a whistling sound of Nitrogen. In this case merely recharge the accumulator. If there is no whistling sound, the diaphragm is probably damaged and must be replaced. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...

  • Page 16: Changing Oil And Oil Filter

    Remove both hoses. Unbolt the engine and the tank. Remember the bolt under the tank. Slide the engine and the tank out under the cooler bracket and unbolt the engine. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
  • Page 17 Valves 300 / 1 year Air filter 100 / 1 year Spark plug 100 / 6 month BPR6ES Motor oil 100 / 6 month 5w-30 / 10w-30 API-SJ or better Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
