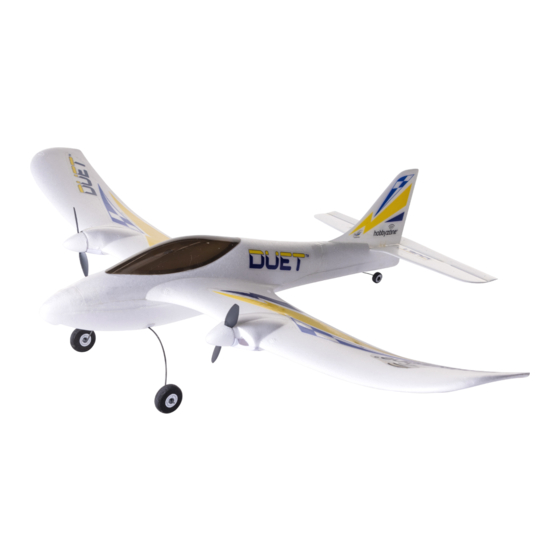

Duet
S 2
TM
525mm
Scan the QR code and select the Manuals and Support quick links from the product
page for the most up-to date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
HBZ05300
Instruction Manual | Bedienungsanleitung
Manuel d'utilisation | Manuale di Istruzioni
719020
Created 08/23
Advertisement
Table of Contents
Related Manuals for Horizon Hobby HobbyZone Duet S 2
Summary of Contents for Horizon Hobby HobbyZone Duet S 2
- Page 1 Duet 525mm Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher. Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la page du produit pour obtenir les informations les plus récentes sur le manuel.
- Page 2 Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
-
Page 3: Table Of Contents
• ALWAYS keep a safe distance in all directions packs, etc.). around your model to avoid collisions or injury. • ALWAYS keep all chemicals, small parts and • ALWAYS fully reduce the throttle or activate anything electrical out of the reach of children. throttle cut before a crash. -
Page 4: Transmitter
• Never cover warning labels with hook and loop • Never attempt to dismantle or alter the charger. strips. • Never allow minors to charge battery packs. • Never leave charging batteries unattended. • Never charge batteries in extremely hot or cold •... -
Page 5: Charging The Flight Battery
Charging the Flight Battery NOTICE: Inspect the battery to make sure it is not damaged e.g., swollen, bent, broken or punc- tured. Charge only batteries that are cool to the SOLID RED LED touch and are not damaged. –Charging USB Li-P o LED OFF Char ger –Charge... -
Page 6: Control Direction Test
3. Move the sticks on the transmitter to ensure the aircraft responds as shown. Refer to the Binding instructions and Troubleshooting Guide in this manual for more information. If you need more assistance, contact the appropriate Horizon Hobby Product Support department. Up Elevator (climb) -
Page 7: Safe ® Technology Flight Modes
SAFE Technology Flight Modes ® When toggling between Safe Mode and AS3X ® ® Mode, the following tones and LEDS will be provided by the transmitter to indicate the aircraft flight mode. Toggle between • SAFE Mode: two beeps and the LED will flash blue. AS3X and SAFE •... -
Page 8: Hand Launch
Hand Launch Always start with a fully charged battery. Get help to hand launch your aircraft so you can concentrate on flying. If you must hand launch the aircraft alone, hold the model in your dominant hand and the transmitter in your other hand. -
Page 9: Flying
Flying • Set a flight timer for 5 minutes • Always make deliberate and steady control stick movements for smooth control of your aircraft. If you feel you are losing control, release the right (steering) stick to allow the aircraft to return to level flight. -
Page 10: Manual Adjusting Trim
Manual Adjusting Trim Press the trim buttons to return to center (3 beeps will sound), then use a pair of pliers to carefully bend the metal connector (A): • Narrow if the aircraft’s nose drifts up. • Widen if the aircraft’s nose drifts down. Short test flights and small bends may be needed. -
Page 11: Trouble Shooting Guide
Trouble Shooting Guide Possible Cause Solution Problem Aircraft does not No connection Follow Binding Instructions. Follow respond to the “Installing the Flight Battery” instructions. transmitter Replace or recharge batteries Transmitter too near the aircraft or both Move to another location, with the trans- are too near large metal objects, wireless mitter more than 24 inches (60 cm) from sources or another transmitter during... -
Page 12: Propeller Service
Propeller Service Right motor Left motor CAUTION: DO NOT handle propeller parts while the flight battery is connected. Personal injury could result. 1. Remove the spinner (A) by carefully pulling it away from the propeller (B). Remove residue from the spinner and propeller if applicable. 2. -
Page 13: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2018 A model aircraft is a non-human-carrying device capable of sustained flight within visual line of sight of the pilot or spotter(s). It may not exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition. -
Page 14: Limited Warranty
(iii) modification of or to any part of the the place of purchase. Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product These terms are governed by Illinois law (without not purchased from an authorized Horizon dealer, or regard to conflict of law principals). -
Page 15: Warranty And Service Information
United States of Champaign, Illinois, horizonhobby.com Support (Product America 61822 USA Technical Assistance) 877-504-0233 websales@horizonhobby.com Sales 800-338-4639 Horizon Technischer service@horizonhobby.eu Hanskampring 9 Service European Union D 22885 Barsbüttel, Sales: Horizon Hobby Germany +49 (0) 4121 2655 100 GmbH Duet ™... -
Page 16: Fcc Information
• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Horizon Hobby, LLC 2904 Research Rd., Champaign, IL 61822 Email: compliance@horizonhobby.com... -
Page 17: Compliance Information For The European Union
Compliance Information for the European Union EU Compliance Statement: HBZ Duet S 2 RTF (HBZ05300); Hereby, Horizon Hobby, LLC declares that the device is in com- pliance with the following: Radio Equipment Directive (RED) 2014/53/EU; Low Voltage Directive (LVD) 2014/35/EU; 2014/30/EU EMC Directive; RoHS 2 Directive 2011/65/EU; RoHS 3 Directive - Amending 2011/65/EU Annex II 2015/863. - Page 18 HobbyZone, the HobbyZone logo, Apprentice, SAFE, the SAFE logo, AS3X, DSM, DSM2, DSMX, IC3, Bind- N-Fly, the BNF logo, the Smart Technology logo, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
