Summary of Contents for Horizon Hobby Havoc Xe

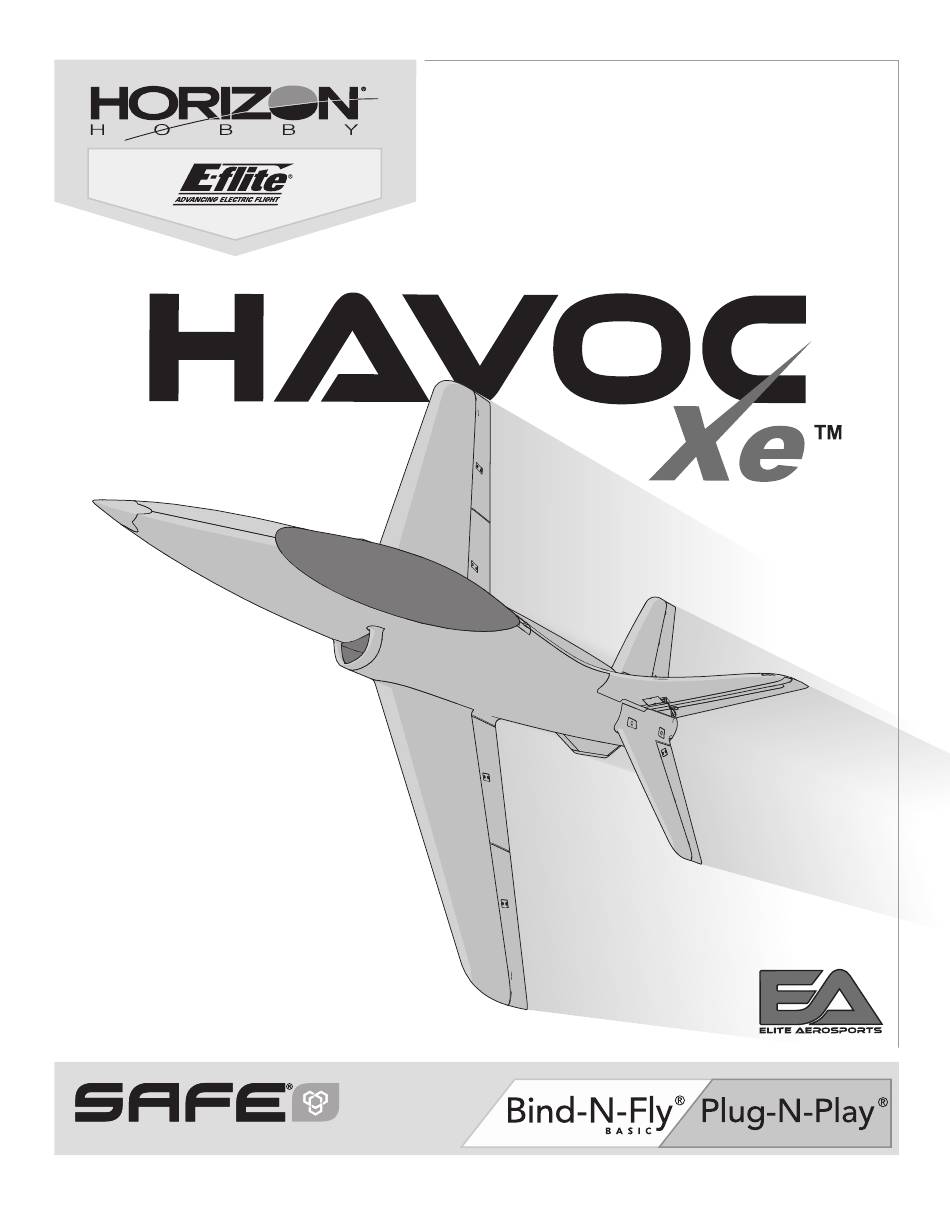

- Page 1 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni Produced under license SAFE ® Select Technology, Optional Flight Envelope Protection...
- Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
-
Page 3: Table Of Contents
Quick Start Information Box Contents Set up your transmitter using the Transmitter Setup transmitter setup chart Hi Rate Low Rate 13mm 10mm 15mm 11mm Dual Rates 15mm 10mm 28mm 20mm Full Half Flaps =30mm =17mm Center of Gravity 100mm - 125mm back from leading edge (CG) of wing at the fuselage Flight Timer... -
Page 4: Safe® Select Technology (Bnf Basic)
SAFE ® Select Technology (BNF Basic) The BNF Basic version of this airplane includes SAFE Select technology which can offer an extra level of protection in fl ight. Use the following instructions to make the SAFE Select system active and assign it to a switch. When enabled, SAFE Select prevents the airplane from banking or pitching past predetermined limits, and automatic self- leveling keeps the airplane fl... -
Page 5: Model Assembly Continued
Model Assembly Continued Wing Assembly 1. Align the wing with the wing saddle on the fuselage. 2. Verify the servo connections and bolt holes on the wing are aligned with those in the fuselage. Do not force the wing in place. 3. -
Page 6: Transmitter Setup (Bnf)
Transmitter Setup (BNF) IMPORTANT: After you set up your model, always rebind the transmitter and Computerized Transmitter Setup receiver to set the desired failsafe positions. Start all transmitter programming with a blank ACRO model (perform a model The GEAR Channel (CH 5) controls the retractable landing gear. The FLAP Channel reset), then name the model. -
Page 7: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection A 6S 4000-8000mAh LiPo battery is required. The Spektrum 5000mAh 22.2V 6S 30C LiPo battery (SPMX50006S30) is recommended. Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the Spektrum Li-Po battery packs to fi... -
Page 8: Binding / Enable Or Disable Safe Select (Bnf)
Transmitter and Receiver Binding / Enable or Disable SAFE Select (BNF) This product requires an approved Spektrum ™ DSM2 ® /DSMX ® compatible Bind Plug Installation transmitter. Visit www.bindnfl y.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a specifi... -
Page 9: Safe® Select Switch Designation
SAFE ® Select Switch Designation SAFE ® Select technology can be assigned to any open switch (2 or 3 position) controlling a Assigning a switch channel (5–9) on your transmitter. Once assigned to a switch, SAFE select ON gives you the 1. -
Page 10: Control Surface Direction
Control Surface Direction Switch on the transmitter and connect the battery. Use the transmitter to operate the aileron, elevator, and rudder controls. View the aircraft from the rear when checking the control directions. Ailerons 1. Move the aileron stick to the left. The right aileron should move down and the left aileron up, which will cause the aircraft to bank left. -
Page 11: As3X Control Direction Test (Bnf)
AS3X Control Direction Test (BNF) ® This test ensures that the AS3X control system is functioning properly. Assemble the aircraft and bind your transmitter to the receiver before Aircraft AS3X Reaction performing this test. movement 1. Raise the throttle to any setting above 25%, then lower the throttle to activate AS3X technology. -
Page 12: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. NOTICE: If a crash is imminent, reduce the throttle and trim fully. Failure to do so could result in extra damage to the airframe, as well as damage to the ESC and motor. Getting Started NOTICE: After any impact, always ensure the receiver is secure in the fuselage. -
Page 13: Post Flight
Post Flight 1. Disconnect the fl ight battery from the ESC (Required for Safety and battery life). 5. Repair or replace all damaged parts. 2. Power OFF the transmitter. 6. Store the fl ight battery apart from the aircraft and monitor the battery charge. 3. -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not re- Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater spond to throttle but responds to other Throttle channel is reversed... -
Page 15: Replacement Parts
Replacement Parts Optional Parts Part # Description Part # Description EFL7576 Wing Set: HAVOC 80mm Sport EDF Jet EFLA250 Park Flyer Tool Assortment, 5 pc EFL7577 Fuselage: HAVOC 80mm Sport EDF Jet SPMA3065 AS3X Programming Cable - USB Interface EFL7578 Horizontal Stabilizers: HAVOC 80mm Sport EDF Jet SPMBT1000 AS3X Bluetooth Programming Module... -
Page 16: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight 1. All pilots shall avoid fl ying directly over unprotected people, vessels, in the atmosphere. It may not exceed limitations of this code and is intended vehicles or structures and shall avoid endangerment of life and property exclusively for sport, recreation, education and/or competition. -
Page 17: Limited Warranty
Product, (iv) attempted service by anyone as Horizon is not responsible for merchandise until it arrives and is accepted at other than a Horizon Hobby authorized service center, (v) Product not purchased our facility. An Online Service Request is available at http://www.horizonhobby. -
Page 18: Fcc Information
The separate EFL7550 Havoc Xe 80mm EDF BNF BASIC; Horizon Hobby, LLC hereby collection and recycling of your waste equipment at the time of... - Page 19 The Spektrum trademark is used with permission of Bachmann Industries, Inc. The Elite Aerosports logo and Havoc Xe name and design are trademarks or registered trademarks of Elite Aerosports, Inc., used under license. Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
