Exsys EX-1181HMS-WT Manual

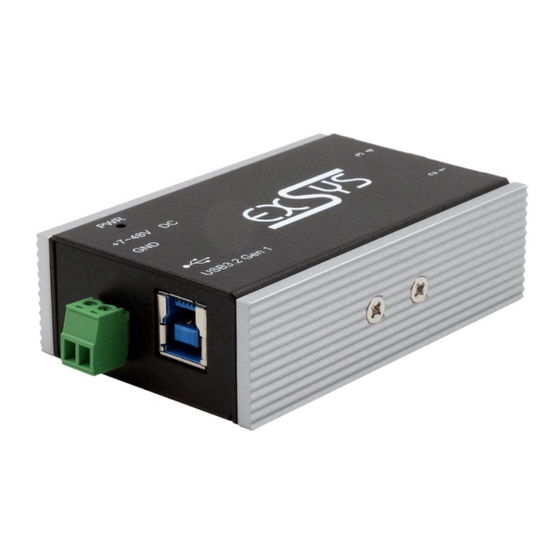

Smallest 4-port usb 3.2 gen 1 metal hub with 1a power for each usb port and 15kv esd surge protection for din-rail and extended temperature range from -40 f to 185 f
Hide thumbs Also See for EX-1181HMS-WT:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
EX-1181HMS-WT
Il più piccolo HUB USB 3.2 Gen 1 in metallo a
4 porte con alimentazione 1A per porta USB e
Protezione da sovratensione ESD da 15 KV per
Smallest 4-Port USB 3.2 Gen 1 Metal HUB with
and extended Temperature Range from -40°F to 185°F
Manual
guida Din, Temperatura d'esercizio
da -40 °C a +85 °C
1A power for each USB port and
15KV ESD Surge Protection for DIN-Rail
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Manuale
Italia:
EXSYS Italia Srl
Via Belvedere, 45/B
22100 Como (CO)
www.exsys.it
Vers. 1.0 / 26.02.24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX-1181HMS-WT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Exsys EX-1181HMS-WT

Summary of Contents for Exsys EX-1181HMS-WT

  • Page 1 Smallest 4-Port USB 3.2 Gen 1 Metal HUB with 1A power for each USB port and 15KV ESD Surge Protection for DIN-Rail and extended Temperature Range from -40°F to 185°F Deutschland: EXSYS Vertriebs GmbH Industriestraße 8 Italia: 61449 Steinbach EXSYS Italia Srl www.exsys.de...
  • Page 2 Pulizia Dati Tecnici Disegno Tecnico INDEX Description Extent of Delivery Layout, Connections & Jumper Settings 10-11 Layout Connections 10-11 Jumper Settings Hardware Installation Driver Installation Cleaning Technical Information Technical Drawing © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 3: Contenuto Confezione

    1. Descrizione L'EX-1181HMS-WT è il più piccolo HUB USB 3.2 Gen 1 in metallo per un massimo di quattro dispositivi. L'hub è dotato di quattro prese USB Type-A per i dispositivi finali e una presa USB B per il collegamento al PC.
  • Page 4 Upstream Type-B 3.2 Attacco T-Block da +7V a +48V : ATTENZIONE!!! Non collegare mai l'alimentazione a terra (GND), questo potrebbe distruggere il tuo hardware!!! +7V bis +48V GND (Ground) © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 5 L'EX-1181HMS-WT viene fornito con l'impostazione di alimentazione del Bus USB. Tuttavia avete la possibilità di togliere tensione all'EX-1181HMS-WT sulla linea dati verso il PC, cioè sulla presa USB Type-B. Per fare ciò, devi prima aprire l'alloggiamento con le otto viti sui lati. Ora bisogna impostare il jumper JP1 da ENA (Abilita) a DIS (Disabilita).

  • Page 6: Installazione Hardware

    Se qualcosa non è chiaro, fare riferimento al manuale d’istruzioni per l'uso del proprio computer. 1. Installare EX-1181HMS-WT a parete utilizzando la staffa di montaggio a parete inclusa o su una guida di montaggio utilizzando il kit guida DIN incluso.

  • Page 7: Installazione Driver

    Nella zona dei collegamenti, assicurarsi che non rimangano fibre del panno nella presa. Non utilizzare in nessun caso un panno umido o bagnato per la pulizia! © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 8: Dati Tecnici

    Da -40° fino a 85° Celsius Umidità Rel. : Dal 5% fino al 95% Alimentazione: Da +7V fino a 48V Dimensione: 82,00 x 52,80 x 25,00 mm Peso: 420g 8. Disegno Tecnico © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 9: Extent Of Delivery

    English 1. Description The EX-1181HMS-WT is a USB 3.2 Gen 1 metal HUB for up to four end devices. The hub is equipped with 4 A-Ports for end devices and 1 B-Port for connection to PC. It supports all USB ports from 1.1 to 3.2.
  • Page 10 1x USB 3.2 Gen 1 optional Power Supply Upstream Port 3.2 Connections +7V to +48V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! +7V to +48V GND (Ground) © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 11: Jumper Settings

    VBus or in wrong direction. 3.3 Jumper Settings The EX-1181HMS-WT will be delivered with the setting USB-Bus-Power. But you have the possi- bility to cut the power at the data line. For this you open the case with the eight screws on both sides.

  • Page 12: Hardware Installation

    Because there are large differences between PC’s, we can give you only a general installation guide for the EX-1181HMS-WT. Please refer your computer’s reference manual whenever in doubt. 1. Install the EX-1181HMS-WT to the wall or to a DIN-Rail if required. Installation to Holes for...

  • Page 13: Driver Installation

    For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 14: Technical Information

    Operating Temperature: -40° to 185°Fahrenheit Storage Temperature: -40° to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7V to 48V Size: 82,00 x 52,80 x 25,00 mm Weight: 420g 8. Technical Drawing © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
