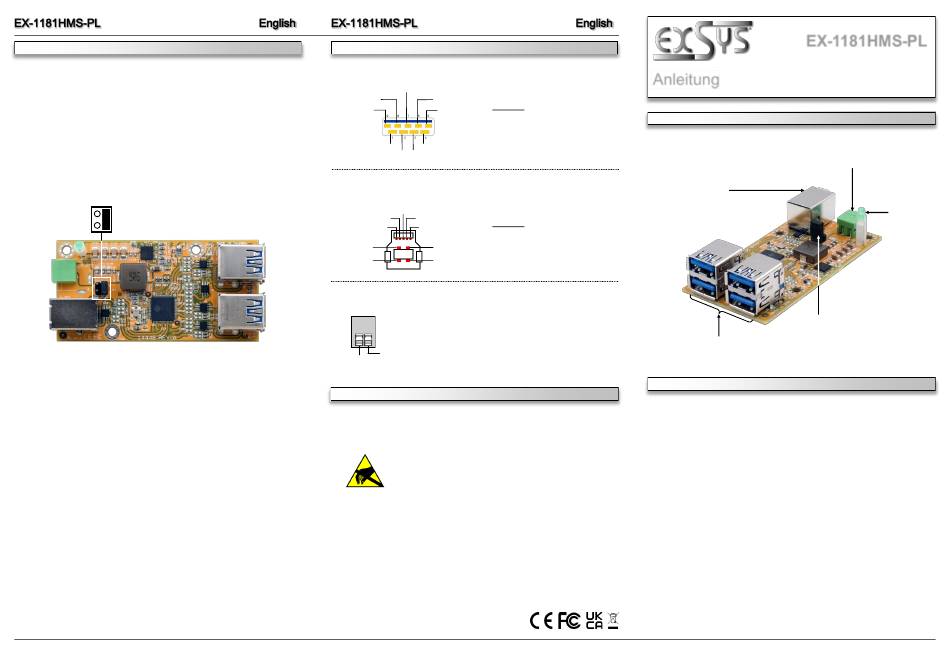

JUMPER SETTING
Jumper for power supply control:
Jumper JP1 (BUS PWR) can be used to influence the power supply of the hub. There are two
possible settings:
Position Function
ENA (enabled): Bus-Power operation possible
Power supply from host PC via USB bus or external power supply
DIS (disabled): Bus-Power operation disabled
Operation only possible if voltage is applied to the terminal block.
(Self-Power)
DIS ENA
Jumper JP1
5
CONNECTIONS
USB 3.2 Gen 1 A-Port:
GND_DRAIN
StdB_SSTX+ StdB_SSTX+
Attention!
StdB_SSTX - StdB_SSTX -
Never plug in with force or in wrong
direction.
VCC GND
D- D+
USB 3.2 Gen 1 B-Port:
GND_DRAI
StdB_SST
StdB_SSTX
Attention!
StdB_SST StdB_SST
Never plug in with force or in wrong
direction.
D-
VBus
D+ GN
+7V - 48V DC Terminal Block:
ATTENTION!
Please pay attention to the correct polarity!
Never connect the power supply unit to the terminal
GND (Ground)
block when it is switched on!
+7V - 48V
HARDWARE INSTALLATION
As this is a PCBA for installation in customer applications, we are unable to provide you with
installation instructions. Please observe the necessary safety precautions during installation.
ATTENTION!
When installing in your application, take the necessary ESD
precautions.
Germany: Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH EXSYS Italia Srl
Industriestrasse 8 Dübendorfstrasse 17 Via Belvedere, 45/B
61449 Steinbach 8602 Wangen I-22100 Como
www.exsys.ch www.exsys.it
www.exsys.de
6
EX-1181HMS-PL
Anleitung Anleitung
Vers. 1.0 / 30.09.24
AUFBAU
7-48V T-Block für
optionales externes
1x USB 2.0
Upstream B-Buchse
Jumper für
Bus/Self Power
4x USB 3.2 Gen 1
Downstream A-Buchse
BESCHREIBUNG & TECHNISCHE DATEN
Das USB 3.2 Gen 1 Hub Board EX-1181HMS-PL ist ein voll funktionsfähiger industrieller USB
3.2 Hub mit vier Downstream-Ports für die Integration in kundenspezifische Geräte,
Baugruppen oder Gehäuse. Er ist ideal für Embedded Systeme, Kioske, industrielle
Automatisierung und andere Spezialanwendungen, die mehrere USB-Anschlüsse benötigen.
Kompatibilität: USB 1.1, 2.0, 3.0, 3.1, 3.2
Betriebssysteme: Betriebssystemunabhängig, keine Software oder Treiber notwendig
Anschlüsse: 4x USB 3.2 Gen 1 A-Buchse, 1x USB 3.2 Gen 1 B-Buchse,
1x Terminal Block 7-48V DC
Lieferumfang: EX-1181HMS-PL, Terminal Block
1
Netzteil
Betriebs LED
