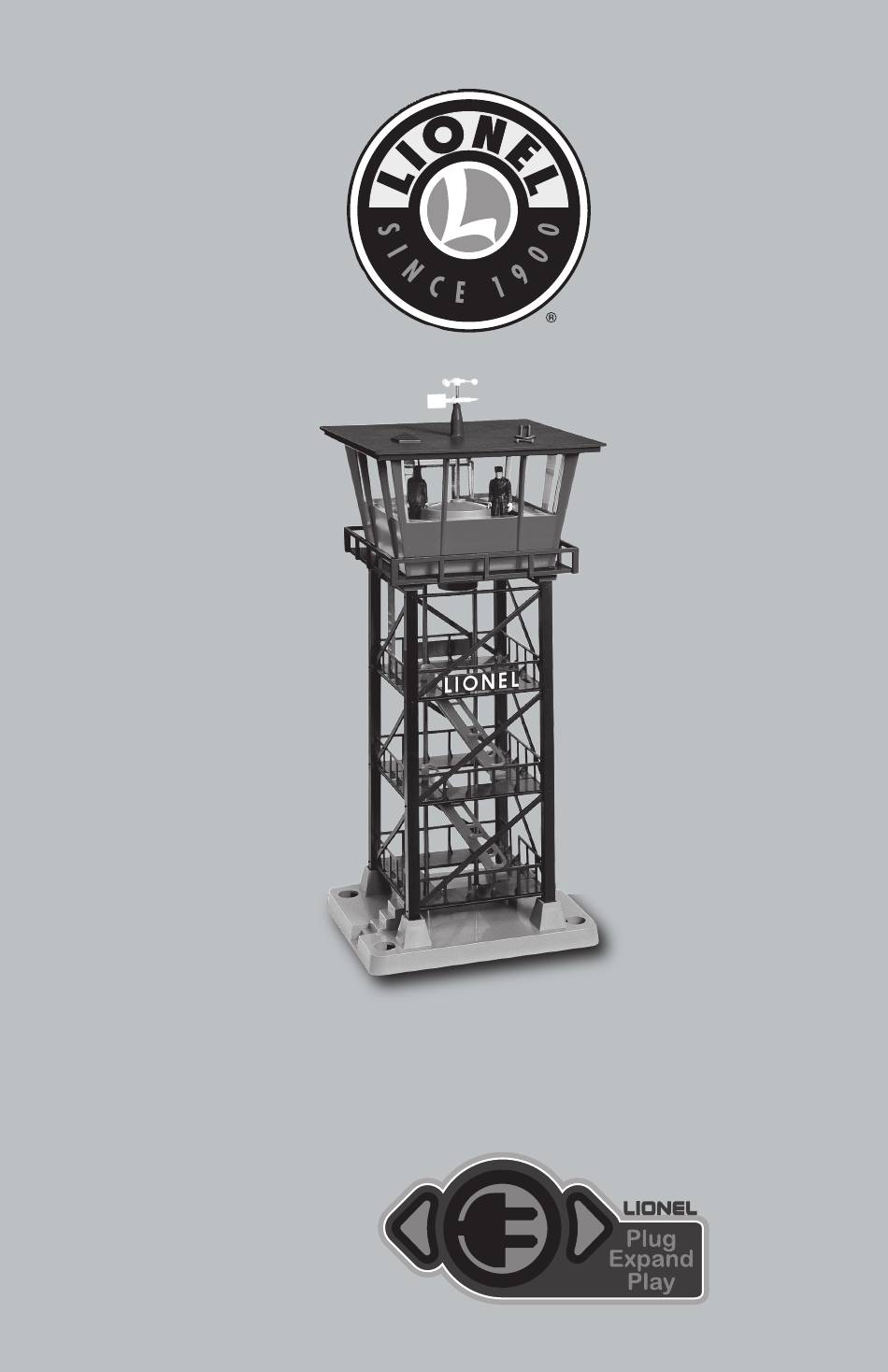

- Page 1 20229040250 1/22 Lionel Lionel Plug-Expand-Play ® ® Plug-Expand-Play Control Tower Control Tower Owner’s Manual Owner’s Manual Featuring...
- Page 2 The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved. Lionel ® , FasTrack ® , LEGACY ® , LEGACY ® Control System, Lockon ® , TMCC ® , CAB-1 ® Remote Controller, Plug-Expand-Play ® , ASC ® , Accessory Switch Controller ®...
-
Page 3: Table Of Contents
Additional wiring options Connecting your accessory to FasTrack Connecting your accessory to tubular track Connecting your accessory to a transformer Wiring for TMCC or LEGACY SC-2 wiring and operation ASC wiring and operation Replacing the LED Lionel Limited Warranty Policy & Service... -
Page 4: Plug-Expand-Play Control Tower Basics
Plug-Expand-Play Control Tower basics Connecting your accessory to a Plug-Expand-Play lock-on our control tower comes with a remote control momentary control box. This allows you to turn the interior lamp ON or OFF and activate the animation in either the ON or OFF positions by pressing the control button down. -
Page 5: Connecting Your Accessory To A Plug-Expand-Play Activator Track Pack
Plug-Expand-Play Control Tower basics Connecting your accessory to a Plug-Expand-Play activator track pack ou can also use a Plug-Expand-Play Accessory Activator Track Pack (6-81317) with your control tower. This pack isolates your tower by using an insulated outside rail (see the manual for the activator pack for further instructions). -
Page 6: Additional Wiring Options Connecting Your Accessory To Fastrack
Additional wiring options Connecting your accessory to FasTrack ou also are able to connect your control tower to FasTrack using an 8" 3-pin female pigtail (available separately, 6-82038). Plug in the 3-pin male connector into the 3-pin female slot on the back of the remote control box. Next plug in the 3-pin male connector from the box into the 3-pin female pigtail. -
Page 7: Connecting Your Accessory To Tubular Track
Additional wiring options Connecting your accessory to tubular track ou can also connect the remote control box to tubular track using an 8" 3-pin female pigtail (available separately, 6-82038). Plug in the 3-pin male connector of the control tower into the 3-pin female slot on the back of the remote control box. -
Page 8: Connecting Your Accessory To A Transformer
Additional wiring options Using the remote control box with a transformer o power your control tower using the included remote control box with a CW-80 Transformer (6-14198), you will need an 8" 3-pin female pigtail (available separately, 6-82038) to connect to the transformer terminals. -
Page 9: Wiring For Tmcc Or Legacy
Wiring for TMCC or LEGACY o power your control tower in the Command Control and LEGACY environments, you will need an SC-2 (6-22980), an ASC (6-14182), or an ASC2 (6-81639). You will also need an 8" 3-pin female pigtail (available separately, 6-82038) and a transformer (6-14198). See figures 6 and 7 for wiring. -
Page 10: Asc Wiring And Operation
Wiring for TMCC or LEGACY ASC wiring and operation our wires are needed to connect your accessory to the ASC and a separate accessory transformer. Refer to Figure 7. 1. Attach a wire to the transformer Common/Ground/U terminal and connect it to the COMM (com- mon) position on the ASC. -
Page 11: Replacing The Led
LED that is expected to last for the life of the accessory. The LED is not user serviceable. If service is required, we recommend that you have your accessory serviced at a Lionel Factory Trained Authorized Service Station or Lionel Service. -
Page 12: Lionel Limited Warranty Policy & Service
Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
