73-1936-250
9/03-Rev 1.
Pennsylvania Flyer
Ready-to-Run Set
Owner's Manual
CAUTI O N—ELECTRI C TOY
NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH
ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING
HANDLI N G AND USE TO REDUCE THE RI S K OF ELECTRI C SHOCK.
TRANSFORMER RATINGS—I N PUT:120 VAC; 60 HZ ONLY.
AC OUTPUT:18 V; 80 VA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pennsylvania Flyer and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel Pennsylvania Flyer

Summary of Contents for Lionel Pennsylvania Flyer

  • Page 1 73-1936-250 9/03-Rev 1. Pennsylvania Flyer Ready-to-Run Set Owner’s Manual CAUTI O N—ELECTRI C TOY NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLI N G AND USE TO REDUCE THE RI S K OF ELECTRI C SHOCK.
  • Page 2 In the event that such conditions exist, the transformer should not be used until properly repaired. The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ®...

  • Page 3: Table Of Contents

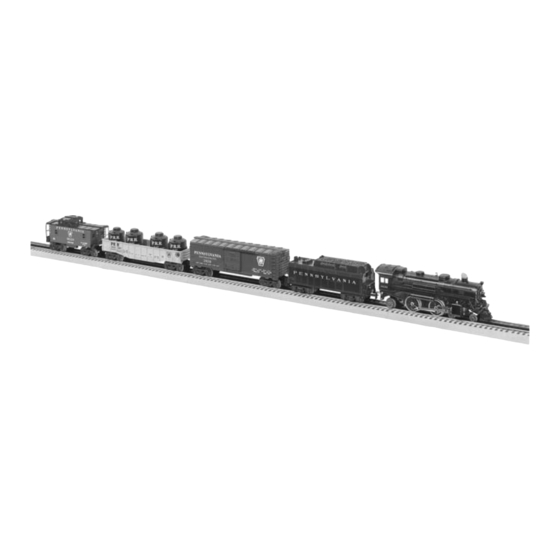

    Lubricating your 4-4-2 locomotive Adding smoke fluid to your 4-4-2 locomotive’s smoke generator Replacing your 4-4-2 locomotive’s headlamp Troubleshooting Limited Warranty/Lionel Service Lionel Pennsylvania Flyer Set Inventory • 4-4-2 Locomotive • One straight FasTrack terminal • Tender with air whistle track section •...

  • Page 4: Track Layout

    Track layout Building your Lionel layout our set comes with eight curved, three straight, and one terminal section of track. Figure 1 provides some examples of layouts that you can build with these track sections. By adding more FasTrack track sections, you can create an endless number of exciting track arrangements for more fun, action, and variety.

  • Page 5: Controller Operations

    • Parents should periodically inspect this product for potential hazards and, if necessary, have them repaired by an authorized Lionel Service Center. In the event that such a condi- tion exists, the transformer should not be used until it has been properly repaired.

  • Page 6: Wiring Your Cw-80 Transformer

    4. If you need to power an accessory (available separately at your authorized Lionel dealer), connect the accessory to the ACCESSORY thumbscrew terminals. Use the accessory wire included with the CW-80 Transformer. 5. Plug the CW-80 Transformer into your wall outlet (120 volts).
  • Page 7 Controller operations Wiring your CW-80 Transformer (continued) FasTrack terminal section Spade-shaped connector TRACK ACCESSORY 120/60z 0~18VAC 0~18VAC Notch Figure 3. Controller connections...

  • Page 8: Advanced Connections: Powering Two Isolated Blocks With Two Transformers

    Controller operations Advanced connections: powering two isolated blocks with two transformers s you expand your layout, you may decide to create two isolated blocks of track. Trains in each block are controlled by separate transformers. Before you operate your trains on this type of layout, be sure that your transformers are in phase.

  • Page 9: Experiencing The Features Of The Cw-80 Transformer

    Controller operations Experiencing the features of the CW-80 Transformer Refer to Figure 5 on page 10 for the location of the Transformer features listed in this section. THROTTLE Push the throttle forward to increase track power. The markings on the throttle approxi- mate the percentage of full power.
  • Page 10 CW-80 is on. Whistle Activates the whistle or horn sound Throttle effect in your Lionel locomotives. Controls your locomotive’s speed. Throw the throttle for- Press WHISTLE to begin the sound; ward to increase locomotive speed, backward to slow it release the button to end it.

  • Page 11: Setting The Accessory Output

    — from crossing signals to coal and lumber loaders — available at your authorized Lionel dealer. When you are ready to operate your new accessory, the CW-80 Transformer allows you to choose how much power your accessory receives with programmable accessory output.

  • Page 12: Powering Your Layout With The Cw-80 Transformer

    Controller operations Powering your layout with the CW-80 Transformer our CW-80 Transformer provides a total output of five amps. The track outputs will deliver all of this power to the track when no accessories are connected to the Transformer. Keep in mind that connected accessories borrow some of this power.

  • Page 13: Running Your Train Set

    Figure 6. Drawbar connection Power up your locomotive with your transformer. Your locomotive is designed to operate on 7-15 volts alternating cur- rent. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable. Note! Do not power your locomotive with direct current (DC) transformers.

  • Page 14: Reverse Unit Procedure

    Locomotive operation Reverse unit procedure he electronic reverse unit inside your Lionel locomotive acts like the transmission in a car. When you apply power to the track, the locomotive moves in the direction specified by the reverse unit—or it sits in neutral, awaiting another power interruption. Power interruptions are the signal that tells the reverse unit to sequence to the next operational state.

  • Page 15: Replacing Your Locomotive's Traction Tire

    Refer to Figure 9. Remove the old traction tire from under the drive rod and slip on the replacement, Lionel part no. 600-0242-206. Replace the spacer, retighten the drive rod nut, and you’re ready to pull that long freight back to the yard.

  • Page 16: Maintaining And Servicing Your Set

    We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do) and avoid getting grease or oil on the locomotive’s wheels, contact rollers, or your track.

  • Page 17: Adding Smoke Fluid To Your 4-4-2 Locomotive's Smoke Generator

    14 for the location of the switch. The smoke generator requires the periodic addition of Lionel smoke fluid in order to func- tion. A small bottle of smoke fluid is included with this set. Press down and unscrew the cap, then add about four drops of fluid directly into the locomotive’s stack.

  • Page 18: Replacing Your 4-4-2 Locomotive's Headlamp

    2. Lift the smoke unit out far enough from the cab to allow lamp extraction. 3. Pull the lamp straight out and replace it with Lionel part no. 600-0161-300, available from your nearest authorized Lionel Service Center or from Lionel Service. Be careful not to twist the lamp or it may break.

  • Page 19: Troubleshooting

    Controller operations Troubleshooting No lights or operation Be sure that the CW-80 Transformer is plugged in and the wires are connected. Train runs, but WHISTLE, BELL, and DIRECTION buttons do not work Check track connections. The track must be connected to the “A” and “U” terminals on the Transformer.

  • Page 20: Limited Warranty/Lionel Service

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
